WPF制作简易串口调试助手

WPF制作简易串口调试助手（上位机部分）

实验环境：vs2013
参考文档：https://docs.microsoft.com/zh-cn/dotnet/api/system.io.ports?view=netframework-4.7.2

下位机部分：https://blog.youkuaiyun.com/weixin_42462552/article/details/85937289

一、窗体程序制作：

（一）UI界面

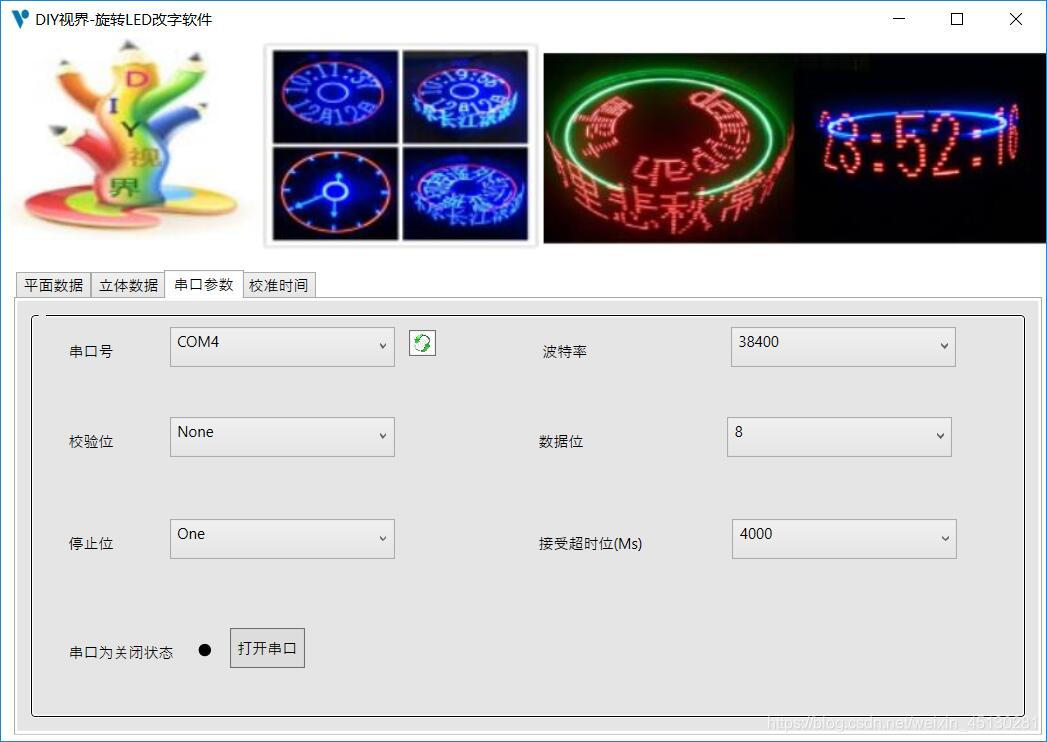

1.首先我们参照网上的串口调试助手将UI界面的大体框架完成

2.其中数据发送区域的文本需要实现自动换行功能，根据网上资料，需要设置TextWrapping的属性为"Wrap"。
3.接下来是对串口号、波特率、校验位等的一些内容设置，其中较复杂的是串口号的设置，需要根据电脑的端口实际情况来确定串口数量，不能同设置波特率属性一般，直接在程序里指定唯一值。

UI界面xml代码

<Window x:Class="WpfApplication7.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        Title="DIY视界-旋转LED改字软件" Height="600" Width="850" WindowState="Maximized" FontFamily="Segoe UI" FontSize="12" Icon="Resources/5.jpg">
<Grid>
    <Grid.RowDefinitions>
        <RowDefinition Height="185*"/>
        <RowDefinition Height="410*"/>
    </Grid.RowDefinitions>
    <Grid Grid.Column="1">
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="200*"/>
            <ColumnDefinition Width="220*"/>
            <ColumnDefinition Width="390*"/>
        </Grid.ColumnDefinitions>
        <Image HorizontalAlignment="Left" Height="169" VerticalAlignment="Top" Width="211" Source="Resources/9.jpg" Margin="0,0,0,0.2"/>
        <Image HorizontalAlignment="Left" Height="169" Margin="2,0,0,-0.2" VerticalAlignment="Top" Width="228" Source="Resources/10.jpg" Grid.Column="1" Grid.ColumnSpan="2"/>
        <Image Grid.Column="2" HorizontalAlignment="Left" Height="169" Margin="0.4,10,-1.8,-10.2" VerticalAlignment="Top" Width="407" Source="Resources/11.jpg"/>
    </Grid>
    <TabControl HorizontalAlignment="Left" Height="372" Margin="10,10.4,0,0" Grid.Row="1" VerticalAlignment="Top" Width="823">
        <TabItem Header="平面数据">
            <Grid Background="#FFE5E5E5">
                <GroupBox Grid.Row="2">
                    <StackPanel Orientation="Horizontal" HorizontalAlignment="Center" Margin="510,270,0,5" Width="291">
                        <Button x:Name="bt_ClearSendFData" Content="清空平面数据" Margin="20,15,20,15" Click="bt_ClearSendFData_Click" Width="92"/>
                        <Button x:Name="bt_sendf" Content="发送平面数据" Margin="20,15,20,15" Click="bt_sendf_Click"  Width="92"/>
                    </StackPanel>
                </GroupBox>
                <GroupBox Header="发送平面数据区"  BorderBrush="Black" Margin="10,10,10,80">
                    <ScrollViewer VerticalScrollBarVisibility="Auto">
                        <TextBox Name="tb_SendFlatData" TextWrapping="Wrap"/>
                    </ScrollViewer>
                </GroupBox>
            </Grid>
        </TabItem>
        <TabItem Header="立体数据">
            <Grid Background="#FFE5E5E5">
                <GroupBox  Grid.Row="2">
                    <StackPanel Orientation="Horizontal" HorizontalAlignment="Center" Margin="510,270,0,5" Width="291">
                        <Button Name="bt_ClearSendSData" Content="清空立体数据" Margin="20,15,20,15" Click="bt_ClearSendSData_Click"/>
                        <Button Name="bt_sends" Content="发送立体数据" Margin="20,15,20,15" Click="bt_sends_Click"/>
                    </StackPanel>
                </GroupBox>
                <GroupBox Header="发送立体数据区"  BorderBrush="Black" Margin="10,10,10,80">
                    <ScrollViewer VerticalScrollBarVisibility="Auto">
                        <TextBox Name="tb_SendStereoData" TextWrapping="Wrap"/>
                    </ScrollViewer>
                </GroupBox>
            </Grid>
        </TabItem>
        <TabItem Header="串口参数">
            <Grid Background="#FFE5E5E5">
                <GroupBox  BorderBrush="Black" Margin="10,10,9.8,10">
                    <StackPanel >
                        <StackPanel Orientation="Horizontal">
                            <TextBlock Text="串口号" Width="auto" Margin="15" Padding="10,6,0,0"/>
                            <ComboBox Name="cb_SerialPortNumber" Width="180" Margin="30,10,0,10"/>
                            <Button  x:Name="btn1" Height="21" HorizontalAlignment="Left" Margin="11,12,0,0" VerticalAlignment="Top" Width="22" Click="btn1_Click">
                                <Button.Background>
                                    <ImageBrush ImageSource="Resources/7.jpg"/>
                                </Button.Background>
                            </Button>
                            <TextBlock Text="波特率" Width="auto" Margin="15" Padding="70,6,0,0"/>
                            <ComboBox x:Name="cb_BaudRate" Width="180" Margin="100,10,0,10" SelectedIndex="8"
