[Plant Simulation] 基于长度对Transporter的控制（TargetPosition函数）

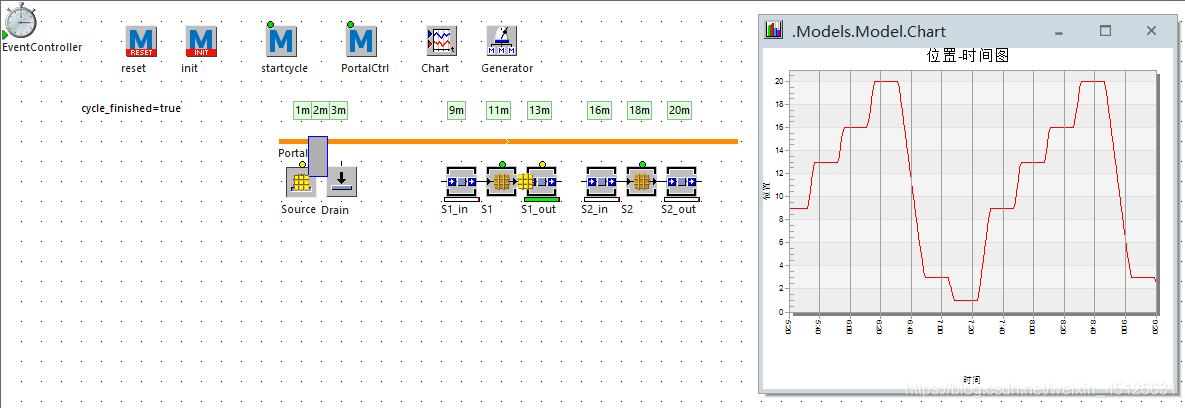

行驶一定距离的Transporter

小车从Source装货，送到S1加工，S1加工后到S2加工，S2加工完成后送到Drain卸货，往复循环

初始化

var tsp:object
tsp:=.MUs.PortalTransporter.create(Portal,1)
tsp.targetPosition:=2
waituntil tsp.targetPosition=-1
cycle_finished:=true
chart.active:=true

TargetPosition函数

<MU-Path>.TargetPosition:real

TargetPosition属性设置Transporter的目标位置，缺省值为 -1 ，到达目标位置的点为Front，位置为FrontPos

.MUs.Transporter:1.TargetPosition := 8
waituntil .MUs.Transporter:1.TargetPosition = -1
print "Destination reached"

循环开始

if cycle_finished and S1_in.empty
	cycle_finished:=false
	PortalCtrl
end

小车控制策略

var tsp:object
tsp:=Portal.cont

tsp.targetPosition:=1
waituntil tsp.targetPosition=-1
wait Portal.loadingtime
source.cont.move(tsp)

tsp.targetPosition:=9
waituntil tsp.targetPosition=-1
wait Portal.loadingtime
tsp.cont.move(S1_in)

tsp.targetPosition:=13
waituntil tsp.targetPosition=-1
if S1_out.occupied
	wait Portal.loadingtime
	S1_out.cont.move(tsp)
end

tsp.targetPosition:=16
waituntil tsp.targetPosition=-1
if tsp.occupied
	wait Portal.loadingtime
	tsp.cont.move(S2_in)
end

tsp.targetPosition:=20
waituntil tsp.targetPosition=-1
if S2_out.occupied
	wait Portal.loadingtime
	S2_out.cont.move(tsp)
end

tsp.targetPosition:=3
waituntil tsp.targetPosition=-1
if tsp.occupied
	wait Portal.loadingtime
	tsp.cont.move(Drain)
end

tsp.targetPosition:=2
waituntil tsp.targetPosition=-1
cycle_finished:=true
