SpringBoot结合WebSocket

本文介绍了如何在SpringBoot项目中集成WebSocket实现消息推送。从创建基础SpringBoot项目开始,逐步讲解了添加WebSocket依赖、配置WebSocket、实现消息处理类、定义Controller以及前端HTML页面的设置。测试过程中发现,当在一个连接窗口发送消息时,其他所有窗口都能接收到,而指定窗口推送数据则没有问题。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

SpringBoot结合WebSocket进行消息推送

一、首先先搭建个简单的SpringBoot项目

在这里插入图片描述
二、在POM文件中将WebSocket的包导入

<!--整合WebSocket-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-websocket</artifactId>
        </dependency>

三、WebSocket的配置类

/**
 * 开启WebSocket,WebSocket的配置类
 */
@Configuration
public class WebSocketConfig {
    @Bean
    public ServerEndpointExporter serverEndpointExporter() {
        return new ServerEndpointExporter();
    }
}

四、WebSocket的消息处理类

/**
 * WebSocket服务类
 */
@ServerEndpoint("/websocket/{cid}")
@Component
public class WebSocketServer {
    //静态变量,用来记录当前在线连接数。应该把它设计成线程安全的。
    private static int onlineCount = 0;
    //concurrent包的线程安全Set,用来存放每个客户端对应的MyWebSocket对象。
    private static CopyOnWriteArraySet<WebSocketServer> webSocketSet = new CopyOnWriteArraySet<WebSocketServer>();
    //与某个客户端的连接会话,需要通过它来给客户端发送数据
    private Session session;
    //接收cid
    private String cid="";

    /**
     * 连接建立成功调用的方法*/
    @OnOpen
    public void onOpen(Session session,@PathParam("cid") String cid) {
        this.session = session;
        webSocketSet.add(this); //加入set中
        addOnlineCount(); //在线数加1
        System.out.println("有新窗口开始监听:"+cid+",当前在线人数为" + getOnlineCount());
        this.cid=cid;
        try {
            sendMessage("连接成功");
        } catch (IOException e) {
            System.out.println("websocket IO异常");
        }
    }

    /**
     * 连接关闭调用的方法
     */
    @OnClose
    public void onClose() {
        webSocketSet.remove(this); //从set中删除
        subOnlineCount(); //在线数减1
        System.out.println("有一连接关闭!当前在线人数为" + getOnlineCount());
    }

    /**
     * 收到客户端消息后调用的方法
     * 客户端发送过来的消息
     * @param message
     * */
    @OnMessage
    public void onMessage(String message, Session session) {
        System.out.println("收到来自窗口"+cid+"的信息:"+message);
        //群发消息
        for (WebSocketServer item : webSocketSet) {
            try {
                item.sendMessage(message);
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
    }

    /**
     * 发生错误
     * @param session
     * @param error
     */
    @OnError
    public void onError(Session session, Throwable error) {
        System.out.println("发生错误");
        error.printStackTrace();
    }

    /**
     * 实现服务器主动推送
     */
    public void sendMessage(String message) throws IOException {
        this.session.getBasicRemote().sendText(message);
    }

    /**
     * 群发自定义消息
     * */
    public static void sendInfo(String message,@PathParam("cid") String cid) throws IOException {
        System.out.println("推送消息到窗口"+cid+",推送内容:"+message);
        for (WebSocketServer item : webSocketSet) {
            try {
                //这里可以设定只推送给这个cid的,为null则全部推送
                if(cid==null) {
                    item.sendMessage(message);
                }else if(item.cid.equals(cid)){
                    item.sendMessage(message);
                }
            } catch (IOException e) {
                continue;
            }
        }
    }

    public static synchronized int getOnlineCount() {
        return onlineCount;
    }

    public static synchronized void addOnlineCount() {
        WebSocketServer.onlineCount++;
    }

    public static synchronized void subOnlineCount() {
        WebSocketServer.onlineCount--;
    }
}

五、Controller定义类

/**
 * 消息推送
 **/
@Controller
@RequestMapping("/checkcenter")
public class CheckCenterController {

    //页面请求
    @GetMapping("/socket/{cid}")
    public ModelAndView socket(@PathVariable String cid) {
        ModelAndView mav=new ModelAndView("socket");
        mav.addObject("cid", cid);
        return mav;
    }

    //推送数据接口
    @ResponseBody
    @RequestMapping("/socket/push/{cid}")
    public String pushToWeb(@PathVariable String cid,String message) {
        try {
            WebSocketServer.sendInfo(message,cid);
        } catch (IOException e) {
            e.printStackTrace();
            return cid+"#"+e.getMessage();
        }
        return cid;
    }
}

六、前端HTML

<!DOCTYPE html>
<html lang="en" xmlns:th="www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>WebSocket</title>
</head>
<body>
<span th:text="${cid}" id="cid">Welcome</span><br/><input id="text" type="text"/>
<button onclick="send()">发送消息</button>
<hr/>
<button onclick="closeWebSocket()" >关闭WebSocket连接</button>
<hr/>
<div id="message"></div>
</body>

<script type="text/javascript">
    var websocket = null;
    //判断当前浏览器是否支持WebSocket
    if ('WebSocket' in window) {
        var cid=document.getElementById("cid");
        websocket = new WebSocket('ws://localhost:8080/websocket/'+cid.innerText);
    }
    else {
        alert('当前浏览器 Not support websocket')
    }
    //连接发生错误的回调方法
    websocket.onerror = function () {
        setMessageInnerHTML("WebSocket连接发生错误");
    };
    //连接成功建立的回调方法
    websocket.onopen = function () {
        setMessageInnerHTML("WebSocket连接成功");
    }
    //接收到消息的回调方法
    websocket.onmessage = function (event) {
        setMessageInnerHTML(event.data);
    }
    //连接关闭的回调方法
    websocket.onclose = function () {
        setMessageInnerHTML("WebSocket连接关闭");
    }
    //监听窗口关闭事件,当窗口关闭时,主动去关闭websocket连接,防止连接还没断开就关闭窗口,server端会抛异常。
    window.onbeforeunload = function () {
        closeWebSocket();
    }
    //将消息显示在网页上
    function setMessageInnerHTML(innerHTML) {
        document.getElementById('message').innerHTML += innerHTML + '<br/>';
    }
    //关闭WebSocket连接
    function closeWebSocket() {
        websocket.close();
    }
    //发送消息
    function send() {
        var message = document.getElementById('text').value;
        websocket.send(message);
    }
</script>
</html>

测试
在这里插入图片描述一开始我打开一个33号窗口

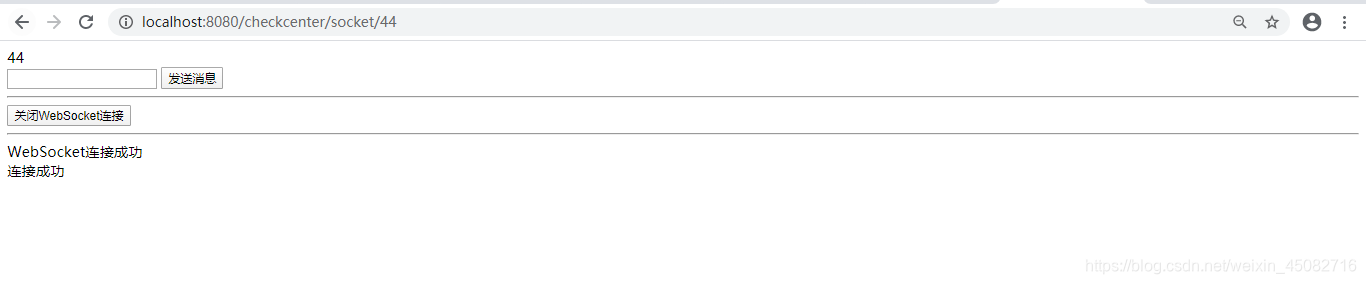

在这里插入图片描述再开一个44号窗口
在这里插入图片描述
有新窗口连接会显示
在这里插入图片描述在33号窗口发送消息,我那个44号窗口也会获取(这个问题我没解决)
在这里插入图片描述我指定窗口进行数据推送就没有问题
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
