来吧！OpenStack T版服务组件--Keystone身份服务









[root@ct ~]# yum -y install openstack-keystone httpd mod_wsgi		//mod_wsgi包的作用是让apache能够代理python程序的组件；openstack的各个组件，包括API都是用python写的，但访问的是apache，apache会把请求转发给python去处理,这些包只安装在controler节点

[root@ct ~]# cp -a /etc/keystone/keystone.conf{,.bak}
[root@ct ~]# grep -Ev "^$|#" /etc/keystone/keystone.conf.bak > /etc/keystone/keystone.conf
[root@ct ~]# cat /etc/keystone/keystone.conf
[DEFAULT]
[application_credential]
[assignment]
[auth]
[cache]
[catalog]
[cors]
[credential]
[database]
[domain_config]
[endpoint_filter]
[endpoint_policy]
[eventlet_server]
[federation]
[fernet_receipts]
[fernet_tokens]
[healthcheck]
[identity]
[identity_mapping]
[jwt_tokens]
[ldap]
[memcache]
[oauth1]
[oslo_messaging_amqp]
[oslo_messaging_kafka]
[oslo_messaging_notifications]
[oslo_messaging_rabbit]
[oslo_middleware]
[oslo_policy]
[policy]
[profiler]
[receipt]
[resource]
[revoke]
[role]
[saml]
[security_compliance]
[shadow_users]
[token]
[tokenless_auth]
[totp]
[trust]
[unified_limit]
[wsgi]



[root@ct ~]# su -s /bin/sh -c "keystone-manage db_sync" keystone

[root@ct ~]# keystone-manage fernet_setup --keystone-user keystone --keystone-group keystone
[root@ct ~]# keystone-manage credential_setup --keystone-user keystone --keystone-group keystone

[root@ct ~]#  keystone-manage bootstrap --bootstrap-password ADMIN_PASS \
> --bootstrap-admin-url http://ct:5000/v3/ \
> --bootstrap-internal-url http://ct:5000/v3/ \
> --bootstrap-public-url http://ct:5000/v3/ \
> --bootstrap-region-id RegionOne		//指定一个区域名称
//admin-url是管理网，用于管理虚拟机的扩容或删除，业务量大时，会造成无法通过openstack的控制端扩容虚拟机，所以需要一个管理网(如公有云内部openstack管理网络)
//internal-url是内部网络，进行数据传输，如虚拟机访问存储和数据库、zookeeper等中间件，这个网络是不能被外网访问的，只能用于企业内部访问
//public-url是共有网络，可以给用户访问的(如公有云)
//5000端口是keystone提供认证的端口
//多节点的话需要在haproxy服务器上添加一条listen，各种网络的url需要指定controler节点的域名，一般是haproxy的vip的域名（高可用模式）

[root@ct ~]# echo "ServerName controller" >> /etc/httpd/conf/httpd.conf



[root@ct ~]#  ln -s /usr/share/keystone/wsgi-keystone.conf /etc/httpd/conf.d/
	//安装完mod_wsgi包后，会生成 wsgi-keystone.conf 这个文件，文件中配置了虚拟主机及监听了5000端口，mod_wsgi就是python的网关



[root@ct ~]# systemctl enable httpd
Created symlink from /etc/systemd/system/multi-user.target.wants/httpd.service to /usr/lib/systemd/system/httpd.service.
[root@ct ~]# systemctl start httpd
[root@ct ~]# netstat -antp | grep 80
tcp        0      0 192.168.100.1:2380      0.0.0.0:*               LISTEN      37679/etcd
tcp        0      0 127.0.0.1:25            0.0.0.0:*               LISTEN      9805/master
tcp6       0      0 :::80                   :::*                    LISTEN      39621/httpd
tcp6       0      0 ::1:25                  :::*                    LISTEN      9805/master

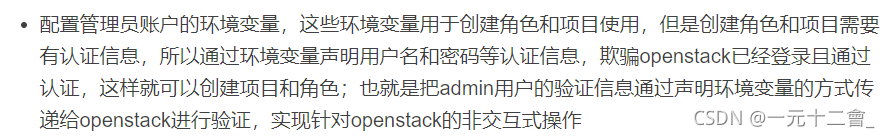

[root@ct ~]# cat >> ~/.bashrc << EOF
export OS_USERNAME=admin			//控制台登陆用户名
export OS_PASSWORD=ADMIN_PASS		//控制台登陆密码
export OS_PROJECT_NAME=admin
export OS_USER_DOMAIN_NAME=Default
export OS_PROJECT_DOMAIN_NAME=Default
export OS_AUTH_URL=http://ct:5000/v3
export OS_IDENTITY_API_VERSION=3
export OS_IMAGE_API_VERSION=2
EOF

[root@ct ~]# source ~/.bashrc



[root@ct ~]# openstack user list
+----------------------------------+-------+
| ID                               | Name  |
+----------------------------------+-------+
| 207beb31d1a34ead95a25a4df847500e | admin |
+----------------------------------+-------+



[root@ct ~]# openstack project create --domain default --description "Service Project" service
+-------------+----------------------------------+
| Field       | Value                            |
+-------------+----------------------------------+
| description | Service Project                  |
| domain_id   | default                          |
| enabled     | True                             |
| id          | 8db5b6617b954d80b3c200863e76ca4f |
| is_domain   | False                            |
| name        | service                          |
| options     | {}                               |
| parent_id   | default                          |
| tags        | []                               |
+-------------+----------------------------------+



[root@ct ~]# openstack role create user
+-------------+----------------------------------+
| Field       | Value                            |
+-------------+----------------------------------+
| description | None                             |
| domain_id   | None                             |
| id          | 3d6223ec9955431b88f2af47b09425ba |
| name        | user                             |
| options     | {}                               |
+-------------+----------------------------------+
[root@ct ~]# openstack role list
+----------------------------------+--------+
| ID                               | Name   |
+----------------------------------+--------+
| 3d6223ec9955431b88f2af47b09425ba | user   |
| 6ea78d6d18344aed9e86ba615bdc787d | member |
| 98472db13fb040f6b6bf6f2e295bdebc | reader |
| a294e368d55149a7bcc0e2c6ae833656 | admin  |
+----------------------------------+--------+
//admin为管理员
//member为 租户
//user：用户



[root@ct ~]# openstack token issue
+------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| Field      | Value                                                                                                                                                                                   |
+------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| expires    | 2021-08-24T15:47:41+0000                                                                                                                                                                |
| id         | gAAAAABhJQaN7F-3rxqs9lzuWeUhAAdiOAPA5rJJFwE93ZBGsk4WlTSCjg8Tag7Z-_BG3JIk_5AJWeAxtbg85DzrJwtRN8bq3UoLyKFfPo4VHp9B89dgL2obbzzw1LhiPZkuh_4lK5twDkph8bgZKlbMJQ_2ggUhC_yNA3I-CPjnUQWpxARzoF8 |
| project_id | 2b924d5597424a75b3ff5283c980b44c                                                                                                                                                        |
| user_id    | 207beb31d1a34ead95a25a4df847500e                                                                                                                                                        |
+------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
