Dlink安装注意点

1.Mysql的版本、鉴权、赋权
mysql8安装参考Mysql安装
Mysql GPG密钥过期问题
2.plugins jar包的选择 – 重要

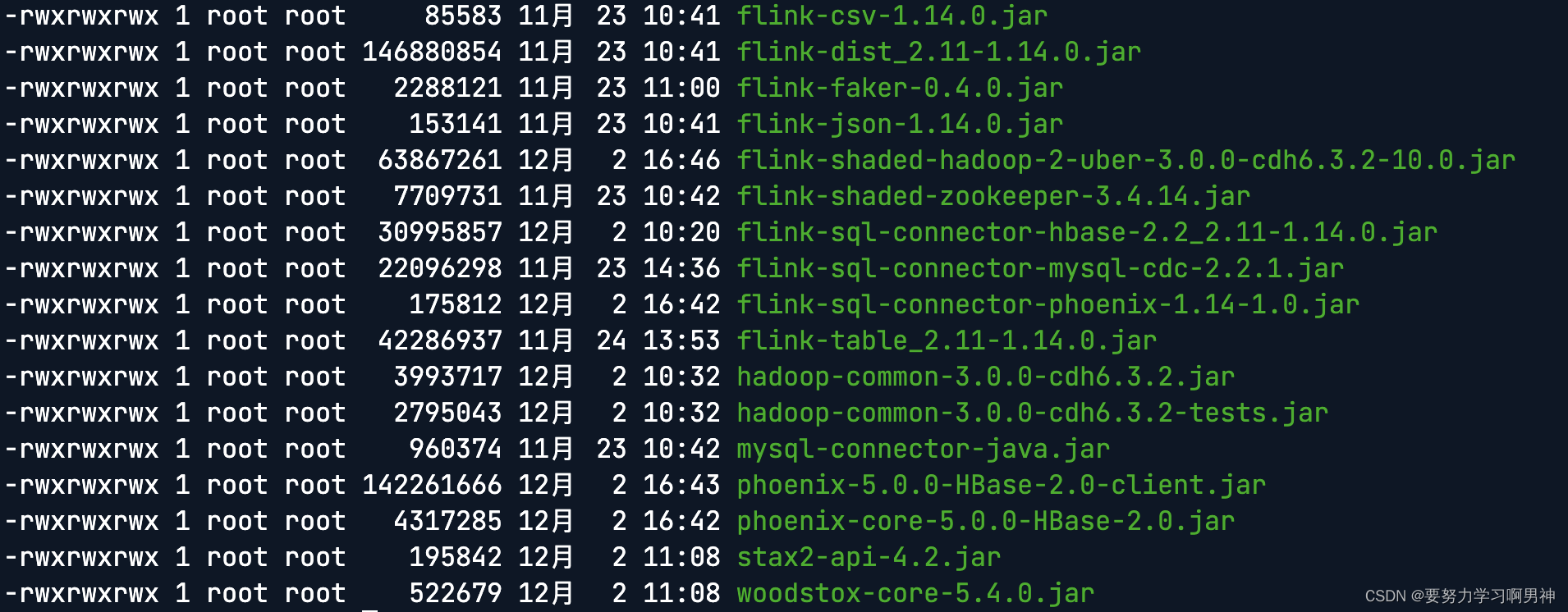

参考上图
其中flink-sql-connect 是连通包
flink-table 是主包
stax、woodstox是依赖的补充需要添加
mysql-connect-java.jar Version= 8.0.31
3.conf文件更改
下面展示一些 比较重要的配置。

spring:
  datasource:
    url: jdbc:mysql://172.18.1.16:3306/dlink?useUnicode=true&characterEncoding=UTF-8&autoReconnect=true&useSSL=false&zeroDateTimeBehavior=convertToN
ull&serverTimezone=Asia/Shanghai&allowPublicKeyRetrieval=true
    username: dlink
    password: dlink
    driver-class-name: com.mysql.cj.jdbc.Driver
  application:
    name: dlink
  mvc:
    pathmatch:
      matching-strategy: ant_path_matcher
  main:
    allow-circular-references: true

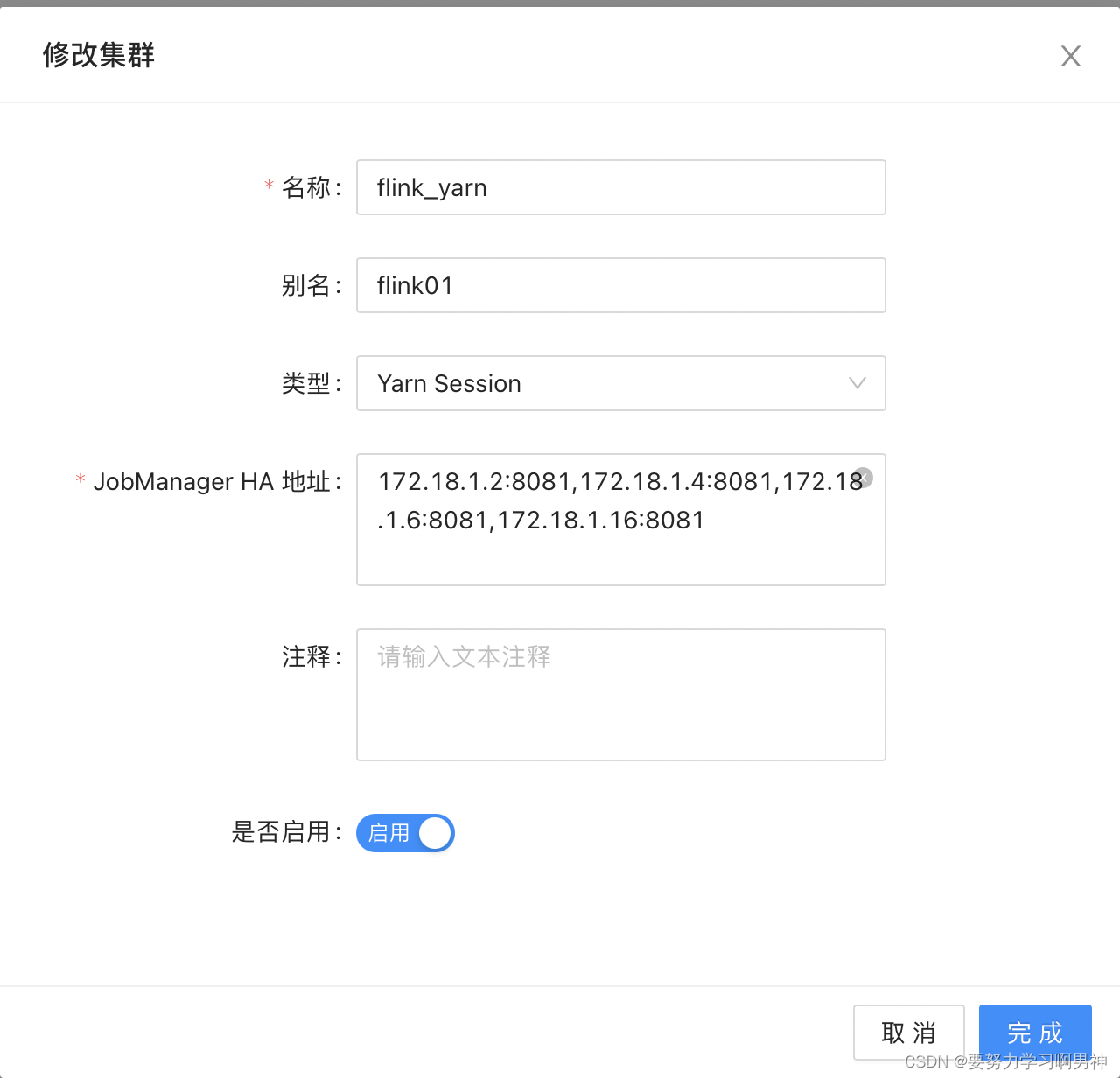

配置

开启后直接配置集群实例即可

例子

下面展示一些 mysql随机数生成。

CREATE TABLE orders (
    order_uid  BIGINT,
    product_id BIGINT,
    price      DECIMAL(32, 2),
    order_time TIMESTAMP(3)
) WITH (
    'connector' = 'datagen'
);
SELECT * FROM orders;

下面展示一些 mysqlCDC - hbase。

-- Flink SQL  开启心跳检查
SET execution.checkpointing.interval = 3s;

CREATE TABLE product_view_source (
`id` int,
`user_id` int,
`product_id` int,
`server_id` int,
`duration` int,
`times` string,
`time` timestamp,
PRIMARY KEY (`id`) NOT ENFORCED
) WITH (
  'connector' = 'mysql-cdc',
  'hostname' = '172.18.1.16',
  'port' = '3306',
  'username' = 'root',
  'database-name' = 'test',
  'table-name' = 'product_view'
);
-- select * from product_view_source;

CREATE TABLE product_view_hbase (
 rowkey INT,
 family1 ROW<user_id INT, product_id INT, server_id INT, duration INT>,
 PRIMARY KEY (rowkey) NOT ENFORCED
) WITH (
 'connector' = 'hbase-2.2',
 'table-name' = 'test.cdc_test01',
 'zookeeper.quorum' = '172.18.1.16:2181',
 'zookeeper.znode.parent' = '/hbase-unsecure'
);

insert into product_view_hbase select id as rowkey, ROW(user_id, product_id, server_id, duration) from product_view_source;

select * from  product_view_hbase;

下面展示一些 hbase单独测试。

CREATE TABLE product_view_hbase (
 rowkey INT,
 f ROW<age STRING, name STRING>,
 PRIMARY KEY (rowkey) NOT ENFORCED
) WITH (
 'connector' = 'hbase-2.2',
 'table-name' = 'iteblog_namespace:mytable',
 'zookeeper.quorum' = '172.18.1.16:2181',
 'zookeeper.znode.parent' = '/hbase-unsecure'
);
select rowkey,f.age,f.name from product_view_hbase;

配置hbase与phoenix直接映射的时候，需要注意
hbase 的 命名空间：表名与phoenix的租户名：表名保持一致
