前面我们介绍了配置RHCS–Luci/Ricci实现web高可用集群，接下来我们介绍配置磁盘文件共享

一. 环境需求
两台rhe6.5的虚拟机
server1配置luci集群管理界面，用来配置和管理集群
server1.server2作为集群节点
server3配置共享存储

二. 搭建步骤

server3,server1,server2上安装软件

 server3上安装
  yum install -y scsi-*

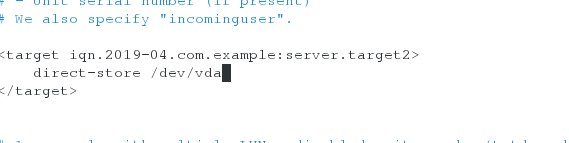

 vim /etc/tgt/targets.conf     #编写配置文件，设置磁盘共享
  /etc/init.d/tgtd start			##打开服务

在这里插入图片描述

 server2和server3
     1  yum install -y iscsi-*
    2  iscsiadm -m discovery -t st -p 172.25.61.3  ##发现设备
    3  iscsiadm -m node -l				##激活设备

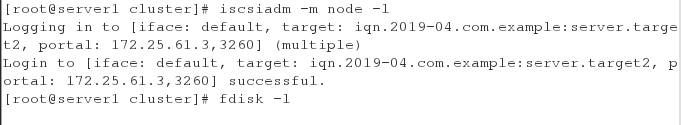

在这里插入图片描述

server1和server上安装mysql

yum install -y mysql-server

server1上将共享的设备格式化，server2和server3上更改mysql的权限

 fdisk -l      ##查看设备
 Disk /dev/sdb: 8589 MB, 8589934592 bytes
 64 heads, 32 sectors/track, 8192 cylinders
 Units = cylinders of 2048 * 512 = 1048576 bytes
 Sector size (logical/physical): 512 bytes / 512 bytes
 I/O size (minimum/optimal): 512 bytes / 512 bytes
 Disk identifier: 0x00000000
  mkfs.ext4 /dev/sdb    ##格式化
   mount /dev/sdb /var/lib/mysql/
  chown mysql.mysql /var/lib/mysql/
 ll -d /var/lib/mysql/
 [root@server2 ~]#  ll -d /var/lib/mysql/
 drwxr-xr-x 5 mysql mysql 4096 Apr 25 00:35 /var/lib/mysql/
 [root@server1 mysql]# ll -d /var/lib/mysql/
 drwxr-xr-x 3 mysql mysql 4096 Apr 25 00:31 /var/lib/mysql/

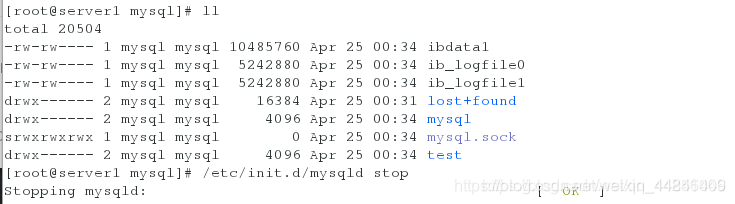

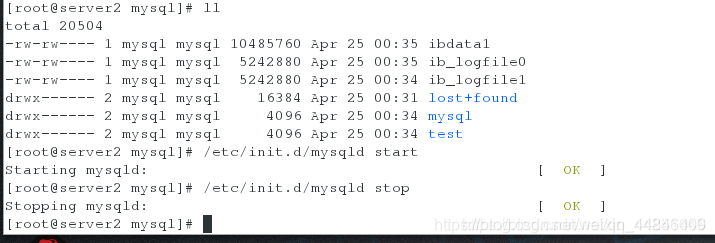

测试mysql正常启动和关闭

 [root@server2 mysql]# /etc/init.d/mysqld start
 Starting mysqld:                                           [  OK  ]
 [root@server2 mysql]# /etc/init.d/mysqld stop
 Stopping mysqld:                                           [  OK  ]

在这里插入图片描述

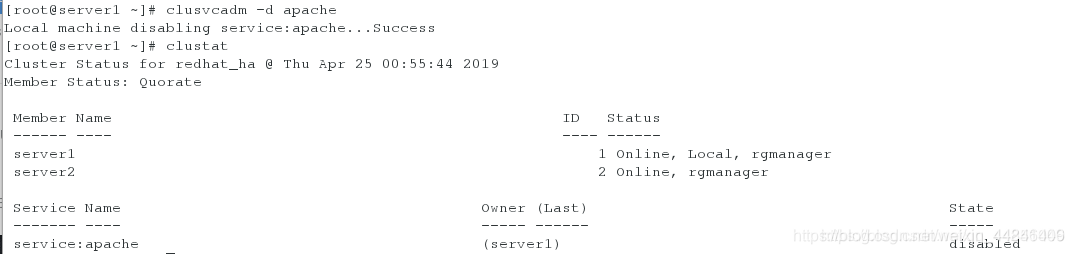

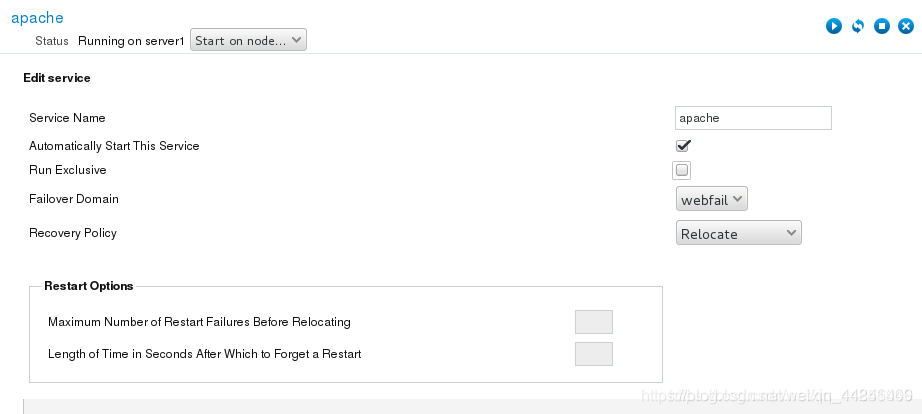

由于之前的apache还存在，先把资源独占去掉,把服务组资源停掉

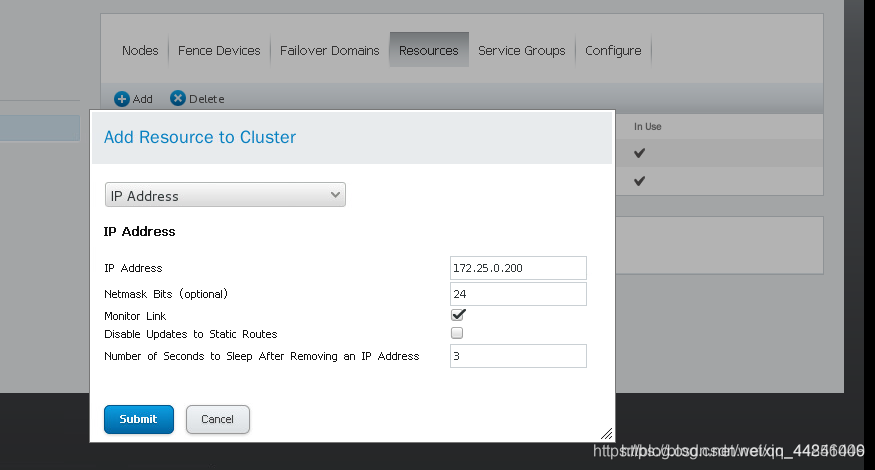

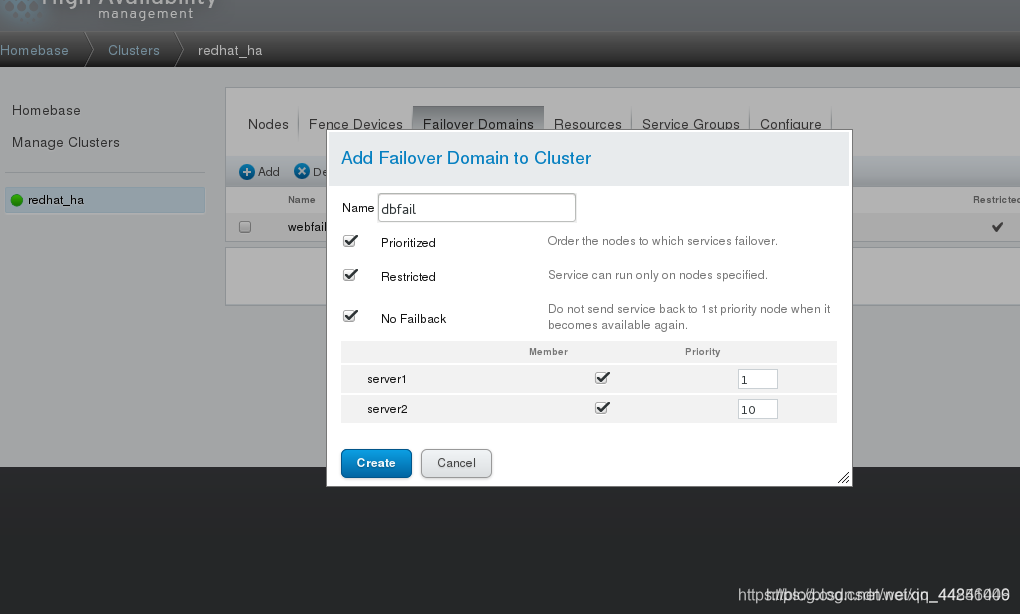

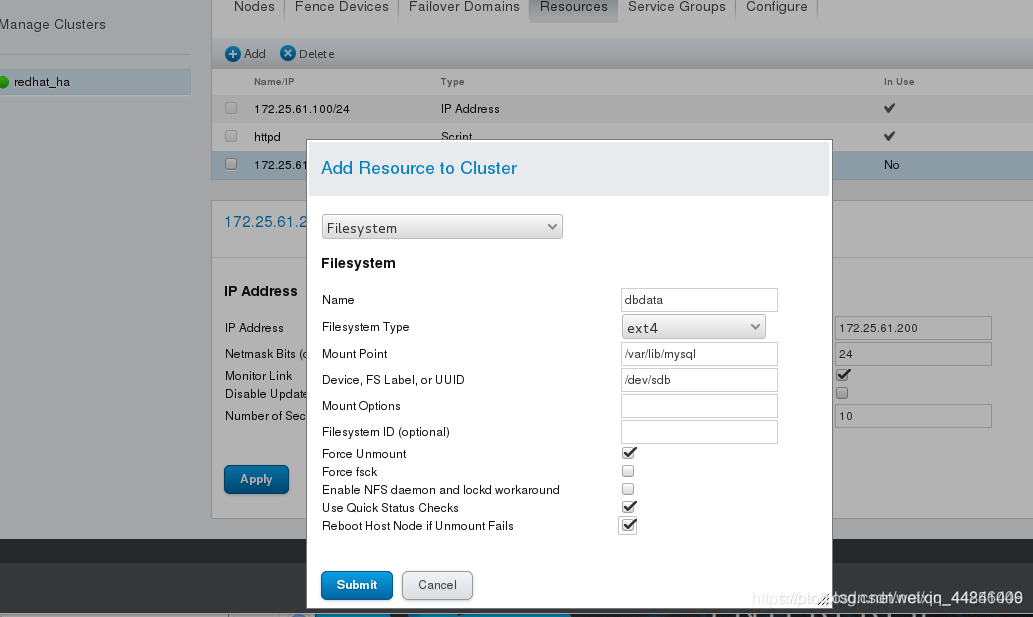

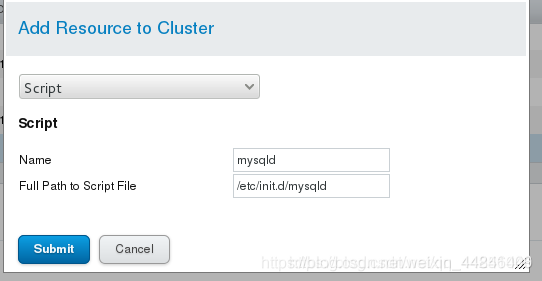

浏览器配置

在这里插入图片描述

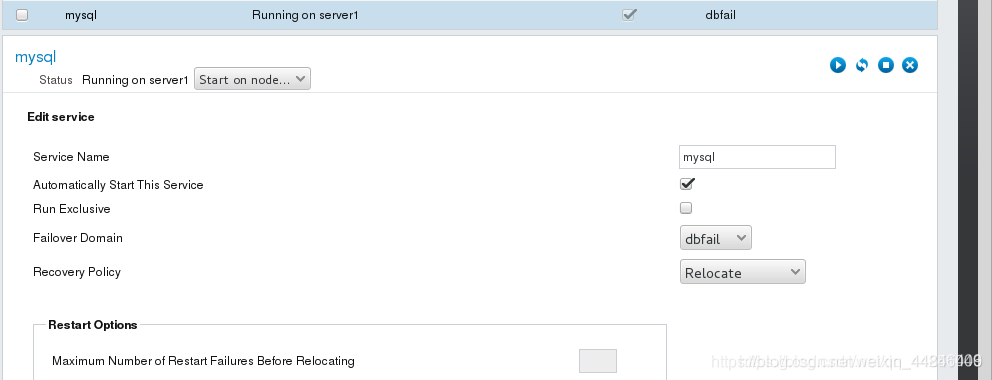

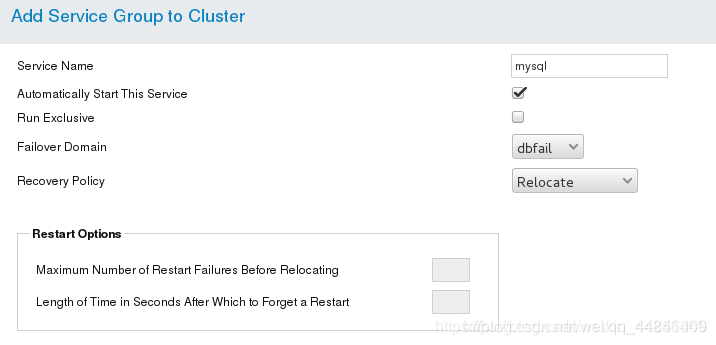

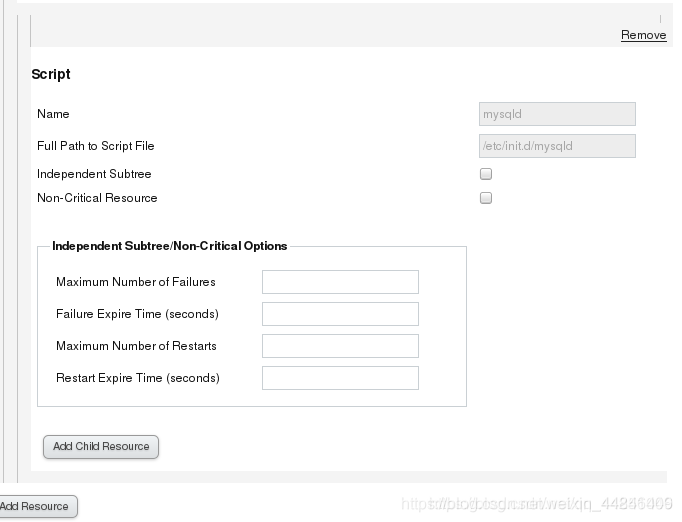

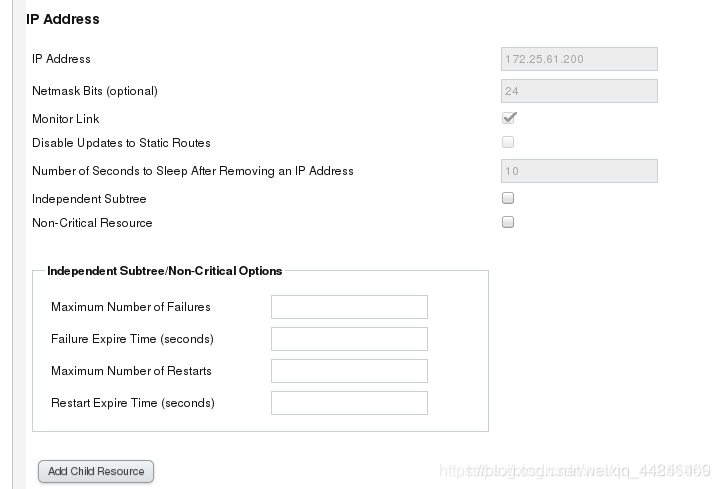

server Groups中添加sql服务组

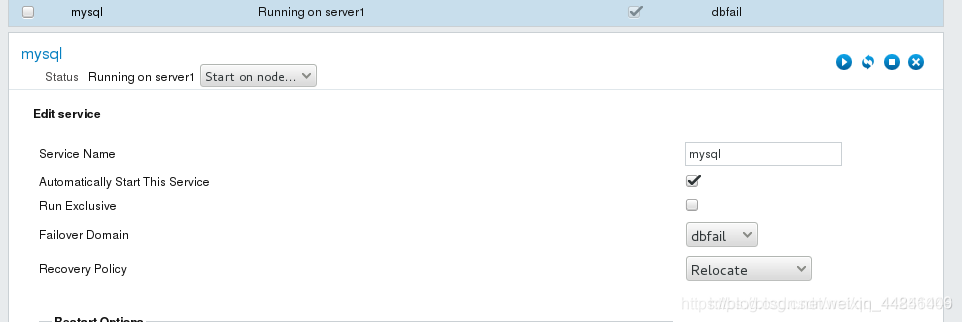

启动mysql服务

测试

 [root@server1 ~]# clustat
 Cluster Status for redhat_ha @ Thu Apr 25 01:19:14 2019
 Member Status: Quorate

  Member Name                                                  ID   Status
  ------ ----                                                  ---- ------
  server1                                                          1 Online, Local, rgmanager
  server2                                                          2 Online, rgmanager

  Service Name                                        Owner (Last)                                        State
  ------- ----                                        ----- ------                                        -----
  service:apache                                      (server1)                                           disabled
  service:mysql                                       server2                                             started
 [root@server1 ~]#


 [root@server2 ~]# mysql -p
 Enter password:
 Welcome to the MySQL monitor.  Commands end with ; or \g.
 Your MySQL connection id is 3
 Server version: 5.1.71 Source distribution

 Copyright (c) 2000, 2013, Oracle and/or its affiliates. All rights reserved.

 Oracle is a registered trademark of Oracle Corporation and/or its
 affiliates. Other names may be trademarks of their respective
 owners.

 Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

 mysql> show database;
 ERROR 1064 (42000): You have an error in your SQL syntax; check the manual that corresponds to your MySQL server version for the right syntax to use near 'database' at line 1
 mysql> show databases;
 +---------------------+
 | Database            |
 +---------------------+
 | information_schema  |
 | #mysql50#lost+found |
 | mysql               |
 | test                |
 +---------------------+
 4 rows in set (0.00 sec)

 mysql> quit
 Bye


 [root@server2 ~]# clusvcadm -e apache   ##启动apache
 [root@server2 ~]# clusvcadm -r apache -m server1   ##将apache服务组切换到server1

在这里插入图片描述

[root@server2 ~]# clustat
Cluster Status for redhat_ha @ Thu Apr 25 01:32:16 2019
Member Status: Quorate

 Member Name                                                  ID   Status
 ------ ----                                                  ---- ------
 server1                                                          1 Online, rgmanager
 server2                                                          2 Online, Local, rgmanager

 Service Name                                        Owner (Last)                                        State
 ------- ----                                        ----- ------                                        -----
 service:apache                                      (server1)                                           disabled
 service:mysql                                       (server2)                                           disabled

设置CLVM服务开机自启动

 [root@server1 ~]# cat /etc/lvm/lvm.conf | grep locking_type
 locking_type = 3
 # NB. This option only affects locking_type = 1 viz. local file-based
 # The external locking library to load if locking_type is set to 2.
 [root@server1 ~]# lvmconf --enable-cluster

划分物理卷，卷组，逻辑卷

 pvcreate /dev/sdb
 vgcreate clustervg /dev/sdb
  lvcreate -L 4G -n demo clustervg
 [root@server1 ~]# lvs
   LV      VG        Attr       LSize   Pool Origin Data%  Move Log Cpy%Sync Convert
   lv_root VolGroup  -wi-ao----   8.54g
   lv_swap VolGroup  -wi-ao---- 992.00m
   demo    clustervg -wi-a-----   4.00g

格式化逻辑卷为GFS2集群文件系统

 [root@server1 ~]# mkfs.gfs2 -t redhat_ha:mygfs2 -p lock_dlm -j 2 /dev/clustervg/demo
 -t ##
 This will destroy any data on /dev/clustervg/demo.
 It appears to contain: symbolic link to `../dm-2'

 Are you sure you want to proceed? [y/n] y

 Device:                    /dev/clustervg/demo
 Blocksize:                 4096
 Device Size                4.00 GB (1048576 blocks)
 Filesystem Size:           4.00 GB (1048575 blocks)
 Journals:                  2
 Resource Groups:           16
 Locking Protocol:          "lock_dlm"
 Lock Table:                "redhat_ha:mygfs2"
 UUID:                      14354369-3ca3-afbc-c7c2-e006bd041615

 [root@server1 ~]# gfs2_tool sb /dev/clustervg/demo all
   mh_magic = 0x01161970
   mh_type = 1
   mh_format = 100
   sb_fs_format = 1801
   sb_multihost_format = 1900
   sb_bsize = 4096
   sb_bsize_shift = 12
   no_formal_ino = 2
   no_addr = 23
   no_formal_ino = 1
   no_addr = 22
   sb_lockproto = lock_dlm
   sb_locktable = redhat_ha:mygfs2
   uuid = 14354369-3ca3-afbc-c7c2-e006bd041615
  mkfs.gfs2
  	-j #: 指定日志区域的个数，有几个就能够被几个节点所挂载；
  	-J #: 指定日志区域的大小，默认为128MB;
  	-p {lock_dlm|lock_nolock}：所使用的锁协议名称，集群需要使用lock_dlm；
  	-t <name>: 锁表的名称
  			   格式为clustername:fsname, clustername为当前节点所在的集群的名称
  			   这也是为什么要使用RHCS；fsname文件系统名称，自定义，要在当前集群惟一，这也叫锁表名称，表明是分布式锁的范围

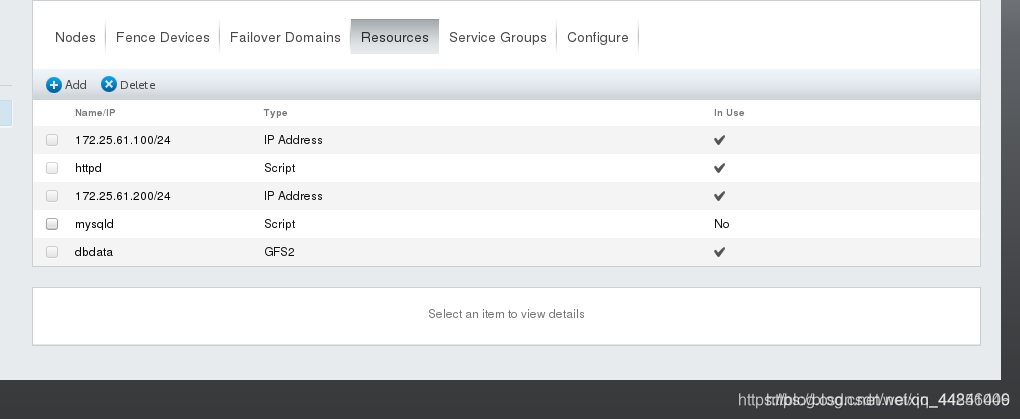

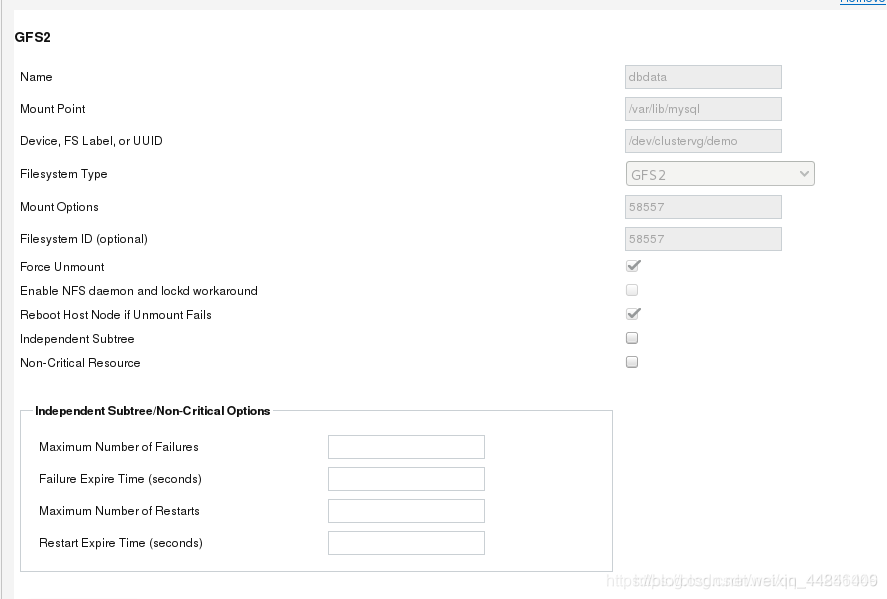

挂载设备

  mount /dev/clustervg/demo /var/lib/mysql/
  chown mysql.mysql /var/lib/mysql/

 [root@server1 ~]# blkid
 /dev/sda1: UUID="4b8f9752-ef3c-47e6-813a-f647f7bfa318" TYPE="ext4"
 /dev/sda2: UUID="lqGEmr-XkCp-DUOw-j9Ub-vhH8-u8s7-ccfVfG" TYPE="LVM2_member"
 /dev/mapper/VolGroup-lv_root: UUID="5b621447-7a69-47ee-a135-42145ab6dd35" TYPE="ext4"
 /dev/mapper/VolGroup-lv_swap: UUID="901affb4-d7b8-465d-9c33-05d048acce68" TYPE="swap"
 /dev/mapper/clustervg-demo: LABEL="redhat_ha:mygfs2" UUID="14354369-3ca3-afbc-c7c2-e006bd041615" TYPE="gfs2"
 /dev/sdb: UUID="MTLgBz-XZ7z-CcWM-fvhg-8tAo-x8rq-EUPvK8" TYPE="LVM2_member"
 [root@server1 ~]# /etc/init.d/mysqld start
 Initializing MySQL database:  Installing MySQL system tables...

测试多点挂载
server1

 [root@server1 ~]# cd /var/lib/mysql/
 [root@server1 mysql]# cp /etc/passwd .
 [root@server1 mysql]# ls
 ibdata1 ib_logfile0 ib_logfile1 mysql mysql.sock passwd test
 [root@server1 mysql]# ls
 ibdata1 ib_logfile0 ib_logfile1 mysql mysql.sock passwd test

server2

[root@server2 ~]# cd /var/lib/mysql/
[root@server2 mysql]# ls
ibdata1 ib_logfile0 ib_logfile1 mysql mysql.sock passwd test
[root@server2 mysql]#

设置永久挂载

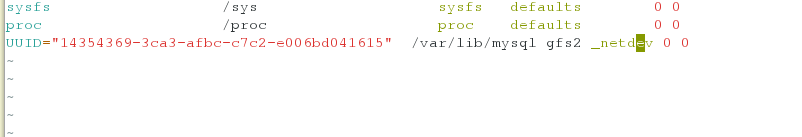

vim /etc/fstab
在这里插入图片描述

 [root@server1 mysql]# umount /var/lib/mysql/
 umount: /var/lib/mysql: device is busy.
         (In some cases useful info about processes that use
          the device is found by lsof(8) or fuser(1))
 [root@server1 mysql]# mount -a
 [root@server1 mysql]# df
 Filesystem                   1K-blocks    Used Available Use% Mounted on
 /dev/mapper/VolGroup-lv_root   8813300 1113412   7252196  14% /
 tmpfs                           510200   31816    478384   7% /dev/shm
 /dev/sda1                       495844   33431    436813   8% /boot
 /dev/mapper/clustervg-demo     4193856  286520   3907336   7% /var/lib/mysql
