#####Docker原生网络#####
1.docker 安装后会自动生成3种网络：bridge 、host 、none
[root@server4 docker]# docker network ls
NETWORK ID NAME DRIVER SCOPE
91c7c4709d58 bridge bridge local
de8ea88b39f4 host host local
1aa09618140e none null local
bridge类型：
安装docker自动生成的bridge类型docker0,新建的容器会自动桥接到这个接口
[root@server4 docker]# ip addr show ##默认生成的docker0,默认使用bridge类ing
3: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN
link/ether 02:42:3d:1d:de:8b brd ff:ff:ff:ff:ff:ff
inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0 ##默认网段172.17.0.1/16
valid_lft forever preferred_lft forever
之后新建的容器就会以单调递增的方式分配ip
[root@server4 ~]# docker run -d nginx ##运行nginx容器
6c12b1d008cae73622ff7438d49cb3b6bf2b5a36ab11a627712fd0595797e064
[root@server4 ~]# docker ps ##查看docker容器进程
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
6c12b1d008ca nginx "nginx -g 'daemon of…" 51 seconds ago Up 46 seconds 80/tcp awesome_pike
[root@server4 ~]# docker inspect 6c12b1d008ca ##通过容器名或容器id进行操作
"Gateway": "172.17.0.1", ##网关
"IPAddress": "172.17.0.2", ##ip地址，
"IPPrefixLen": 16,
"IPv6Gateway": "",
"GlobalIPv6Address": "",
"GlobalIPv6PrefixLen": 0,
"MacAddress": "02:42:ac:11:00:02",
"DriverOpts": null
[root@server4 ~]# brctl show
bridge name bridge id STP enabled interfaces
docker0 8000.02423d1dde8b no veth43b78a0 ##已自动桥接到docker0上
[root@server4 ~]# docker run -it --name vm2 ubuntu #再运行一个vm2容器，
root@95b6fb0e0dda:/# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
6: eth0@if7: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
link/ether 02:42:ac:11:00:03 brd ff:ff:ff:ff:ff:ff
inet 172.17.0.3/16 brd 172.17.255.255 scope global eth0 #分配的ip地址172.17.0.3/16
valid_lft forever preferred_lft forever
- 桥接模式下容器没有一个公有ip,只有宿主机可以直接访问（外部主机不可见）
- 容器可以通过宿主机的NAT规则后访问外网（net.ipv4.ip_forward=1）
在创建容器时操作系统会自动生成虚拟网络对（一端连接到nginx的网络栈（eth0）,另一端连接到docker0；如此就可以实现nginx与docker0互通），docker0再通过ip转发到真实物理网卡上与外部主机连接
host类型：host网络模式在容器创建时需指定–network=host
host模式可以让容器共享宿主机网络栈.（外部主机与容器可以直接通信，但容器的网络缺少隔离性，宿主机和容器的网络资源不能冲突）
[root@server4 ~]# docker run -it --name vm1 --network host ubuntu ##运行一个host网络模式的容器
root@server4:/# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
link/ether 52:54:00:3b:25:e2 brd ff:ff:ff:ff:ff:ff
inet 172.25.46.4/24 brd 172.25.46.255 scope global eth0
valid_lft forever preferred_lft forever
inet6 fe80::5054:ff:fe3b:25e2/64 scope link
valid_lft forever preferred_lft forever
3: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default
link/ether 02:42:3d:1d:de:8b brd ff:ff:ff:ff:ff:ff
inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0 ##在当前容器内的ip与宿主机的一致
valid_lft forever preferred_lft forever
inet6 fe80::42:3dff:fe1d:de8b/64 scope link
valid_lft forever preferred_lft forever
root@server4:/# exit crtl + d ##退出并停止运行容器
[root@server4 ~]# docker ps ##docker 没有容器运行的进程
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
[root@server4 ~]# ip addr ##查看宿主机的ip
3: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN
link/ether 02:42:3d:1d:de:8b brd ff:ff:ff:ff:ff:ff
inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0
valid_lft forever preferred_lft forever
inet6 fe80::42:3dff:fe1d:de8b/64 scope link
valid_lft forever preferred_lft forever
[root@server4 ~]# docker start vm1 #打开容器
vm1
[root@server4 ~]# docker container attach vm1 #连接容器vm1
root@server4:/# ip addr3: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default
link/ether 02:42:3d:1d:de:8b brd ff:ff:ff:ff:ff:ff
inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0
valid_lft forever preferred_lft forever
inet6 fe80::42:3dff:fe1d:de8b/64 scope link
valid_lft forever preferred_lft foreve
none模式：禁用网络功能（没有ip地址和网络接口），只有lo接口，在创建容器时 --network=none指定
作用：不需要外网连接，可存放的数据较敏感
[root@server4 ~]# docker run -it --name vm2 --network none ubuntu
root@fe51f4141f76:/# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo #只有lo 回环接口
valid_lft forever preferred_lft forever
####Docker自定义网络###
自定义网络模式，docker提供了三种自定义网络驱动：
- bridge #bridge驱动类似于默认的bridge网络模式，但新增加了一些功能（DNS解析容器名称到ip地址）
- overlay
- macvlan
overlay 和macvlan用于创建跨主机网络，bridge针对单机网络 - 建议使用自定义网络来控制哪些容器可以互相通信，
1.自定义网络的bridge
[root@server4 ~]# docker network create -d bridge my_net1 ##创建自定义网络bridge
2bb11ae5b66c93c32ef6e68ae2690f23b052f436ea91517f41b9c8227e65ead4
[root@server4 ~]# docker network ls
NETWORK ID NAME DRIVER SCOPE
91c7c4709d58 bridge bridge local
de8ea88b39f4 host host local
2bb11ae5b66c my_net1 bridge local #自定义的bridge网络模式
1aa09618140e none null local
[root@server4 ~]# docker run -it --name vm1 --network my_net1 ubuntu #用自定义的bridge运行一个容纳vm1
root@c7822672ee80:/# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
9: eth0@if10: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
link/ether 02:42:ac:12:00:02 brd ff:ff:ff:ff:ff:ff
inet 172.18.0.2/16 brd 172.18.255.255 scope global eth0 #分配的ip 172.18.0.2/16
valid_lft forever preferred_lft forever
root@c7822672ee80:/# [root@server4 ~]# #ctrl +pq 退出但保持容器运行
[root@server4 ~]# docker ps -a #查看进程
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
c7822672ee80 ubuntu "/bin/bash" 5 minutes ago Up 5 minutes vm1
[root@server4 ~]# docker network inspect my_net1 # 查看子网信息
"c7822672ee80879fafa6dea2a8a18574cd0b5dc6b7ac64a67d57c8015bb07e4e": {
"Name": "vm1",
"EndpointID": "2fd4b2bfb4b4a24da88e75417928d798cddc10c58fb4650b074994e43aa861f8",
"MacAddress": "02:42:ac:12:00:02",
"IPv4Address": "172.18.0.2/16", #子网也是递增方式分配，
"IPv6Address": ""
}
},
"Options": {},
"Labels": {}
}
]
不同容器可以互相通信
[root@server4 ~]# docker run -it --name vm1 --network my_net1 ubuntu
root@af3e3272ff8a:/# ping vm1
PING vm1 (172.18.0.2) 56(84) bytes of data.
64 bytes from af3e3272ff8a (172.18.0.2): icmp_seq=1 ttl=64 time=0.034 ms
64 bytes from af3e3272ff8a (172.18.0.2): icmp_seq=2 ttl=64 time=0.062 ms
^C
--- vm1 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 999ms
rtt min/avg/max/mdev = 0.034/0.048/0.062/0.014 ms
root@af3e3272ff8a:/# [root@server4 ~]#
[root@server4 ~]# docker run -it --name vm2 --network my_net1 ubuntu
root@86f69734237a:/# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
18: eth0@if19: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
link/ether 02:42:ac:12:00:03 brd ff:ff:ff:ff:ff:ff
inet 172.18.0.3/16 brd 172.18.255.255 scope global eth0
valid_lft forever preferred_lft forever
root@86f69734237a:/# ping vm1
PING vm1 (172.18.0.2) 56(84) bytes of data.
64 bytes from vm1.my_net1 (172.18.0.2): icmp_seq=1 ttl=64 time=0.149 ms
64 bytes from vm1.my_net1 (172.18.0.2): icmp_seq=2 ttl=64 time=0.129 ms
64 bytes from vm1.my_net1 (172.18.0.2): icmp_seq=3 ttl=64 time=0.100 ms
^C
--- vm1 ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2002ms
rtt min/avg/max/mdev = 0.100/0.126/0.149/0.020 ms
自定义网段：创建时指定参数–subnet 、-- gateway
[root@server4 ~]# docker network create -d bridge --subnet 172.23.0.0/24 --gateway 172.23.0.1 my_net2 #自定义网段172.23.0.0网段
c93eb78ea41cf021969517021b9207062ab6ffa1ede3616c2fce5e17d303fd1f
[root@server4 ~]# docker network ls
NETWORK ID NAME DRIVER SCOPE
91c7c4709d58 bridge bridge local
de8ea88b39f4 host host local
2bb11ae5b66c my_net1 bridge local
c93eb78ea41c my_net2 bridge local
1aa09618140e none null local
[root@server4 ~]# docker run -it --name vm2 --network my_net2 ubuntu #运行vm2容器
root@405c48ee4943:/# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
12: eth0@if13: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
link/ether 02:42:ac:17:00:02 brd ff:ff:ff:ff:ff:ff
inet 172.23.0.2/24 brd 172.23.0.255 scope global eth0 #分配到指定网段的ip
valid_lft forever preferred_lft forever
root@405c48ee4943:/#
参数 --ip 可以手动指定容器ip，但必须在自己自定义的网桥上（默认的bridge不支持），同一网桥上的容器可以互相通信
[root@server4 ~]# docker run -it --name vm3 --network my_net2 --ip 172.23.0.10 ubuntu #指定ip(建立在上一个指定网段的指定参数--subnet 、-- gateway基础上)
root@f257e97c74bf:/# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
22: eth0@if23: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
link/ether 02:42:ac:17:00:0a brd ff:ff:ff:ff:ff:ff
inet 172.23.0.10/24 brd 172.23.0.255 scope global eth0 #获得指定的ip
valid_lft forever preferred_lft forever
root@f257e97c74bf:/# ping vm2
PING vm2 (172.23.0.2) 56(84) bytes of data.
64 bytes from vm2.my_net2 (172.23.0.2): icmp_seq=1 ttl=64 time=0.134 ms
64 bytes from vm2.my_net2 (172.23.0.2): icmp_seq=2 ttl=64 time=0.100 ms
64 bytes from vm2.my_net2 (172.23.0.2): icmp_seq=3 ttl=64 time=0.100 ms
^C
--- vm2 ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2001ms
rtt min/avg/max/mdev = 0.100/0.111/0.134/0.018 ms
桥接到 不同网桥上的容器彼此是不通信的(docker在设计上就是要隔离不同的network）
[root@server4 ~]# brctl show #查看当前桥接状况（每创建一个桥接自动生成一个桥接名称和id）
bridge name bridge id STP enabled interfaces
br-2bb11ae5b66c 8000.02425161a0f8 no
br-c93eb78ea41c 8000.02421415739c no veth42e5020
veth5f915d0
docker0 8000.02423d1dde8b no

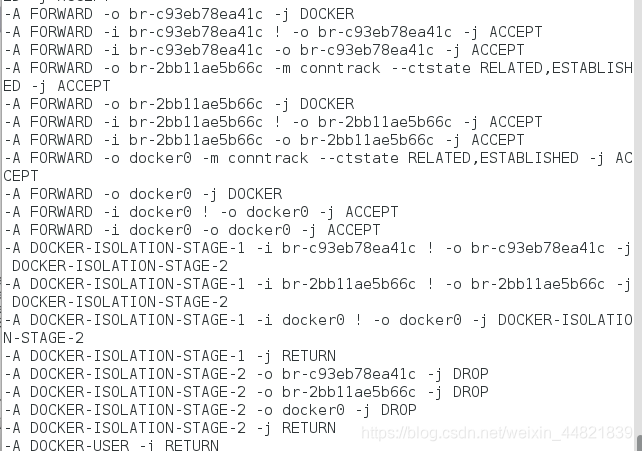

[root@server4 ~]# iptables -S
不同网桥上的互相通信
[root@server4 ~]# docker network connect my_net2 vm1
[root@server4 ~]# docker container attach vm1
^C
root@c7df8fd74f27:/# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
24: eth0@if25: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
link/ether 02:42:ac:12:00:02 brd ff:ff:ff:ff:ff:ff
inet 172.18.0.2/16 brd 172.18.255.255 scope global eth0 ## ip 172.18.0.2/16
valid_lft forever preferred_lft forever
26: eth1@if27: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
link/ether 02:42:ac:17:00:03 brd ff:ff:ff:ff:ff:ff
inet 172.23.0.3/24 brd 172.23.0.255 scope global eth1 #ip 172.23.0.3/24
valid_lft forever preferred_lft forever
##vm1中有两个子网地址，my_net2和之前分配的
root@c7df8fd74f27:/# ping vm1
PING vm1 (172.18.0.2) 56(84) bytes of data.
64 bytes from c7df8fd74f27 (172.18.0.2): icmp_seq=1 ttl=64 time=0.042 ms
64 bytes from c7df8fd74f27 (172.18.0.2): icmp_seq=2 ttl=64 time=0.066 ms
64 bytes from c7df8fd74f27 (172.18.0.2): icmp_seq=3 ttl=64 time=0.065 ms
^C
--- vm1 ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 1999ms
rtt min/avg/max/mdev = 0.042/0.057/0.066/0.014 ms
root@c7df8fd74f27:/# ping vm2
PING vm2 (172.23.0.2) 56(84) bytes of data.
64 bytes from vm2.my_net2 (172.23.0.2): icmp_seq=1 ttl=64 time=0.142 ms
64 bytes from vm2.my_net2 (172.23.0.2): icmp_seq=2 ttl=64 time=0.104 ms
64 bytes from vm2.my_net2 (172.23.0.2): icmp_seq=3 ttl=64 time=0.104 ms
^C
--- vm2 ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2001ms
rtt min/avg/max/mdev = 0.104/0.116/0.142/0.021 ms
root@c7df8fd74f27:/# ping vm3
PING vm3 (172.23.0.10) 56(84) bytes of data.
64 bytes from vm3.my_net2 (172.23.0.10): icmp_seq=1 ttl=64 time=0.134 ms
64 bytes from vm3.my_net2 (172.23.0.10): icmp_seq=2 ttl=64 time=0.102 ms
64 bytes from vm3.my_net2 (172.23.0.10): icmp_seq=3 ttl=64 time=0.100 ms
^C
--- vm3 ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2001ms
rtt min/avg/max/mdev = 0.100/0.112/0.134/0.015 ms
####Docker容器通信####
1.容器之间除了ip通信外，还可以使用容器名称通信（docker 1.10开始内嵌了DNS server）
- DNS解析功能必须在自定义网络中使用
- 启动容器时使用–name指定容器名称
[root@server4 ~]# docker run -it --name vm1 --network my_net1 ubuntu
root@8a1873140c58:/# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
28: eth0@if29: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
link/ether 02:42:ac:12:00:02 brd ff:ff:ff:ff:ff:ff
inet 172.18.0.2/16 brd 172.18.255.255 scope global eth0
[root@server4 ~]# docker run -it --name vm2 --network my_net1 ubuntu
root@3f9819c219f1:/# ping vm1
PING vm1 (172.18.0.2) 56(84) bytes of data.
64 bytes from vm1.my_net1 (172.18.0.2): icmp_seq=1 ttl=64 time=0.139 ms
64 bytes from vm1.my_net1 (172.18.0.2): icmp_seq=2 ttl=64 time=0.100 ms
^C
--- vm1 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1001ms
rtt min/avg/max/mdev = 0.100/0.119/0.139/0.022 ms
root@3f9819c219f1:/# cat /etc/hosts
127.0.0.1 localhost
::1 localhost ip6-localhost ip6-loopback
fe00::0 ip6-localnet
ff00::0 ip6-mcastprefix
ff02::1 ip6-allnodes
ff02::2 ip6-allrouters
172.18.0.3 3f9819c219f1
valid_lft forever preferred_lft forever
2.joined容器，一种较为特别的网络模式（仅主机模式，host模式）
- 在创建容器时使用–network=container:vm指定（vm1指定运行的容器名）
[root@server4 ~]# docker run -it --name vm1 ubuntu
root@49625dd59b22:/# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
32: eth0@if33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
link/ether 02:42:ac:11:00:02 brd ff:ff:ff:ff:ff:ff
inet 172.17.0.2/16 brd 172.17.255.255 scope global eth0
valid_lft forever preferred_lft forever
root@49625dd59b22:/# [root@server4 ~]#
[root@server4 ~]# docker run -it --name vm2 --network container:vm1 ubuntu
root@49625dd59b22:/# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
32: eth0@if33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
link/ether 02:42:ac:11:00:02 brd ff:ff:ff:ff:ff:ff
inet 172.17.0.2/16 brd 172.17.255.255 scope global eth0 ##vm2和vm1网络栈共享,ip一样，这两个容器可以使用localhost高效快速通信（使用web服务器和应用服务器通信）
valid_lft forever preferred_lft forever
- –link可以用来连接两个容器
- –link格式： --link :alias (name和id是源容器的，alias是源容器在link下的别名)
[root@server4 ~]# docker run -d nginx #-d打入后
4cee655b8e8eac2696caaf89a2b180676b0fe1b07067b3a4d5ddb588e664b615
[root@server4 ~]# docker ps -a #查看进程和随机的容器名 quizzical_feistel以及 ip 4cee655b8e8e
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
4cee655b8e8e nginx "nginx -g 'daemon of…" About a minute ago Up About a minute 80/tcp quizzical_feistel
[root@server4 ~]# docker inspect quizzical_feistel
"EndpointID": "9108d4b23ba5ca7f4b72cb13c9c04f2a6b16fb833450397eb6737e9f77de3528",
"Gateway": "172.17.0.1",
"IPAddress": "172.17.0.2",
"IPPrefixLen": 16,
"IPv6Gateway": "",
"GlobalIPv6Address": "",
"GlobalIPv6PrefixLen": 0,
"MacAddress": "02:42:ac:11:00:02",
"DriverOpts": null
}
[root@server4 ~]# docker run -it --name vm1 --link quizzical_feistel:web ubuntu #
root@6183802e8492:/# ping web
PING web (172.17.0.2) 56(84) bytes of data.
64 bytes from web (172.17.0.2): icmp_seq=1 ttl=64 time=0.169 ms
64 bytes from web (172.17.0.2): icmp_seq=2 ttl=64 time=0.102 ms
64 bytes from web (172.17.0.2): icmp_seq=3 ttl=64 time=0.103 ms
64 bytes from web (172.17.0.2): icmp_seq=4 ttl=64 time=0.104 ms
64 bytes from web (172.17.0.2): icmp_seq=5 ttl=64 time=0.102 ms
^C
--- web ping statistics ---
5 packets transmitted, 5 received, 0% packet loss, time 3999ms
rtt min/avg/max/mdev = 0.102/0.116/0.169/0.026 ms
root@6183802e8492:/# cat /etc/hosts 更新了/etc/hosts解析
127.0.0.1 localhost
::1 localhost ip6-localhost ip6-loopback
fe00::0 ip6-localnet
ff00::0 ip6-mcastprefix
ff02::1 ip6-allnodes
ff02::2 ip6-allrouters
172.17.0.2 web 4cee655b8e8e quizzical_feistel
172.17.0.3 6183802e849
root@6183802e8492:/# env #查看变量（将容器内的变量也link过来了）
WEB_ENV_NGINX_VERSION=1.16.0
WEB_PORT_80_TCP_PORT=80
WEB_PORT_80_TCP=tcp://172.17.0.2:80
PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin
PWD=/
SHLVL=1
HOME=/root
WEB_NAME=/vm1/web
WEB_PORT_80_TCP_PROTO=tcp
WEB_PORT_80_TCP_ADDR=172.17.0.2
LESSOPEN=| /usr/bin/lesspipe %s
WEB_PORT=tcp://172.17.0.2:80
LESSCLOSE=/usr/bin/lesspipe %s %s
_=/usr/bin/env
link的自动更新
[root@server4 ~]# docker stop quizzical_feistel #此时会自动释放之前占用的资源
quizzical_feistel
[root@server4 ~]# docker run -d nginx
ac13f9092f8b0bd9f7d0ca2c711f67ff2c7623ebabd6a633956a26fed987e8a0
[root@server4 ~]# docker ps -a
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
ac13f9092f8b nginx "nginx -g 'daemon of…" 7 seconds ago Up 5 seconds 80/tcp priceless_williams
6183802e8492 ubuntu "/bin/bash" 6 minutes ago Up 6 minutes vm1
4cee655b8e8e nginx "nginx -g 'daemon of…" 12 minutes ago Exited (0) 47 seconds ago quizzical_feistel
[root@server4 ~]# docker inspect priceless_williams
"IPAMConfig": null,
"Links": null,
"Aliases": null,
"NetworkID": "91c7c4709d58acf5a0649f7f83066db1e05aee82bdb7b760afff5f379e61b999",
"EndpointID": "3b53c6d0c222966d824a6345df38a7262b9cd3c8e57943b014f0204804b47774",
"Gateway": "172.17.0.1",
"IPAddress": "172.17.0.2",
"IPPrefixLen": 16,
"IPv6Gateway": "",
"GlobalIPv6Address": "",
"GlobalIPv6PrefixLen": 0,
"MacAddress": "02:42:ac:11:00:02",
"DriverOpts": null
}
}
}
}
[root@server4 ~]# docker start quizzical_feistel
quizzical_feistel
[root@server4 ~]# docker inspect quizzical_feistel
"Aliases": null,
"NetworkID": "91c7c4709d58acf5a0649f7f83066db1e05aee82bdb7b760afff5f379e61b999",
"EndpointID": "648470d279b4e079e0d43092a9cab9fe7124a478d7e6b7542f5f43983a1978e6",
"Gateway": "172.17.0.1",
"IPAddress": "172.17.0.4", #重新获取ip,172.17.0.3被vm1占用
"IPPrefixLen": 16,
"IPv6Gateway": "",
"GlobalIPv6Address": "",
"GlobalIPv6PrefixLen": 0,
"MacAddress": "02:42:ac:11:00:04",
"DriverOpts": null
}
[root@server4 ~]# docker attach vm1
root@6183802e8492:/# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
36: eth0@if37: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
link/ether 02:42:ac:11:00:03 brd ff:ff:ff:ff:ff:ff
inet 172.17.0.3/16 brd 172.17.255.255 scope global eth0
valid_lft forever preferred_lft forever
root@6183802e8492:/# cat /etc/hosts
127.0.0.1 localhost
::1 localhost ip6-localhost ip6-loopback
fe00::0 ip6-localnet
ff00::0 ip6-mcastprefix
ff02::1 ip6-allnodes
ff02::2 ip6-allrouters
172.17.0.4 web 4cee655b8e8e quizzical_feistel
172.17.0.3 6183802e8492
root@6183802e8492:/#
4.容器通过iptables的SNAT实现外网连接（docker0就是网关）
[root@server4 ~]# iptables -t nat -S
-P PREROUTING ACCEPT
-P INPUT ACCEPT
-P OUTPUT ACCEPT
-P POSTROUTING ACCEPT
-N DOCKER
-A PREROUTING -m addrtype --dst-type LOCAL -j DOCKER
-A OUTPUT ! -d 127.0.0.0/8 -m addrtype --dst-type LOCAL -j DOCKER
-A POSTROUTING -s 172.23.0.0/24 ! -o br-c93eb78ea41c -j MASQUERADE
-A POSTROUTING -s 172.18.0.0/16 ! -o br-2bb11ae5b66c -j MASQUERADE #创建网络时的策略，数据包在该网段出去的时候会做伪装，转换成当前物理机接口的真实地址
-A POSTROUTING -s 172.17.0.0/16 ! -o docker0 -j MASQUERADE
-A DOCKER -i br-c93eb78ea41c -j RETURN
-A DOCKER -i br-2bb11ae5b66c -j RETURN
-A DOCKER -i docker0 -j RETURN
[root@server4 ~]# docker network ls
NETWORK ID NAME DRIVER SCOPE
91c7c4709d58 bridge bridge local
de8ea88b39f4 host host local
2bb11ae5b66c my_net1 bridge local
c93eb78ea41c my_net2 bridge local
1aa09618140e none null local
[root@server4 ~]# docker run -it --name vm1 ubantu
root@6183802e8492:/# ping baidu.com
PING baidu.com(220.181.38.148) 56(84) bytes of data.
64 bytes from 220.181.38.148 (220.181.38.148): icmp_seq=1 ttl=51 time=51.6 ms
64 bytes from 220.181.38.148 (220.181.38.148): icmp_seq=2 ttl=51 time=39.7 ms
64 bytes from 220.181.38.148 (220.181.38.148): icmp_seq=3 ttl=51 time=39.6 ms
64 bytes from 220.181.38.148 (220.181.38.148): icmp_seq=4 ttl=51 time=37.9 ms
[root@server4 ~]# netstat -antlp
Active Internet connections (servers and established)
Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name
tcp 0 0 0.0.0.0:22 0.0.0.0:* LISTEN 892/sshd
tcp 0 0 127.0.0.1:25 0.0.0.0:* LISTEN 921/master
tcp 0 0 172.25.46.4:22 172.25.46.250:46834 ESTABLISHED 14517/sshd: root@pt
tcp 0 0 172.25.46.4:22 172.25.46.250:46568 ESTABLISHED 2555/sshd: root@pts
tcp6 0 0 :::22 :::* LISTEN 892/sshd
tcp6 0 0 ::1:25 :::* LISTEN 921/master
[root@server4 ~]# docker run -d --name vm1 -p 80:80 nginx #-p做端口映射
abc7b64c70d4b1c177295d9f01d720e5b85ca3293479e799a57ff09fd252fd63
[root@server4 ~]# docker ps -a
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
abc7b64c70d4 nginx "nginx -g 'daemon of…" About a minute ago Up About a minute 0.0.0.0:80->80/tcp vm1
[root@server4 ~]# docker port vm1 #查看容器端口
80/tcp -> 0.0.0.0:80
[root@server4 ~]# iptables -t nat -S
-P PREROUTING ACCEPT
-P INPUT ACCEPT
-P OUTPUT ACCEPT
-P POSTROUTING ACCEPT
-N DOCKER
-A PREROUTING -m addrtype --dst-type LOCAL -j DOCKER
-A OUTPUT ! -d 127.0.0.0/8 -m addrtype --dst-type LOCAL -j DOCKER
-A POSTROUTING -s 172.23.0.0/24 ! -o br-c93eb78ea41c -j MASQUERADE
-A POSTROUTING -s 172.18.0.0/16 ! -o br-2bb11ae5b66c -j MASQUERADE
-A POSTROUTING -s 172.17.0.0/16 ! -o docker0 -j MASQUERADE
-A POSTROUTING -s 172.17.0.2/32 -d 172.17.0.2/32 -p tcp -m tcp --dport 80 -j MASQUERADE
-A DOCKER -i br-c93eb78ea41c -j RETURN
-A DOCKER -i br-2bb11ae5b66c -j RETURN
-A DOCKER -i docker0 -j RETURN
-A DOCKER ! -i docker0 -p tcp -m tcp --dport 80 -j DNAT --to-destination 172.17.0.2:80 #用户访问时先访问物理机的80端口，通过防火墙的地址转换到172.17.0.2:80
#####跨主机容器网络###
跨主机网络的解决方案：
- docker 原生的overlay和macvlan
- 第三方的flannel、weave、calicao
众多网络方案是如何与docker集成在一起的 - libnetwork docker容器网络库

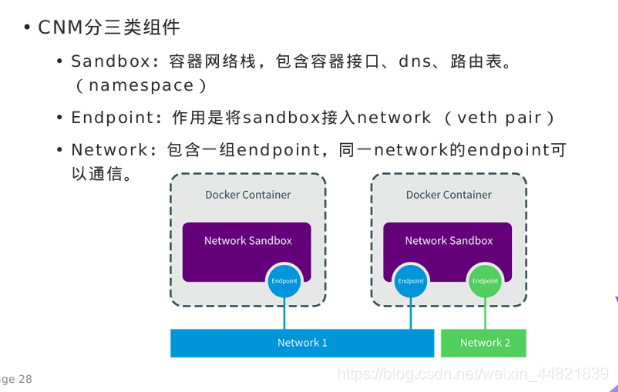

- CNM（Container Network Model） 这个模型对容器网络进行了抽象
CNM分三类组件： - Sandbox:容器网络栈，包含容器接口、dns、路由表（namespace）
- Endpoint : 作用是将sandbox接入network(veth pair)
- Network:包含一组endpoint,同一network和endpoint可以通信
-macvlan网络实现方案： - Linux kernel提供的一种网络虚拟化技术；
- 无需Linux bridge,直接使用物理接口，性能极好

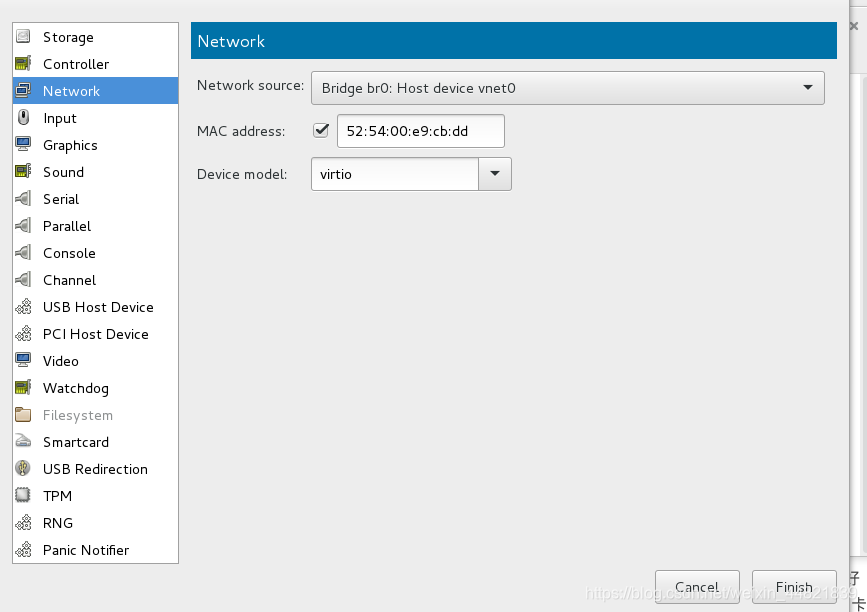

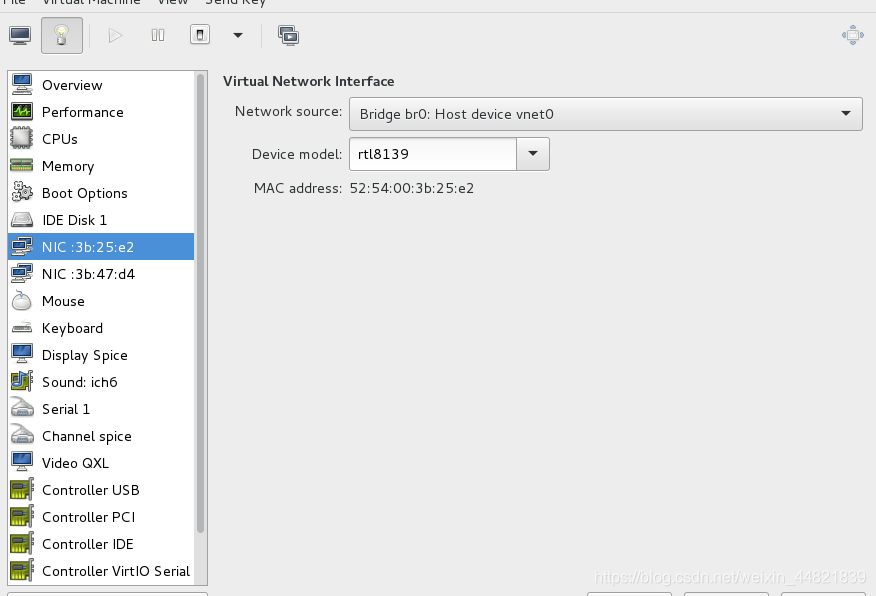

在两台docker主机上个添加一块网卡，打开网卡混杂模式

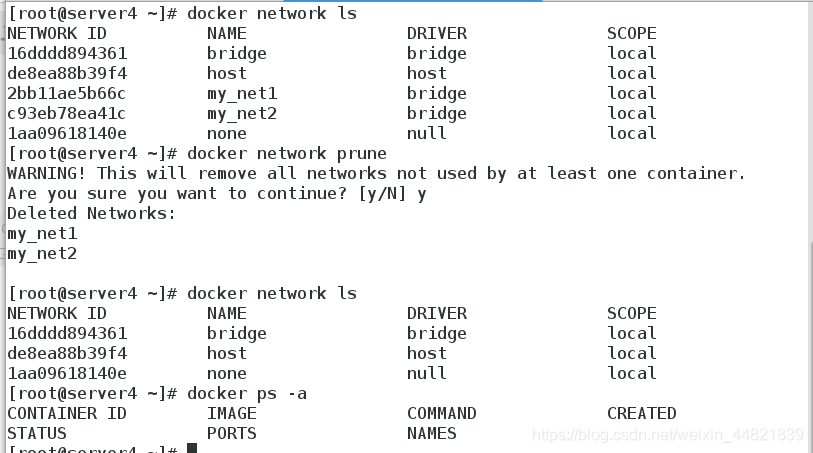

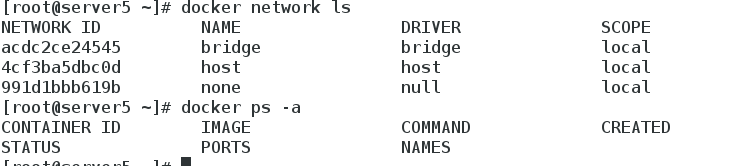

保证实验环境
打开混杂模式：
[root@server4 ~]# ip link set eth1 promisc on

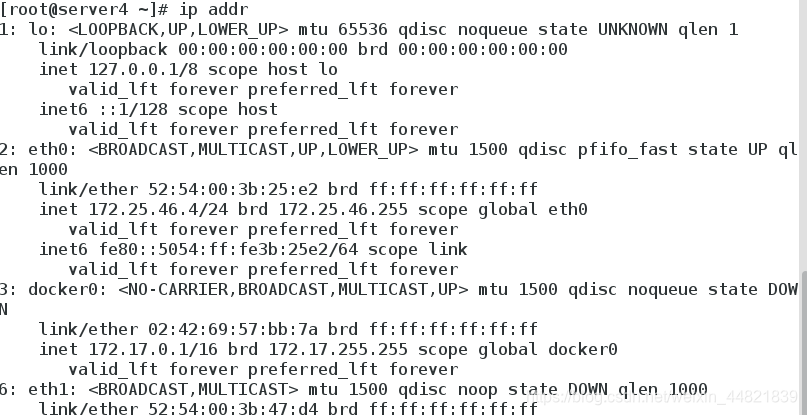

[root@server4 ~]# ip addr
6: eth1: <BROADCAST,MULTICAST,PROMISC> mtu 1500 qdisc noop state DOWN qlen 1000 #,PROMISC混杂模式开启
link/ether 52:54:00:3b:47:d4 brd ff:ff:ff:ff:ff:ff
[root@server4 ~]# ip link set eth1 up

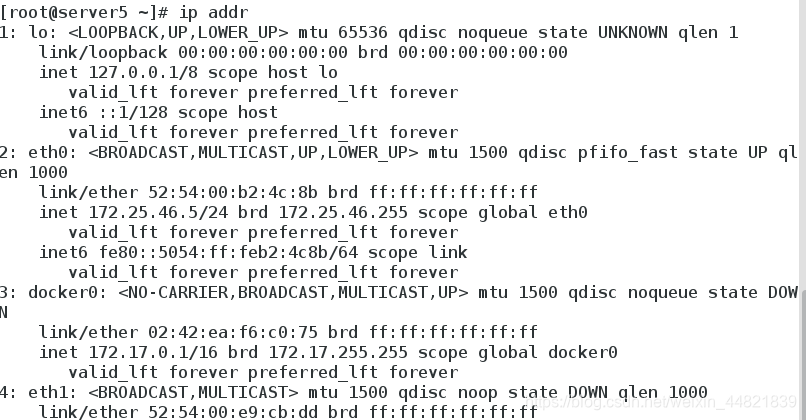

[root@server5 ~]# ip link set eth1 promisc on
4: eth1: <BROADCAST,MULTICAST,PROMISC> mtu 1500 qdisc noop state DOWN qlen 1000
link/ether 52:54:00:e9:cb:dd brd ff:ff:ff:ff:ff:ff
[root@server5 ~]# ip link set eth1 up
4: eth1: <BROADCAST,MULTICAST,PROMISC,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
link/ether 52:54:00:e9:cb:dd brd ff:ff:ff:ff:ff:ff
inet6 fe80::5054:ff:fee9:cbdd/64 scope link
valid_lft forever preferred_lft forever
自定义创建macvlan网络模型：
[root@server4 ~]# docker network create -d macvlan --subnet 172.20.0.0/24 --gateway 172.20.0.1 -o parent=eth1 macvlan1 ##指定子网网段和走那个物理接口
1d34df53d9bf21242de36d7bda2e98604b6e9145344d6ee7fc24a36ac42ec520
[root@server5 ~]# docker network create -d macvlan --subnet 172.20.0.0/24 --gateway 172.20.0.1 -o parent=eth1 macvlan1 #这里是在不同独立主机，同一网段不冲突
143239d4be660fec71e472148689ab549bce061e476002957161c1397d5cf097
[root@server5 ~]# docker network ls
NETWORK ID NAME DRIVER SCOPE
acdc2ce24545 bridge bridge local
4cf3ba5dbc0d host host local
143239d4be66 macvlan1 macvlan local
991d1bbb619b none null local
创建容器，会自动递增分配ip,这里建议自定义ip方便实验
[root@server5 ~]# docker run -it --name vm1 --network macvlan1 --ip 172.20.0.10 ubuntu
root@d494a8ac3a55:/# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
5: eth0@if4: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UNKNOWN group default
link/ether 02:42:ac:14:00:0a brd ff:ff:ff:ff:ff:ff
inet 172.20.0.10/24 brd 172.20.0.255 scope global eth0
valid_lft forever preferred_lft forever
[root@server4 ~]# docker run -it --name vm1 --network macvlan1 --ip 172.20.0.12 ubuntu
root@8ab6b508afca:/# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
7: eth0@if6: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UNKNOWN group default
link/ether 02:42:ac:14:00:0c brd ff:ff:ff:ff:ff:ff
inet 172.20.0.12/24 brd 172.20.0.255 scope global eth0
valid_lft forever preferred_lft forever
root@d41d962c4605:/# ping 172.20.12
PING 172.20.12 (172.20.0.12) 56(84) bytes of data.
64 bytes from 172.20.0.12: icmp_seq=1 ttl=64 time=1.43 ms
64 bytes from 172.20.0.12: icmp_seq=2 ttl=64 time=0.861 ms
64 bytes from 172.20.0.12: icmp_seq=3 ttl=64 time=0.823 ms
^C
--- 172.20.12 ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2003ms
rtt min/avg/max/mdev = 0.823/1.039/1.433/0.279 ms
macvlan网络模式没有新建Linux bridge，容器的接口直接与主机网卡连接，无需NAT或端口映射
[root@server5 ~]# brctl show
bridge name bridge id STP enabled interfaces
docker0 8000.0242eaf6c075 no
[root@server5 ~]# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
link/ether 52:54:00:b2:4c:8b brd ff:ff:ff:ff:ff:ff
inet 172.25.46.5/24 brd 172.25.46.255 scope global eth0
valid_lft forever preferred_lft forever
inet6 fe80::5054:ff:feb2:4c8b/64 scope link
valid_lft forever preferred_lft forever
3: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN
link/ether 02:42:ea:f6:c0:75 brd ff:ff:ff:ff:ff:ff
inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0
valid_lft forever preferred_lft forever
4: eth1: <BROADCAST,MULTICAST,PROMISC,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
link/ether 52:54:00:e9:cb:dd brd ff:ff:ff:ff:ff:ff
inet6 fe80::5054:ff:fee9:cbdd/64 scope link
valid_lft forever preferred_lft forever
[root@server4 ~]# brctl show
bridge name bridge id STP enabled interfaces
docker0 8000.02426957bb7a no #没有生成新的桥接口
root@server4 ~]# docker network ls
NETWORK ID NAME DRIVER SCOPE
16dddd894361 bridge bridge local
de8ea88b39f4 host host local
1d34df53d9bf macvlan1 macvlan local
1aa09618140e non
每个macvlan会独占一个物理接口，但一个主机上可以有物理网卡接口是有限的；但可以使用
vlan子接口实现多macvlan网络
vlan可以将物理二层网络划分为4094个逻辑网络，彼此隔离，vlam id 取值为1-4094
[root@server4 ~]# docker network create -d macvlan --subnet 172.21.0.0/24 --gateway 172.21.0.1 -o parent=eth1.1 macvlan2
2d969ce763c842d432f15d069141fdf9ed77a7dc6d21adef6ebfe5beb133b0dc
[root@server5~]# docker network create -d macvlan --subnet 172.21.0.0/24 --gateway 172.21.0.1 -o parent=eth1.1 macvlan2
2d969ce763c842d432f15d069141fdf9ed77a7dc6d21adef6ebfe5beb133b0dc
[root@server4 ~]# docker network ls
NETWORK ID NAME DRIVER SCOPE
16dddd894361 bridge bridge local
de8ea88b39f4 host host local
1d34df53d9bf macvlan1 macvlan local
2d969ce763c8 macvlan2 macvlan local #macvlan2建立
1aa09618140e none null local
[root@server4 ~]# ip addr
6: eth1: <BROADCAST,MULTICAST,PROMISC,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
link/ether 52:54:00:3b:47:d4 brd ff:ff:ff:ff:ff:ff
inet6 fe80::5054:ff:fe3b:47d4/64 scope link
valid_lft forever preferred_lft forever
9: eth1.1@eth1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP
link/ether 52:54:00:3b:47:d4 brd ff:ff:ff:ff:ff:ff
inet6 fe80::5054:ff:fe3b:47d4/64 scope link
valid_lft forever preferred_lft forever ## eth1.1@eth1:被建立
[root@server4 ~]# docker run -it --name vm3 --network macvlan2 --ip 172.21.0.12 ubuntu
root@52c7d16f524a:/# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
10: eth0@if9: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UNKNOWN group default
link/ether 02:42:ac:15:00:0c brd ff:ff:ff:ff:ff:ff
inet 172.21.0.12/24 brd 172.21.0.255 scope global eth0
valid_lft forever preferred_lft forever
[root@server5 ~]# docker run -it --name vm3 --network macvlan2 --ip 172.21.0.12 ubuntu
root@23ffb96d79f8:/#
root@23ffb96d79f8:/# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
8: eth0@if7: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UNKNOWN group default
link/ether 02:42:ac:15:00:0c brd ff:ff:ff:ff:ff:ff
inet 172.21.0.12/24 brd 172.21.0.255 scope global eth0
valid_lft forever preferred_lft forever
root@23ffb96d79f8:/# ping 172.20.0.12 #不同vlan 隔离，所以无法通信
PING 172.20.0.12 (172.20.0.12) 56(84) bytes of data.
From 172.21.0.12 icmp_seq=1 Destination Host Unreachable
From 172.21.0.12 icmp_seq=2 Destination Host Unreachable
From 172.21.0.12 icmp_seq=3 Destination Host Unreachable
From 172.21.0.12 icmp_seq=4 Destination Host Unreachable
^C
--- 172.20.0.12 ping statistics ---
5 packets transmitted, 0 received, +4 errors, 100% packet loss, time 4001ms
pipe 4
root@23ffb96d79f8:/# ping 172.21.0.12
PING 172.21.0.12 (172.21.0.12) 56(84) bytes of data.
64 bytes from 172.21.0.12: icmp_seq=1 ttl=64 time=0.098 ms
64 bytes from 172.21.0.12: icmp_seq=2 ttl=64 time=0.068 ms
^C
--- 172.21.0.12 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1000ms
rtt min/avg/max/mdev = 0.068/0.083/0.098/0.015 ms
root@23ffb96d79f8:/#
macvlan网络间的隔离和连通：
- macvlan网络在二层上是隔离的，所以不同macvlan网络的容器是不能通信的
- 可以在三层上通过网关将macvlan网络连接
- docker本身不做任何限制，像传统vlan网络那样管理即可
docker network 子命令
- connect 连接容器到指定网络
- create 创建网络
- disconnect 断开容器与指定网络的连接
- inspect 显示指定网络的详细信息
- ls 显示所有网络
- rm 删除网络
扫一扫
1042
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
