1. 什么是FastDFS
FastDFS 是用 c 语言编写的一款开源的分布式文件系统。FastDFS 为互联网量身定制，充分考虑了冗余备份、负载均衡、线性扩容等机制，并注重高可用、高性能等指标，使用 FastDFS很容易搭建一套高性能的文件服务器集群提供文件上传、下载等服务。

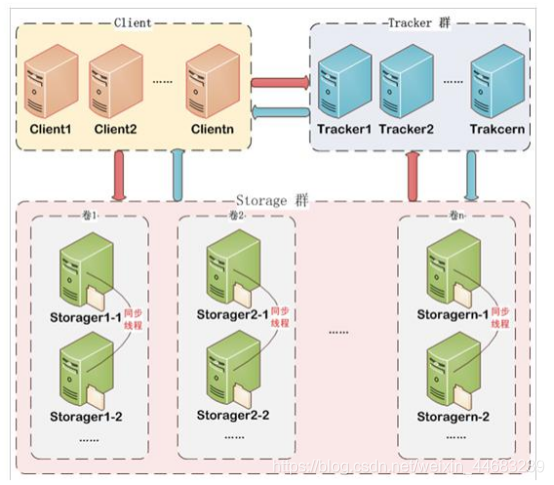

FastDFS 架构包括 Tracker server 和 Storage server。客户端请求 Tracker server 进行文件上传、下载，通过 Tracker server 调度最终由 Storage server 完成文件上传和下载。
Tracker server 作用是负载均衡和调度，通过 Tracker server 在文件上传时可以根据一些策略找到 Storage server 提供文件上传服务。可以将 tracker 称为追踪服务器或调度服务器。
Storage server 作用是文件存储，客户端上传的文件最终存储在 Storage 服务器上，Storageserver 没有实现自己的文件系统而是利用操作系统 的文件系统来管理文件。可以将storage称为存储服务器。
服务端两个角色：
-
Tracker：管理集群，tracker 也可以实现集群。每个 tracker 节点地位平等。收集 Storage 集群的状态。
-
Storage：实际保存文件 Storage 分为多个组，每个组之间保存的文件是不同的。每个组内部可以有多个成员，组成员内部保存的内容是一样的，组成员的地位是一致的，没有主从的概念。

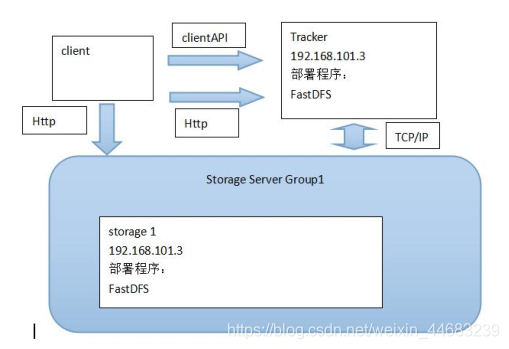

2. 最简单的 FastDFS 架构
3. FastDFS入门小Demo
需求：将本地图片上传至图片服务器，再控制台打印url
（1）创建Maven工程fastDFSdemo
由于FastDFS客户端jar包并没有在中央仓库中，所以需要使用下列命令手动安装jar包到Maven本地仓库（将jar包放到d盘setup目录）
https://sourceforge.net/projects/fastdfs/files/latest/download
mvn install:install-file -DgroupId=org.csource.fastdfs -DartifactId=fastdfs -Dversion=1.2 -Dpackaging=jar -Dfile=d:\setup\fastdfs_client_v1.20.jar
新建maven项目fastDFSDemo在pom.xml中引入
<dependency>
<groupId>org.csource.fastdfs</groupId>
<artifactId>fastdfs</artifactId>
<version>1.2</version>
</dependency>
（2）添加配置文件fdfs_client.conf ，将其中的服务器地址设置为192.168.200.128
# connect timeout in seconds
# default value is 30s
connect_timeout=30
# network timeout in seconds
# default value is 30s
network_timeout=60
# the base path to store log files
base_path=/home/fastdfs
# tracker_server can ocur more than once, and tracker_server format is
# "host:port", host can be hostname or ip address
tracker_server=192.168.200.128:22122
#standard log level as syslog, case insensitive, value list:
### emerg for emergency
### alert
### crit for critical
### error
### warn for warning
### notice
### info
### debug
log_level=info
# if use connection pool
# default value is false
# since V4.05
use_connection_pool = false
# connections whose the idle time exceeds this time will be closed
# unit: second
# default value is 3600
# since V4.05
connection_pool_max_idle_time = 3600
# if load FastDFS parameters from tracker server
# since V4.05
# default value is false
load_fdfs_parameters_from_tracker=false
# if use storage ID instead of IP address
# same as tracker.conf
# valid only when load_fdfs_parameters_from_tracker is false
# default value is false
# since V4.05
use_storage_id = false
# specify storage ids filename, can use relative or absolute path
# same as tracker.conf
# valid only when load_fdfs_parameters_from_tracker is false
# since V4.05
storage_ids_filename = storage_ids.conf
#HTTP settings
http.tracker_server_port=80
#use "#include" directive to include HTTP other settiongs
##include http.conf
（3）创建java类，main方法代码如下：
// 1、加载配置文件，配置文件中的内容就是 tracker 服务的地址。
ClientGlobal.init("D:\\itcastworkspaceMars\\fastDfsDemo\\src\\main\\resources\\fdfs_client.conf");
// 2、创建一个 TrackerClient 对象。直接 new 一个。
TrackerClient trackerClient = new TrackerClient();
// 3、使用 TrackerClient 对象创建连接，获得一个 TrackerServer 对象。
TrackerServer trackerServer = trackerClient.getConnection();
// 4、创建一个 StorageClient 对象，需要两个参数 TrackerServer 对象、StorageServer 的引用
StorageClient1 storageClient = new StorageClient1(trackerServer, null);
// 5、使用 StorageClient 对象上传图片。
//扩展名不带“.”
String path = storageClient.upload_file1("E:\\image\\Koala.jpg", "jpg", null);
// 6、包含组名和图片的路径。
System.out.println(path);
控制台输出如下结果：
group1
M00/00/00/wKgZhVkMP4KAZEy-AAA-tCf93Fo973.jpg
在浏览器输入：
http://192.168.200.128/group1/M00/00/00/wKgZhVkMP4KAZEy-AAA-tCf93Fo973.jpg
4. 工具类
4.1 配置文件
connect_timeout = 200
network_timeout = 3000
charset = UTF-8
http.tracker_http_port = 8080
http.anti_steal_token = no
http.secret_key = FastDFS1234567890
#tracker_server = 192.168.1.171:22122
##集群模式俩个跟踪器：
tracker_server = 192.168.1.173:22122
tracker_server = 192.168.1.174:22122
4.2 客户端操作
package util;
import java.io.ByteArrayInputStream;
import java.io.File;
import java.io.FileInputStream;
import java.io.IOException;
import java.io.InputStream;
import org.apache.commons.lang3.StringUtils;
import org.apache.log4j.Logger;
import org.csource.common.NameValuePair;
import org.csource.fastdfs.ClientGlobal;
import org.csource.fastdfs.StorageClient1;
import org.csource.fastdfs.StorageServer;
import org.csource.fastdfs.TrackerClient;
import org.csource.fastdfs.TrackerGroup;
import org.csource.fastdfs.TrackerServer;
/**
*
* <B>系统名称：</B><BR>
* <B>模块名称：</B><BR>
* <B>中文类名：</B>FastDFS分布式文件系统操作客户端<BR>
* <B>概要说明：</B>FastDFS分布式文件系统操作客户端<BR>
* @author rsw
* @since 2019年9月6日
*/
public class FastDFSClientUtils {
private static final String CONF_FILENAME = Thread.currentThread().getContextClassLoader().getResource("fastdfs_client.conf").getPath();
private static Logger logger = Logger.getLogger(FastDFSClientUtils.class);
private static TrackerClient trackerClient;
//加载文件
static {
try {
ClientGlobal.init(CONF_FILENAME);
TrackerGroup trackerGroup = ClientGlobal.g_tracker_group;
trackerClient = new TrackerClient(trackerGroup);
} catch (Exception e) {
logger.error(e);
}
}
/**
* <B>方法名称：</B>上传方法<BR>
* <B>概要说明：</B><BR>
* @param file 文件
* @param path 路径
* @return 上传成功返回id，失败返回null
*/
public static String upload(File file, String path) {
TrackerServer trackerServer = null;
StorageServer storageServer = null;
StorageClient1 storageClient1 = null;
FileInputStream fis = null;
try {
NameValuePair[] meta_list = null; // new NameValuePair[0];
fis = new FileInputStream(file);
byte[] file_buff = null;
if (fis != null) {
int len = fis.available();
file_buff = new byte[len];
fis.read(file_buff);
}
trackerServer = trackerClient.getConnection();
if (trackerServer == null) {
logger.error("getConnection return null");
}
storageServer = trackerClient.getStoreStorage(trackerServer);
storageClient1 = new StorageClient1(trackerServer, storageServer);
String fileid = storageClient1.upload_file1(file_buff, getFileExt(path), meta_list);
return fileid;
} catch (Exception ex) {
logger.error(ex);
return null;
}finally{
if (fis != null){
try {
fis.close();
} catch (IOException e) {
logger.error(e);
}
}
if (storageServer != null){
try {
storageServer.close();
} catch (IOException e) {
e.printStackTrace();
}
}
if (trackerServer != null){
try {
trackerServer.close();
} catch (IOException e) {
e.printStackTrace();
}
}
storageClient1 = null;
}
}
/**
* <B>方法名称：</B>上传方法<BR>
* <B>概要说明：</B><BR>
* @param data 数据
* @param path 路径
* @return 上传成功返回id，失败返回null
*/
public static String upload(byte[] data, String extName) {
TrackerServer trackerServer = null;
StorageServer storageServer = null;
StorageClient1 storageClient1 = null;
try {
NameValuePair[] meta_list = null; // new NameValuePair[0];
trackerServer = trackerClient.getConnection();
if (trackerServer == null) {
logger.error("getConnection return null");
}
storageServer = trackerClient.getStoreStorage(trackerServer);
storageClient1 = new StorageClient1(trackerServer, storageServer);
String fileid = storageClient1.upload_file1(data, extName, meta_list);
return fileid;
} catch (Exception ex) {
logger.error(ex);
return null;
}finally{
if (storageServer != null){
try {
storageServer.close();
} catch (IOException e) {
e.printStackTrace();
}
}
if (trackerServer != null){
try {
trackerServer.close();
} catch (IOException e) {
e.printStackTrace();
}
}
storageClient1 = null;
}
}
/**
* <B>方法名称：</B>下载方法<BR>
* <B>概要说明：</B>通过文件id进行下载<BR>
* @param fileId 文件id
* @return 返回InputStream
*/
public static InputStream download(String groupName, String fileId) {
TrackerServer trackerServer = null;
StorageServer storageServer = null;
StorageClient1 storageClient1 = null;
try {
trackerServer = trackerClient.getConnection();
if (trackerServer == null) {
logger.error("getConnection return null");
}
storageServer = trackerClient.getStoreStorage(trackerServer, groupName);
storageClient1 = new StorageClient1(trackerServer, storageServer);
byte[] bytes = storageClient1.download_file1(fileId);
InputStream inputStream = new ByteArrayInputStream(bytes);
return inputStream;
} catch (Exception ex) {
logger.error(ex);
return null;
} finally {
if (storageServer != null){
try {
storageServer.close();
} catch (IOException e) {
e.printStackTrace();
}
}
if (trackerServer != null){
try {
trackerServer.close();
} catch (IOException e) {
e.printStackTrace();
}
}
storageClient1 = null;
}
}
/**
* <B>方法名称：</B>删除方法<BR>
* <B>概要说明：</B>根据id来删除一个文件<BR>
* @param fileId 文件id
* @return 删除成功返回0，非0则操作失败，返回错误代码
*/
public static int delete(String groupName, String fileId) {
TrackerServer trackerServer = null;
StorageServer storageServer = null;
StorageClient1 storageClient1 = null;
try {
trackerServer = trackerClient.getConnection();
if (trackerServer == null) {
logger.error("getConnection return null");
}
storageServer = trackerClient.getStoreStorage(trackerServer, groupName);
storageClient1 = new StorageClient1(trackerServer, storageServer);
int result = storageClient1.delete_file1(fileId);
return result;
} catch (Exception ex) {
logger.error(ex);
return 0;
} finally {
if (storageServer != null){
try {
storageServer.close();
} catch (IOException e) {
e.printStackTrace();
}
}
if (trackerServer != null){
try {
trackerServer.close();
} catch (IOException e) {
e.printStackTrace();
}
}
storageClient1 = null;
}
}
/**
* <B>方法名称：</B><BR>
* <B>概要说明：</B><BR>
* @param oldFileId 旧文件id
* @param file 新文件
* @param path 新文件路径
* @return 上传成功返回id，失败返回null
*/
public static String modify(String oldGroupName, String oldFileId, File file, String path) {
String fileid = null;
try {
// 先上传
fileid = upload(file, path);
if (fileid == null) {
return null;
}
// 再删除
int delResult = delete(oldGroupName, oldFileId);
if (delResult != 0) {
return null;
}
} catch (Exception ex) {
logger.error(ex);
return null;
}
return fileid;
}
/**
* <B>方法名称：</B>获取文件后缀名<BR>
* <B>概要说明：</B>获取文件后缀名<BR>
* @param fileName
* @return 如："jpg"、"txt"、"zip" 等
*/
private static String getFileExt(String fileName) {
if (StringUtils.isBlank(fileName) || !fileName.contains(".")) {
return "";
} else {
return fileName.substring(fileName.lastIndexOf(".") + 1);
}
}
}
