1 配置jar包 pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.atguigu</groupId>
  <artifactId>ssm-crud</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <packaging>war</packaging>


  <!--引入项目依赖的jar包 -->
  <!-- SpringMVC、Spring -->
  <!-- https://mvnrepository.com/artifact/org.springframework/spring-webmvc -->
  <dependencies>

    <!--引入pageHelper分页插件 -->
    <dependency>
      <groupId>com.github.pagehelper</groupId>
      <artifactId>pagehelper</artifactId>
      <version>5.0.0</version>
    </dependency>

    <!-- MBG -->
    <!-- https://mvnrepository.com/artifact/org.mybatis.generator/mybatis-generator-core -->
    <dependency>
      <groupId>org.mybatis.generator</groupId>
      <artifactId>mybatis-generator-core</artifactId>
      <version>1.3.5</version>
    </dependency>


    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>4.3.7.RELEASE</version>
    </dependency>

    <!-- 返回json字符串的支持 -->
    <!-- https://mvnrepository.com/artifact/com.fasterxml.jackson.core/jackson-databind -->
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-databind</artifactId>
      <version>2.8.8</version>
    </dependency>

    <!--JSR303数据校验支持；tomcat7及以上的服务器，
    tomcat7以下的服务器：el表达式。额外给服务器的lib包中替换新的标准的el
    -->
    <!-- https://mvnrepository.com/artifact/org.hibernate/hibernate-validator -->
    <dependency>
      <groupId>org.hibernate</groupId>
      <artifactId>hibernate-validator</artifactId>
      <version>5.4.1.Final</version>
    </dependency>


    <!-- Spring-Jdbc -->
    <!-- https://mvnrepository.com/artifact/org.springframework/spring-jdbc -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>4.3.7.RELEASE</version>
    </dependency>

    <!--Spring-test -->
    <!-- https://mvnrepository.com/artifact/org.springframework/spring-test -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>4.3.7.RELEASE</version>
    </dependency>


    <!-- Spring面向切面编程 -->
    <!-- https://mvnrepository.com/artifact/org.springframework/spring-aspects -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aspects</artifactId>
      <version>4.3.7.RELEASE</version>
    </dependency>

    <!--MyBatis -->
    <!-- https://mvnrepository.com/artifact/org.mybatis/mybatis -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>3.4.2</version>
    </dependency>
    <!-- MyBatis整合Spring的适配包 -->
    <!-- https://mvnrepository.com/artifact/org.mybatis/mybatis-spring -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>1.3.1</version>
    </dependency>

    <!-- 数据库连接池、驱动 -->
    <!-- https://mvnrepository.com/artifact/c3p0/c3p0 -->
    <dependency>
      <groupId>c3p0</groupId>
      <artifactId>c3p0</artifactId>
      <version>0.9.1</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/mysql/mysql-connector-java -->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>5.1.41</version>
    </dependency>
    <!-- （jstl，servlet-api，junit） -->
    <!-- https://mvnrepository.com/artifact/jstl/jstl -->
    <dependency>
      <groupId>jstl</groupId>
      <artifactId>jstl</artifactId>
      <version>1.2</version>
    </dependency>

    <!-- https://mvnrepository.com/artifact/javax.servlet/javax.servlet-api -->
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>javax.servlet-api</artifactId>
      <version>3.0.1</version>
      <scope>provided</scope>
    </dependency>


    <!-- junit -->
    <!-- https://mvnrepository.com/artifact/junit/junit -->
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.12</version>
    </dependency>
  </dependencies>
</project>

2配置springMVC （）

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xsi:schemaLocation="http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.3.xsd
		http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.2.xsd
		http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd">

	<!--SpringMVC的配置文件，包含网站跳转逻辑的控制，配置  -->
	<context:component-scan base-package="com" use-default-filters="false">
		<!--只扫描控制器。  -->
		<context:include-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
	</context:component-scan>

	<!--配置视图解析器，方便页面返回  -->
	<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<property name="prefix" value="/WEB-INF/views/"></property>
		<property name="suffix" value=".jsp"></property>
	</bean>

	<!--两个标准配置  -->
	<!-- 将springmvc不能处理的请求交给tomcat -->
	<mvc:default-servlet-handler/>
	<!-- 能支持springmvc更高级的一些功能，JSR303校验，快捷的ajax...映射动态请求 -->
	<mvc:annotation-driven/>

</beans>

3配置spring文件（applicationContext.xm）

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:tx="http://www.springframework.org/schema/tx"
	xsi:schemaLocation="http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.3.xsd
		http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.2.xsd
		http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.3.xsd
		http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd">

	<context:component-scan base-package="com">
		<context:exclude-filter type="annotation"
			expression="org.springframework.stereotype.Controller" />
	</context:component-scan>

	<!-- Spring的配置文件，这里主要配置和业务逻辑有关的 -->
	<!--=================== 数据源，事务控制，xxx ================-->
	<context:property-placeholder location="classpath:dbconfig.properties" />
	<bean id="pooledDataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
		<property name="jdbcUrl" value="${jdbc.jdbcUrl}"></property>
		<property name="driverClass" value="${jdbc.driverClass}"></property>
		<property name="user" value="${jdbc.user}"></property>
		<property name="password" value="${jdbc.password}"></property>
	</bean>

	<!--================== 配置和MyBatis的整合=============== -->
	<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
		<!-- 指定mybatis全局配置文件的位置 -->
		<property name="configLocation" value="classpath:mybatis-config.xml"></property>
		<property name="dataSource" ref="pooledDataSource"></property>
		<!-- 指定mybatis，mapper文件的位置 -->
		<property name="mapperLocations" value="classpath:mapper/*.xml"></property>
	</bean>

	<!-- 配置扫描器，将mybatis接口的实现加入到ioc容器中 -->
	<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
		<!--扫描所有dao接口的实现，加入到ioc容器中 -->
		<property name="basePackage" value="com.dao"></property>
	</bean>

	<!-- 配置一个可以执行批量的sqlSession -->
	<bean id="sqlSession" class="org.mybatis.spring.SqlSessionTemplate">
		<constructor-arg name="sqlSessionFactory" ref="sqlSessionFactory"></constructor-arg>
		<constructor-arg name="executorType" value="BATCH"></constructor-arg>
	</bean>
	<!--=============================================  -->

	<!-- ===============事务控制的配置 ================-->
	<bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
		<!--控制住数据源  -->
		<property name="dataSource" ref="pooledDataSource"></property>
	</bean>
	<!--开启基于注解的事务，使用xml配置形式的事务（必要主要的都是使用配置式）  -->
	<aop:config>
		<!-- 切入点表达式 -->
		<aop:pointcut expression="execution(* com.service..*(..))" id="txPoint"/>
		<!-- 配置事务增强 -->
		<aop:advisor advice-ref="txAdvice" pointcut-ref="txPoint"/>
	</aop:config>

	<!--配置事务增强，事务如何切入  -->
	<tx:advice id="txAdvice" transaction-manager="transactionManager">
		<tx:attributes>
			<!-- 所有方法都是事务方法 -->
			<tx:method name="*"/>
			<!--以get开始的所有方法  -->
			<tx:method name="get*" read-only="true"/>
		</tx:attributes>
	</tx:advice>

	<!-- Spring配置文件的核心点（数据源、与mybatis的整合，事务控制） -->

</beans>

3 dbconfig.properties配置

jdbc.jdbcUrl=jdbc:mysql://localhost:3306/ssm_crud
jdbc.driverClass=com.mysql.jdbc.Driver
jdbc.user=root
jdbc.password=123

4mybatis-config.xml配置

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration
  PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
	<settings>
		<setting name="mapUnderscoreToCamelCase" value="true"/>
	</settings>

	<typeAliases>
		<package name="com.bean"/>
	</typeAliases>

	<plugins>
		<plugin interceptor="com.github.pagehelper.PageInterceptor">
			<!--分页参数合理化  -->
			<property name="reasonable" value="true"/>
		</plugin>
	</plugins>

</configuration>

5 web.xml配置

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns="http://java.sun.com/xml/ns/javaee"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
         id="WebApp_ID" version="2.5">

  <!--1、启动Spring的容器  -->
  <!-- needed for ContextLoaderListener -->
  <context-param>
    <param-name>contextConfigLocation</param-name>
    <param-value>classpath:applicationContext.xml</param-value>
  </context-param>

  <!-- Bootstraps the root web application context before servlet initialization -->
  <listener>
    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>

  <!--2、springmvc的前端控制器，拦截所有请求  -->
  <!-- The front controller of this Spring Web application, responsible for handling all application requests -->
<servlet>
    <servlet-name>dispatcherServlet</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>classpath:dispatcherServlet-servlet.xml</param-value>
    </init-param>
    <load-on-startup>1</load-on-startup>
  </servlet>

  <!-- Map all requests to the DispatcherServlet for handling -->
  <servlet-mapping>
    <servlet-name>dispatcherServlet</servlet-name>
    <url-pattern>/</url-pattern>
  </servlet-mapping>

  <!-- 3、字符编码过滤器，一定要放在所有过滤器之前 -->
  <filter>
    <filter-name>CharacterEncodingFilter</filter-name>
    <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
    <init-param>
      <param-name>encoding</param-name>
      <param-value>utf-8</param-value>
    </init-param>
    <init-param>
      <param-name>forceRequestEncoding</param-name>
      <param-value>true</param-value>
    </init-param>
    <init-param>
      <param-name>forceResponseEncoding</param-name>
      <param-value>true</param-value>
    </init-param>
  </filter>
  <filter-mapping>
    <filter-name>CharacterEncodingFilter</filter-name>
    <url-pattern>/*</url-pattern>
  </filter-mapping>

  <!-- 4、使用Rest风格的URI，将页面普通的post请求转为指定的delete或者put请求 -->
  <filter>
    <filter-name>HiddenHttpMethodFilter</filter-name>
    <filter-class>org.springframework.web.filter.HiddenHttpMethodFilter</filter-class>
  </filter>
  <filter-mapping>
    <filter-name>HiddenHttpMethodFilter</filter-name>
    <url-pattern>/*</url-pattern>
  </filter-mapping>
  <filter>
    <filter-name>HttpPutFormContentFilter</filter-name>
    <filter-class>org.springframework.web.filter.HttpPutFormContentFilter</filter-class>
  </filter>
  <filter-mapping>
    <filter-name>HttpPutFormContentFilter</filter-name>
    <url-pattern>/*</url-pattern>
  </filter-mapping>


</web-app>

6自动生成

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE generatorConfiguration PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN" "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd" >
<generatorConfiguration>
    <!--易错点注意-->
    <classPathEntry location="E:\mysql-connector-java-5.1.31.jar" />

    <context id="context1" targetRuntime="MyBatis3">
        <!-- 序列化pojo -->
        <plugin type="org.mybatis.generator.plugins.SerializablePlugin" />
        <commentGenerator>
            <property name="suppressDate" value="true" />
            <property name="suppressAllComments" value="true" />
        </commentGenerator>
        <jdbcConnection driverClass="com.mysql.jdbc.Driver"
                        connectionURL="jdbc:mysql://localhost:3306/ssm_crud?characterEncoding=utf-8"
                        userId="root" password="123" />
        <javaModelGenerator targetPackage="model"
                            targetProject="src\main\java" />
        <sqlMapGenerator targetPackage="dao"
                         targetProject="src\main\java" />
        <javaClientGenerator targetPackage="dao"
                             targetProject="src\main\java" type="XMLMAPPER" />
        <table tableName="orders" domainObjectName="Orders"
               enableCountByExample="flase" enableUpdateByExample="flase" enableDeleteByExample="flase"
               enableSelectByExample="flase" selectByExampleQueryId="flase" >
            <property name="useActualColumnNames" value="true"/>
        </table>
    </context>
</generatorConfiguration>

在这里插入图片描述
测试是否搭建完成
1数据库建一个text表

2dao 接口

package dao;

public interface TextMapper {
    /**
     *
     * @return
     */
    String text();
}

3 service层
3.1 （TextService）

package service;

import org.springframework.stereotype.Service;


public interface TestService {
    /**
     *
     * @return
     */
    String text();
}

3.1 （TextServiceImpl）

package service;

import dao.TextMapper;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

@Service
public class TextServiceImpl implements TestService{
    /**
     * @return
     */

    @Autowired
    TextMapper text;

    @Override
    public String text() {
        return text.text();
    }
}

4控制层（TextController）

package controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import service.TestService;

@Controller
public class TestController {

    @Autowired
   private TestService testService;

    @RequestMapping("/index")
    public String testPage(Model model) {
        String name = testService.text();
        System.out.println(name);
        model.addAttribute("name", name);
        return "index";
    }


}

5 views文件下新建一个（index.jsp）

<%--
  Created by IntelliJ IDEA.
  User: 小铭
  Date: 2019/12/18
  Time: 16:55
  To change this template use File | Settings | File Templates.
--%>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title> </title>

<body>


<p>${name}</p>

</body>
</html>

6 忘了还有TextMapper.xml(放在resources的mapper下)

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="dao.TextMapper">
    <select id="text" resultType="String">
        select name from text where id=1
    </select>
</mapper>

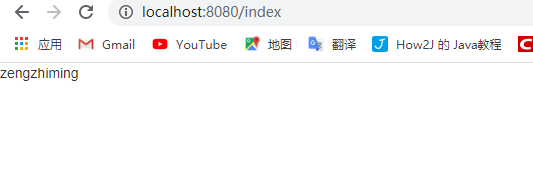

成功的测试结果
在这里插入图片描述
