mybatis多表查询

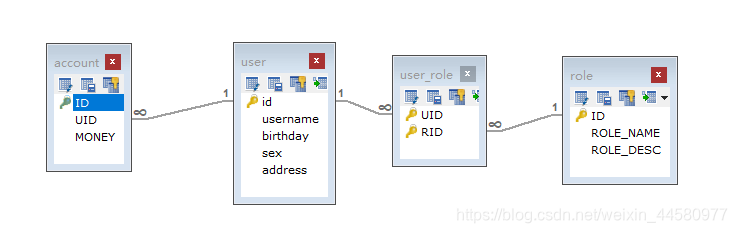

数据库表关系如下

1. 一对多查询

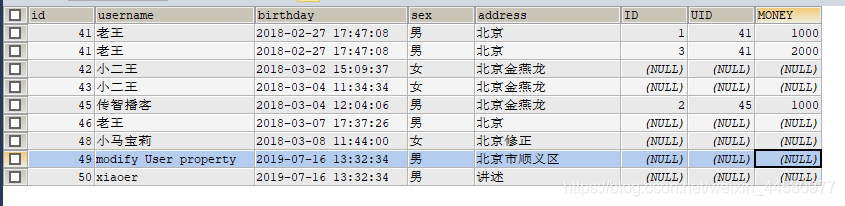

数据库sql执行如下：

	mapper 中 resultMap标签配置如下：
    <!-- 定义User的resultMap-->
    <resultMap id="userAccountMap" type="user">
        <id property="id" column="id"></id>
        <result property="username" column="username"></result>
        <result property="address" column="address"></result>
        <result property="sex" column="sex"></result>
        <result property="birthday" column="birthday"></result>
        <!-- 配置user对象中accounts集合的映射 -->
        <collection property="accounts" ofType="account">
            <id column="aid" property="id"></id>
            <result column="uid" property="uid"></result>
            <result column="money" property="money"></result>
        </collection>
    </resultMap>

    <!-- 查询所有 -->
    <select id="findAll" resultMap="userAccountMap">
        select * from user u left outer join account a on u.id = a.uid
    </select>

	业务mode Use类
public class User implements Serializable {

    private Integer id;
    private String username;
    private String address;
    private String sex;
    private Date birthday;
}
    //一对多关系映射：主表实体应该包含从表实体的集合引用
    private List<Account> accounts;

	account类如下
	public class Account implements Serializable {

    private Integer id;
    private Integer uid;
    private Double money;
}

	test
    /**
     * 测试查询所有
     */
    @Test
    public void testFindAll(){
        List<User> users = userDao.findAll();
        for(User user : users){
            System.out.println("-----每个用户的信息------");
            System.out.println(user);
            System.out.println(user.getAccounts());
        }
    }

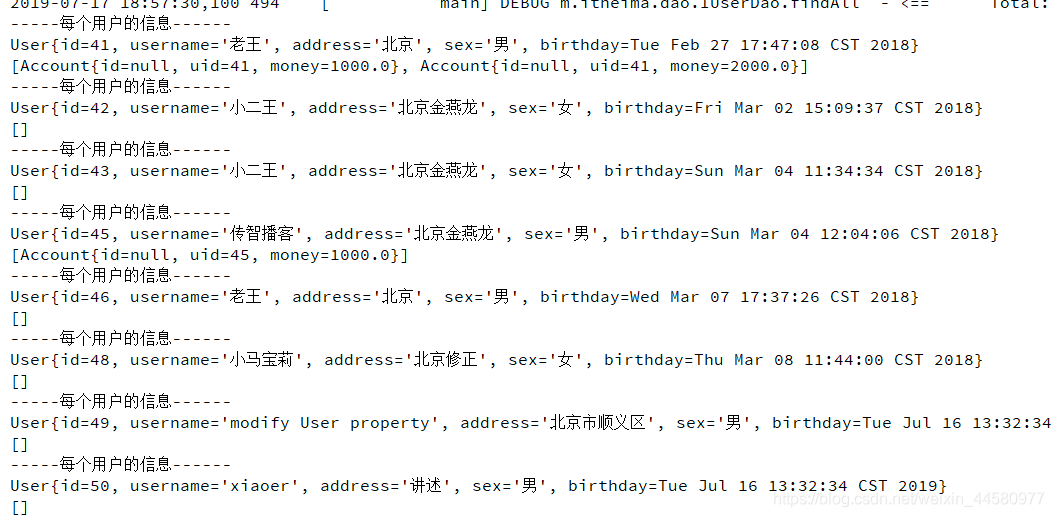

输出结果

2.一对一查询

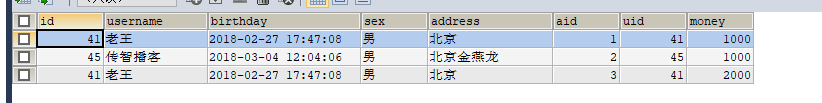

SQL语句： SELECT u.*,a.id AS aid,a.uid,a.money FROM account a , USER u
WHERE u.id = a.uid;

		mapper配置
<!-- 定义封装account和user的resultMap -->
    <resultMap id="accountUserMap" type="account">
        <id property="id" column="aid"></id>
        <result property="uid" column="uid"></result>
        <result property="money" column="money"></result>
        <!-- 一对一的关系映射：配置封装user的内容
        collection 集合 代表一对多-->
        <association property="user" column="uid" javaType="user">
            <id property="id" column="id"></id>
            <result column="username" property="username"></result>
            <result column="address" property="address"></result>
            <result column="sex" property="sex"></result>
            <result column="birthday" property="birthday"></result>
        </association>
    </resultMap>

    <!-- 查询所有 -->
    <select id="findAll" resultMap="accountUserMap">
        select u.*,a.id as aid,a.uid,a.money from account a , user u where u.id = a.uid;
    </select>

	Test
    /**
     * 测试查询所有
     */
    @Test
    public void testFindAll(){
        List<Account> accounts = accountDao.findAll();
        for(Account account : accounts){
            System.out.println("--------每个account的信息------------");
            System.out.println(account);
            System.out.println(account.getUser());
        }

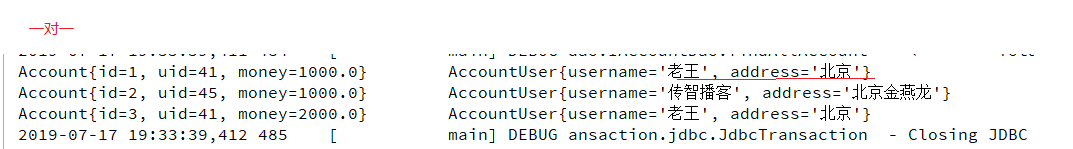

输出结果

3.多对多

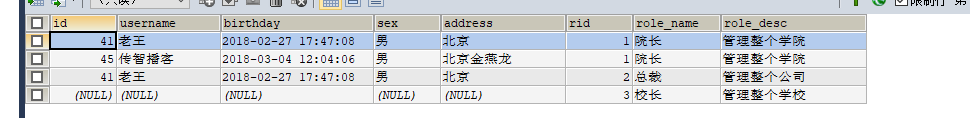

SQL语句：
select u.*,r.id as rid,r.role_name,r.role_desc from role r
left outer join user_role ur on r.id = ur.rid
left outer join user u on u.id = ur.uid

	mapper配置
    <!--定义role表的ResultMap-->
    <resultMap id="roleMap" type="role">
        <id property="roleId" column="rid"></id>
        <result property="roleName" column="role_name"></result>
        <result property="roleDesc" column="role_desc"></result>
        <collection property="users" ofType="user">
            <id column="id" property="id"></id>
            <result column="username" property="username"></result>
            <result column="address" property="address"></result>
            <result column="sex" property="sex"></result>
            <result column="birthday" property="birthday"></result>
        </collection>
    </resultMap>

	业务mode  Role类
public class Role implements Serializable {

    private Integer roleId;
    private String roleName;
    private String roleDesc;

    //多对多的关系映射：一个角色可以赋予多个用户
    private List<User> users;
}

	Test
    /**
     * 测试查询所有
     */
    @Test
    public void testFindAll(){
        List<Role> roles = roleDao.findAll();
        for(Role role : roles){
            System.out.println("---每个角色的信息----");
            System.out.println(role);
            System.out.println(role.getUsers());
        }
    }

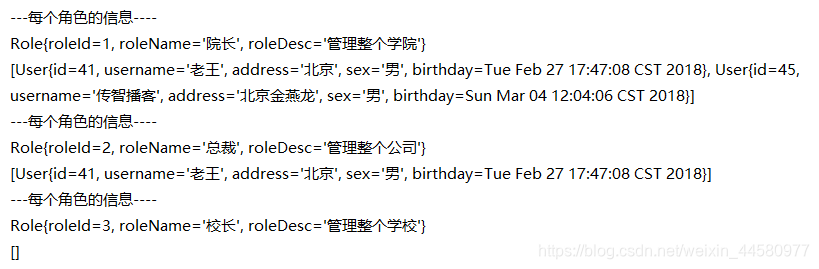

输出结果
