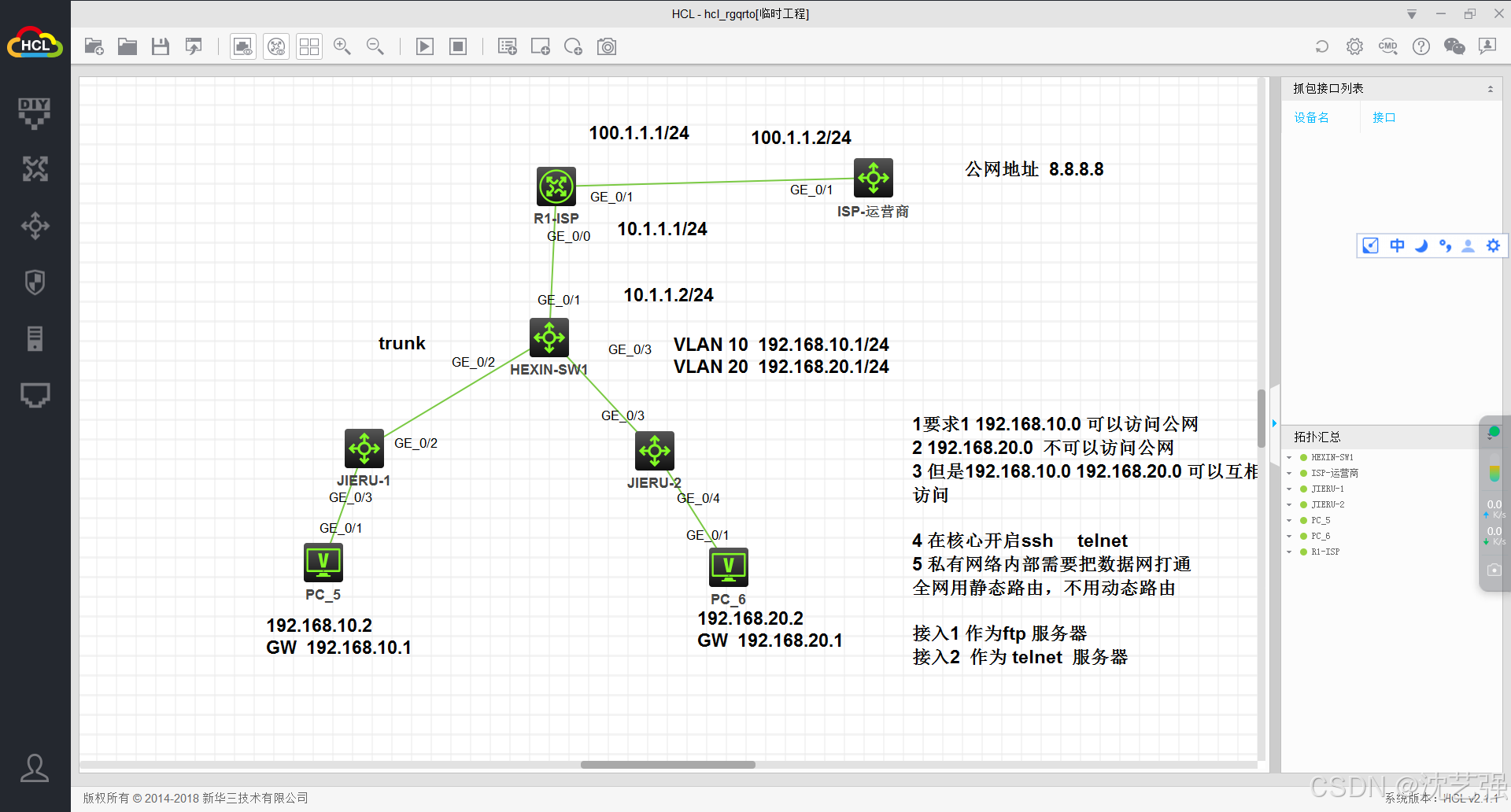

这个是企业网络的要求

思路大概是这样的先做 局域网，把局域网内部网络打通，再做isp 网络

最后测试，大概这样的流程

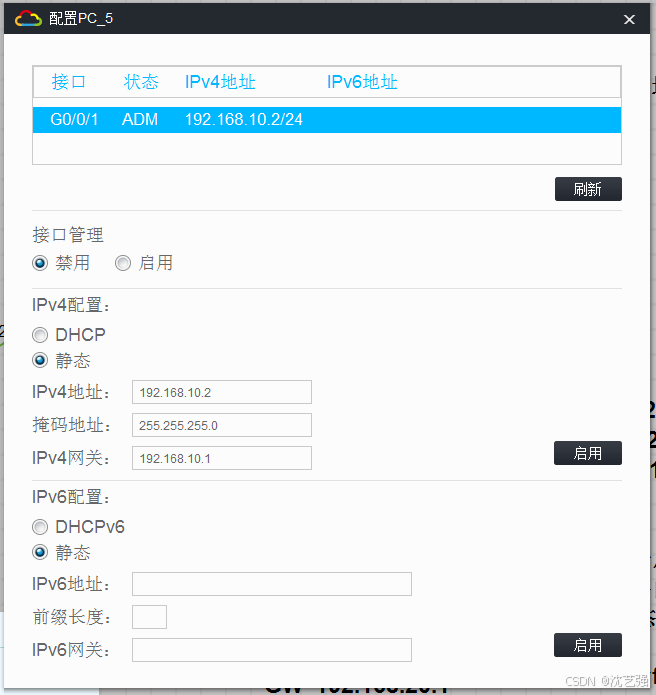

配置PC5的地址

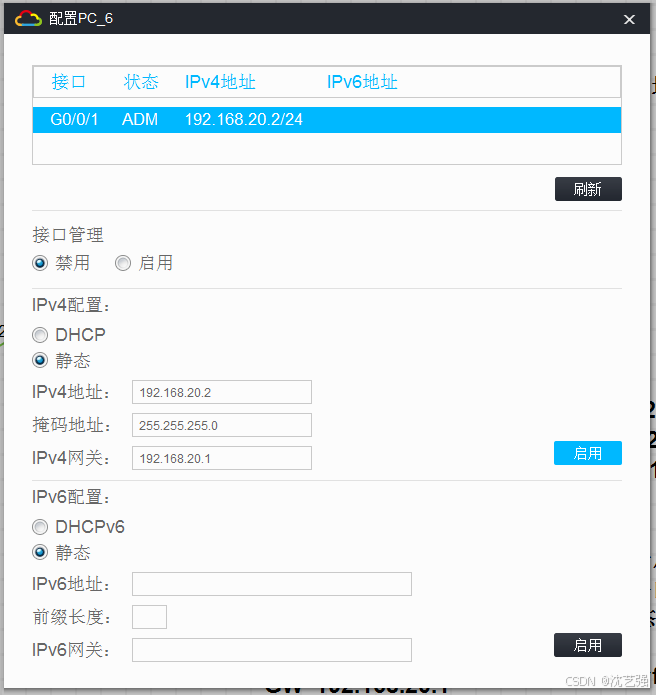

配置pc6 的配置

R1-ISP  的配置

       #
 version 7.1.075, Alpha 7571
#
 sysname r1-isp
#
 system-working-mode standard
 xbar load-single
 password-recovery enable
 lpu-type f-series
#
vlan 1
#
interface Serial1/0
#
interface Serial2/0
#
interface Serial3/0
#
interface Serial4/0
#
interface NULL0
#
interface GigabitEthernet0/0
 port link-mode route
 combo enable copper
 ip address 10.1.1.1 255.255.255.0
#
interface GigabitEthernet0/1
 port link-mode route
 combo enable copper
 ip address 100.1.1.1 255.255.255.0
 nat outbound 2000
 nat static enable
#
interface GigabitEthernet0/2
 port link-mode route
 combo enable copper
#
interface GigabitEthernet5/0
 port link-mode route
 combo enable copper
#
interface GigabitEthernet5/1
 port link-mode route
 combo enable copper
#
interface GigabitEthernet6/0
 port link-mode route
 combo enable copper
#
interface GigabitEthernet6/1
 port link-mode route
 combo enable copper
#
 scheduler logfile size 16
#
line class aux
 user-role network-operator
#
line class console
 user-role network-admin
#
line class tty
 user-role network-operator
#
line class vty
 user-role network-operator
#
line aux 0
 user-role network-operator
#
line con 0
 user-role network-admin
#
line vty 0 63
 user-role network-operator
#
 ip route-static 0.0.0.0 0 100.1.1.2
 ip route-static 192.168.10.0 24 10.1.1.2 description vlan 10
 ip route-static 192.168.20.0 24 10.1.1.2 description vl 20
#
acl basic 2000
 rule 1 permit source 192.168.10.0 0.0.0.255
 rule 2 permit source 192.168.20.3 0
 rule 3 deny source 192.168.20.0 0.0.0.255
#
domain name system
#
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 role
#
role name level-2
 description Predefined level-2 role
#
role name level-3
 description Predefined level-3 role
#
role name level-4
 description Predefined level-4 role
#
role name level-5
 description Predefined level-5 role
#
role name level-6
 description Predefined level-6 role
#
role name level-7
 description Predefined level-7 role
#
role name level-8
 description Predefined level-8 role
#
role name level-9
 description Predefined level-9 role
#
role name level-10
 description Predefined level-10 role
#
role name level-11
 description Predefined level-11 role
#
role name level-12
 description Predefined level-12 role
#
role name level-13
 description Predefined level-13 role
#
role name level-14
 description Predefined level-14 role
#
user-group system
#
 nat static outbound 192.168.10.3 100.1.1.3
 nat static outbound 192.168.20.3 100.1.1.4
#
return

核心-sw1

#
 version 7.1.075, Alpha 7571
#
 sysname hexin-sw1
#
 irf mac-address persistent timer
 irf auto-update enable
 undo irf link-delay
 irf member 1 priority 1
#
 lldp global enable
#
 system-working-mode standard
 xbar load-single
 password-recovery enable
 lpu-type f-series
#
vlan 1
#
vlan 10
#
vlan 20
#
vlan 100
#
 stp global enable
#
interface NULL0
#
interface Vlan-interface10
 ip address 192.168.10.1 255.255.255.0
#
interface Vlan-interface20
 ip address 192.168.20.1 255.255.255.0
#
interface Vlan-interface100
 ip address 10.1.1.2 255.255.255.0
#
interface FortyGigE1/0/53
 port link-mode bridge
#
interface FortyGigE1/0/54
 port link-mode bridge
#
interface GigabitEthernet1/0/1
 port link-mode bridge
 port access vlan 100
 combo enable fiber
#
interface GigabitEthernet1/0/2
 port link-mode bridge
 port link-type trunk
 undo port trunk permit vlan 1
 port trunk permit vlan 10 20
 combo enable fiber
#
interface GigabitEthernet1/0/3
 port link-mode bridge
 port link-type trunk
 undo port trunk permit vlan 1
 port trunk permit vlan 10 20
 combo enable fiber
#
interface GigabitEthernet1/0/4
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/5
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/6
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/7
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/8
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/9
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/10
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/11
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/12
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/13
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/14
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/15
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/16
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/17
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/18
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/19
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/20
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/21
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/22
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/23
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/24
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/25
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/26
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/27
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/28
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/29
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/30
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/31
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/32
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/33
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/34
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/35
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/36
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/37
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/38
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/39
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/40
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/41
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/42
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/43
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/44
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/45
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/46
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/47
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/48
 port link-mode bridge
 combo enable fiber
#
interface M-GigabitEthernet0/0/0
#
interface Ten-GigabitEthernet1/0/49
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/50
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/51
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/52
 port link-mode bridge
 combo enable fiber
#
 scheduler logfile size 16
#
line class aux
 user-role network-operator
#
line class console
 user-role network-admin
#
line class tty
 user-role network-operator
#
line class vty
 user-role network-operator
#
line aux 0
 user-role network-operator
#
line con 0
 user-role network-admin
#
line vty 0 63
 user-role network-operator
#
 ip route-static 0.0.0.0 0 10.1.1.1 description quesheng
#
radius scheme system
 user-name-format without-domain
#
domain name system
#
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 role
#
role name level-2
 description Predefined level-2 role
#
role name level-3
 description Predefined level-3 role
#
role name level-4
 description Predefined level-4 role
#
role name level-5
 description Predefined level-5 role
#
role name level-6
 description Predefined level-6 role
#
role name level-7
 description Predefined level-7 role
#
role name level-8
 description Predefined level-8 role
#
role name level-9
 description Predefined level-9 role
#
role name level-10
 description Predefined level-10 role
#
role name level-11
 description Predefined level-11 role
#
role name level-12
 description Predefined level-12 role
#
role name level-13
 description Predefined level-13 role
#
role name level-14
 description Predefined level-14 role
#
user-group system
#
return


接入-1-sw1

#
 version 7.1.075, Alpha 7571
#
 sysname jieru1
#
 irf mac-address persistent timer
 irf auto-update enable
 undo irf link-delay
 irf member 1 priority 1
#
 lldp global enable
#
 system-working-mode standard
 xbar load-single
 password-recovery enable
 lpu-type f-series
#
vlan 1
#
vlan 10
#
vlan 20
#
 stp global enable
#
interface NULL0
#
interface FortyGigE1/0/53
 port link-mode bridge
#
interface FortyGigE1/0/54
 port link-mode bridge
#
interface GigabitEthernet1/0/1
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/2
 port link-mode bridge
 port link-type trunk
 port trunk permit vlan all
 combo enable fiber
#
interface GigabitEthernet1/0/3
 port link-mode bridge
 port access vlan 10
 combo enable fiber
#
interface GigabitEthernet1/0/4
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/5
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/6
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/7
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/8
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/9
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/10
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/11
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/12
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/13
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/14
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/15
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/16
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/17
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/18
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/19
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/20
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/21
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/22
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/23
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/24
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/25
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/26
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/27
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/28
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/29
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/30
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/31
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/32
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/33
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/34
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/35
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/36
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/37
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/38
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/39
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/40
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/41
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/42
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/43
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/44
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/45
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/46
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/47
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/48
 port link-mode bridge
 combo enable fiber
#
interface M-GigabitEthernet0/0/0
#
interface Ten-GigabitEthernet1/0/49
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/50
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/51
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/52
 port link-mode bridge
 combo enable fiber
#
 scheduler logfile size 16
#
line class aux
 user-role network-operator
#
line class console
 user-role network-admin
#
line class tty
 user-role network-operator
#
line class vty
 user-role network-operator
#
line aux 0
 user-role network-operator
#
line con 0
 user-role network-admin
#
line vty 0 63
 user-role network-operator
#
radius scheme system
 user-name-format without-domain
#
domain name system
#
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 role
#
role name level-2
 description Predefined level-2 role
#
role name level-3
 description Predefined level-3 role
#
role name level-4
 description Predefined level-4 role
#
role name level-5
 description Predefined level-5 role
#
role name level-6
 description Predefined level-6 role
#
role name level-7
 description Predefined level-7 role
#
role name level-8
 description Predefined level-8 role
#
role name level-9
 description Predefined level-9 role
#
role name level-10
 description Predefined level-10 role
#
role name level-11
 description Predefined level-11 role
#
role name level-12
 description Predefined level-12 role
#
role name level-13
 description Predefined level-13 role
#
role name level-14
 description Predefined level-14 role
#
user-group system
#
return


sw2-jieru

#
 version 7.1.075, Alpha 7571
#
 sysname jieru-2
#
 telnet server enable
#
 irf mac-address persistent timer
 irf auto-update enable
 undo irf link-delay
 irf member 1 priority 1
#
 lldp global enable
#
 system-working-mode standard
 xbar load-single
 password-recovery enable
 lpu-type f-series
#
vlan 1
#
vlan 10
#
vlan 20
#
 stp global enable
#
interface NULL0
#
interface Vlan-interface20
 ip address 192.168.20.3 255.255.255.0
#
interface FortyGigE1/0/53
 port link-mode bridge
#
interface FortyGigE1/0/54
 port link-mode bridge
#
interface GigabitEthernet1/0/1
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/2
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/3
 port link-mode bridge
 port link-type trunk
 port trunk permit vlan all
 combo enable fiber
#
interface GigabitEthernet1/0/4
 port link-mode bridge
 port access vlan 20
 combo enable fiber
#
interface GigabitEthernet1/0/5
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/6
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/7
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/8
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/9
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/10
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/11
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/12
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/13
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/14
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/15
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/16
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/17
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/18
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/19
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/20
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/21
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/22
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/23
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/24
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/25
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/26
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/27
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/28
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/29
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/30
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/31
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/32
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/33
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/34
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/35
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/36
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/37
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/38
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/39
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/40
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/41
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/42
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/43
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/44
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/45
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/46
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/47
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/48
 port link-mode bridge
 combo enable fiber
#
interface M-GigabitEthernet0/0/0
#
interface Ten-GigabitEthernet1/0/49
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/50
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/51
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/52
 port link-mode bridge
 combo enable fiber
#
 scheduler logfile size 16
#
line class aux
 user-role network-operator
#
line class console
 user-role network-admin
#
line class tty
 user-role network-operator
#
line class vty
 user-role network-operator
#
line aux 0
 user-role network-operator
#
line con 0
 user-role network-admin
#
line vty 0 63
 authentication-mode scheme
 user-role level-15
 user-role network-operator
#
 ip route-static 0.0.0.0 0 192.168.20.1
#
radius scheme system
 user-name-format without-domain
#
domain name system
#
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 role
#
role name level-2
 description Predefined level-2 role
#
role name level-3
 description Predefined level-3 role
#
role name level-4
 description Predefined level-4 role
#
role name level-5
 description Predefined level-5 role
#
role name level-6
 description Predefined level-6 role
#
role name level-7
 description Predefined level-7 role
#
role name level-8
 description Predefined level-8 role
#
role name level-9
 description Predefined level-9 role
#
role name level-10
 description Predefined level-10 role
#
role name level-11
 description Predefined level-11 role
#
role name level-12
 description Predefined level-12 role
#
role name level-13
 description Predefined level-13 role
#
role name level-14
 description Predefined level-14 role
#
user-group system
#
local-user admin class manage
 password hash $h$6$yHEztYW69jcQwzCg$poqHV2aIXHQ6PFQPW13lwoujYqrR63fvVt1jrFa2ONED3C38B6z+Z3jNus6ehxRwUj1hnDnMRbh4NIWmLNokxA==
 service-type telnet
 authorization-attribute user-role level-15
 authorization-attribute user-role network-operator
#
return


isp-sw


<isp>display  current-configuration
#
 version 7.1.075, Alpha 7571
#
 sysname isp
#
 irf mac-address persistent timer
 irf auto-update enable
 undo irf link-delay
 irf member 1 priority 1
#
 lldp global enable
#
 system-working-mode standard
 xbar load-single
 password-recovery enable
 lpu-type f-series
#
vlan 1
#
 stp global enable
#
interface NULL0
#
interface LoopBack1
 ip address 8.8.8.8 255.255.255.0
#
interface Vlan-interface1
 ip address 100.1.1.2 255.255.255.0
#
interface FortyGigE1/0/53
 port link-mode bridge
#
interface FortyGigE1/0/54
 port link-mode bridge
#
interface GigabitEthernet1/0/1
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/2
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/3
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/4
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/5
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/6
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/7
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/8
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/9
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/10
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/11
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/12
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/13
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/14
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/15
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/16
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/17
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/18
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/19
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/20
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/21
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/22
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/23
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/24
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/25
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/26
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/27
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/28
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/29
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/30
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/31
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/32
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/33
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/34
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/35
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/36
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/37
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/38
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/39
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/40
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/41
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/42
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/43
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/44
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/45
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/46
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/47
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/48
 port link-mode bridge
 combo enable fiber
#
interface M-GigabitEthernet0/0/0
#
interface Ten-GigabitEthernet1/0/49
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/50
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/51
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/52
 port link-mode bridge
 combo enable fiber
#
 scheduler logfile size 16
#
line class aux
 user-role network-operator
#
line class console
 user-role network-admin
#
line class tty
 user-role network-operator
#
line class vty
 user-role network-operator
#
line aux 0
 user-role network-operator
#
line con 0
 user-role network-admin
#
line vty 0 63
 user-role network-operator
#
radius scheme system
 user-name-format without-domain
#
domain name system
#
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 role
#
role name level-2
 description Predefined level-2 role
#
role name level-3
 description Predefined level-3 role
#
role name level-4
 description Predefined level-4 role
#
role name level-5
 description Predefined level-5 role
#
role name level-6
 description Predefined level-6 role
#
role name level-7
 description Predefined level-7 role
#
role name level-8
 description Predefined level-8 role
#
role name level-9
 description Predefined level-9 role
#
role name level-10
 description Predefined level-10 role
#
role name level-11
 description Predefined level-11 role
#
role name level-12
 description Predefined level-12 role
#
role name level-13
 description Predefined level-13 role
#
role name level-14
 description Predefined level-14 role
#
user-group system
#
return


测试

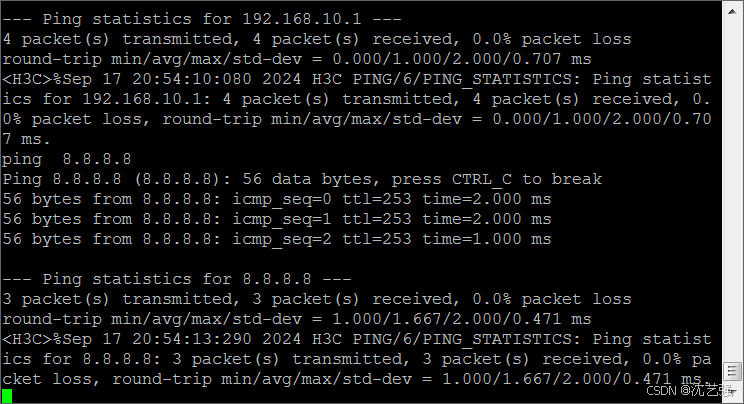

在pc5 上测试 网关   测试互联网地址 8.8.8.8  可以通吧

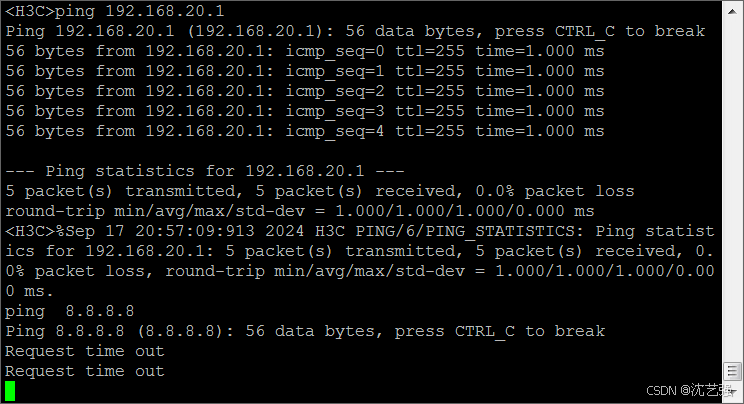

在pc6 上测试  网关地址可以通但是外网地址不能通 达到效果

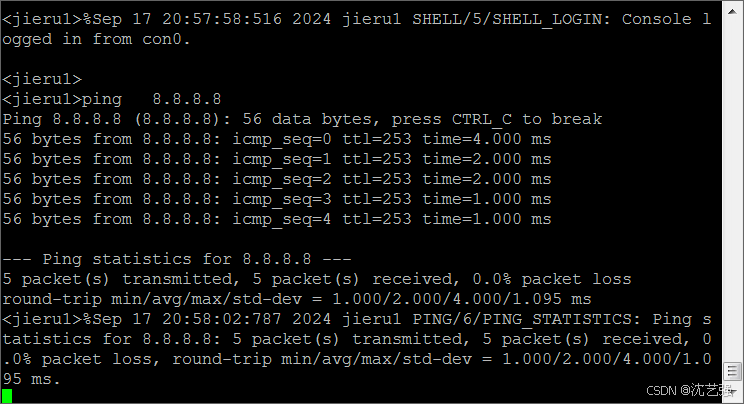

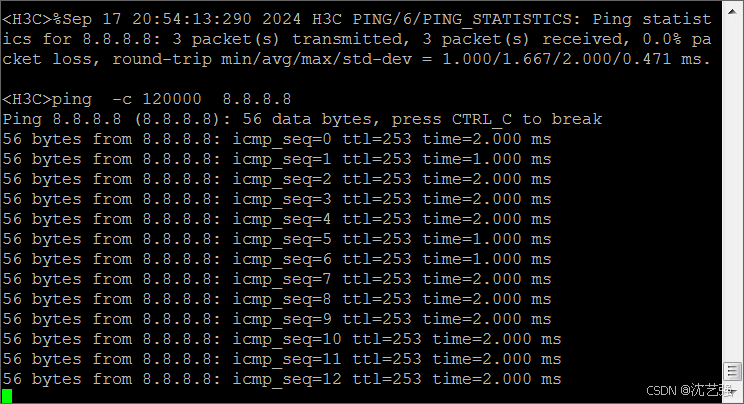

接入交换机1 ping 8.8.8.8 可以通

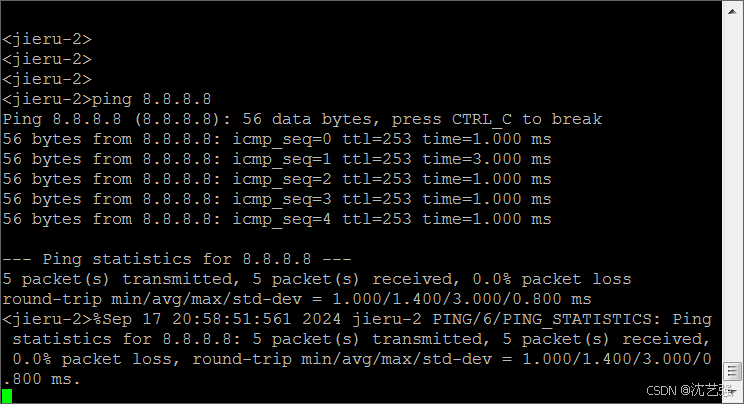

jieru-2   通 8.8.8.8  可以通

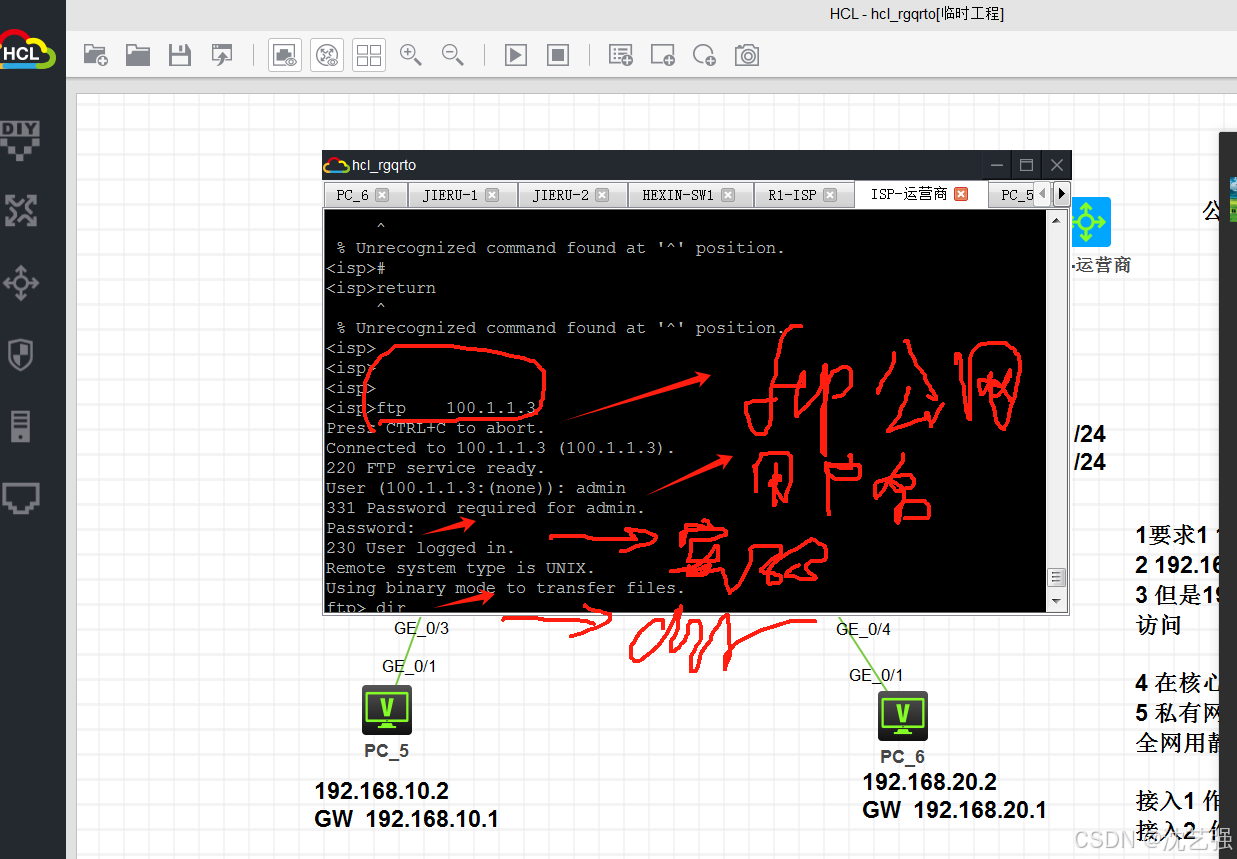

这是在公网上测试f私网内部服务器

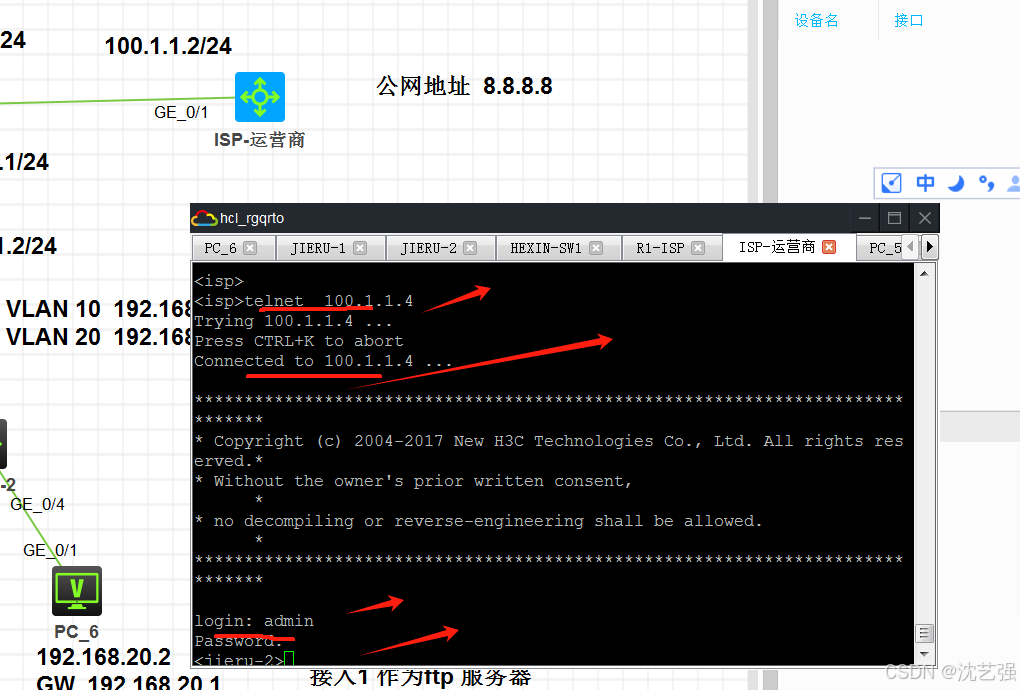

继续公网测试  telnet 服务器

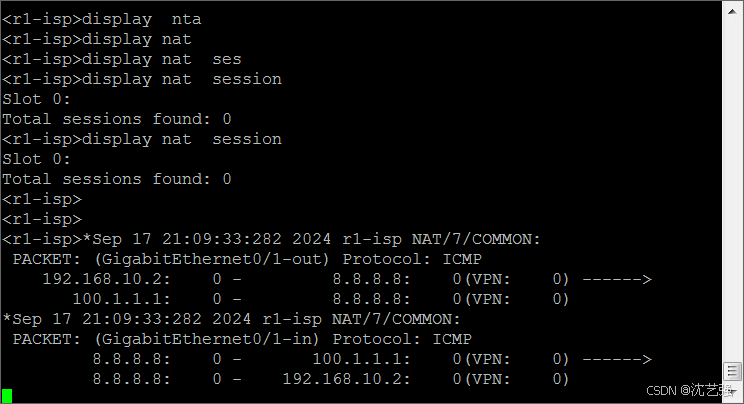

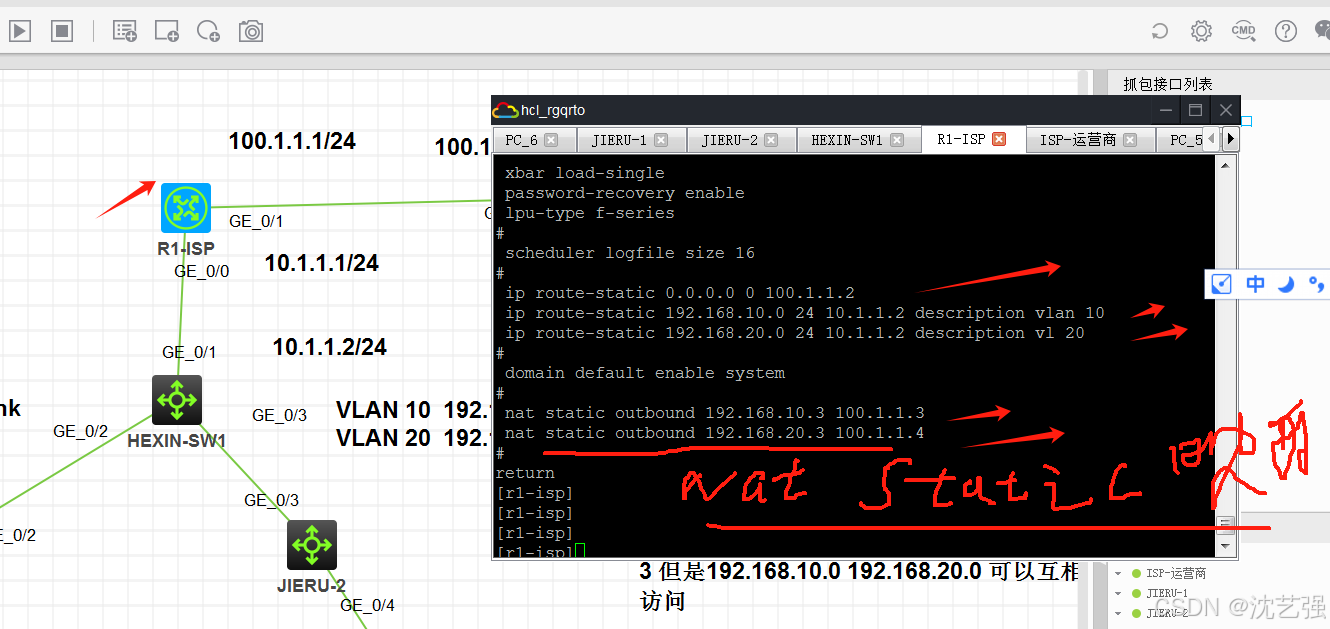

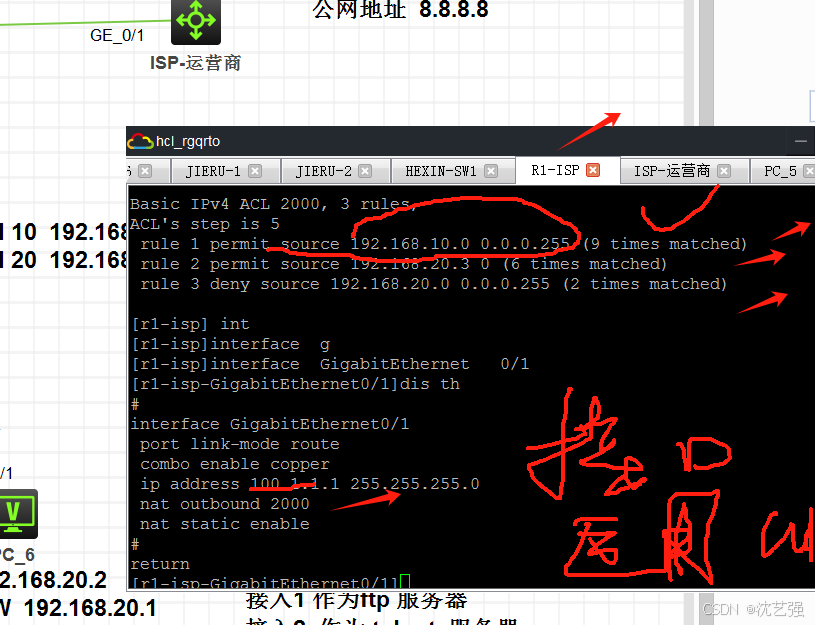

好我们来看一下nat 的测试结果

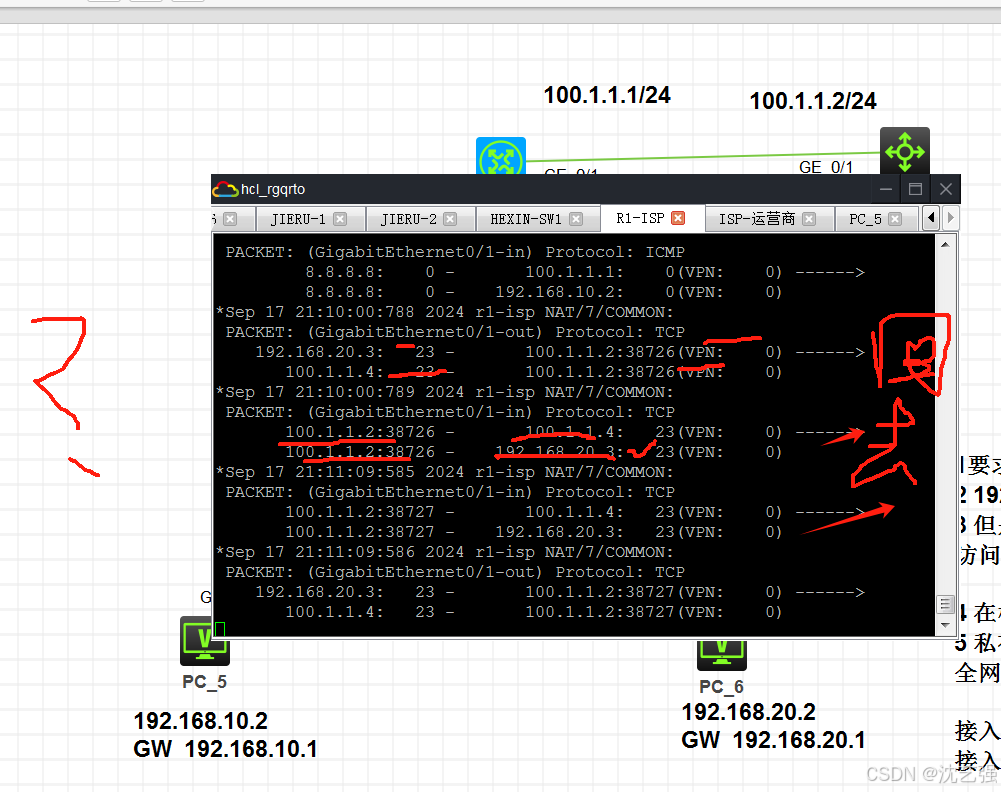

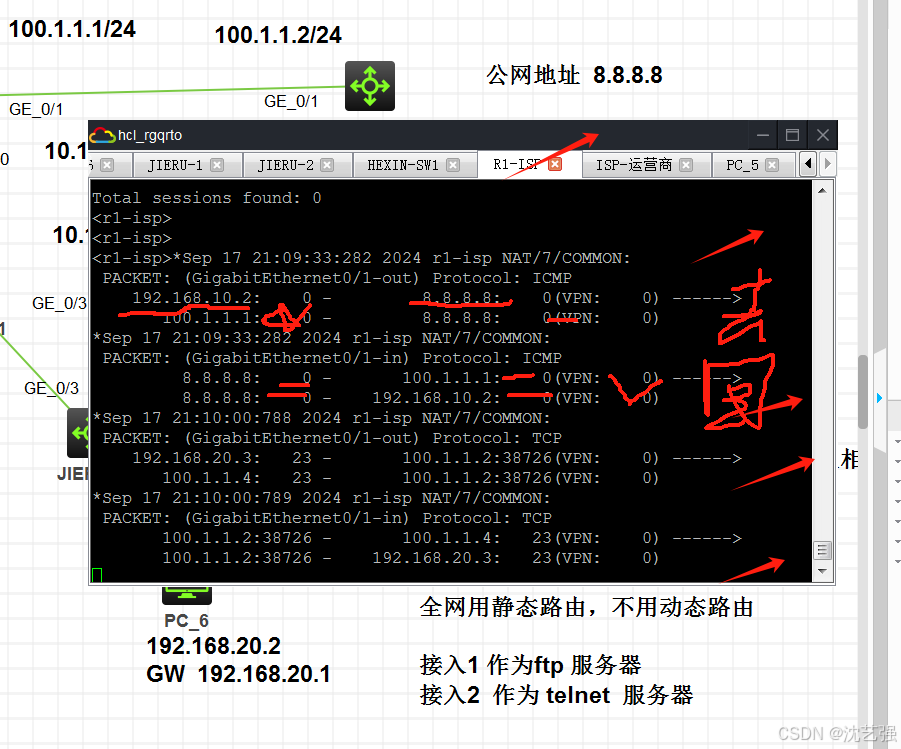

在终端测试8.8.8.8  看nat 路由器的变化

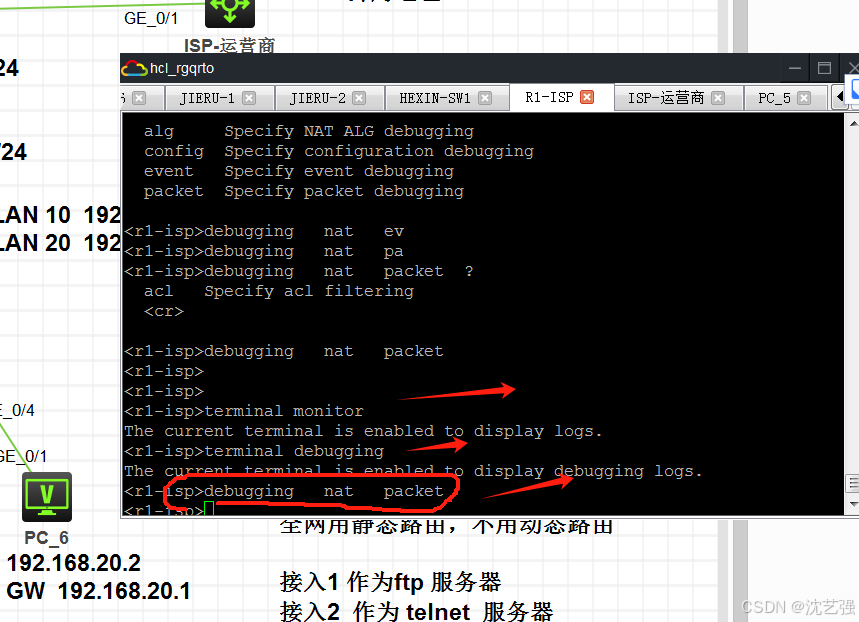

开启抓包模式   抓nat

沈艺强
关注
搭建小型网络
qiuyehuohong的博客
12-11 436
搭建小型服务
简单企业网络搭建（基于华为eNSP模拟器）
Arron475的博客
01-10 6048
简单企业网络搭建 实验目的 1.学会搭建简单企业网络。 实验拓扑 实验配置命令 进入e0/0/1接口: interface e0/0/1； 配置IP地址：ip address 192.168.10.254 24。 进入g0/0/0接口: interface g0/0/0； 配置IP地址：ip address 192.168.20.254 24。 进入g0/0/1接口: interface g0/0/1； 配置IP地址：ip address 192.168....
企业网络搭建
weixin_34370347的博客
09-13 4180
企业在多个地方有工厂，工厂之间采用移动专线，将各工厂核心交换机连接 每个企业多有各自的企业宽带接入，下面是2个企业的配置。 # version 7.1.064, Release 5208P03 # sysname H3C # telnet server enable # irf mac-address persistent timer irf auto-update enable ...
【H3C】Console口密码配置
最新发布
2401_88123749的博客
05-25 760
line aux0 //S5024X-EI使用该命令进入用户视图。set authentication password simple 123456789.//设置登陆密码为123456789.user-role network-admin //配置权限为network-admin管理员权限。authentication-mode password //认证模式为密码模式，其他还有无密码和用户密码模式。
公司网络搭建及×××到公司配置
weixin_33966365的博客
09-20 2143
一、公司路由器及子网配置    公司192.168.1.0/24子网用于服务器集群，192.168.0.0/24子网用于办公子网，两个子网物理上不在一块。    公司开业时，申请了电信40Mbps专线光纤，5个IP地址，网关：*.168.112.9  255.255.255.248，地址块：*.168.112.10-14，电信公司送了一个光猫，一个路由器，5个公网IP是绑定在一起的，现在需要把公网...
企业网络-小型企业网络搭建
weixin_52439435的博客
05-24 6041
企业网络-小型企业网络搭建
中小型企网搭建
qq_62449917的博客
10-21 4585
财务部和项目管理部处于同一区域，各部门交换机使用一条链路连接到核心交换机，为防止单链路故障，可以在财务部交换机和项目管理部交换机上采用一条链路互联，当上行链路出现故障时可以通过其他部门的交换机到达核心交换机。这里我做解释一下，这里三个交换机比较特殊，可以直接以sw1为根，它默认会down掉下面r3和r4连接的口（这里不理解可以在研究一下stp），反而如果这里你用mstp可能回引发环路导致下面主机获取不到地址。//在这我直接做中继了可以参考下面的地址池子和r1，服务地址为r1的g0/0/1口的IP地址。
小型企业网络搭建三.doc
10-03
【小型企业网络搭建】是企业信息化建设的基础，对于提高工作效率、保障数据安全具有重要意义。本文主要探讨了如何为小型企业构建高效、稳定的网络环境，包括需求分析、具体规划设计以及实施步骤。 **一、需求分析**...
中小型企业网络搭建ENSP教程
05-21
“搭建中小型企业网ensp.zip”是...在中小型企业网络搭建过程中，常见的知识点包括：1. 网络规划：合理规划IP地址分配方案，科学划分VLAN，避免广播风暴，提升网络效率；2. 路由协议：掌握OSPF、BGP等路由协议的原理与
小型企业网络搭建(三).pdf
05-24
小型企业网络搭建(三).pdf
《中小型企业网络搭建及应用》
04-29
《中小型企业网络搭建及应用》是一份针对中小型企业网络建设的综合性应用指南，它不仅是一份参赛作品，也是一份在2025年网络建设与运维技能大赛中展现技能和知识的实践报告。该指南深入探讨了中小型企业网络架构的...
小型网络搭建
weixin_34279184的博客
11-20 377
小型网络搭建配置解决方案 具体要求： 1.要求vlan间可以互相通讯。 2.vlan10,20，30都可以访问外网 3.外网可以访问通过访问e0端口来访问内部的www，RDP服务。 4.vlan30里面提供www服务，DHCP服务，RDP服务， 5.Vlan30中的DHCP服务器提供要求vlan10的主机得到的ip地址是10的网段里的ip ...
小型企业局域网组建
08-25
随着科学技术的不断进步，计算机技术和网络技术都得到了长足的发展，越来越多的计算机连接到不同的网络中，使得计算机网络不论从结构上还是规模上都发生了很大的变化，这给计算机网络的建设提出了新的挑战，对实施网络工程也提出了新的要求。
中小型企业网搭建
m0_68941516的博客
01-14 1892
大楼或功能划分楼层所属vlan信息点数ip地址段默认网关交换机网管地址交换机网管地址所有1010.1.1.254综合办公楼二2楼34210.1.1.1004楼44210.1.1.1025楼54210.1.1.103综合办公楼一1楼214010.1.1.12楼224010.1.1.23楼234010.1.1.34楼244010.1.1.45楼254010.1.1.56楼264010.1.1.6员工宿舍楼1楼。
小型企业网的搭建（企业网三层架构）
热门推荐
Lee's site
12-23 2万+
实验拓扑图： 实验的要求： 三层交换机与核心路由器连接的端口均为3层接口，与服务器连接的交换机也是3层接口 内网地址均为172.16.0.0/16 HSRP或VRRP丶STP丶VLAN丶DTP丶TRUNK丶VTP均使用 控制路由条目数量 全网可达，pc通过dhcp获取IP地址 对于交换的实验，先做路由的话会有很多的限制，所以根据要求我们有一些顺序可循： 因为汇聚层SW1，底下连接着不同的vl...
小型网络搭建实验
qq_46635171的博客
12-30 2571
先进行子网划分： 由图可知，内网中，LSW1下有VLAN2和VLAN3两个广播域，LSW1下有VLAN2和VLAN3两个广播域，加上AR1和AR2之间的骨干链路，一共有五个广播域，基于192.168.1.0/24进行合理划分： 192.168.1.0/24 192.168.1. 000 00000/27 --- 192.168.1.0/27 192.168.1. 00100000/27 --- 192.168.1.32/27 192.168.1. 010 00000/27 --- 19...
简单小型局域网搭建
weixin_51685970的博客
03-20 1万+
工具：路由器，交换机，宽带 对象：小型公司或对网络结构要求不高的单位 拓扑： 内网网段：192.168.1.0/24 运营商地址：1.1.1.1/30 配置： 出口路由器route 1，配置公网地址(wan) [route-GigabitEthernet0/0/1]ip address 1.1.1.1 30 与运营商互联的接口配置地址（运营商提供的公网地址） 2，配置内网地址（lan) [route-GigabitEthernet0/0/1]ip address 192.168.1.
实现小型网络搭建（简易版）
Nyqfjgk的博客
07-16 421
骨干及环回IP地址配置完成之后，对用户配置IP，在对R3进行配置IP时，已创建与用户连接的子接口，在交换机LSW1和LSW2中分别创建VLAN2和VLAN3，创建完成之后，将接口划分到各自的VLAN中，随后在两个交换机之间建立trunk干道，最后再将R3所创建的子接口划分到属于各自的VLAN中，便可完成VLAN的建立。接口GigabitEthernet0/0/2创建了子接口，故存在0/0/2.1和0/0/2.2。VLAN建立完成后，对所有路由器配置静态路由，来使拓扑全网可达；至此，全网可达，练习完成。
ensp小型企业网络搭建
05-24
针对小型企业的网络搭建，可以考虑以下步骤： 1. 确定网络拓扑结构：根据企业的需求和规模，确定网络的拓扑...以上是针对小型企业网络搭建的一些基本步骤，具体的实施方案需要根据企业的实际需求和现有资源进行调整。
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
