Camel管理路由的解决方案

Camel管理路由的解决方案 (持续更新ing)

通过Camel管理kafka的路由转发

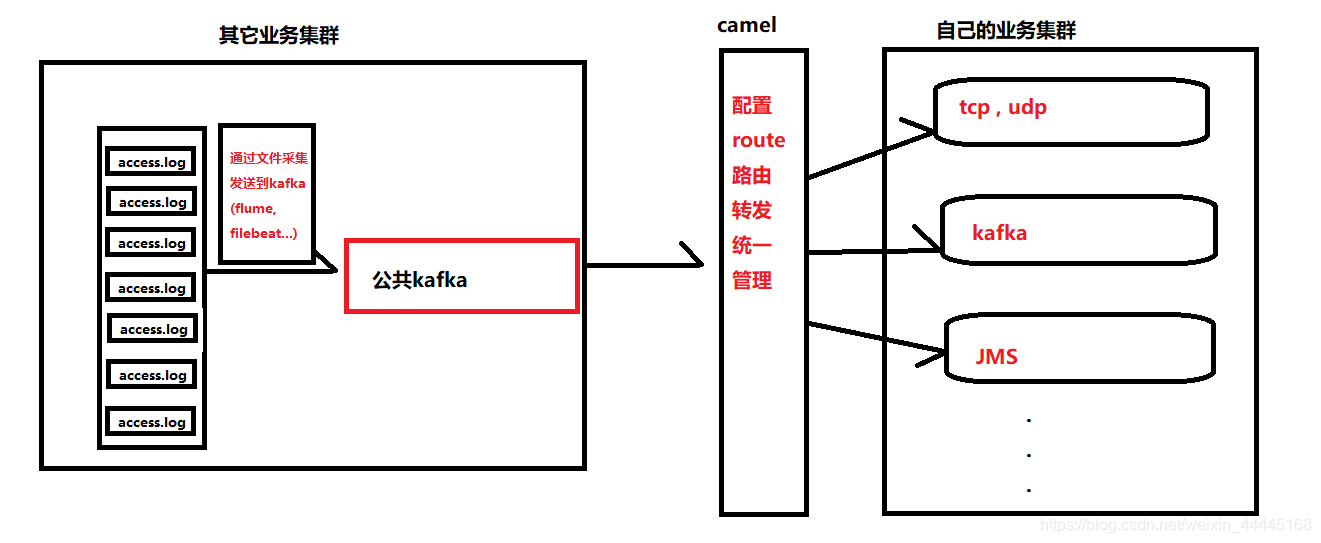

背景:采集数据发送到共有kafka,消费kafka,发送到自己集群kafka…

在一般生产的情况下,连接别人的kafka,是需要提供认证证书的,这里我们用同一个集群进行演示

环境准备

1. 安装zookeeper集群
2. 安装kafka

创建公共的topic

进入对应kafka目录

1.1创建topic

bin/kafka-topics.sh --create --zookeeper node01:2181,node02:2181,node03:2181 --replication-factor 1 --partitions 1 --topic commonAPI  --config retention.bytes=104857600

bin/kafka-topics.sh --create --zookeeper node01:2181,node02:2181,node03:2181 --replication-factor 1 --partitions 1 --topic camelproducer  --config retention.bytes=104857600

1.2通过camel集成kafka的消费和生产进行路由转发

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>it.luke</groupId>
    <artifactId>Camel_Pro</artifactId>
    <version>1.0-SNAPSHOT</version>


    <dependencies>
        <dependency>
            <groupId>org.apache.activemq</groupId>
            <artifactId>activemq-all</artifactId>
            <version>5.15.9</version>
        </dependency>

         <dependency>
             <groupId>org.apache.camel</groupId>
             <artifactId>camel-core</artifactId>
             <version>2.25.1</version>
         </dependency>

        <dependency>
            <groupId>org.apache.camel</groupId>
            <artifactId>camel-quartz2</artifactId>
            <version>2.16.2</version>
        </dependency>

        <!--kafka-->
        <!--<dependency>-->
            <!--<groupId>org.apache.camel</groupId>-->
            <!--<artifactId>camel-kafka</artifactId>-->
            <!--<version>2.25.1</version>-->
        <!--</dependency>-->
        <dependency>
            <groupId>org.apache.camel</groupId>
            <artifactId>camel-kafka</artifactId>
            <version>2.20.0</version>
        </dependency>


    </dependencies>
</project>

在这里有个坑,由于我安装的kafka是0.10版本的,比较老,不支持接收headers

但是camel-kafka 较高版本的组件,会自己添加headers

导致推送失败,报异常

java.lang.IllegalArgumentException: Magic v1 does not support record headers

这里挑选了2.20.0,是可以正常推送的,也可以选择升级kafka服务器版本来解决办法

package it.luke.camel_kafka;

import org.apache.camel.Exchange;
import org.apache.camel.Processor;
import org.apache.camel.builder.RouteBuilder;
import org.apache.camel.impl.DefaultCamelContext;

/**
 * @author luke
 * @date 2020/11/715:13
 */
public class Camel_Producer {
    //生产kafka数据
    public static void main(String[] args) {
        DefaultCamelContext camelContext = new DefaultCamelContext();

        //路由规则
        try {

            camelContext.addRoutes(new RouteBuilder() {
                public void configure() {
                    from("file://D:\\Server\\Camel_Pro\\testData\\kafka-output\\").routeId("myid")
                            .to("kafka:camelproducer?brokers=node01:9092,node02:9092,node03:9092");
                }
            });
            //启动线程
            camelContext.start();
            synchronized (Camel_Consumer.class) {
                Camel_Consumer.class.wait();
            }
            //关闭线程
            camelContext.stop();
        }catch (Exception e){
            e.printStackTrace();
        }

    }
}

启动程序,往commonAPI中写入数据,并消费camelproducer

bin/kafka-console-consumer.sh --from-beginning --topic camelproducer--zookeeper node01:2181,node02:2181,node03:2181

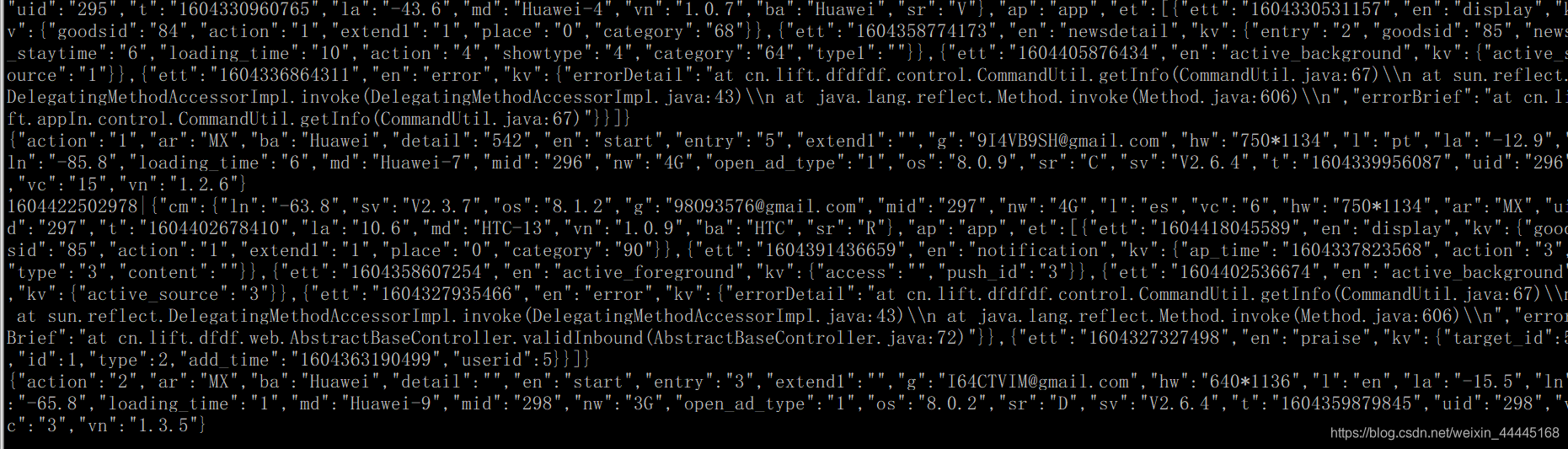

可以看到camelproducer中消费到了推过去的数据

一般生产环境中的kafka都是需要验证的,对应的验证参数的配置请参考官网

from("kafka:" + TOPIC + "?brokers=localhost:{{kafkaPort}}" +
             "&groupId=A" +
             "&sslKeystoreLocation=/path/to/keystore.jks" +
             "&sslKeystorePassword=changeit" +
             "&sslKeyPassword=changeit" +
             "&securityProtocol=SSL")
        .to("mock:result");

https://camel.apache.org/components/latest/kafka-component.html#_ssl_configuration
