SpringBoot 源码阅读（2）@SpringBootApplication

@SpringBootApplication

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@SpringBootConfiguration
@EnableAutoConfiguration
@ComponentScan(excludeFilters = { @Filter(type = FilterType.CUSTOM, classes = TypeExcludeFilter.class),
		@Filter(type = FilterType.CUSTOM, classes = AutoConfigurationExcludeFilter.class) })
public @interface SpringBootApplication {

	@AliasFor(annotation = EnableAutoConfiguration.class)
	Class<?>[] exclude() default {};

	@AliasFor(annotation = EnableAutoConfiguration.class)
	String[] excludeName() default {};

	@AliasFor(annotation = ComponentScan.class, attribute = "basePackages")
	String[] scanBasePackages() default {};

	@AliasFor(annotation = ComponentScan.class, attribute = "basePackageClasses")
	Class<?>[] scanBasePackageClasses() default {};

	@AliasFor(annotation = Configuration.class)
	boolean proxyBeanMethods() default true;

}

@EnableAutoConfiguration

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@AutoConfigurationPackage
@Import(AutoConfigurationImportSelector.class)
public @interface EnableAutoConfiguration {

	String ENABLED_OVERRIDE_PROPERTY = "spring.boot.enableautoconfiguration";

	Class<?>[] exclude() default {};

	String[] excludeName() default {};

}

跟 AutoConfigurationImportSelector 类的重点：

内部类 AutoConfigurationGroup

//收集EnableAutoConfiguration的实现类
@Override
public void process(AnnotationMetadata annotationMetadata, DeferredImportSelector deferredImportSelector) {
	Assert.state(deferredImportSelector instanceof AutoConfigurationImportSelector,
			() -> String.format("Only %s implementations are supported, got %s",
					AutoConfigurationImportSelector.class.getSimpleName(),
					deferredImportSelector.getClass().getName()));
	AutoConfigurationEntry autoConfigurationEntry = ((AutoConfigurationImportSelector) deferredImportSelector)
			.getAutoConfigurationEntry(getAutoConfigurationMetadata(), annotationMetadata);
	this.autoConfigurationEntries.add(autoConfigurationEntry);
	for (String importClassName : autoConfigurationEntry.getConfigurations()) {
		this.entries.putIfAbsent(importClassName, annotationMetadata);
	}
}

跟 getAutoConfigurationEntry：

protected AutoConfigurationEntry getAutoConfigurationEntry(AutoConfigurationMetadata autoConfigurationMetadata,
		AnnotationMetadata annotationMetadata) {
	if (!isEnabled(annotationMetadata)) {
		return EMPTY_ENTRY;
	}
	AnnotationAttributes attributes = getAttributes(annotationMetadata);

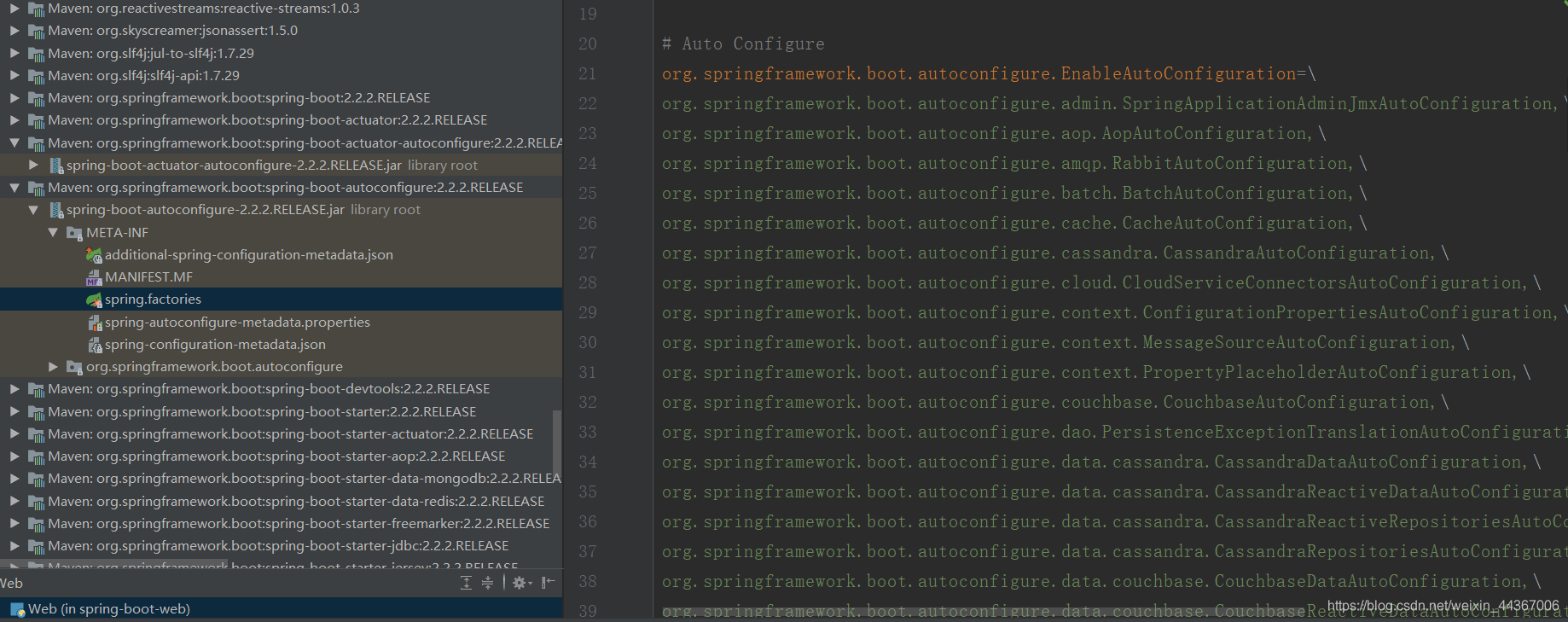

	// SPI获取EnableAutoConfiguration为key的所有实现类
	List<String> configurations = getCandidateConfigurations(annotationMetadata, attributes);
	configurations = removeDuplicates(configurations);
	Set<String> exclusions = getExclusions(annotationMetadata, attributes);
	checkExcludedClasses(configurations, exclusions);
	configurations.removeAll(exclusions);
	// 把某些自动配置类过滤掉
	configurations = filter(configurations, autoConfigurationMetadata);
	fireAutoConfigurationImportEvents(configurations, exclusions);
	// 包装成自动配置实体类
	return new AutoConfigurationEntry(configurations, exclusions);
}

跟 getCandidateConfigurations：

protected List<String> getCandidateConfigurations(AnnotationMetadata metadata, AnnotationAttributes attributes) {
	// SPI获取EnableAutoConfiguration为key的所有实现类
	List<String> configurations = SpringFactoriesLoader.loadFactoryNames(getSpringFactoriesLoaderFactoryClass(),
			getBeanClassLoader());
	Assert.notEmpty(configurations, "No auto configuration classes found in META-INF/spring.factories. If you "
			+ "are using a custom packaging, make sure that file is correct.");
	return configurations;
}

process 方法哪里调的

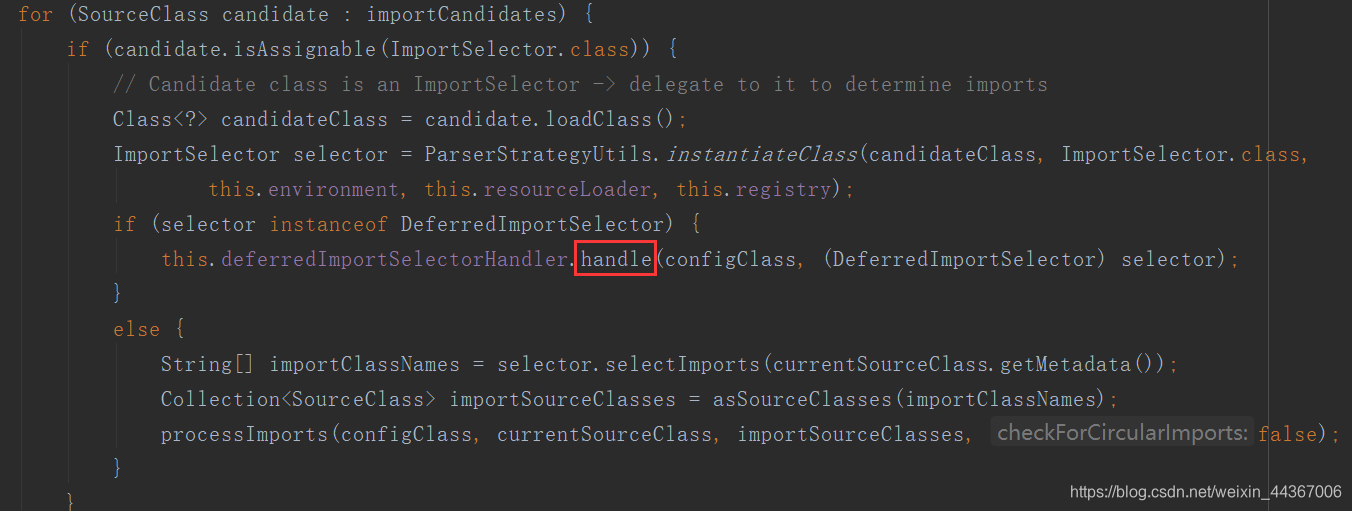

见 Spring5 源码阅读笔记（2）AnnotationConfigApplicationContext 2.2，doProcessConfigurationClass 里有个 processImports 方法，
类 ConfigurationClassPostProcessor

跟 handle：

public void handle(ConfigurationClass configClass, DeferredImportSelector importSelector) {
	DeferredImportSelectorHolder holder = new DeferredImportSelectorHolder(
			configClass, importSelector);
	if (this.deferredImportSelectors == null) {
		DeferredImportSelectorGroupingHandler handler = new DeferredImportSelectorGroupingHandler();
		handler.register(holder);
		handler.processGroupImports();
	}
	else {
		this.deferredImportSelectors.add(holder);
	}
}

跟 processGroupImports：

public void processGroupImports() {
	for (DeferredImportSelectorGrouping grouping : this.groupings.values()) {
		grouping.getImports().forEach(entry -> {
			ConfigurationClass configurationClass = this.configurationClasses.get(
					entry.getMetadata());
			try {
				processImports(configurationClass, asSourceClass(configurationClass),
						asSourceClasses(entry.getImportClassName()), false);
			}
			catch (BeanDefinitionStoreException ex) {
				throw ex;
			}
			catch (Throwable ex) {
				throw new BeanDefinitionStoreException(
						"Failed to process import candidates for configuration class [" +
								configurationClass.getMetadata().getClassName() + "]", ex);
			}
		});
	}
}

跟 getImports：
这是 ConfigurationClassParser 内部类 DeferredImportSelectorGrouping 里的方法

public Iterable<Group.Entry> getImports() {
	for (DeferredImportSelectorHolder deferredImport : this.deferredImports) {
		this.group.process(deferredImport.getConfigurationClass().getMetadata(),
				deferredImport.getImportSelector());
	}
	return this.group.selectImports();
}

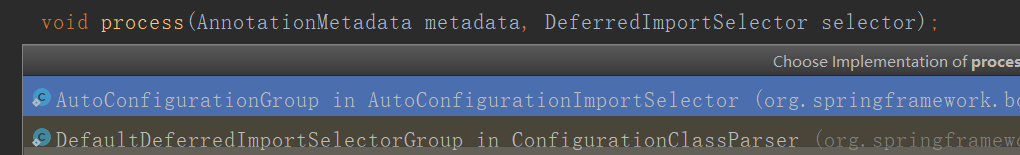

• 跟 process：
  类 DeferredImportSelector

  就是这里调到了前面提到的内部类

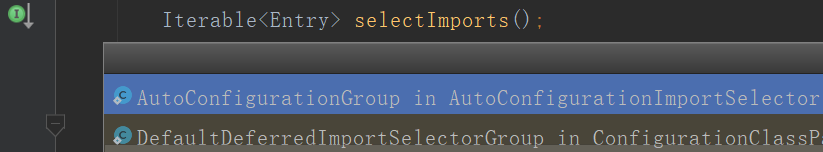

• 跟 selectImports：

  一样也是调到的内部类

@Override
public Iterable<Entry> selectImports() {
	if (this.autoConfigurationEntries.isEmpty()) {
		return Collections.emptyList();
	}
	Set<String> allExclusions = this.autoConfigurationEntries.stream()
			.map(AutoConfigurationEntry::getExclusions).flatMap(Collection::stream).collect(Collectors.toSet());
	Set<String> processedConfigurations = this.autoConfigurationEntries.stream()
			.map(AutoConfigurationEntry::getConfigurations).flatMap(Collection::stream)
			.collect(Collectors.toCollection(LinkedHashSet::new));
	processedConfigurations.removeAll(allExclusions);

	return sortAutoConfigurations(processedConfigurations, getAutoConfigurationMetadata()).stream()
			.map((importClassName) -> new Entry(this.entries.get(importClassName), importClassName))
			.collect(Collectors.toList());
}

这两个方法都是 ConfigurationClassPostProcessor 调用 ConfigurationClassParser 的方法调到的。最后还是由 ConfigurationClassPostProcessor 的后续操作，将 EnableAutoConfiguration 的所有实现类转为 BeanDefinition。
