Spring5 源码阅读笔记（5.1）DispatcherServlet 里的 onRefresh

onRefresh

Spring 启动的时候就会调

@Override
protected void onRefresh(ApplicationContext context) {
	initStrategies(context);
}

跟 initStrategies：

protected void initStrategies(ApplicationContext context) {
	initMultipartResolver(context);
	initLocaleResolver(context);
	initThemeResolver(context);
	initHandlerMappings(context);
	initHandlerAdapters(context);
	initHandlerExceptionResolvers(context);
	initRequestToViewNameTranslator(context);
	initViewResolvers(context);
	initFlashMapManager(context);
}

跟 initHandlerMappings：

//初始化 handlerMappings
private void initHandlerMappings(ApplicationContext context) {
	this.handlerMappings = null;

	if (this.detectAllHandlerMappings) {

		//找到上下文中所有的HandlerMapping
		Map<String, HandlerMapping> matchingBeans =
				BeanFactoryUtils.beansOfTypeIncludingAncestors(context, HandlerMapping.class, true, false);
		if (!matchingBeans.isEmpty()) {
			this.handlerMappings = new ArrayList<>(matchingBeans.values());
			// We keep HandlerMappings in sorted order.
			AnnotationAwareOrderComparator.sort(this.handlerMappings);
		}
	}
	else {
		try {
			HandlerMapping hm = context.getBean(HANDLER_MAPPING_BEAN_NAME, HandlerMapping.class);
			this.handlerMappings = Collections.singletonList(hm);
		}
		catch (NoSuchBeanDefinitionException ex) {
			// Ignore, we'll add a default HandlerMapping later.
		}
	}

	// Ensure we have at least one HandlerMapping, by registering
	// a default HandlerMapping if no other mappings are found.
	if (this.handlerMappings == null) {
		this.handlerMappings = getDefaultStrategies(context, HandlerMapping.class);
		if (logger.isTraceEnabled()) {
			logger.trace("No HandlerMappings declared for servlet '" + getServletName() +
					"': using default strategies from DispatcherServlet.properties");
		}
	}
}

HandlerMapping 哪里来的？

@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.TYPE)
@Documented
@Import(DelegatingWebMvcConfiguration.class)
public @interface EnableWebMvc {
}

DelegatingWebMvcConfiguration 的父类 WebMvcConfigurationSupport：

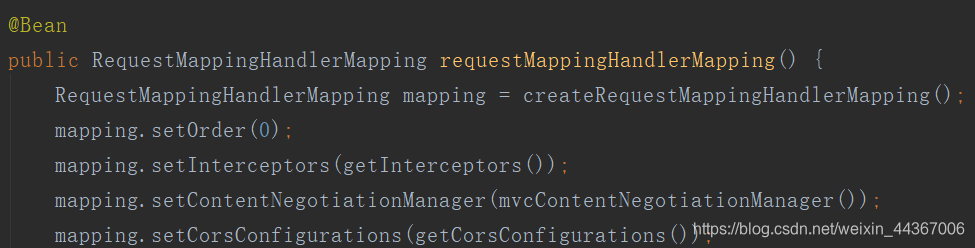

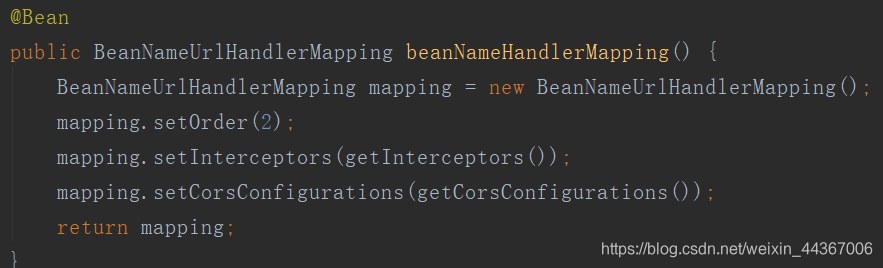

往上下文里注入了很多实现了 HandlerMapping 的 Bean：

优先级越小越优先。
