SpringBoot请求处理之获取处理器——源码学习

该文SpringBoot版本：2.3.4
在springboot中，请求会交由doDispatch()方法处理，其中调用mappedHandler = getHandler(processedRequest);，我们来看看它具体的获取过程。

protected HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
		if (this.handlerMappings != null) {
			for (HandlerMapping mapping : this.handlerMappings) {
				HandlerExecutionChain handler = mapping.getHandler(request);
				if (handler != null) {
					return handler;
				}
			}
		}
		return null;
	}

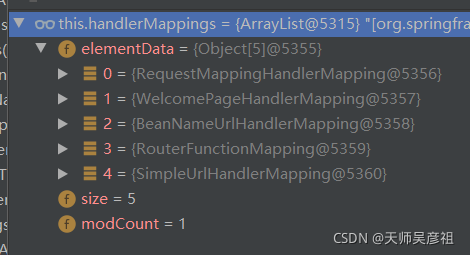

getHandler()方法中循环遍历容器中的handlerMappings来找到需要的处理器，一但匹配就返回。

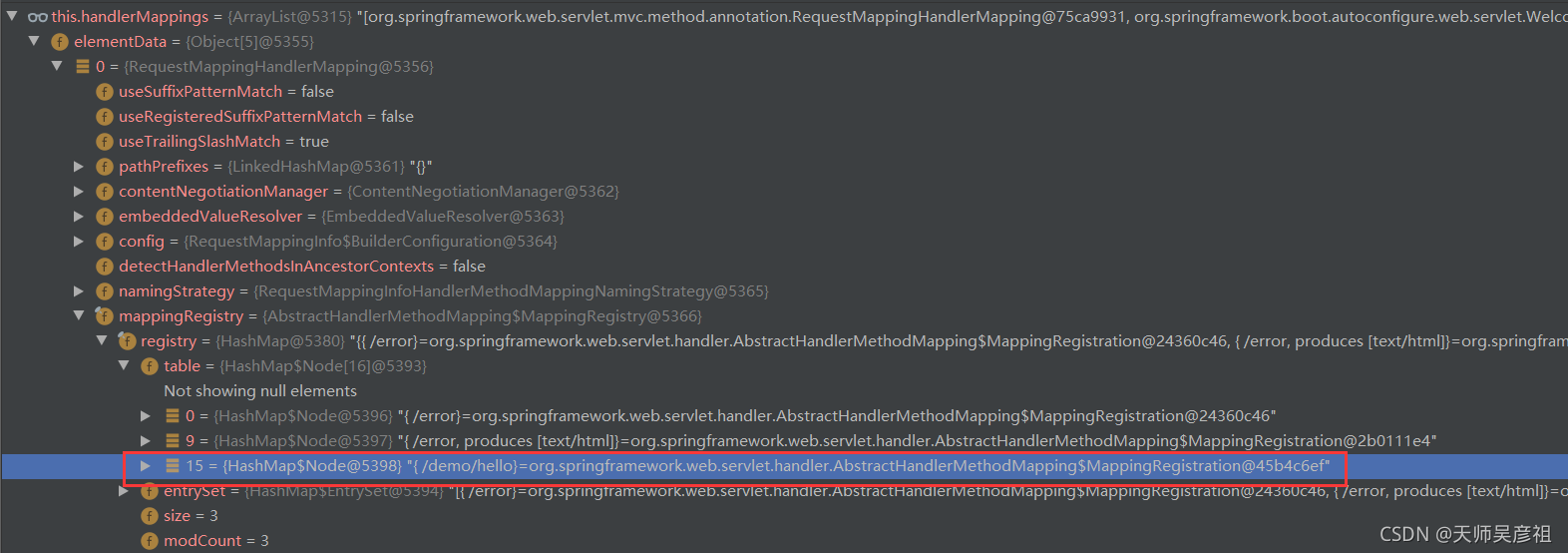

我们自己的controller已经被注册在RequestMappingHandlerMapping中。
进入RequestMappingHandlerMapping.getHandler()方法。方法中第一句Object handler = getHandlerInternal(request);就是为了找到对应的handler，再进入方法，方法调用了父类的super.getHandlerInternal(request);，

@Override
	protected HandlerMethod getHandlerInternal(HttpServletRequest request) throws Exception {
		String lookupPath = getUrlPathHelper().getLookupPathForRequest(request);
		request.setAttribute(LOOKUP_PATH, lookupPath);
		this.mappingRegistry.acquireReadLock();
		try {
			HandlerMethod handlerMethod = lookupHandlerMethod(lookupPath, request);
			return (handlerMethod != null ? handlerMethod.createWithResolvedBean() : null);
		}
		finally {
			this.mappingRegistry.releaseReadLock();
		}
	}

在该方法中，利用UrlPathHelper获取到了请求路径lookuoPath（本例子是/demo/hello）。
接着HandlerMethod handlerMethod = lookupHandlerMethod(lookupPath, request);就是在RequestMappingHandlerMapping中是否有与lookuoPath对应的处理器方法。

protected HandlerMethod lookupHandlerMethod(String lookupPath, HttpServletRequest request) throws Exception {
		List<Match> matches = new ArrayList<>();
		//寻找有没有与lookuoPath匹配的Mapping
		List<T> directPathMatches = this.mappingRegistry.getMappingsByUrl(lookupPath);
		if (directPathMatches != null) {
			//将匹配的mapping和业务方法关联起来，封装在一个Match中
			addMatchingMappings(directPathMatches, matches, request);
		}
		if (matches.isEmpty()) {
			// No choice but to go through all mappings...
			addMatchingMappings(this.mappingRegistry.getMappings().keySet(), matches, request);
		}

		if (!matches.isEmpty()) {
			Match bestMatch = matches.get(0);
			//处理多重匹配
			if (matches.size() > 1) {
				Comparator<Match> comparator = new MatchComparator(getMappingComparator(request));
				matches.sort(comparator);
				bestMatch = matches.get(0);
				if (logger.isTraceEnabled()) {
					logger.trace(matches.size() + " matching mappings: " + matches);
				}
				if (CorsUtils.isPreFlightRequest(request)) {
					return PREFLIGHT_AMBIGUOUS_MATCH;
				}
				Match secondBestMatch = matches.get(1);
				if (comparator.compare(bestMatch, secondBestMatch) == 0) {
					Method m1 = bestMatch.handlerMethod.getMethod();
					Method m2 = secondBestMatch.handlerMethod.getMethod();
					String uri = request.getRequestURI();
					throw new IllegalStateException(
							"Ambiguous handler methods mapped for '" + uri + "': {" + m1 + ", " + m2 + "}");
				}
			}
			request.setAttribute(BEST_MATCHING_HANDLER_ATTRIBUTE, bestMatch.handlerMethod);
			handleMatch(bestMatch.mapping, lookupPath, request);
			//将映射到的处理器方法返回
			return bestMatch.handlerMethod;
		}
		else {
			return handleNoMatch(this.mappingRegistry.getMappings().keySet(), lookupPath, request);
		}
	}

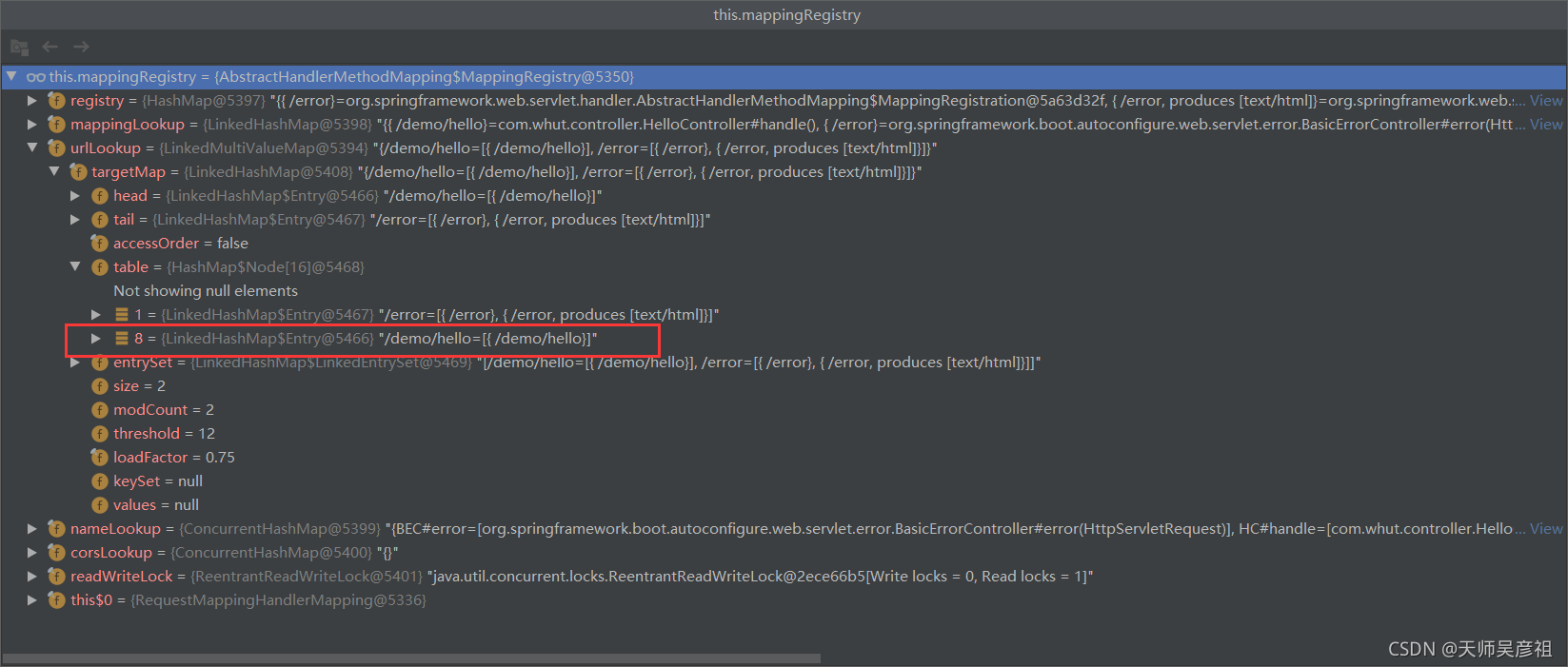

先看mappingRegistry中有没有直接匹配结果，返回匹配的url数组

//List<T> directPathMatches = this.mappingRegistry.getMappingsByUrl(lookupPath);
@Nullable
		public List<T> getMappingsByUrl(String urlPath) {
			return this.urlLookup.get(urlPath);
		}

如果发现了可以匹配的Mapping，则会调用addMatchingMappings(directPathMatches, matches, request);将Mapping（因为已经匹配，所以等同于lookupPath）和它对应的处理器方法封装在Match对象中。
最后return bestMatch.handlerMethod;返回匹配的处理器方法。
按原路返回，回到了

public final HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
		Object handler = getHandlerInternal(request);
		if (handler == null) {
			handler = getDefaultHandler();
		}
		//空就返回
		if (handler == null) {
			return null;
		}
		// Bean name or resolved handler?
		if (handler instanceof String) {
			String handlerName = (String) handler;
			handler = obtainApplicationContext().getBean(handlerName);
		}
		//如果不空
		//获得handler的执行链
		HandlerExecutionChain executionChain = getHandlerExecutionChain(handler, request);

		if (logger.isTraceEnabled()) {
			logger.trace("Mapped to " + handler);
		}
		else if (logger.isDebugEnabled() && !request.getDispatcherType().equals(DispatcherType.ASYNC)) {
			logger.debug("Mapped to " + executionChain.getHandler());
		}

		if (hasCorsConfigurationSource(handler) || CorsUtils.isPreFlightRequest(request)) {
			CorsConfiguration config = (this.corsConfigurationSource != null ? this.corsConfigurationSource.getCorsConfiguration(request) : null);
			CorsConfiguration handlerConfig = getCorsConfiguration(handler, request);
			config = (config != null ? config.combine(handlerConfig) : handlerConfig);
			executionChain = getCorsHandlerExecutionChain(request, executionChain, config);
		}

		return executionChain;
	}

在获得了想要的handler以后，会同时找到该handler对应的拦截器，最后形成执行链返回。

protected HandlerExecutionChain getHandlerExecutionChain(Object handler, HttpServletRequest request) {
		HandlerExecutionChain chain = (handler instanceof HandlerExecutionChain ?
				(HandlerExecutionChain) handler : new HandlerExecutionChain(handler));

		String lookupPath = this.urlPathHelper.getLookupPathForRequest(request, LOOKUP_PATH);
		for (HandlerInterceptor interceptor : this.adaptedInterceptors) {
			if (interceptor instanceof MappedInterceptor) {
				MappedInterceptor mappedInterceptor = (MappedInterceptor) interceptor;
				if (mappedInterceptor.matches(lookupPath, this.pathMatcher)) {
					chain.addInterceptor(mappedInterceptor.getInterceptor());
				}
			}
			else {
				chain.addInterceptor(interceptor);
			}
		}
		return chain;
	}

自此，我们就得到了请求对应的handler（controller中的业务方法），同时也得到了需要执行的拦截器，最后返回到doDispatch()方法中的mappedHandler = getHandler(processedRequest);。
