ELK——UI界面监测数据，日志采集

server1	jdk,elasticsearch
server2	jdk,elasticsearch
server3	jdk,elasticsearch

UI界面监测数据

1. 开启服务，关闭swap分区

[root@server1 ~]# systemctl start elasticsearch.service
[root@server1 ~]# swapoff -a

检测端口：

[root@server1 ~]# netstat -natlp | grep :9200

2.添加节点（需要解析名，时间同步）

[root@server1 ~]# vim /etc/elasticsearch/elasticsearch.yml
 68 discovery.zen.ping.unicast.hosts: ["server1", "server2", "server3"]

server2/3:

[root@server2 ~]# vim /etc/elasticsearch/elasticsearch.yml
 68 discovery.zen.ping.unicast.hosts: ["server1", "server2", "server3"]
[root@server3 ~]# vim /etc/elasticsearch/elasticsearch.yml
 68 discovery.zen.ping.unicast.hosts: ["server1", "server2", "server3"]

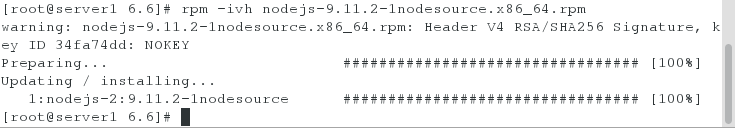

[root@server1 ~]# rpm -ivh nodejs-9.11.2-1nodesource.x86_64.rpm

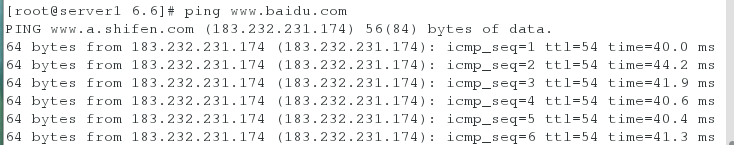

3.虚拟机上网

[root@foundation36 ~]# iptables -t nat -I POSTROUTING -s 172.25.60.0/24 -j MASQUERADE

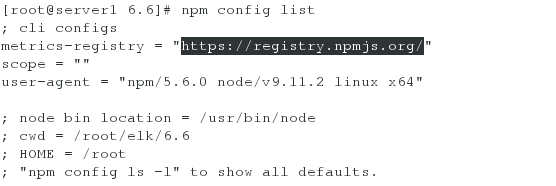

 查看版本,配置列表

[root@server1 ~]# node -v  #版本
[root@server1 ~]# npm config list

4.更改npm域（更改为taobao的，这样安装会快）

[root@server1 6.6]# npm set registry https://registry.npm.taobao.org/
[root@server1 6.6]# npm config list

metrics-registry = "https://registry.npm.taobao.org/"

5.解压控制主节点的安装包

[root@server1 ~]# yum install -y unzip
[root@server1 ~]# unzip elasticsearch-head-master.zip

#安装过程需要phantomjs，解压后放在/uar/local/bin（可在线下载但是会很慢）

[root@server1 6.6]# ls
phantomjs-2.1.1-linux-x86_64.tar.bz2
[root@server1 6.6]# yum install -y bzip2
[root@server1 6.6]# tar jxf phantomjs-2.1.1-linux-x86_64.tar.bz2
[root@server1 6.6]# cd phantomjs-2.1.1-linux-x86_64/
[root@server1 phantomjs-2.1.1-linux-x86_64]# ls
bin  ChangeLog  examples  LICENSE.BSD  README.md  third-party.txt
[root@server1 phantomjs-2.1.1-linux-x86_64]# cd bin/
[root@server1 bin]# ls
phantomjs
[root@server1 bin]# cp phantomjs /usr/local/bin/

查看是否有执行权限:

[root@server1 bin]# ll /usr/local/bin/phantomjs

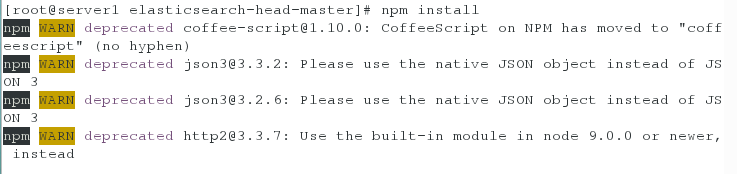

6.安装UI界面

[root@server1 bin]# cd
[root@server1 ~]# cd elasticsearch-head-master/
[root@server1 elasticsearch-head-master]# npm install

7.更改监听的主机号

[root@server1 elasticsearch-head-master]# cd _site/
[root@server1 _site]# vim app.js

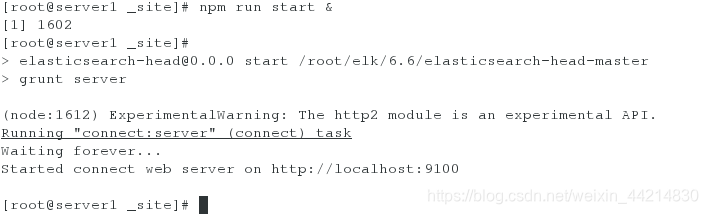

8.UI界面后台运行

[root@server1 elasticsearch-head-master]# npm run start &

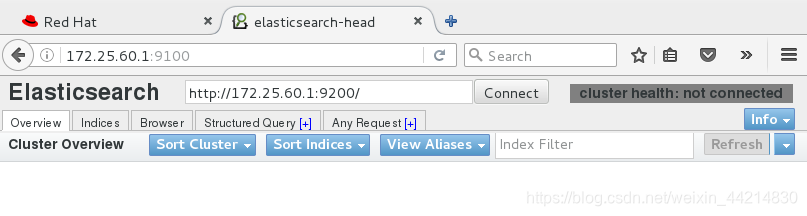

9.浏览器访问http://172.25.60.1:9100/

跨域访问的配置：

[root@server1 ~]# vim /etc/elasticsearch/elasticsearch.yml
http.cors.enabled: true
http.cors.allow-origin: "*"
[root@server1 ~]# systemctl restart elasticsearch.service

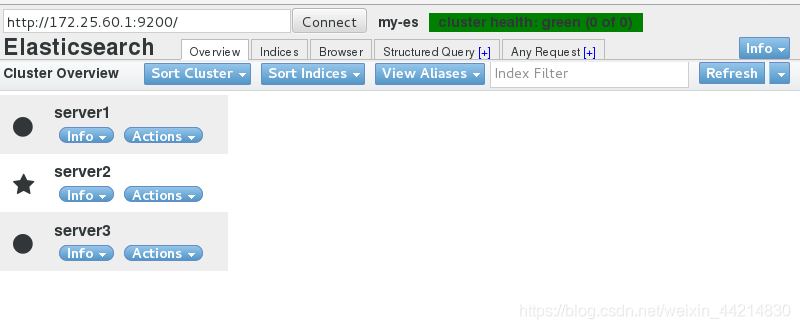

刷新浏览器点击连接（connect）：

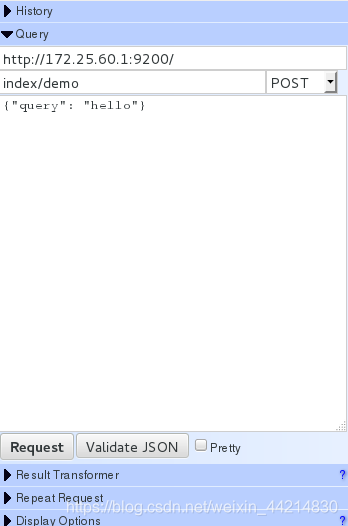

点击Any Request（复合查询）

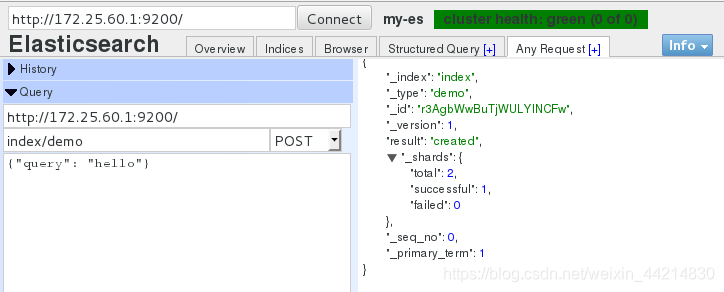

点击Request（提交请求

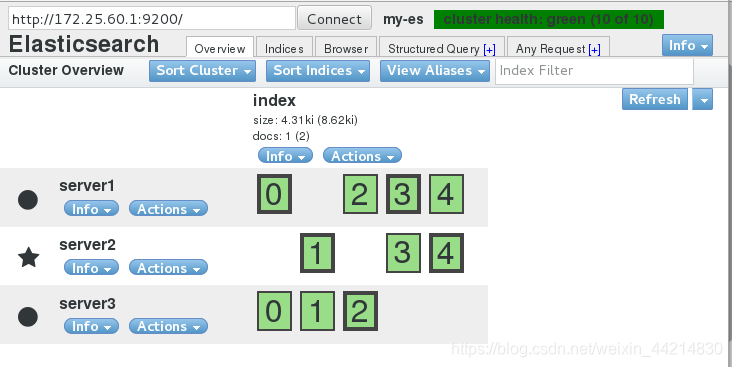

刷新浏览器：

设置master主节点

master:选举模式
master data存数据  client响应查询  （当前server1/2/3都具备)

1.设定master

server1:

[root@server1 ~]# vim /etc/elasticsearch/elasticsearch.yml
 24 node.master: true
 25 node.data: false

server2/server3：

[root@server2 ~]# vim /etc/elasticsearch/elasticsearch.yml
node.master: false
node.data: true
[root@server3 ~]# vim /etc/elasticsearch/elasticsearch.yml
node.master: false
node.data: true

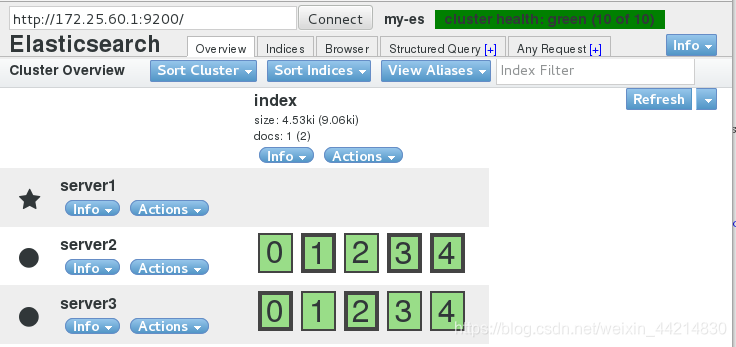

刷新浏览器http://172.25.60.1:9100/
