背景：公司一台生产物理rac数据库上的asm共享盘使用量飙满，本来是1T，使用率已经超90%，急需扩容

1、物理SAN存储扩容

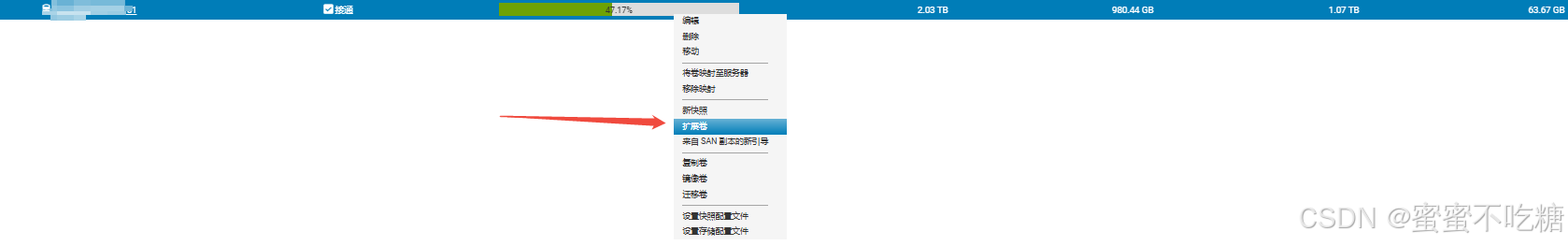

由于此1T目录的容量是物理SAN存储直接分配的，所以要扩容首先就要在物理SAN存储上先扩，如下：

博主的存储是DELL的，如果各位用的是其他物理存储，扩容步骤可能不同。

2、Multipath多路径硬盘设备扩容

由于物理SAN存储分配的盘在rac物理机上显示有4份，所以当时做了Multipath多路径绑定，如下：

[root@racdb1 ~]# lsblk
NAME          MAJ:MIN RM   SIZE RO TYPE  MOUNTPOINT
sda             8:0    0 447.1G  0 disk
├─sda1          8:1    0   200M  0 part  /boot/efi
├─sda2          8:2    0     1G  0 part  /boot
└─sda3          8:3    0 445.9G  0 part
  ├─rhel-root 253:0    0 429.9G  0 lvm   /
  └─rhel-swap 253:1    0    16G  0 lvm   [SWAP]
sdb             8:16   0   1.8T  0 disk
└─vg01-lv01   253:6    0   300G  0 lvm   /u01
sdc             8:32   0    10G  0 disk
└─mpathb      253:3    0    10G  0 mpath
sdd             8:48   0    10G  0 disk
└─mpathc      253:4    0    10G  0 mpath
sde             8:64   0     1T  0 disk
└─mpathd      253:5    0     1T  0 mpath
sdf             8:80   0    10G  0 disk
└─mpatha      253:2    0    10G  0 mpath
sdg             8:96   0    10G  0 disk
└─mpathb      253:3    0    10G  0 mpath
sdh             8:112  0    10G  0 disk
└─mpathc      253:4    0    10G  0 mpath
sdi             8:128  0     1T  0 disk
└─mpathd      253:5    0     1T  0 mpath
sdj             8:144  0    10G  0 disk
└─mpatha      253:2    0    10G  0 mpath
sdk             8:160  0    10G  0 disk
└─mpatha      253:2    0    10G  0 mpath
sdl             8:176  0    10G  0 disk
└─mpathb      253:3    0    10G  0 mpath
sdm             8:192  0    10G  0 disk
└─mpathc      253:4    0    10G  0 mpath
sdn             8:208  0     1T  0 disk
└─mpathd      253:5    0     1T  0 mpath
sdo             8:224  0    10G  0 disk
└─mpathb      253:3    0    10G  0 mpath
sdp             8:240  0    10G  0 disk
└─mpathc      253:4    0    10G  0 mpath
sdq            65:0    0     1T  0 disk
└─mpathd      253:5    0     1T  0 mpath
sdr            65:16   0    10G  0 disk
└─mpatha      253:2    0    10G  0 mpath
[root@racdb1 ~]# multipath -ll
mpathd (36000d31005b18600000000000000000c) dm-5 COMPELNT,Compellent Vol
size=1.0T features='1 queue_if_no_path' hwhandler='0' wp=rw
`-+- policy='service-time 0' prio=1 status=active
  |- 14:0:0:4 sde                8:64   active ready running
  |- 14:0:2:4 sdi                8:128  active ready running
  |- 16:0:1:4 sdn                8:208  active ready running
  `- 16:0:2:4 sdq                65:0   active ready running

2.1 扩容后，需重新扫描存储设备的SCSI总线

[root@racdb1 ~]# echo 1 > /sys/block/sde/device/rescan
[root@racdb1 ~]# echo 1 > /sys/block/sdi/device/rescan
[root@racdb1 ~]# echo 1 > /sys/block/sdn/device/rescan
[root@racdb1 ~]# echo 1 > /sys/block/sdq/device/rescan
扫描后查看容量是否已刷新：
[root@racdb1 ~]# lsblk
NAME          MAJ:MIN RM   SIZE RO TYPE  MOUNTPOINT
sda             8:0    0 447.1G  0 disk
├─sda1          8:1    0   200M  0 part  /boot/efi
├─sda2          8:2    0     1G  0 part  /boot
└─sda3          8:3    0 445.9G  0 part
  ├─rhel-root 253:0    0 429.9G  0 lvm   /
  └─rhel-swap 253:1    0    16G  0 lvm   [SWAP]
sdb             8:16   0   1.8T  0 disk
└─vg01-lv01   253:6    0   300G  0 lvm   /u01
sdc             8:32   0    10G  0 disk
└─mpathb      253:3    0    10G  0 mpath
sdd             8:48   0    10G  0 disk
└─mpathc      253:4    0    10G  0 mpath
sde             8:64   0     2T  0 disk
└─mpathd      253:5    0     1T  0 mpath
sdf             8:80   0    10G  0 disk
└─mpatha      253:2    0    10G  0 mpath
sdg             8:96   0    10G  0 disk
└─mpathb      253:3    0    10G  0 mpath
sdh             8:112  0    10G  0 disk
└─mpathc      253:4    0    10G  0 mpath
sdi             8:128  0     2T  0 disk
└─mpathd      253:5    0     1T  0 mpath
sdj             8:144  0    10G  0 disk
└─mpatha      253:2    0    10G  0 mpath
sdk             8:160  0    10G  0 disk
└─mpatha      253:2    0    10G  0 mpath
sdl             8:176  0    10G  0 disk
└─mpathb      253:3    0    10G  0 mpath
sdm             8:192  0    10G  0 disk
└─mpathc      253:4    0    10G  0 mpath
sdn             8:208  0     2T  0 disk
└─mpathd      253:5    0     1T  0 mpath
sdo             8:224  0    10G  0 disk
└─mpathb      253:3    0    10G  0 mpath
sdp             8:240  0    10G  0 disk
└─mpathc      253:4    0    10G  0 mpath
sdq            65:0    0     2T  0 disk
└─mpathd      253:5    0     1T  0 mpath
sdr            65:16   0    10G  0 disk
└─mpatha      253:2    0    10G  0 mpath

2.2 SCSI容量刷新后，4块设备对应的mpath也需扩容

从上面可以看到4块设备的SCSI容量更新后，对应的同一个mpath并没有跟着扩容，此时需要通过Multipathd命令扩容
[root@racdb1 ~]# multipath -ll
mpathd (36000d31005b18600000000000000000c) dm-5 COMPELNT,Compellent Vol
size=1.0T features='1 queue_if_no_path' hwhandler='0' wp=rw
`-+- policy='service-time 0' prio=1 status=active
  |- 14:0:0:4 sde                8:64   active ready running
  |- 14:0:2:4 sdi                8:128  active ready running
  |- 16:0:1:4 sdn                8:208  active ready running
  `- 16:0:2:4 sdq                65:0   active ready running

[root@racdb1 ~]# multipathd -k"resize map dm-5"   #注意-k和"之间没有空格
ok

回显成功后，再次查看容量：
[root@racdb1 ~]# multipath -ll
mpathd (36000d31005b18600000000000000000c) dm-5 COMPELNT,Compellent Vol
size=2.0T features='1 queue_if_no_path' hwhandler='0' wp=rw
`-+- policy='service-time 0' prio=1 status=active
  |- 14:0:0:4 sde                8:64   active ready running
  |- 14:0:2:4 sdi                8:128  active ready running
  |- 16:0:1:4 sdn                8:208  active ready running
  `- 16:0:2:4 sdq                65:0   active ready running
mpathd已成功扩容到2T~！
