机器学习1：逻辑回归（Logistic regression）

逻辑回归的代码实现

逻辑回归是机器学习中经典的二分类方法：

代码需要完成的模块：

1.sigmoid：映射到概率的函数

$$g\left(z\right)=\frac{1}{1+e^{-z}}$$

2.model：返回预测结果值

$$h_{\theta }\left(x\right)=g\left({\theta }^{T}x\right)=\frac{1}{1+e^{-{\theta }^{T}x}}$$

3.loss：根据参数计算损失

将对数似然函数取负号，转化为求梯度下降：
$$l\left(h_{\theta }\left(x\right),y\right)=-y\ast log\left(h_{\theta }\left(x\right)\right)-\left(1-y\right)\ast log\left(1-h_{\theta }\left(x\right)\right)$$
每次求平均损失：
$$L\left(\theta \right)=\frac{1}{n}\sum _n^{i=1}l\left(h_{\theta }\left(x_i\right),y_i\right)$$

4.gradient：计算每个参数的梯度方向

$$\frac{\partial L\left(\theta \right)}{\partial {\theta }_j}=\frac{1}{n}\sum _{i=1}^n\left(h_{\theta \left(x_i\right)}-y_i\right)x_{ij}$$

5.descent：进行参数更新

$${\theta }_j={\theta }_j-\alpha \times \frac{\partial L\left(\theta \right)}{\partial {\theta }_j}$$
其中$\alpha$为学习率。

6.accuracy：计算准确度

python代码实现：

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import time

#sigmoid
def sigmoid(z):
    return 1/(1 + np.exp(-z))

#model
def model(X, theta):
    return sigmoid(np.dot(X, theta.T))

#loss
def loss(X, y, theta):
    left = np.multiply(-y, np.log(model(X, theta)))
    right = np.multiply(1 - y, np.log(1 - model(X, theta)))
    return np.sum(left - right)/(len(X))

#gradient
def gradient(X, y, theta):
    grad = np.zeros(theta.shape)
    error = (model(X, theta) - y).ravel()
    for j in range(len(theta.ravel())):
        term = np.multiply(error, X[:, j])
        grad[0, j] = np.sum(term)/len(X)
    return grad

#Gradient descent
def stopCriterion(value, threshold):
    return value > threshold

def shuffleData(data):
    np.random.shuffle(data)
    cols = data.shape[1]
    X = data[:, 0:cols - 1]
    y = data[:, cols - 1:]
    return X, y

def descent(data, theta, batchSize, thresh, alpha):
    n = len(data)
    init_time = time.time()
    i = 0
    k = 0
    X, y =shuffleData(data)
    costs = [loss(X, y, theta)]

    while True:
        grad = gradient(X[k:k+batchSize], y[k:k+batchSize], theta)
        k += batchSize
        if k >= n:
            k = 0
            X, y = shuffleData(data)
        theta = theta - alpha*grad
        costs.append(loss(X, y, theta))
        i += 1
        value = i
        if stopCriterion(value, thresh): break
    return theta, costs, time.time() - init_time

if __name__ == '__main__':

    data_path = "data/LogiReg_data.txt"
    pdData = pd.read_csv(data_path, header=None, names=['Exam 1', 'Exam 2', 'Admitted'])

    pdData.insert(0, 'ones', 1)
    orig_data = pdData.as_matrix()
    theta = np.zeros([1, 3])

    batchSize = 100
    theta, costs, dur = descent(orig_data, theta, batchSize, thresh=5000, alpha=0.000001)
    fig, ax = plt.subplots(figsize=(12,4))
    ax.plot(np.arange(len(costs)), costs, 'r')
    ax.set_xlabel('Iterations')
    ax.set_ylabel('Loss')
    ax.set_title(' - Error vs. Iteration')
    plt.show()

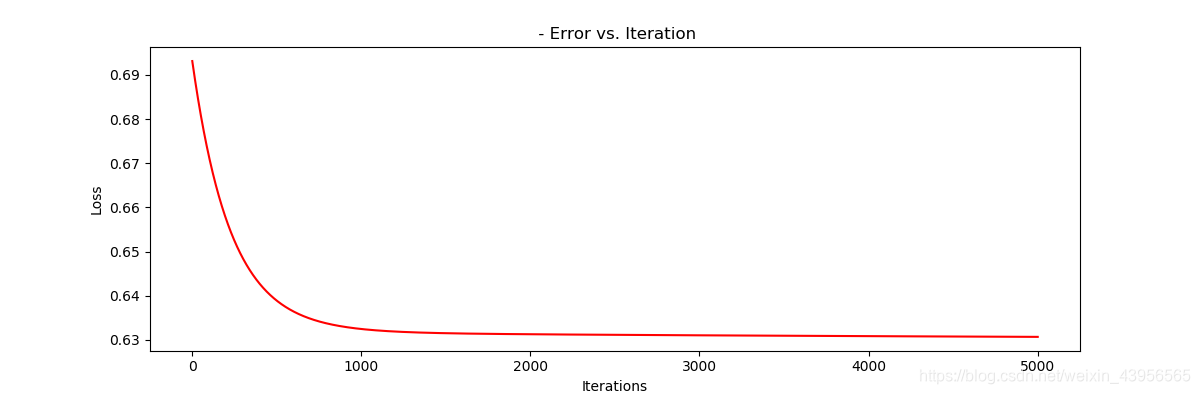

损失函数下降图：
