1、Telnet配置

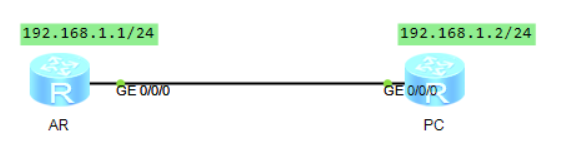

1.1 拓扑图

1.2 Telnet配置

<PC>system-view
[PC]interface GigabitEthernet 0/0/0
[PC-GigabitEthernet0/0/0]ip address 192.168.1.2 24

<AR>system-view
[AR]interface GigabitEthernet 0/0/0
[AR-GigabitEthernet0/0/0]ip address 192.168.1.1 24
[AR]telnet server enable
[AR]user-interface vty 0 4
[AR-ui-vty0-4]authentication-mode aaa
[AR-ui-vty0-4]quit
[AR]aaa
[AR-aaa]local-user admin password cipher admin
[AR-aaa]local-user admin privilege level 15
[AR-aaa]local-user admin service-type telnet

1.3 STelnet配置

<Huawei>system-view
[Huawei]sysname pc
[pc]interface GigabitEthernet 0/0/0
[pc-GigabitEthernet0/0/0]ip address 192.168.1.2 24
[pc-GigabitEthernet0/0/0]quit
[pc]ssh client first-time e
