Quectel EP06 是一款LTE Category 6模块，提供高达300Mbps的下行速度和50Mbps的上行速度。这款Mini PCIe模块适用于如ZBT-WE826T和MTK MT7623等LTE宽带路由器。它支持2频段聚合、UMTS/HSPA+、GNSS、DFOTA、eCall、DTMF和MIMO技术。EP06-E版本支持多种频段，并可通过AT命令进行控制，主要针对M2M工业市场，具备DFOTA更新能力。

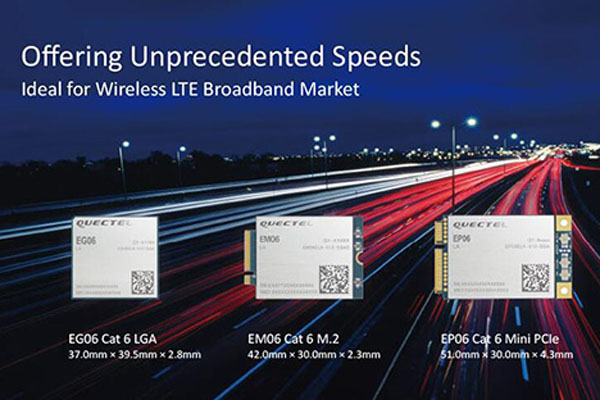

The Quectel EP06 is an LTE Category 6 module, which allows downstream speeds up to 300Mbps and upstream speeds up to 50Mbps. In Mini PCIe form factor, Quectel EP06 could be easily mounted in an LTE broadband Router with a port type such as ZBT-WE826T and MTK MT7623. Since more and more LTE advanced Pro modules available now, the EP06 card is in good price now based on the main features below:
2 frequency band aggregation in most regions (depending on model):
- Support UMTS/HSPA+ besides LTE
- Support GNSS, GPS with dedicated antenna port
- Support DFOTA, eCall and DTMF
- Support MIMO technology

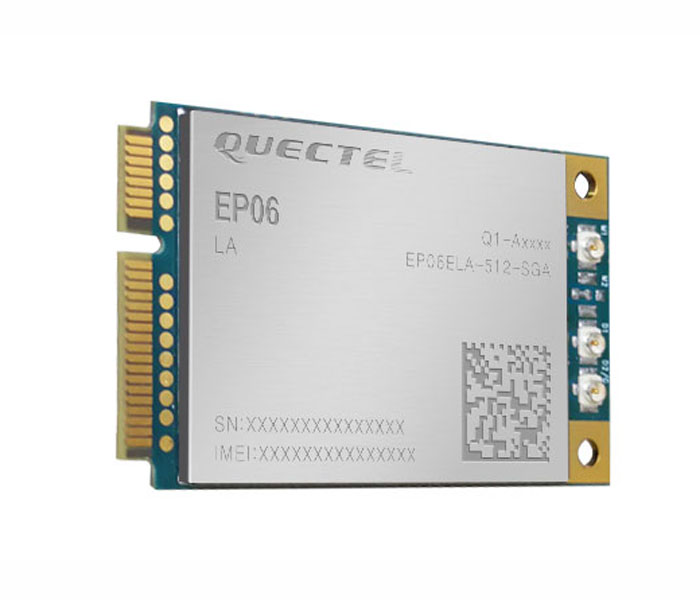

Among which, the 2 antenna ports and the GNSS port are in Ipex format. There are several version of this card such as EP06-E, EP06-A, EP06-LA, EP06-APAC etc…
The Quectel EP06-E version could support following frequency bands:
- LTE-FDD B1/B3/B5/B7/B8/B20/B28/B32
- LTE-TDD B38/B40/B41
- The 2AC aggregation available on:
- B1 + B1/B5/B8/B20/B28
- B3 + B3/B5/B7/B8/B20/B28
- B7 + B5/B7/B8/B20/B28
- B20 + B32
- B38 + B38
- B40 + B40
- B41 +B41
Like other Quectel 4G LTE Modules, the EP06 module could be controlled by AT commands, which is documented by the manufacturer. A certain mastery of the subject is necessary, but if you have acquired your router box under OpenWRT or ROOter, it is that you have at least knowledge about it. And this will allow you to configure it with little opinions.
The Quectel EP06 card is basically designed for the M2M industrial market, so it meets the standards of this market. In particular, it supports the firmware update via DFOTA from an FTP server for example.
