linux企业运维--LAMP架构--mysql组复制

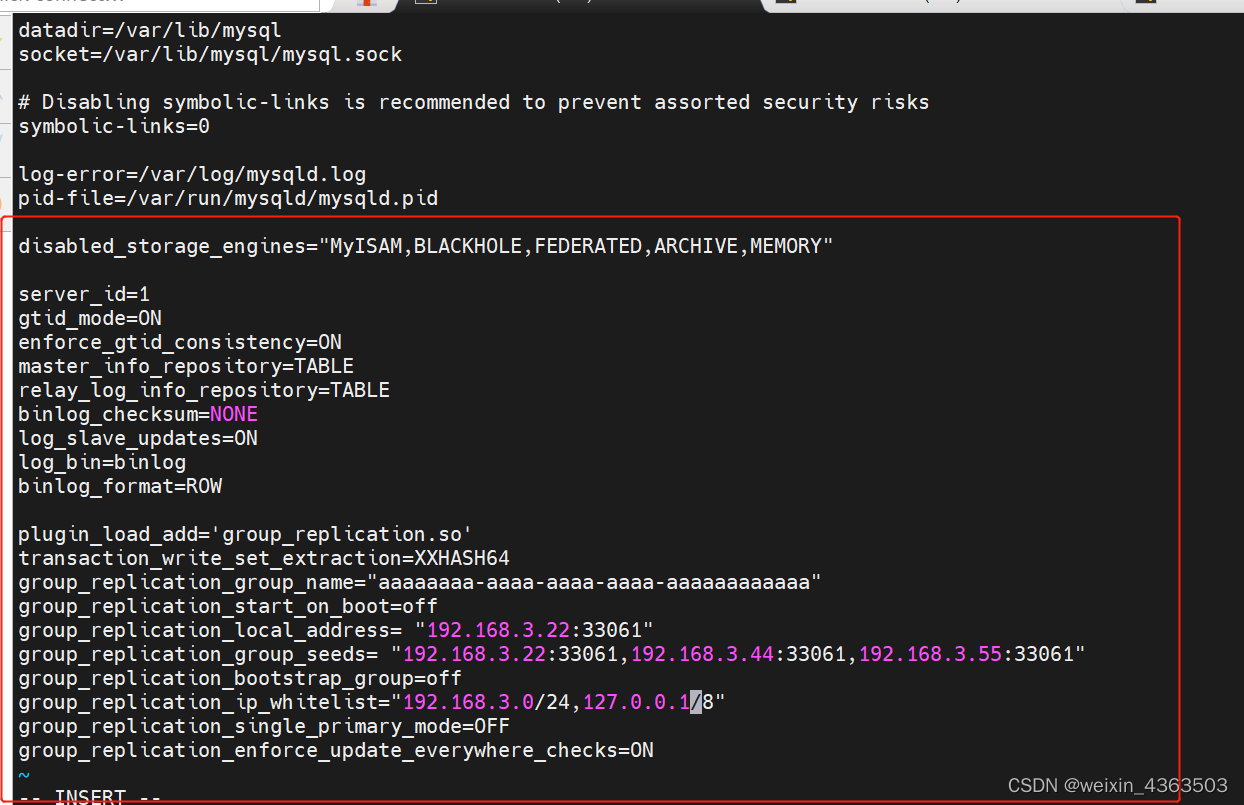

master配置

disabled_storage_engines="MyISAM,BLACKHOLE,FEDERATED,ARCHIVE,MEMORY"

server_id=1
gtid_mode=ON
enforce_gtid_consistency=ON
master_info_repository=TABLE
relay_log_info_repository=TABLE
binlog_checksum=NONE
log_slave_updates=ON
log_bin=binlog
binlog_format=ROW

plugin_load_add='group_replication.so'
transaction_write_set_extraction=XXHASH64
group_replication_group_name="aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa"
group_replication_start_on_boot=off
group_replication_local_address= "172.25.0.12:33061"
group_replication_group_seeds= "172.25.0.12:33061,172.25.0.13:33061,172.25.0.14:33061"
group_replication_bootstrap_group=off
group_replication_ip_whitelist="172.25.0.0/24,127.0.0.1/8"
group_replication_single_primary_mode=OFF
group_replication_enforce_update_everywhere_checks=ON

已经有group就不用建立了



online就行

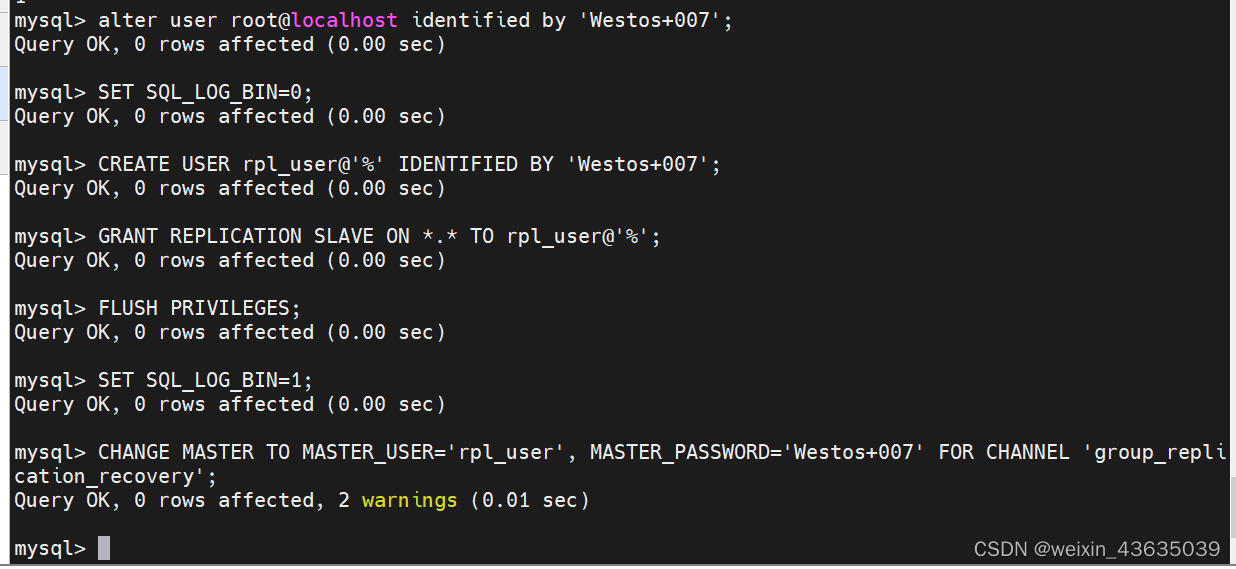

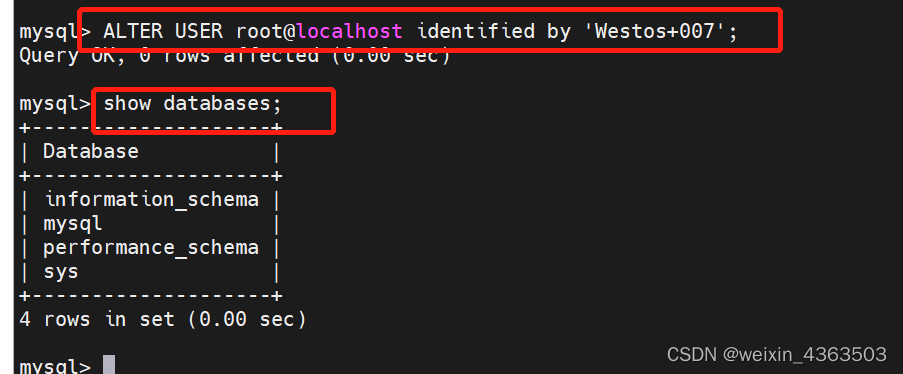

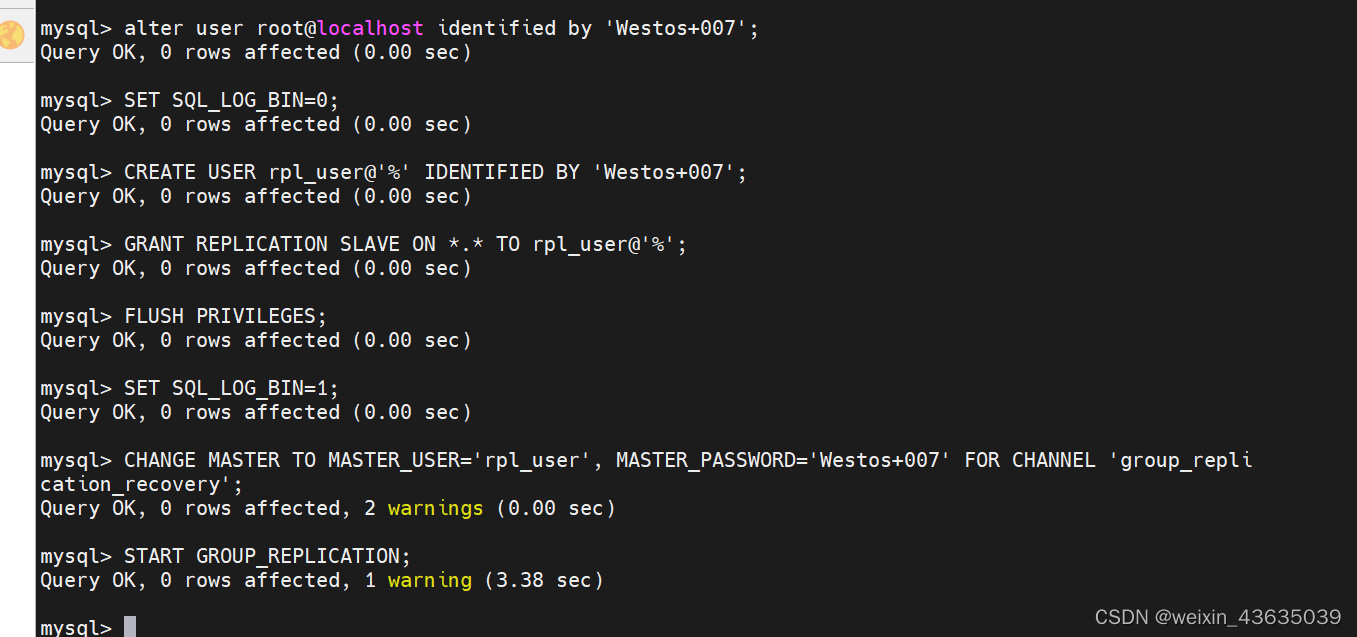

mysql> ALTER USER root@localhost identified by 'Yakexi+007';

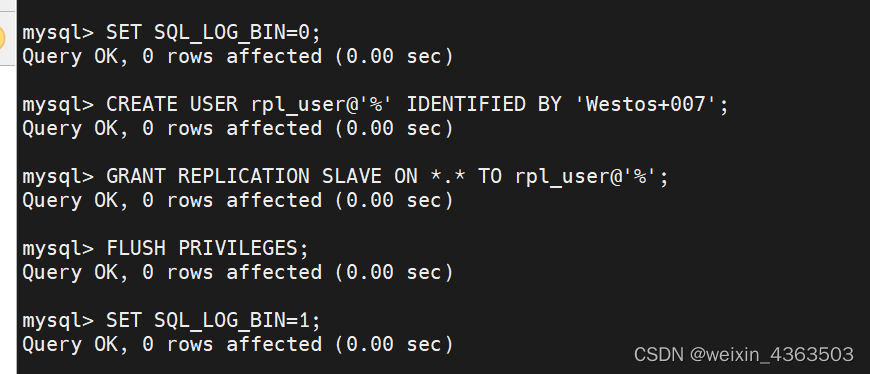

mysql> SET SQL_LOG_BIN=0;
mysql> CREATE USER rpl_user@'%' IDENTIFIED BY 'Yakexi+007';
mysql> GRANT REPLICATION SLAVE ON *.* TO rpl_user@'%';
mysql> FLUSH PRIVILEGES;
mysql> SET SQL_LOG_BIN=1;

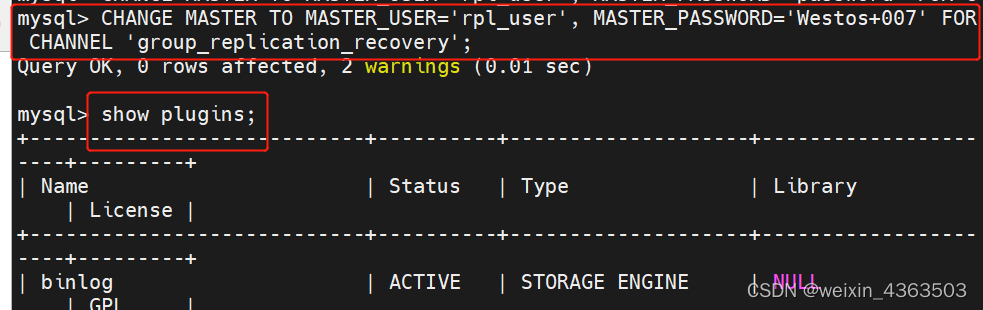

mysql> CHANGE MASTER TO MASTER_USER='rpl_user', MASTER_PASSWORD='Yakexi+007' FOR CHANNEL 'group_replication_recovery';

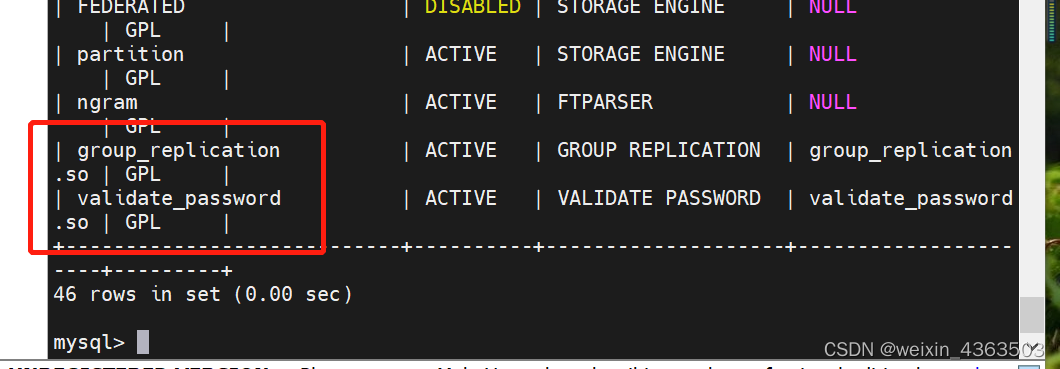

mysql> show plugins;

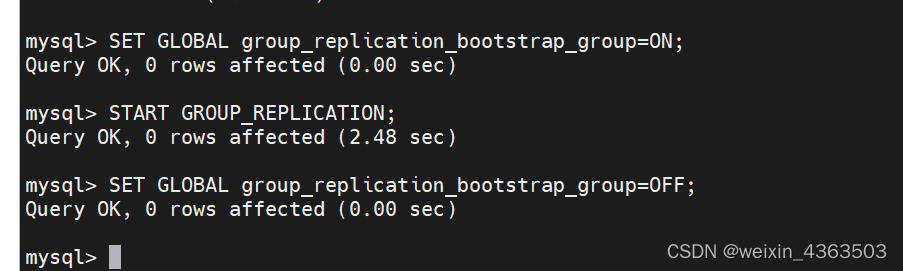

mysql> SET GLOBAL group_replication_bootstrap_group=ON;

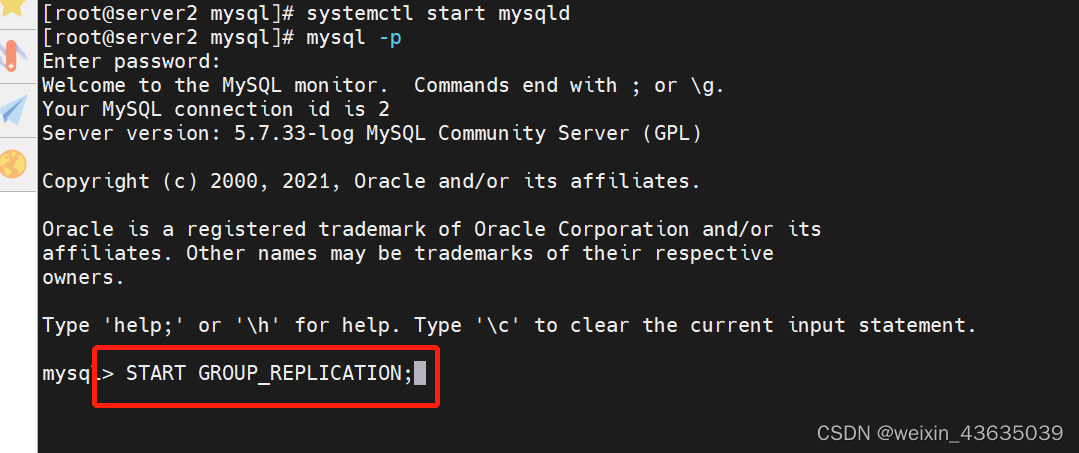

mysql> START GROUP_REPLICATION;
mysql> SET GLOBAL group_replication_bootstrap_group=OFF;

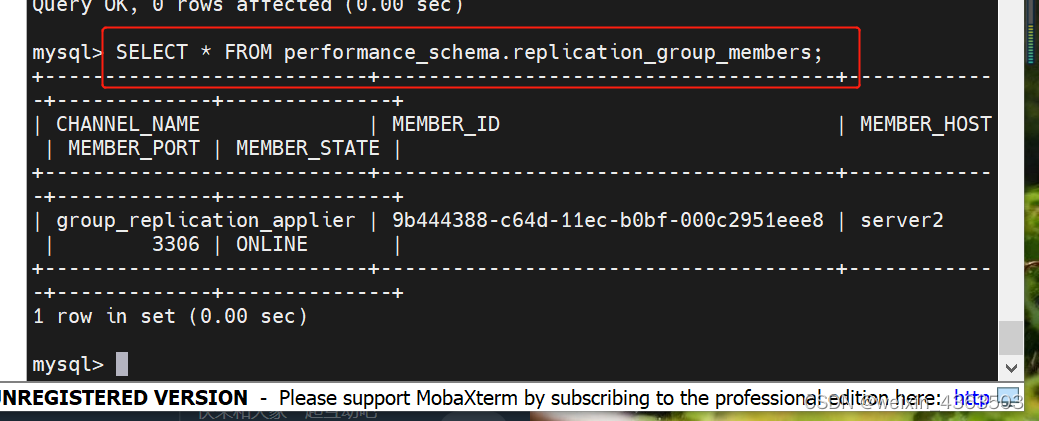

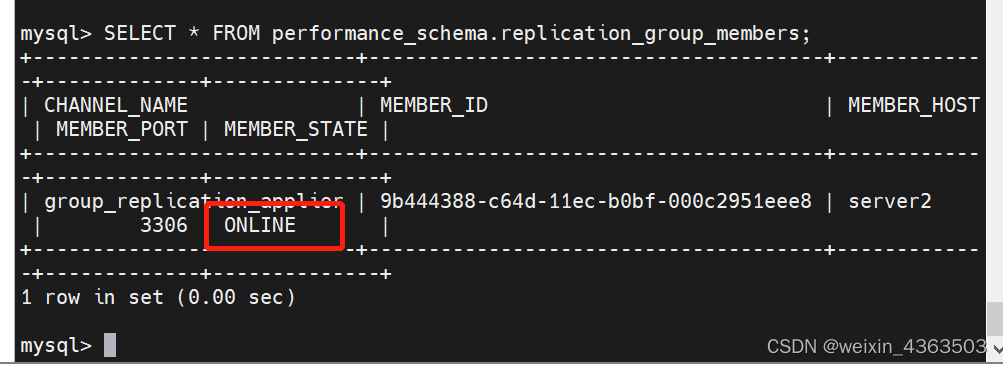

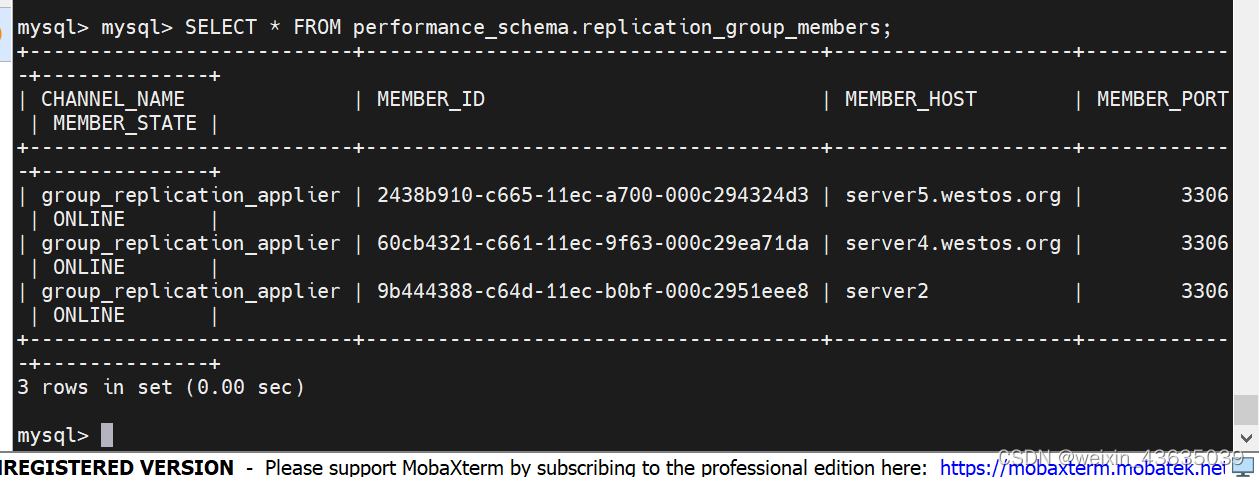

mysql> SELECT * FROM performance_schema.replication_group_members;

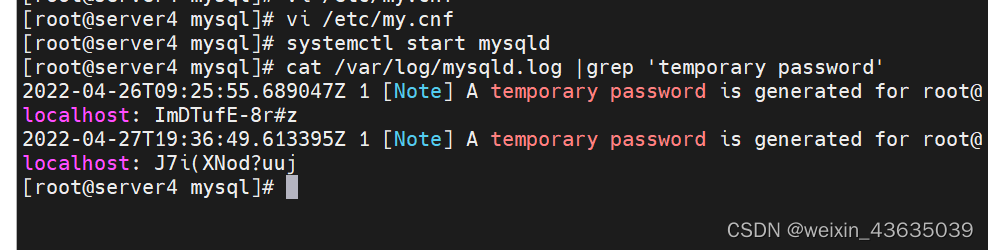

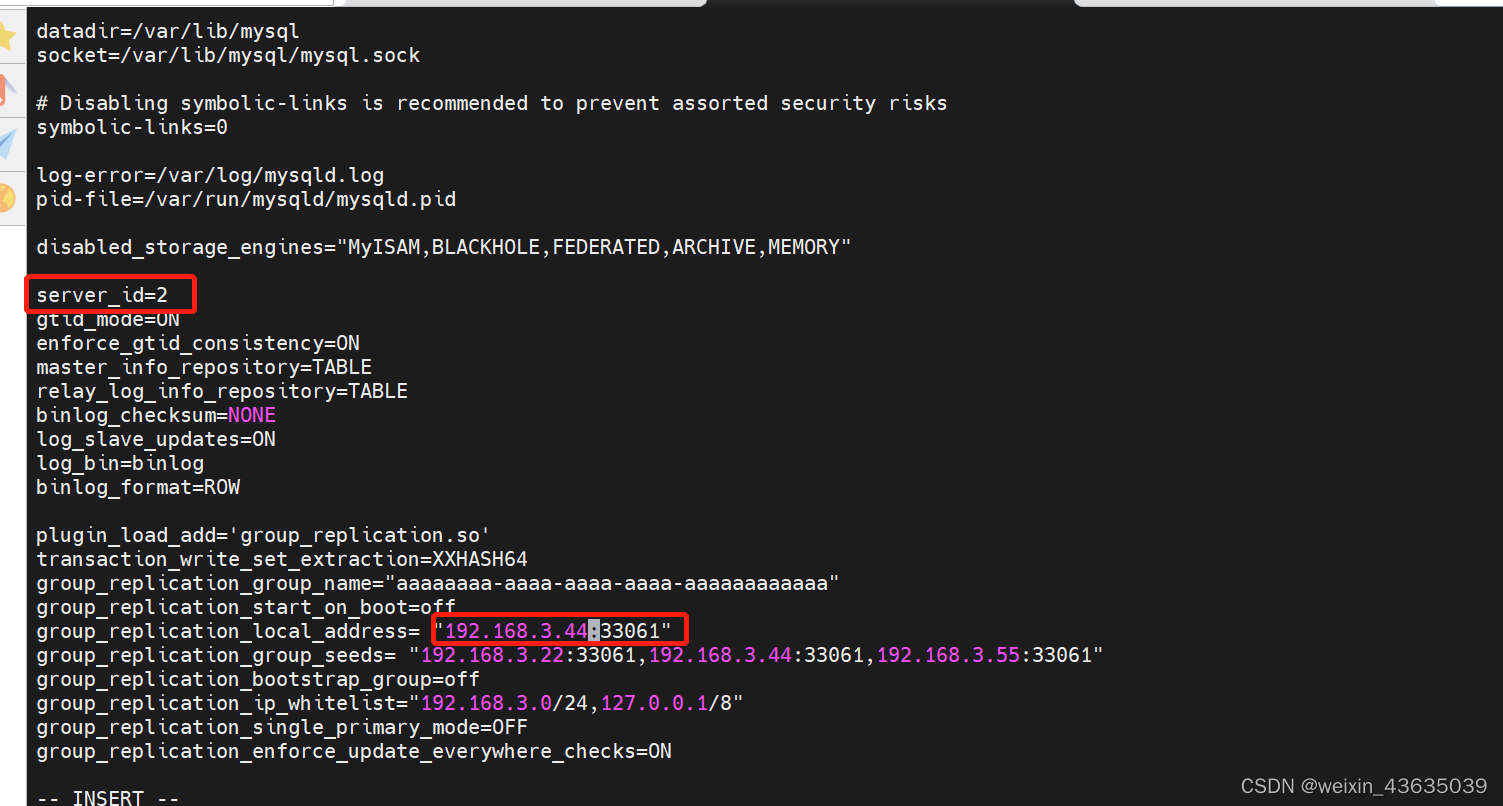

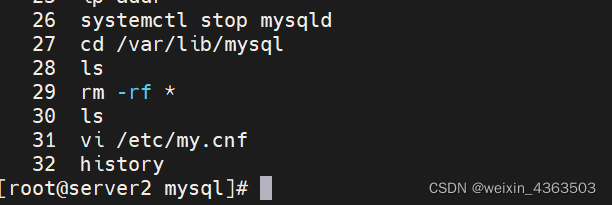

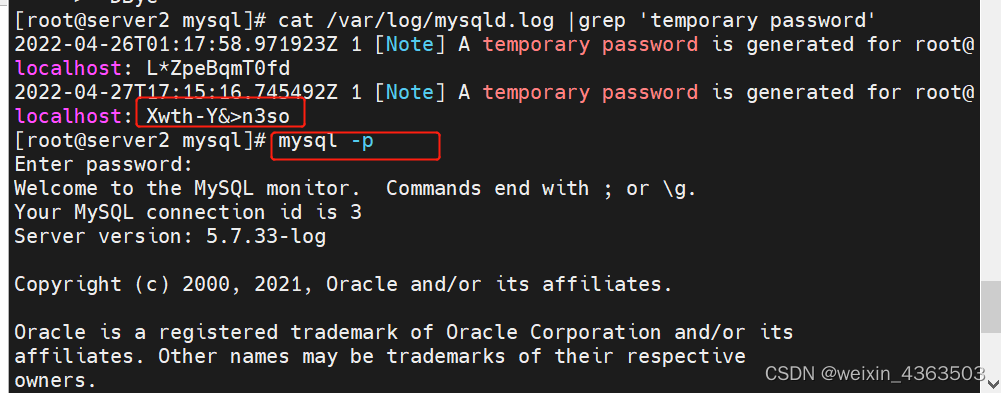

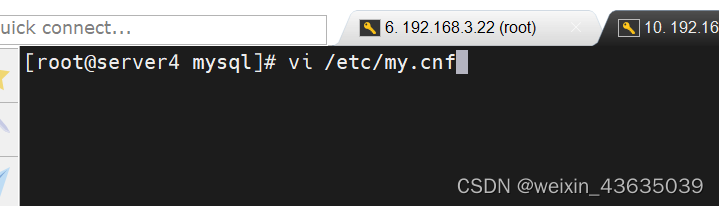

slave1配置

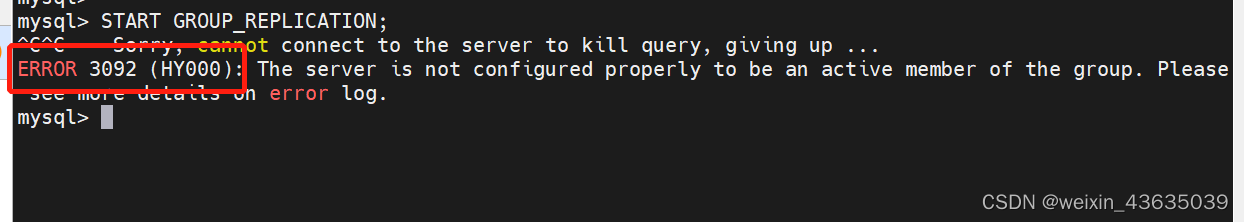

启动但是起不起来

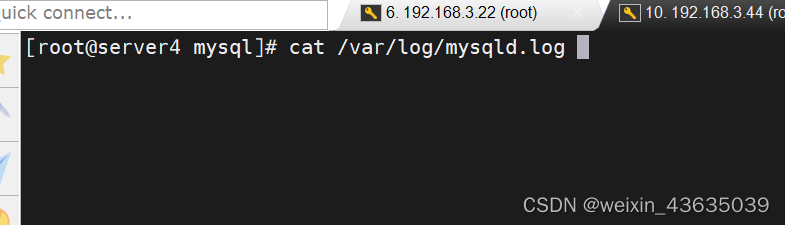

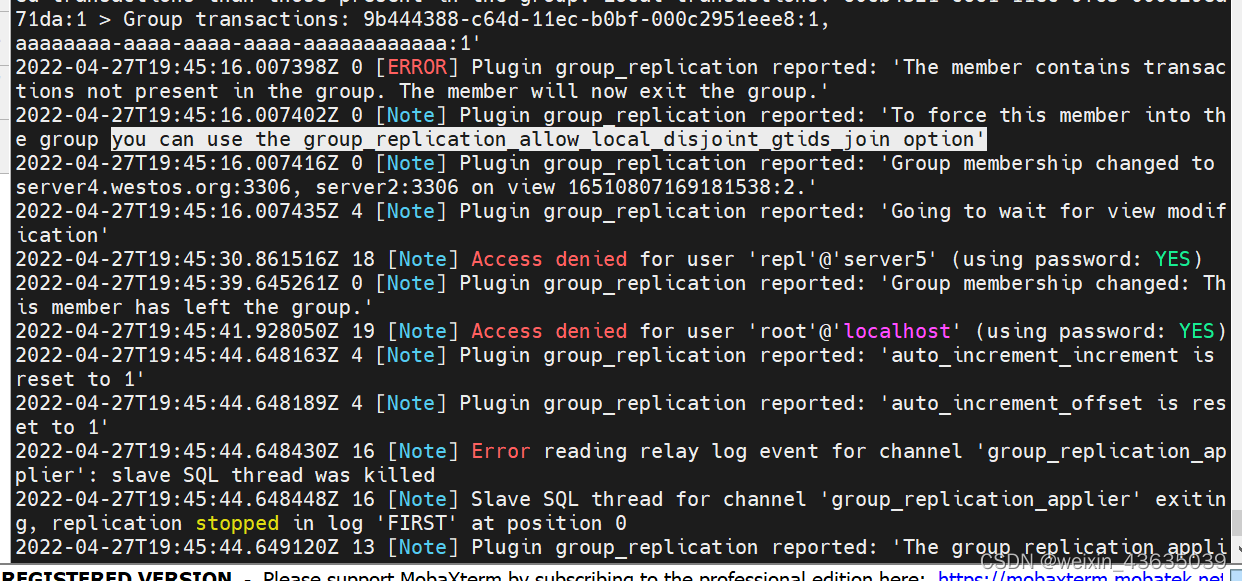

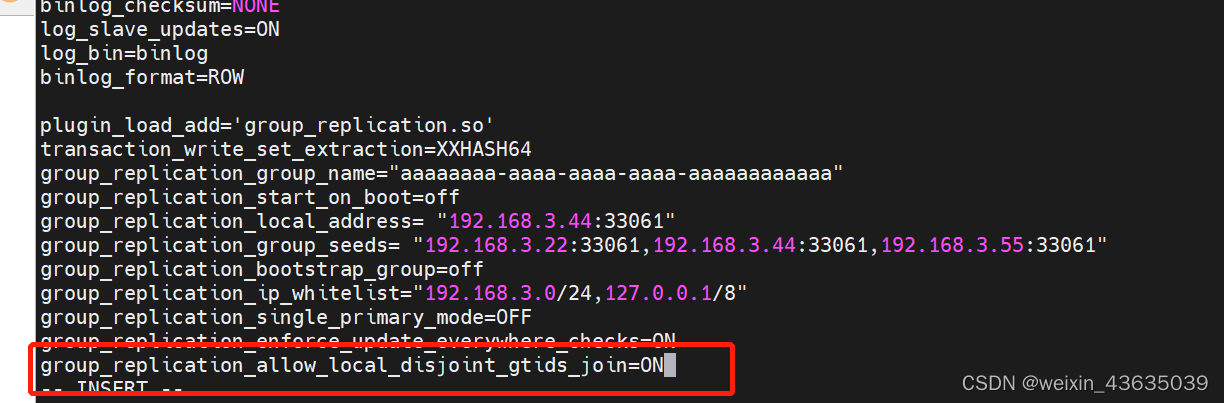

看错误日志 需要强制加入

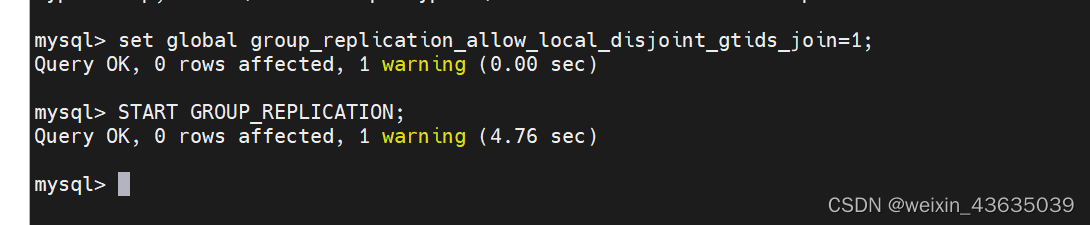

说明需要放弃自己的资源，直接用新的覆盖

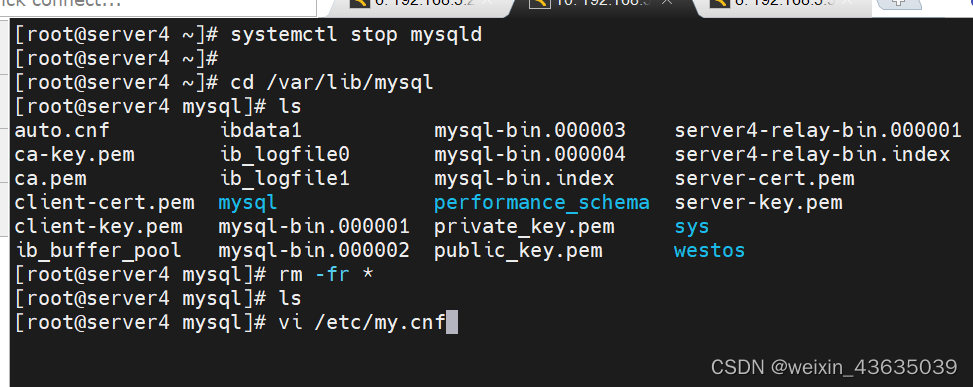

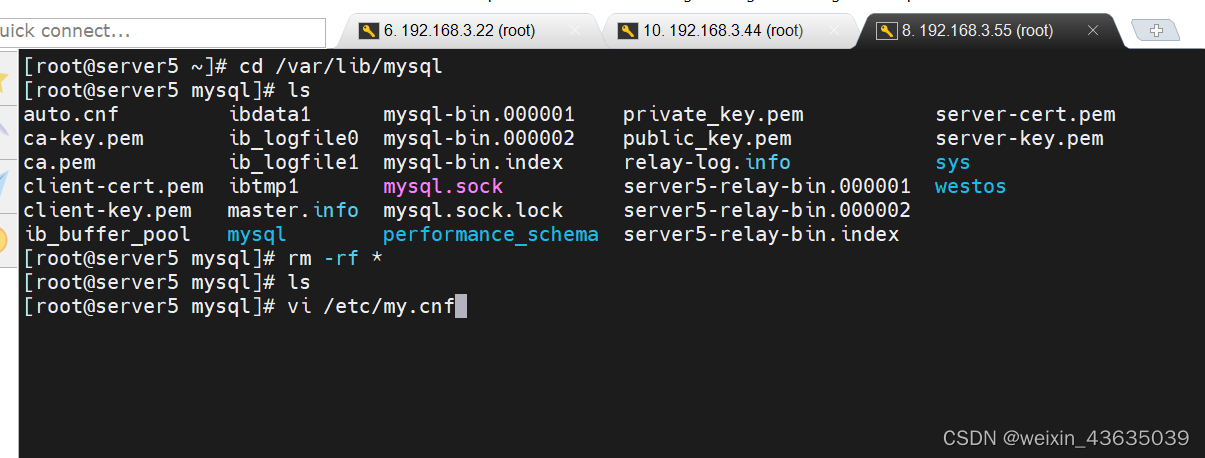

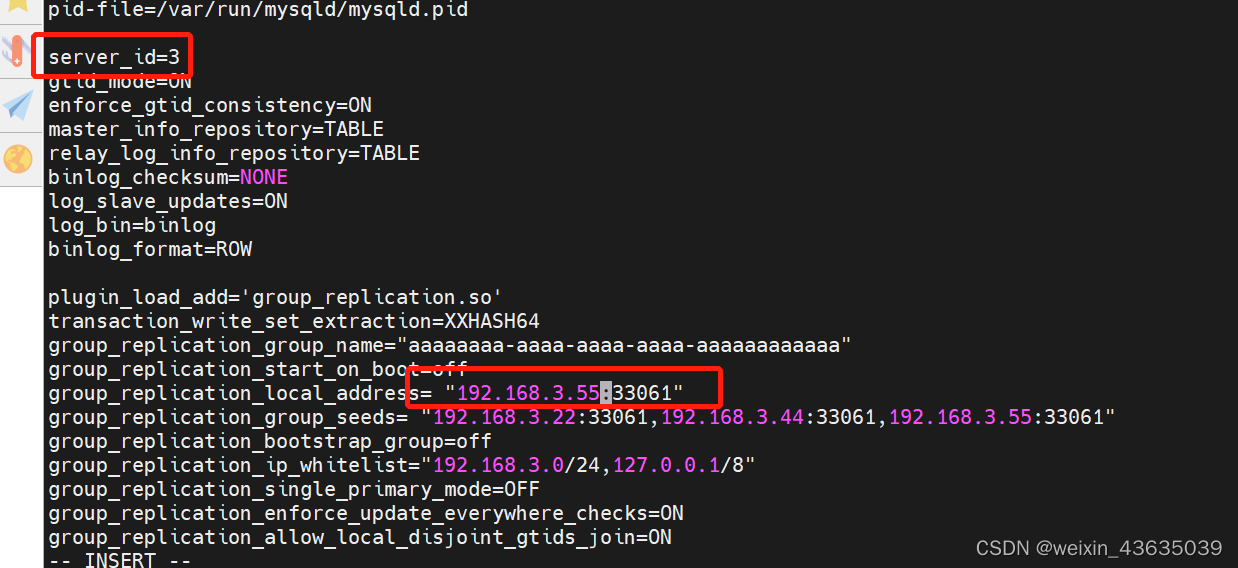

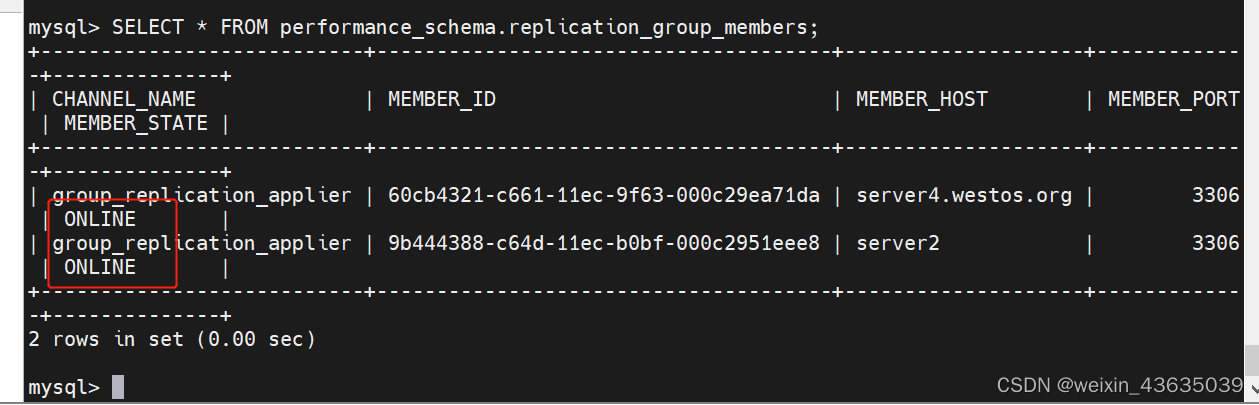

slave2 配置

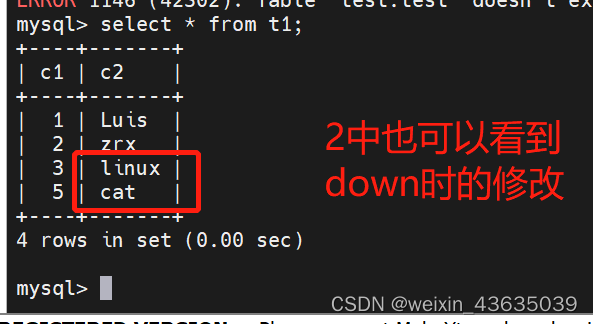

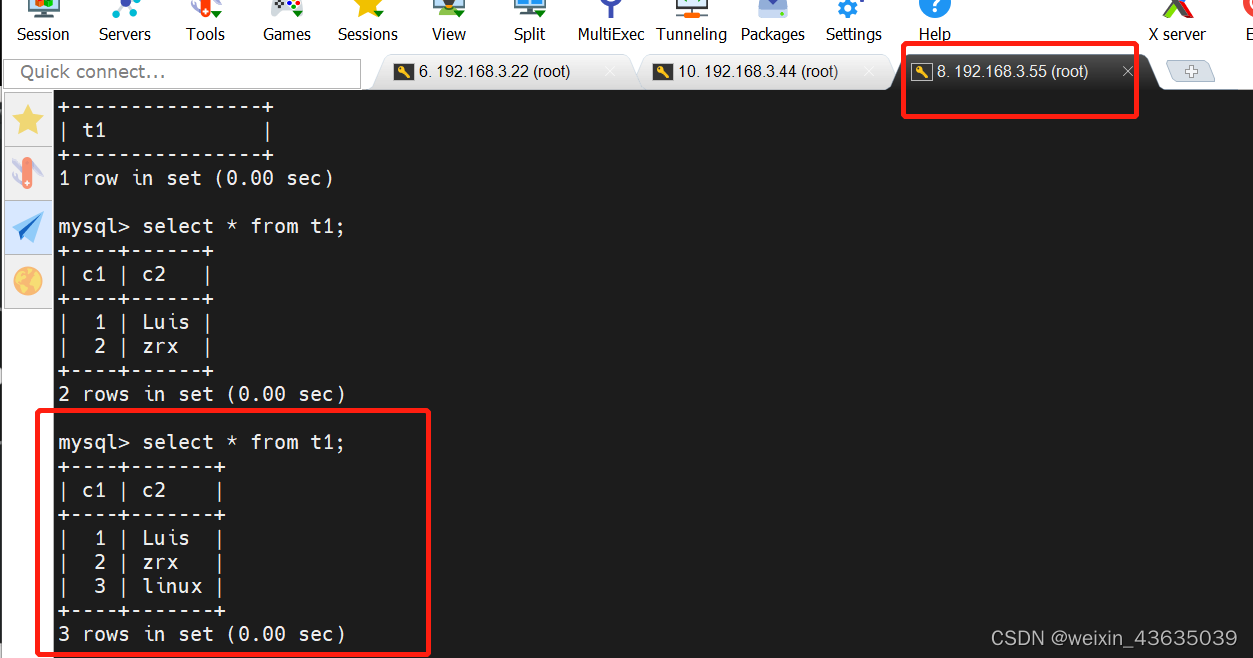

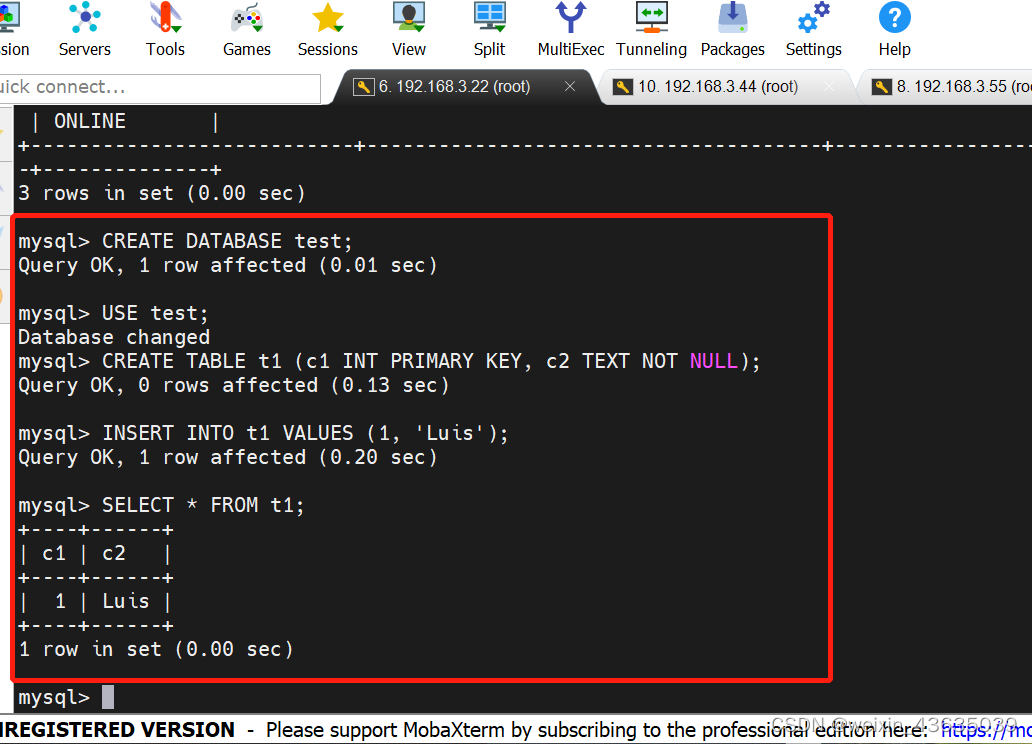

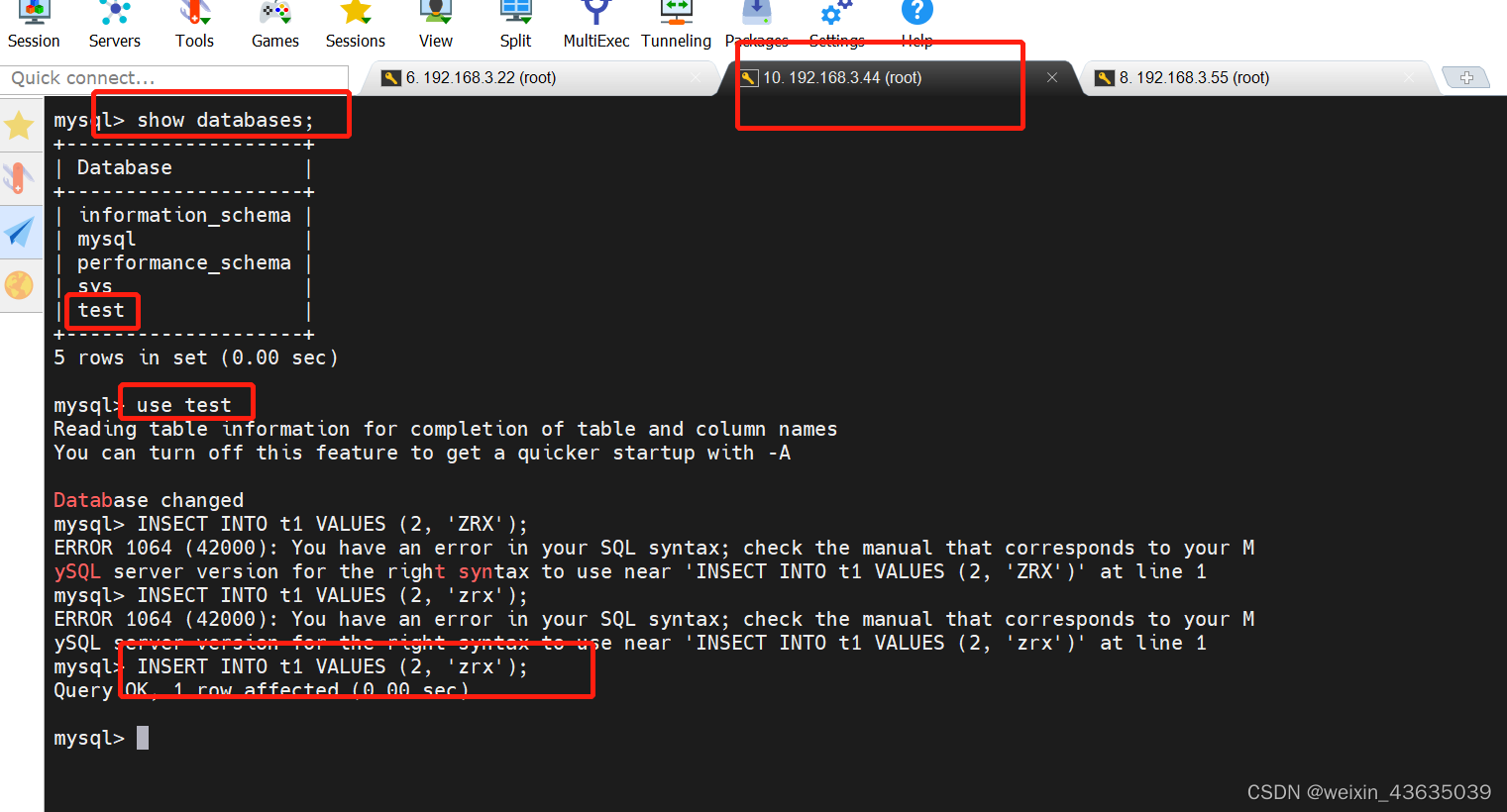

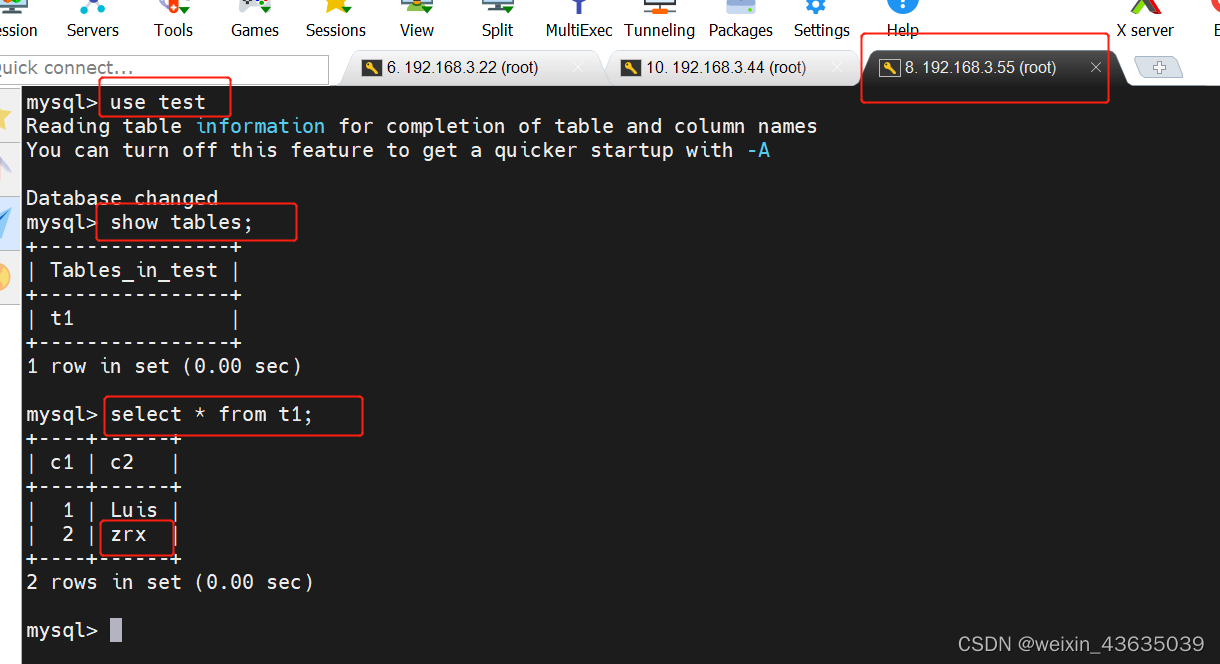

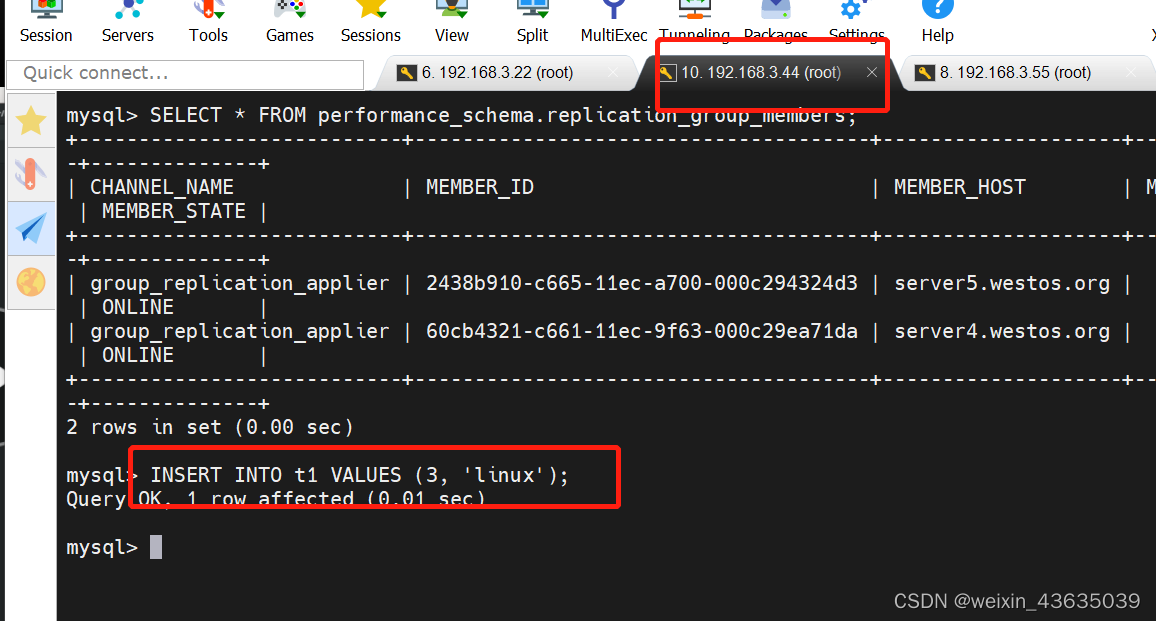

互相同步的测试

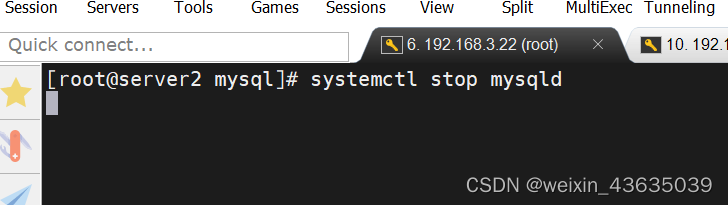

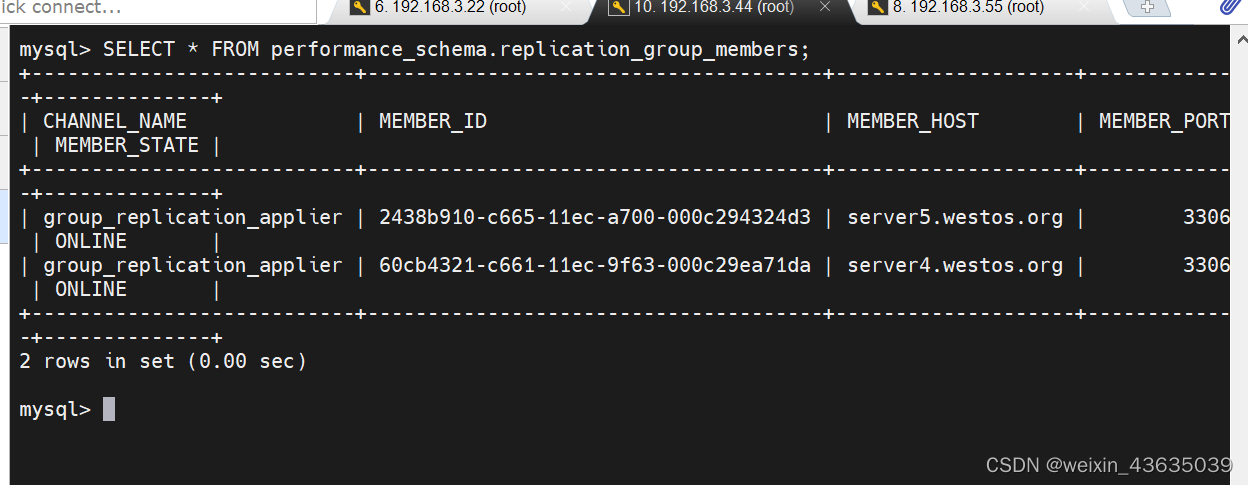

模拟故障

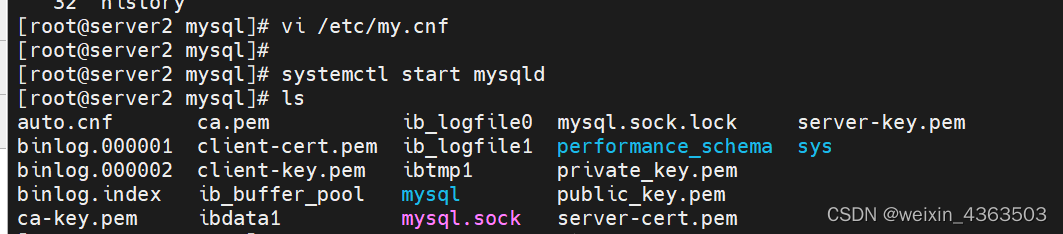

再加入集群
