前言

Knife4j的前身是swagger-bootstrap-ui,前身swagger-bootstrap-ui是一个纯swagger-ui的ui皮肤项目

knife4j官网

服务端

构建依赖

<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-boot-starter</artifactId>
    <version>3.0.0</version>
</dependency>

配置类

package top.fate.config;

import io.swagger.annotations.ApiOperation;
import org.springframework.boot.actuate.autoconfigure.endpoint.web.CorsEndpointProperties;
import org.springframework.boot.actuate.autoconfigure.endpoint.web.WebEndpointProperties;
import org.springframework.boot.actuate.autoconfigure.web.server.ManagementPortType;
import org.springframework.boot.actuate.endpoint.ExposableEndpoint;
import org.springframework.boot.actuate.endpoint.web.*;
import org.springframework.boot.actuate.endpoint.web.annotation.ControllerEndpointsSupplier;
import org.springframework.boot.actuate.endpoint.web.annotation.ServletEndpointsSupplier;
import org.springframework.boot.actuate.endpoint.web.servlet.WebMvcEndpointHandlerMapping;
import org.springframework.context.EnvironmentAware;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.env.Environment;
import org.springframework.http.HttpMethod;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.builders.ResponseBuilder;
import springfox.documentation.oas.annotations.EnableOpenApi;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.service.Response;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;

import java.util.ArrayList;
import java.util.Collection;
import java.util.List;
/**
 * @auther:Wangxl
 * @Emile:18335844494@163.com
 * @Time:2022/5/7 9:27
 */
@Configuration
@EnableOpenApi //注解启动用Swagger的使用，同时在配置类中对Swagger的通用参数进行配置
public class Swagger3Config implements EnvironmentAware {

    private String applicationName;

    private String applicationDescription;

    @Bean
    public Docket createRestApi(){
        //返回文档概要信息
        return new Docket(DocumentationType.OAS_30)
                .apiInfo(apiInfo())
                .select()
                .apis(RequestHandlerSelectors.withMethodAnnotation(ApiOperation.class))
                .paths(PathSelectors.any())
                .build()
//                .globalRequestParameters(getGlobalRequestParameters())
                .globalResponses(HttpMethod.GET,getGlobalResponseMessage())
                .globalResponses(HttpMethod.POST,getGlobalResponseMessage());
    }

    /*
    生成接口信息，包括标题，联系人等
     */
    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title(applicationName+"接口文档")
                .description(applicationDescription)
                .contact(new Contact("fate急速出击","http://www.baidu.com","18335844494@163.com"))
                .version("1.0")
                .build();
    }


    /*
    封装全局通用参数
     */
    /*private List<RequestParameter> getGlobalRequestParameters() {
        List<RequestParameter> parameters=new ArrayList<>();
        parameters.add(new RequestParameterBuilder()
                .name("uuid")
                .description("设备uuid")
                .required(true)
                .in(ParameterType.QUERY)
                .query(q->q.model(m->m.scalarModel((ScalarType.STRING))))
                .required(false)
                .build());

        return parameters;
    }*/
    /*
    封装通用相应信息
     */
    private List<Response> getGlobalResponseMessage() {
        List<Response> responseList=new ArrayList<>();
        responseList.add(new ResponseBuilder().code("404").description("未找到资源").build());
        return responseList;
    }

    @Bean
    public WebMvcEndpointHandlerMapping webEndpointServletHandlerMapping(
            WebEndpointsSupplier webEndpointsSupplier, ServletEndpointsSupplier servletEndpointsSupplier,
            ControllerEndpointsSupplier controllerEndpointsSupplier, EndpointMediaTypes endpointMediaTypes,
            CorsEndpointProperties corsProperties, WebEndpointProperties webEndpointProperties, Environment environment) {
        List<ExposableEndpoint<?>> allEndpoints = new ArrayList<>();
        Collection<ExposableWebEndpoint> webEndpoints = webEndpointsSupplier.getEndpoints();
        allEndpoints.addAll(webEndpoints);
        allEndpoints.addAll(servletEndpointsSupplier.getEndpoints());
        allEndpoints.addAll(controllerEndpointsSupplier.getEndpoints());
        String basePath = webEndpointProperties.getBasePath();
        EndpointMapping endpointMapping = new EndpointMapping(basePath);
        boolean shouldRegisterLinksMapping = webEndpointProperties.getDiscovery().isEnabled() &&
                (org.springframework.util.StringUtils.hasText(basePath) || ManagementPortType.get(environment).equals(ManagementPortType.DIFFERENT));
        return new WebMvcEndpointHandlerMapping(endpointMapping, webEndpoints, endpointMediaTypes, corsProperties.toCorsConfiguration(), new EndpointLinksResolver(allEndpoints, basePath), shouldRegisterLinksMapping, null);
    }

    @Override
    public void setEnvironment(Environment environment) {
        this.applicationDescription = environment.getProperty("spring.application.description");
        this.applicationName = environment.getProperty("spring.application.name");
    }
}

配置文件

springfox:
  documentation:
    swagger-ui:
      enabled: true # false关闭swagger-ui界面 但不关闭openapi
spring:
  mvc:
    pathmatch:
      matching-strategy: ANT_PATH_MATCHER #springboot2.6.x如果不加该配置会报错

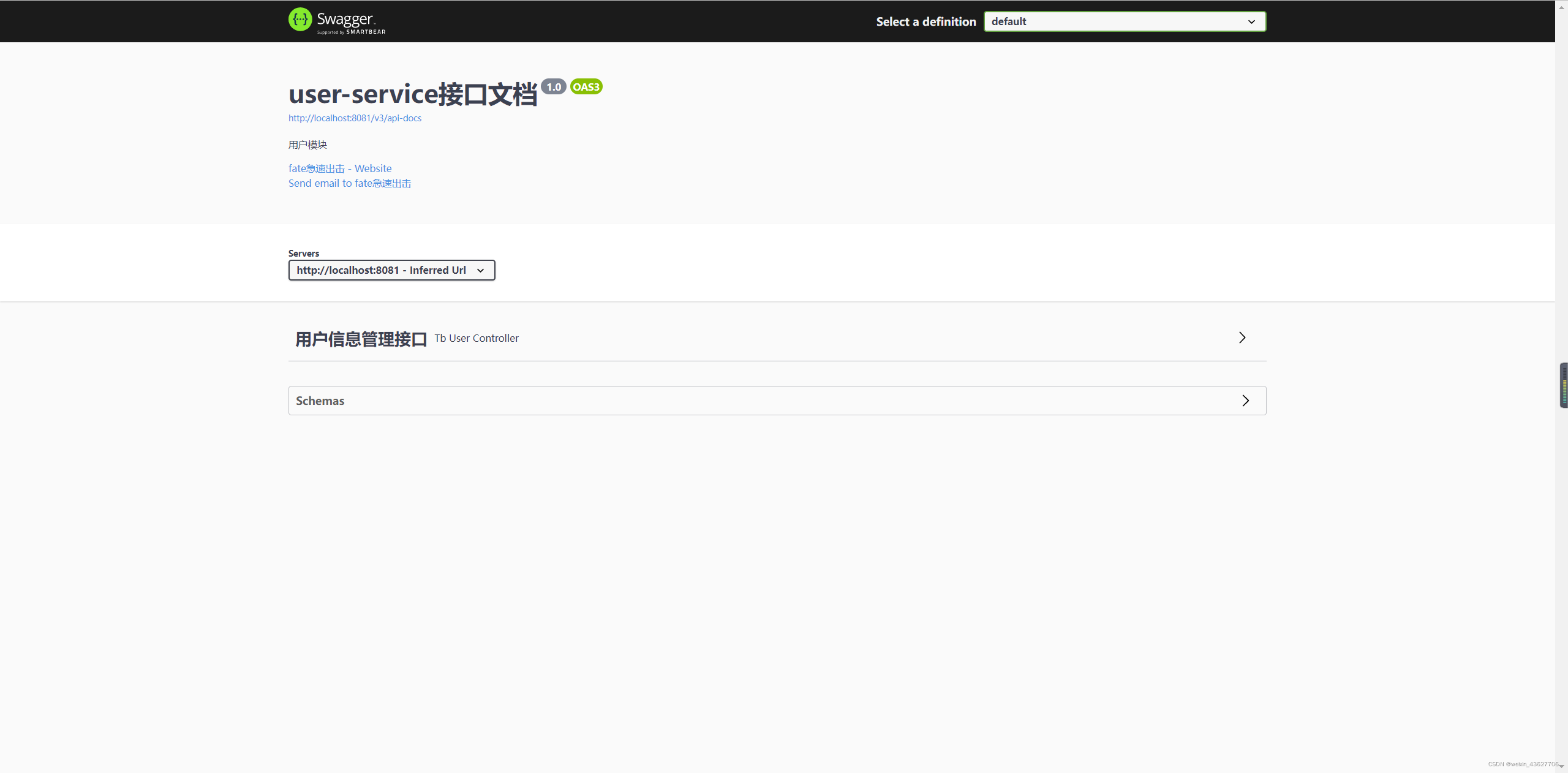

启动服务端

在这里插入图片描述

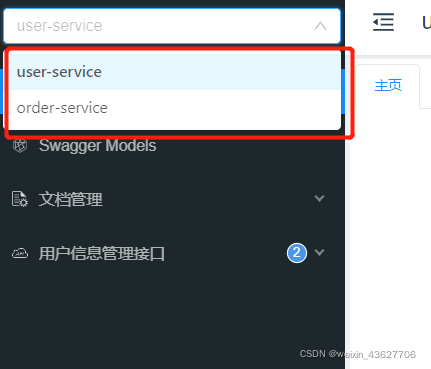

网关端 (聚合swagger，将所有微服务的文档集中到网关中)

添加依赖

<!-- knife4j-->
<dependency>
    <groupId>com.github.xiaoymin</groupId>
    <artifactId>knife4j-spring-boot-starter</artifactId>
    <version>3.0.3</version>
</dependency>
<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-boot-starter</artifactId>
    <version>3.0.0</version>
</dependency>

配置类

SwaggerHandler

package top.fate.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import reactor.core.publisher.Mono;
import springfox.documentation.swagger.web.*;

import java.util.Optional;

/**
 * @auther:Wangxl
 * @Emile:18335844494@163.com
 * @Time:2022/5/9 17:28
 */
@RestController
@RequestMapping("/swagger-resources")
public class SwaggerHandler {
    @Autowired(required = false)
    private SecurityConfiguration securityConfiguration;
    @Autowired(required = false)
    private UiConfiguration uiConfiguration;
    private final SwaggerResourcesProvider swaggerResources;

    @Autowired
    public SwaggerHandler(SwaggerResourcesProvider swaggerResources) {
        this.swaggerResources = swaggerResources;
    }


    @GetMapping("/configuration/security")
    public Mono<ResponseEntity<SecurityConfiguration>> securityConfiguration() {
        return Mono.just(new ResponseEntity<>(
                Optional.ofNullable(securityConfiguration).orElse(SecurityConfigurationBuilder.builder().build()), HttpStatus.OK));
    }

    @GetMapping("/configuration/ui")
    public Mono<ResponseEntity<UiConfiguration>> uiConfiguration() {
        return Mono.just(new ResponseEntity<>(
                Optional.ofNullable(uiConfiguration).orElse(UiConfigurationBuilder.builder().build()), HttpStatus.OK));
    }

    @GetMapping("")
    public Mono<ResponseEntity> swaggerResources() {
        return Mono.just((new ResponseEntity<>(swaggerResources.get(), HttpStatus.OK)));
    }
}

SwaggerHeaderFilter

package top.fate.config;

import org.springframework.cloud.gateway.filter.GatewayFilter;
import org.springframework.cloud.gateway.filter.factory.AbstractGatewayFilterFactory;
import org.springframework.http.server.reactive.ServerHttpRequest;
import org.springframework.stereotype.Component;
import org.springframework.util.StringUtils;
import org.springframework.web.server.ServerWebExchange;

/**
 * @auther:Wangxl
 * @Emile:18335844494@163.com
 * @Time:2022/5/9 17:13
 */
@Component
public class SwaggerHeaderFilter extends AbstractGatewayFilterFactory {
    private static final String HEADER_NAME = "X-Forwarded-Prefix";

    @Override
    public GatewayFilter apply(Object config) {
        return (exchange, chain) -> {
            ServerHttpRequest request = exchange.getRequest();
            String path = request.getURI().getPath();
            if (!StringUtils.endsWithIgnoreCase(path, SwaggerProvider.API_URI)) {
                return chain.filter(exchange);
            }
            String basePath = path.substring(0, path.lastIndexOf(SwaggerProvider.API_URI));
            ServerHttpRequest newRequest = request.mutate().header(HEADER_NAME, basePath).build();
            ServerWebExchange newExchange = exchange.mutate().request(newRequest).build();
            return chain.filter(newExchange);
        };
    }
}

SwaggerProvider

package top.fate.config;

import lombok.AllArgsConstructor;
import org.springframework.cloud.gateway.config.GatewayProperties;
import org.springframework.cloud.gateway.route.RouteLocator;
import org.springframework.cloud.gateway.support.NameUtils;
import org.springframework.context.annotation.Primary;
import org.springframework.stereotype.Component;
import springfox.documentation.swagger.web.SwaggerResource;
import springfox.documentation.swagger.web.SwaggerResourcesProvider;

import java.util.ArrayList;
import java.util.List;

@Component
@Primary
@AllArgsConstructor
public class SwaggerProvider implements SwaggerResourcesProvider {
    public static final String API_URI = "/v2/api-docs";
    private final RouteLocator routeLocator;
    private final GatewayProperties gatewayProperties;

    /**
     * 这个类是核心，这个类封装的是SwaggerResource，即在swagger-ui.html页面中顶部的选择框，选择服务的swagger页面内容。
     * RouteLocator：获取spring cloud gateway中注册的路由
     * RouteDefinitionLocator：获取spring cloud gateway路由的详细信息
     * RestTemplate：获取各个配置有swagger的服务的swagger-resources
     */
    @Override
    public List<SwaggerResource> get() {
        List<SwaggerResource> resources = new ArrayList<>();
        List<String> routes = new ArrayList<>();
        //取出gateway的route
        routeLocator.getRoutes().subscribe(route -> routes.add(route.getId()));
        //结合配置的route-路径(Path)，和route过滤，只获取有效的route节点
        gatewayProperties.getRoutes().stream().filter(routeDefinition -> routes.contains(routeDefinition.getId()))
                .forEach(routeDefinition -> routeDefinition.getPredicates().stream()
                        .filter(predicateDefinition -> ("Path").equalsIgnoreCase(predicateDefinition.getName()))
                        .forEach(predicateDefinition -> resources.add(swaggerResource(routeDefinition.getId(),
                                predicateDefinition.getArgs().get(NameUtils.GENERATED_NAME_PREFIX + "0")
                                        .replace("/**", API_URI)))));
        return resources;
    }

    private SwaggerResource swaggerResource(String name, String location) {
        SwaggerResource swaggerResource = new SwaggerResource();
        swaggerResource.setName(name);
        swaggerResource.setLocation(location);
        swaggerResource.setSwaggerVersion("3.0.0");
        return swaggerResource;
    }
}

配置文件

server:
  port: 30001
spring:
  cloud:
    gateway:
      enabled: true
      discovery:
        locator:
          lower-case-service-id: true
      routes:
        - id: user-service
          uri: lb://user-service
          predicates:
            - Path=/user/**
          filters:
            - StripPrefix=1
        - id: order-service
          uri: lb://order-service
          predicates:
            - Path=/order/**
          filters:
            - StripPrefix=1
