数据挖掘实战（五）：模型调优

使用网格搜索法对5个模型进行调优（调参时采用五折交叉验证的方式），并进行模型评估，记得展示代码的运行结果。

一、K折交叉验证和网格搜索法

1、K折交叉验证

K折交叉验证（k-fold cross validation），将初始采样（样本集X，Y）分割成K份，一份被保留作为验证模型的数据（test set），其他K-1份用来训练（train set）。交叉验证重复K次，每份验证一次，平均K次的结果或者使用其它结合方式，最终得到一个单一估测。

2、网格搜索法

Grid Search：一种调参手段；穷举搜索：在所有候选的参数选择中，通过循环遍历，尝试每一种可能性，表现最好的参数就是最终的结果。其原理就像是在数组里找最大值。（为什么叫网格搜索？以有两个参数的模型为例，参数a有3种可能，参数b有4种可能，把所有可能性列出来，可以表示成一个3*4的表格，其中每个cell就是一个网格，循环过程就像是在每个网格里遍历、搜索，所以叫grid search）

二、代码实现

1、利用GGridSearchCV调参

1.1 参数

# 5个模型要调的参数
parameters_log = {'C':[0.001,0.01,0.1,1,10]}
parameters_svc = {'C':[0.001,0.01,0.1,1,10]}  #这两个模型本来分数就不行，就少选择写参数来搜索
parameters_tree = {'max_depth':[5,8,15,25,30,None],'min_samples_leaf':[1,2,5,10], 'min_samples_split':[2,5,10,15]}
parameters_forest = {'max_depth':[5,8,15,25,30,None],'min_samples_leaf':[1,2,5,10],
                     'min_samples_split':[2,5,10,15],'n_estimators':[7,8,9,10]} #这两个模型过拟合很厉害，参数多点
parameters_xgb = {'gamma':[0,0.05,0.1,0.3,0.5],'learning_rate':[0.01,0.015,0.025,0.05,0.1],
                  'max_depth':[3,5,7,9],'reg_alpha':[0,0.1,0.5,1.0]}  #这个模型表现挺好，多调试一点

parameters_total = {'log_clf':parameters_log,'svc_clf':parameters_svc,'tree_clf':parameters_tree,
                    'forest_clf':parameters_forest,'xgb_clf':parameters_xgb}

1.2 划分数据集

X_val = X_train_scaled[:1000]
y_val = y_train[:1000]

1.3 模型用字典集合

from sklearn.model_selection import GridSearchCV
def gridsearch(X_val,y_val,models,parameters_total):
    models_grid = {}
    for model in models:
        # cv=5 表示5折交叉
        grid_search = GridSearchCV(models[model],param_grid=parameters_total[model],n_jobs=-1,cv=5,verbose=10)
        grid_search.fit(X_val,y_val)
        models_grid[model] = grid_search.best_estimator_
    return models_grid

1.4 查看参数

models_grid

输出：

{'forest_clf': RandomForestClassifier(bootstrap=True, class_weight=None, criterion='gini',
             max_depth=8, max_features='auto', max_leaf_nodes=None,
             min_impurity_decrease=0.0, min_impurity_split=None,
             min_samples_leaf=1, min_samples_split=15,
             min_weight_fraction_leaf=0.0, n_estimators=8, n_jobs=1,
             oob_score=False, random_state=None, verbose=0,
             warm_start=False),
 'log_clf': LogisticRegression(C=0.01, class_weight=None, dual=False, fit_intercept=True,
           intercept_scaling=1, max_iter=100, multi_class='ovr', n_jobs=1,
           penalty='l2', random_state=None, solver='liblinear', tol=0.0001,
           verbose=0, warm_start=False),
 'svc_clf': SVC(C=1, cache_size=200, class_weight=None, coef0=0.0,
   decision_function_shape='ovr', degree=3, gamma='auto', kernel='rbf',
   max_iter=-1, probability=False, random_state=None, shrinking=True,
   tol=0.001, verbose=False),
 'tree_clf': DecisionTreeClassifier(class_weight=None, criterion='gini', max_depth=5,
             max_features=None, max_leaf_nodes=None,
             min_impurity_decrease=0.0, min_impurity_split=None,
             min_samples_leaf=10, min_samples_split=2,
             min_weight_fraction_leaf=0.0, presort=False, random_state=None,
             splitter='best'),
 'xgb_clf': XGBClassifier(base_score=0.5, booster='gbtree', colsample_bylevel=1,
        colsample_bynode=1, colsample_bytree=1, gamma=0, learning_rate=0.05,
        max_delta_step=0, max_depth=7, min_child_weight=1, missing=None,
        n_estimators=100, n_jobs=1, nthread=None,
        objective='binary:logistic', random_state=0, reg_alpha=1.0,
        reg_lambda=1, scale_pos_weight=1, seed=None, silent=None,
        subsample=1, verbosity=1)}

2、参数优化前后对比

models_grid = gridsearch(X_val,y_val,models,parameters_total)
results_test_grid,results_train_grid = metrics(models_grid,X_train_scaled,X_test_scaled,y_train,y_test)

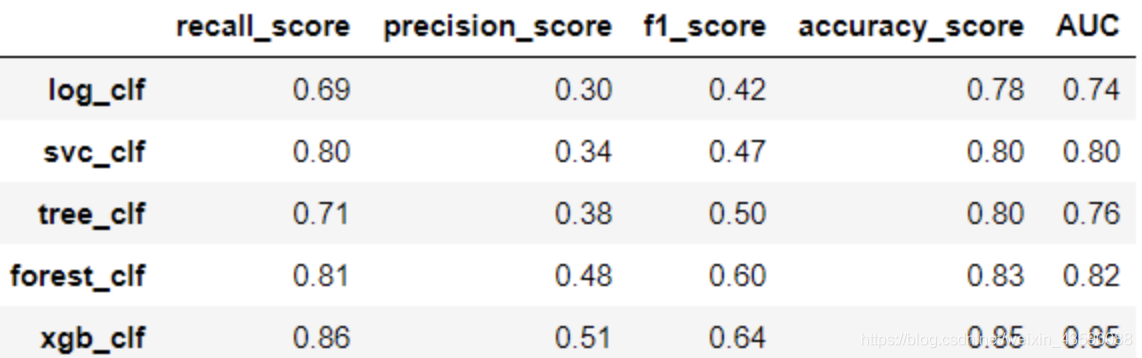

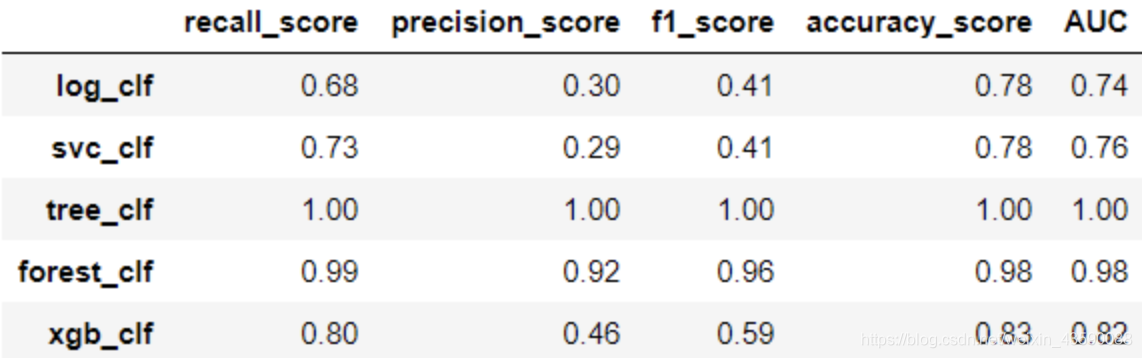

训练集上：

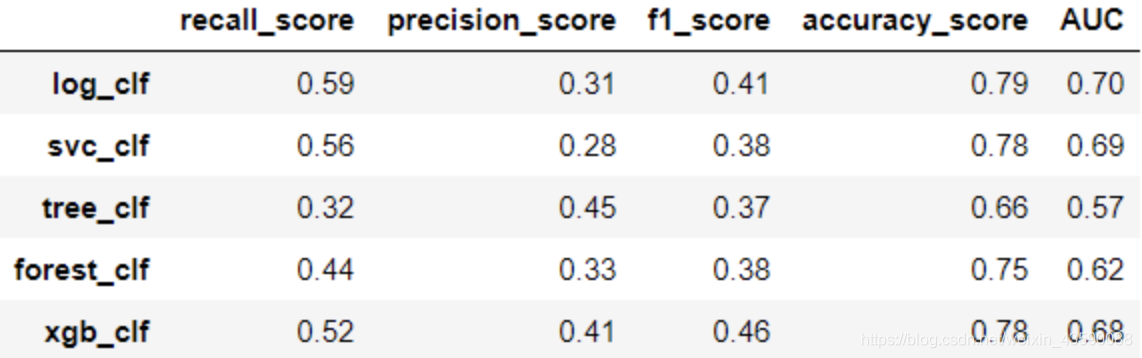

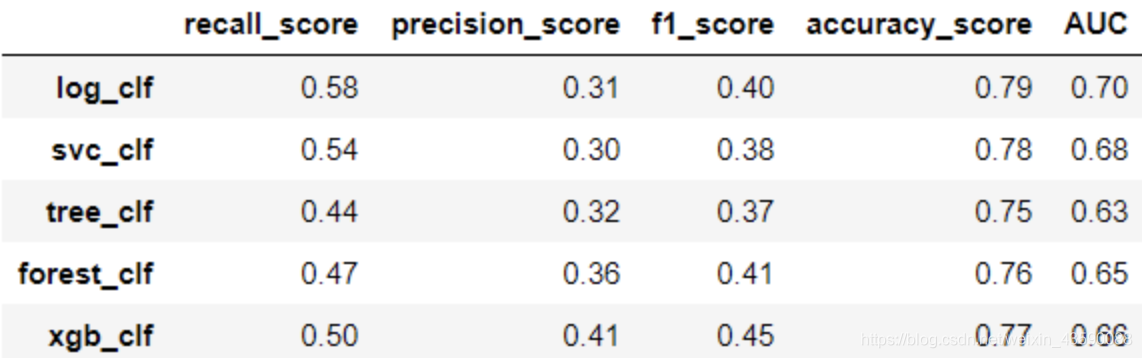

测试集上：
