Linux部署P8s/VM+exporter+grafana+alertmanager监控环境
一、基础软件安装【二进制安装】【docker安装】
- victoria-metrics安装
mkdir -p /data/victoria-metrics
wget https://github.com/VictoriaMetrics/VictoriaMetrics/releases/download/v1.65.0/victoria-metrics-amd64-v1.65.0.tar.gz
mkdir victoria-metrics && tar -xvzf victoria-metrics-amd64-v1.65.0.tar.gz
mv victoria-metrics-prod victoria-metrics/victoria-metrics
- P r o m e t h e u s \textcolor{blue}{Prometheus} Prometheus安装
mkdir -p /data/prometheus
cd /data/prometheus
wget https://github.com/prometheus/prometheus/releases/download/v2.34.0/prometheus-2.34.0.linux-386.tar.gz
tar xf prometheus-2.34.0.linux-386.tar.gz
mv prometheus-2.34.0.linux-386 prometheus
-
Blackbox_exporter、node_exporter、snmp_exporter、ping_exporter安装
cd /data/prometheus/ wget https://github.com/prometheus/blackbox_exporter/releases/download/v0.15.1/blackbox_exporter-0.20.0.linux-amd64.tar.gz tar xf blackbox_exporter-0.20.0.linux-amd64.tar.gz mv blackbox_exporter-0.20.0.linux-amd64 blackbox_exporter wget https://github.com/prometheus/node_exporter/releases/download/v1.3.1/node_exporter-1.3.1.linux-amd64.tar.gz tar xf node_exporter-1.3.1.linux-amd64.tar.gz mv node_exporter-1.3.1.linux-amd64 node_exporter wget https://github.com/prometheus/snmp_exporter/releases/download/v0.20.0/snmp_exporter-0.20.0.linux-amd64.tar.gz tar xf snmp_exporter-0.20.0.linux-amd64.tar.gz mv snmp_exporter-0.20.0.linux-amd64 snmp_exporter #已经是二进制文件 wget https://github.com/czerwonk/ping_exporter/releases/download/1.0.0/ping_exporter_1.0.0_linux_amd64.tar.gz tar xf ping_exporter_1.0.0_linux_amd64.tar.gz -
grafana安装
wget https://dl.grafana.com/oss/release/grafana-8.4.4-1.x86_64.rpm sudo yum localinstall grafana-8.4.4-1.x86_64.rpm -
alertmanager安装
wget https://github.com/prometheus/alertmanager/releases/download/v0.24.0/alertmanager-0.24.0.linux-amd64.tar.gz tar xf alertmanager-0.24.0.linux-amd64.tar.gz mv alertmanager-0.24.0.linux-amd64 alertmanager -
docker安装【由于已经使用虚拟机，避免多层网络，因此本文未使用】
docker search prom/prometheus docker pull prom/prometheus docker run -itd --name prometheus -p 9090:9090 \ -v /usr/local/promethues/server/prometheus.yml:/etc/prometheus/prometheus.yml \ -v /etc/localtime:/etc/localtime:ro \ prom/prometheus 宿主机位置 /usr/local/promethues/server/prometheus.yml 容器位置 /etc/prometheus/prometheus.ymldocker search grafana/grafana docker pull grafana/grafana # -d：后台运行 # -p：将容器内部端口向外映射 # --name：命名容器名称 # -v：将容器内数据文件夹或者日志、配置等文件夹挂载到宿主机指定目录 docker run -d -p 3000:3000 --restart=always --name grafana grafana/grafanadocker pull prom/blackbox-exporter docker run -d -p 9115:9115 --name blackbox-exporter prom/blackbox-exporter
二、设置supervisor管理，并开机自启 – 需要将步骤一的成品文件/文件夹移动到/usr/local/server-path/
cd /etc/supervisord.d/
-
prometheus.conf
[program:prometheus-server] directory = /usr/local/server-path/prometheus command= /usr/local/server-path/prometheus/prometheus autostart=true autorestart=true startsecs=10 stdout_logfile_maxbytes=1MB stdout_logfile_backuos=10 stderr_logfile_maxbytes=1MB stderr_logfile_backuos=10 stderr_capture_maxbytes=1MB -
blackbox_exporter.conf
[program:blackbox_exporter-server] directory = /usr/local/server-path/blackbox_exporter command= /usr/local/server-path/blackbox_exporter/blackbox_exporter autostart=true autorestart=true startsecs=10 stdout_logfile_maxbytes=1MB stdout_logfile_backuos=10 stderr_logfile_maxbytes=1MB stderr_logfile_backuos=10 stderr_capture_maxbytes=1MB -
ping_exporter.conf
[program:ping-exporter-server] directory = /usr/local/server-path/ping_exporter command= /usr/local/server-path/ping_exporter/ping_exporter --config.path /usr/local/server-path/ping_exporter/config.yml autostart=true autorestart=true startsecs=10 stdout_logfile_maxbytes=1MB stdout_logfile_backuos=10 stderr_logfile_maxbytes=1MB stderr_logfile_backuos=10 stderr_capture_maxbytes=1MB -
grafana.conf
[program:grafana-server] directory = /usr/sbin/ command= /usr/sbin/grafana-server web --homepath "/usr/share/grafana" autostart=true autorestart=true startsecs=10 stdout_logfile_maxbytes=1MB stdout_logfile_backuos=10 stderr_logfile_maxbytes=1MB stderr_logfile_backuos=10 stderr_capture_maxbytes=1MB -
alertmanager.conf
[program:alertmanager-server] directory = /usr/local/server-path/alertmanager command= /usr/local/server-path/alertmanager/alertmanager --config.file=/usr/local/server-path/alertmanager/alertmanager.yml autostart=true autorestart=true startsecs=10 stdout_logfile_maxbytes=1MB stdout_logfile_backuos=10 stderr_logfile_maxbytes=1MB stderr_logfile_backuos=10 stderr_capture_maxbytes=1MB -
victoria-metrics.conf
[program:victoria_metrics-server] directory = /usr/local/server-path/victoria-metrics command= /usr/local/server-path/victoria-metrics/victoria-metrics -retentionPeriod=30d -storageDataPath=data # 如果采用VM完全代替Prometheus，则为：/usr/local/server-path/victoria-metrics/victoria-metrics -retentionPeriod=30d -storageDataPath=data -promscrape.config=prometheus.yml autostart=true autorestart=true startsecs=10 stdout_logfile_maxbytes=1MB stdout_logfile_backuos=10 stderr_logfile_maxbytes=1MB stderr_logfile_backuos=10 stderr_capture_maxbytes=1MB -
other
三、设置systemctl管理，并开机自启
-
prometheus.service
vim /usr/lib/systemd/system/prometheus.service 并写入以下内容 [Unit] Description=prometheus server daemon [Service] Restart=on-failure ExecStart=/usr/local/server-path/prometheus/prometheus --config.file=/usr/local/server-path/prometheus/prometheus.yml [Install] WantedBy=multi-user.target -
blackbox_exporter.service
vim /usr/lib/systemd/system/blackbox_exporter.service [Unit] Description=blackbox_exporter After=network.target [Service] ExecStart=/usr/local/server-path/prometheus/blackbox_exporter/blackbox_exporter --config.file=/usr/local/server-path/prometheus/blackbox_exporter/blackbox.yml Restart=on-failure [Install] WantedBy=multi-user.target
四、icmp连通性探测测试
-
prometheus配置文件
./promtool check config prometheus.yml # 用于检查配置 ./amtool check-config alertmanager.yml# my global config global: scrape_interval: 15s # Set the scrape interval to every 15 seconds. Default is every 1 minute. evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute. # scrape_timeout is set to the global default (10s). # Alertmanager configuration alerting: alertmanagers: - static_configs: - targets: # - alertmanager:9093 # Load rules once and periodically evaluate them according to the global 'evaluation_interval'. rule_files: # - "first_rules.yml" # - "second_rules.yml" # A scrape configuration containing exactly one endpoint to scrape: # Here it's Prometheus itself. scrape_configs: # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config. - job_name: 'ICMP-Demo' # metrics_path defaults to '/metrics' # scheme defaults to 'http'. # static_configs: # - targets: ['localhost:9090'] scrape_interval: 5s metrics_path: /probe params: module: [icmp] #ping file_sd_configs: - files: ['/usr/local/prometheus/ping_config/hk.yml'] relabel_configs: - source_labels: [__address__] target_label: __param_target - source_labels: [__param_target] target_label: instance - target_label: __address__ replacement: 114.112.34.221:9115 -
hk.yml的配置
- targets: ['128.14.237.64'] labels: HK: '台湾台北' - targets: ['159.138.50.183'] labels: HK: '香港' - targets: ['128.1.37.65'] labels: HK: '台湾高雄' - targets: ['163.53.244.90'] labels: HK: '澳门' -
启动各个服务、登录prometheus-web界面：http://ip:9090/targets
记得关闭防火墙 systemctl stop firewalld.service systemctl disable firewalld.service systemctl restart prometheus.service systemctl restart blackbox_exporter.service systemctl start grafana-server
五、使用victoria-metrics【VM】替代Prometheus存储数据（p8s+vm+exporter+grafana）–单机版
-
部署victoria-metrics服务–详见步骤一、二执行类似操作
-
更新Prometheus配置文件
新增配置如下：
remote_write: # 存储到远程VM存储（这里只是示例，所以Prometheus和VM在一台机子上） - url: http://127.0.0.1:8428/api/v1/write queue_config: # 如果Prometheus抓取指标很大，可以加调整queue，但是会提高内存占用 max_samples_per_send: 10000 capacity: 20000 max_shards: 30 -
更新grafana数据源配置，新增victoria-metrics数据源
登录grafana页面 找到设置 --> 数据源【data sources】--> add data resource name: VM URL: http://localhost[宿主机ip]:8428 点击save & test -

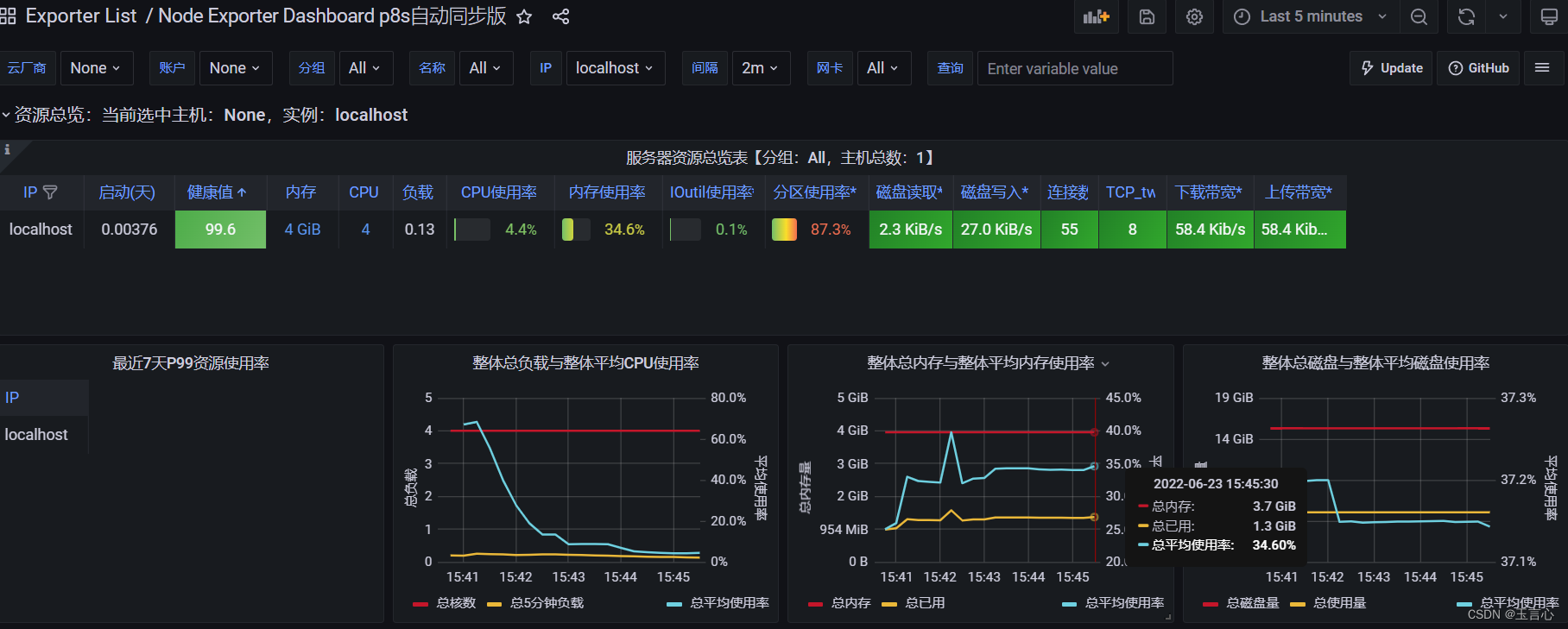

展示
将之前Prometheus的图表的数据源换成VM即可【也可以cp一份测试】
六、使用victoria-metrics【VM】替代Prometheus（vm+exporter+grafana） --单机版
-
复制Prometheus配置
cp /usr/local/server-path/prometheus/prometheus.yml /usr/local/server-path/victoria-metrics/ -
停止Prometheus、增加启动项、直接使用VM加载Prometheus配置文件、grafana保持不变
具体执行指令：
supervisorctl stop prometheus-server ./victoria-metrics -retentionPeriod=30d -storageDataPath=data -promscrape.config=prometheus.yml
七、对接alertmanager报警
-
部署alertmanager服务–详见步骤一、二操作
-
更新alertmanager配置、配置报警邮箱
cd /usr/local/server-path/alertmanager/ vim alertmanager.ymlglobal: resolve_timeout: 5m smtp_smarthost: 'smtp.qq.com:465' smtp_from: 'qq@qq.com'#换成自己qq smtp_auth_username: 'qq@qq.com' smtp_auth_password: 'xxxx' #qq邮箱授权码 smtp_require_tls: false templates: #报警文案自定义路径 - '/usr/local/server-path/alertmanager/message-tmpl/*.tmpl' #与报警及其周期有关，自行百度，配置参数 route: group_by: ['severity'] group_wait: 10s group_interval: 3m repeat_interval: 3m receiver: 'email' routes: - match: severity: critical receiver: 'leader' continue: true receivers: - name: 'email' email_configs: - to: 'qq@qq.com' html: '{{ template "email.to.html" . }}' send_resolved: true - name: 'leader' email_configs: - to: 'qq@qq.com' html: '{{ template "email.to.html" . }}' send_resolved: true inhibit_rules: - source_match: severity: 'critical' target_match: severity: 'warning' equal: ['alertname', 'instance']mkdir message-tmpl #为后文报警文案做准备 -
更新Prometheus配置
# my global config global: scrape_interval: 15s # Set the scrape interval to every 15 seconds. Default is every 1 minute. evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute. # scrape_timeout is set to the global default (10s). # Alertmanager configuration 此处更新Alertmanager服务地址 alerting: alertmanagers: - static_configs: - targets: - localhost:9093 # Load rules once and periodically evaluate them according to the global 'evaluation_interval'. # 报警规则配置路径，可以自定义 rule_files: - "rules/*.yml" # - "first_rules.yml" # - "second_rules.yml" # A scrape configuration containing exactly one endpoint to scrape: # Here it's Prometheus itself. scrape_configs: ....后面略mkdir rules/ -
自定义报警文案
cd message-tmpl vim email.tmpl{{ define "email.to.html" }} {{ range .Alerts }}<br> 告警程序: prometheus_alert <br> 告警级别: {{ .Labels.severity }} 级 <br> 告警类型: {{ .Labels.alertname }} <br> 故障主机: {{ .Labels.instance }} <br> 告警主题: {{ .Annotations.summary }} <br> 告警详情: {{ .Annotations.description }} <br> 触发时间: {{ .StartsAt }} <br> {{ end }} {{ end }} -
配置exporter服务死活报警
cd rules/ vim exporter_monitor.ymlgroups: - name: node-up rules: - alert: node-up expr: up == 0 for: 180s labels: severity: 1 team: node annotations: summary: "【服务异常告警】" description: "---{{$labels.instance}}--- 相关服务可能不可用,服务停止已超过3min,请检查." value: "{{ $value }}" -
检查格式、重启Prometheus、Alertmanager，手动停止一个exporter验证
【本文中涉及配置是挂起3min，三分钟报警没有恢复则发送邮箱】
效果示例：
-
总结
本文涉及服务：【使用supervisor管理】 alertmanager-server RUNNING pid 16163, uptime 0:57:04 blackbox_exporter-server RUNNING pid 16155, uptime 0:57:04 go-http-server RUNNING pid 16162, uptime 0:57:04 grafana-server RUNNING pid 16154, uptime 0:57:04 node-exporter-server RUNNING pid 16158, uptime 0:57:04 ping-exporter-server RUNNING pid 16170, uptime 0:57:04 prometheus-server RUNNING pid 28301, uptime 0:52:18 snmp-exporter-server RUNNING pid 16157, uptime 0:57:04 victoria_metrics-server RUNNING pid 16153, uptime 0:57:04 功能:实现Prometheus生态的单机版云监控，集群版请自行百度部署，原理类似 应用:监控小量级的业务数据，个人项目数据【exporter/metres暴露接口自己开发，不难】等 注意：本文由于是工作中记录的，或有整合网上多个方案，如有问题，请私聊
