微信小程序实现横向滚动条

微信小程序scroll-view实现横向滑动滚动

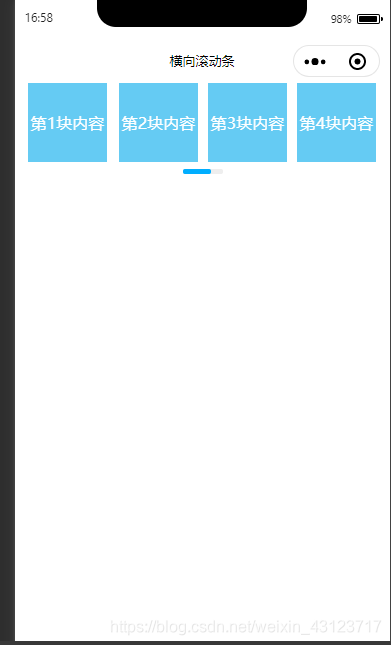

效果图如下：

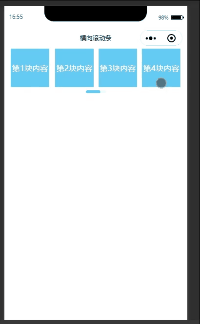

左右滑动效果展示如下：

实现代码：
index.wxml

<view class="hotService">
	<view class="hotServiceList_box">
	<!-- 这里为滚动的内容部分 -->
			<scroll-view class="hotServiceList_scroll" scroll-x="true" bindscroll="getleft">
				<view class="hotService_content">
					<block wx:for="{{dataList}}" wx:key="{{index}}">
						<view class="block{{index}} block">
							<view class="blockContent">
								<text>第{{index + 1}}块内容</text>
							</view>
						</view>
					</block>
				</view>
			</scroll-view>
		<!--滚动条部分-->
		<view class="slide" wx:if="{{slideShow}}">
			<view class='slide-bar'>
				<view class="slide-show" style="width:{{slideWidth}}rpx; margin-left:{{slideLeft<=1 ? 0 : slideLeft+'rpx'}};"></view>
			</view>
		</view>
	</view>
</view>

index.js

const app = getApp()

Page({
  data: {
    // 滑动比例计算
    slideWidth: '', //滑块宽
    slideLeft: 0, //滑块位置
    totalLength: '', //当前滚动列表总长
    slideShow: false, //滑块是否显示
    slideRatio: '', //滑块比例
    // 渲染数据
    dataList: [{
        text: '第1块'
      },{
        text: '第2块'
      }, {
        text: '第3块'
      },{
        text: '第4块'
      },{
        text: '第5块'
      },{
        text: '第6块'
      }],
  },
  onLoad: function () {
    // 这里是获取视口口宽度
    var systemInfo = wx.getSystemInfoSync();
    this.setData({
      windowWidth: systemInfo.windowWidth,
    })
    this.getRatio()
  },
  getRatio() {
    if (this.data.dataList.length < 4) {
      this.setData({
        slideShow: false
      })
    } else {
      var _totalLength = this.data.dataList.length * 173; //分类列表总长度
      var _ratio = 80 / _totalLength * (750 / this.data.windowWidth); //滚动列表长度与滑条长度比例
      var _showLength = 750 / _totalLength * 80; //当前显示蓝色滑条的长度(保留两位小数)
      this.setData({
        slideWidth: _showLength,
        totalLength: _totalLength,
        slideShow: true,
        slideRatio: _ratio
      })
    }
  },
  //slideLeft动态变化
  getleft(e) {
    this.setData({
      slideLeft: e.detail.scrollLeft * this.data.slideRatio
    })
  },

})

index.wxss

.hotService{
  width: 100%;
  height: 300rpx;
  background-color: #fff;
  padding: 0 26rpx;
  box-sizing: border-box;
}
.hotServiceList_box {
  position: relative;
  overflow: hidden;
  white-space: nowrap;
  width: 100%;
}

.block {
  width: 158rpx;
  height: 158rpx;
  padding: 0 10rpx;
  display: inline-block;

}
.blockContent{
  width: 100%;
  height: 100%;
  background-color: rgb(101, 203, 243);
  color:#fff;
  display: flex;
  justify-content: center;
  align-items: center;
}

.block:first-child {
  padding: 0 15rpx 0 0;
}
.slide{
  height: 20rpx;
  background:#fff;
  width:100%;
  padding:14rpx 0 5rpx 0
 }
 .slide .slide-bar{
  width: 80rpx;
  margin:0 auto;
  height: 10rpx;
  background:#eee;
  border-radius: 8rpx;
 }
 .slide .slide-bar .slide-show{
  height:100%;
  border-radius: 8rpx;
  background-color: #00aeff;
 }

index.json

{
  "usingComponents": {}
}
