zabbix监控

zabbix监控

主机名	IP地址	角色
zabbix-server	192.168.100.114	监控端
zabbix-client	192.168.100.116	被监控端

在上一章中配置了zabbix的监控端
https://blog.youkuaiyun.com/weixin_43120459/article/details/82937300

客户端安装agent端

• 安装依赖包

[root@zabbix-client ~]# yum install -y net-snmp-devel libevent-devel

• 安装

[root@zabbix-client ~]# cd /usr/src/
[root@zabbix-client src]# wget https://nchc.dl.sourceforge.net/project/zabbix/ZABBIX%20Latest%20Stable/3.4.12/zabbix-3.4.12.tar.gz
[root@zabbix-client src]# tar xf zabbix-3.4.12.tar.gz
[root@zabbix-client src]# cd zabbix-3.4.12/
[root@zabbix-client zabbix-3.4.12]# ./configure --enable-agent
[root@zabbix-client zabbix-3.4.12]# make install

• 创建Zabbix用户和组

[root@zabbix-client zabbix-3.4.12]# groupadd -r zabbix
[root@zabbix-client zabbix-3.4.12]# useradd -r -M -s /sbin/nologin -g zabbix zabbix

• 启动zabbix

[root@zabbix-client zabbix-3.4.12]# zabbix_agentd
[root@zabbix-client zabbix-3.4.12]# ss -lnpt
State       Recv-Q Send-Q          Local Address:Port                         Peer Address:Port
LISTEN      0      128                         *:22                                      *:*                   users:(("sshd",pid=1137,fd=3))
LISTEN      0      100                 127.0.0.1:25                                      *:*                   users:(("master",pid=1300,fd=13))
LISTEN      0      128                         *:10050                                   *:*                   users:(("zabbix_agentd",pid=18490,fd=4),("zabbix_agentd",pid=18489,fd=4),("zabbix_agentd",pid=18488,fd=4),("zabbix_agentd",pid=18487,fd=4),("zabbix_agentd",pid=18486,fd=4),("zabbix_agentd",pid=18485,fd=4))
LISTEN      0      128                        :::22                                     :::*                   users:(("sshd",pid=1137,fd=4))
LISTEN      0      100                       ::1:25                                     :::*                   users:(("master",pid=1300,fd=14))

• 服务端配置

[root@zabbix-client ~]# vim /usr/local/etc/zabbix_agentd.conf
#Server=127.0.0.1
Server=192.168.100.114  //服务端的IP地址 主动模式
#ServerActive=127.0.0.1
ServerActive=192.168.100.114  //服务端的IP地址 被动模式
#Hostname=Zabbix server
Hostname=192.168.100.116

• 重启服务

[root@zabbix-client ~]# pkill zabbix
[root@zabbix-client ~]# zabbix_agentd

在web页面添加监控项

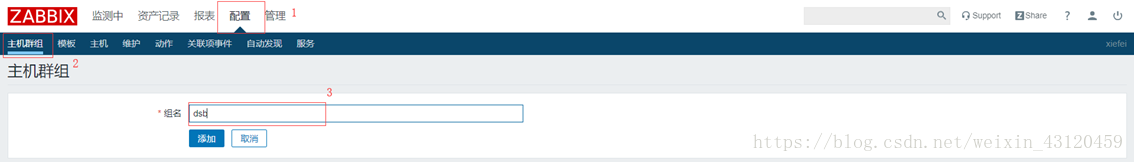

1.添加主机组

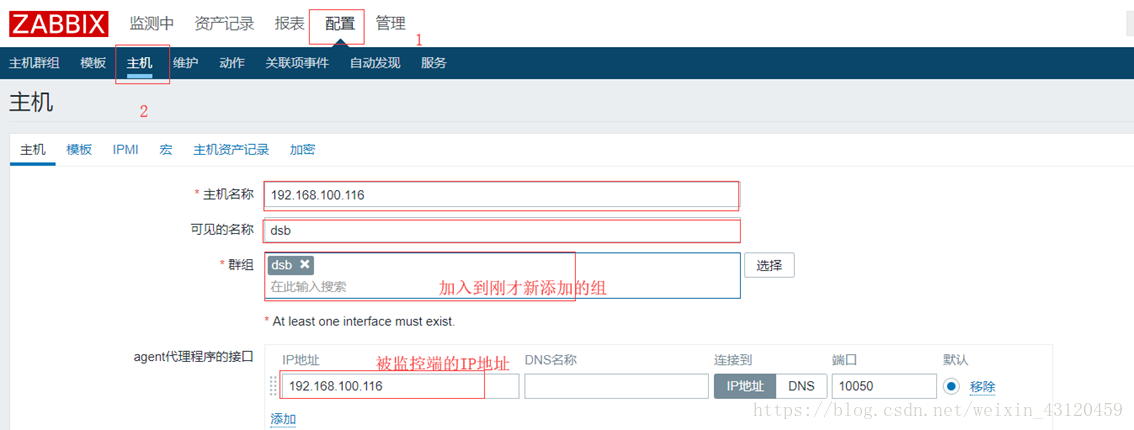

2.添加主机

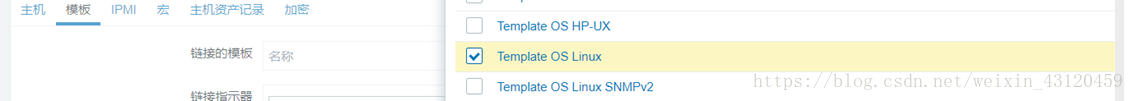

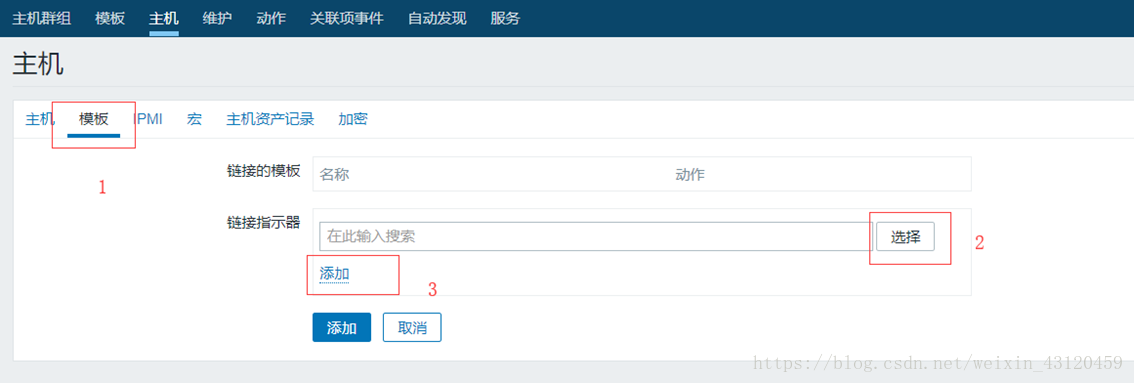

3.添加模块，（可不添加）

自定义监控项

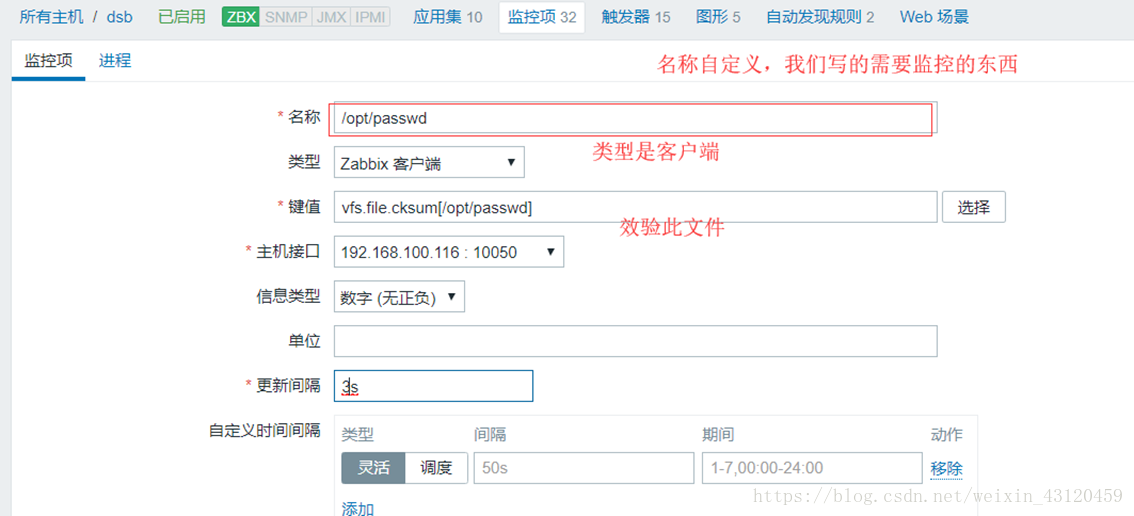

//监控文件

//然后点击创建监控项

//在键值选择中选择此项

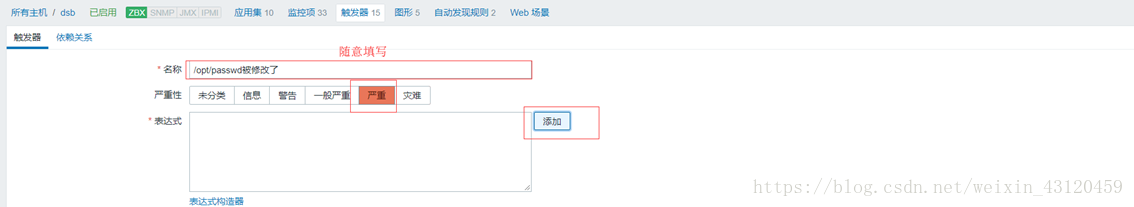

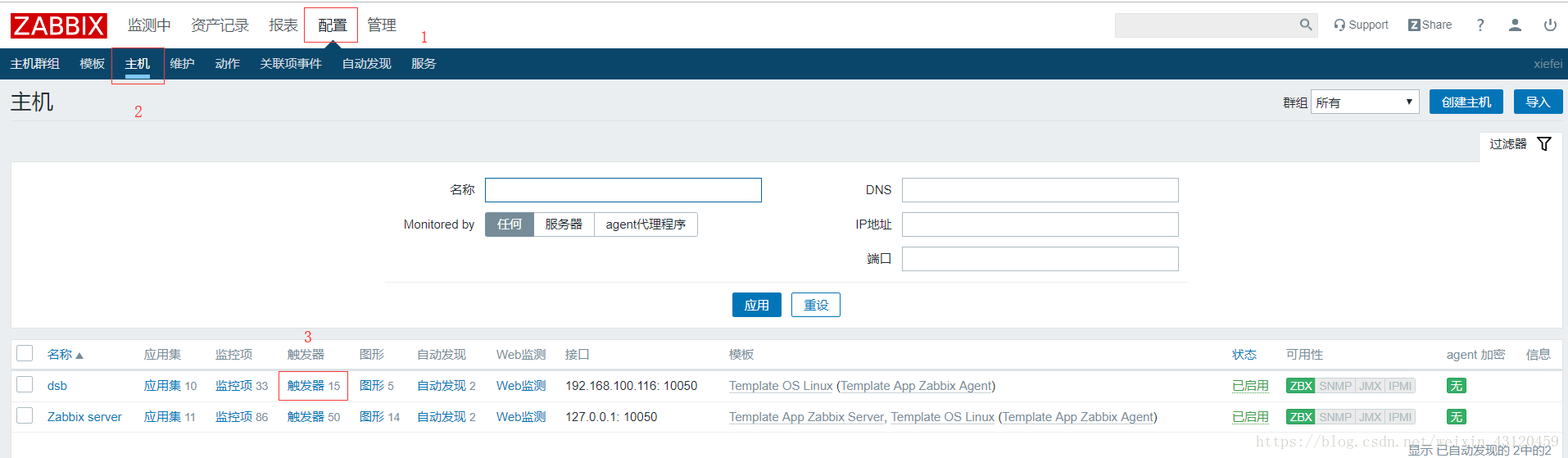

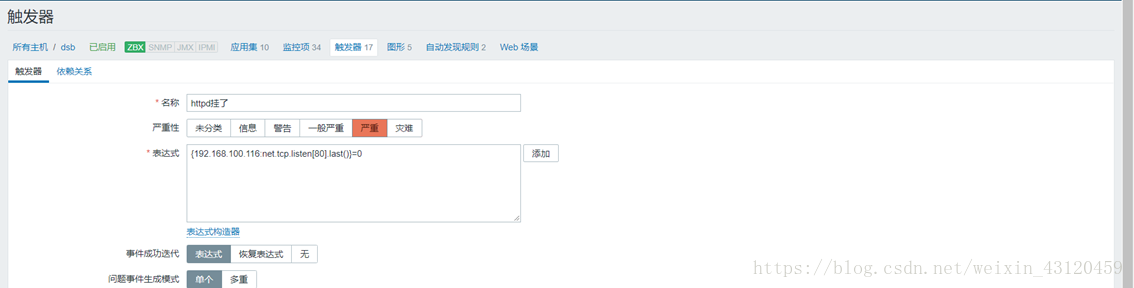

添加触发器

//然后点击创建触发器

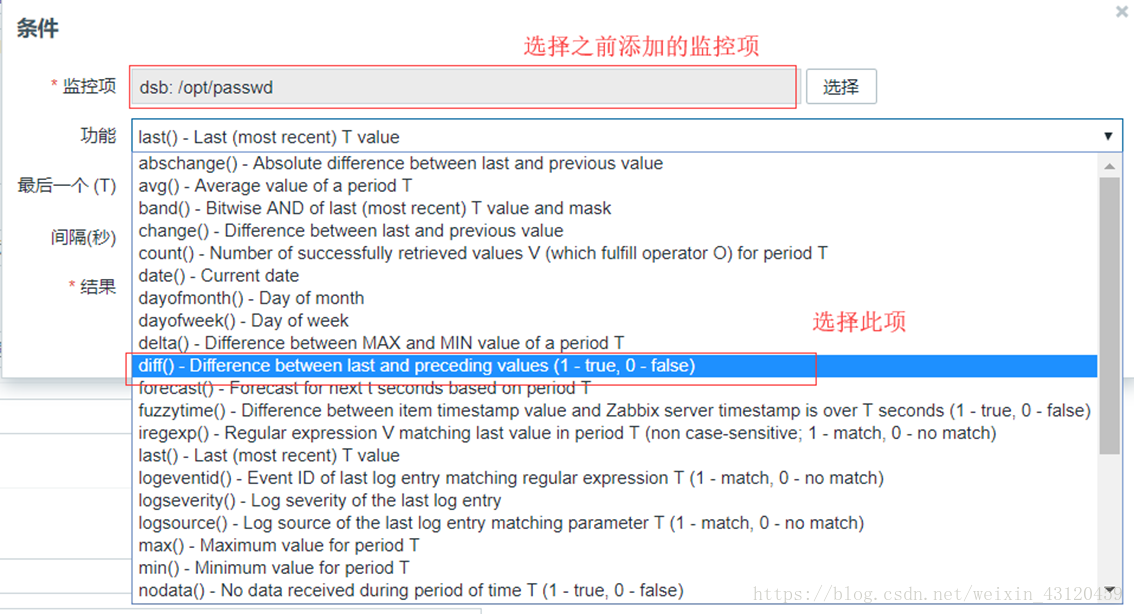

//表达式的效果

• 验证

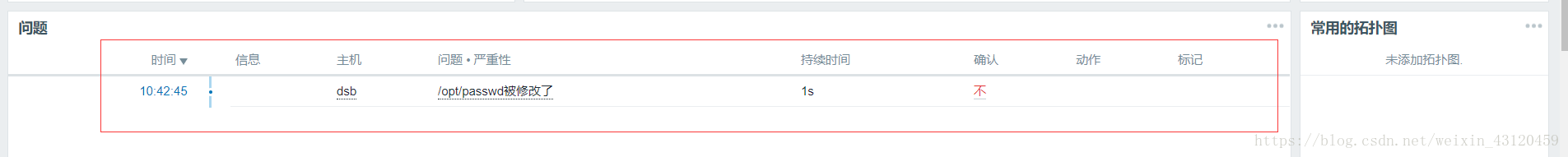

  在客户端主机上修改/opt/passwd文件

[root@zabbix-client ~]# echo "123" >> /opt/passwd

//监控服务
监听服务的端口号
在客户端主机下载httpd服务，并开启

[root@zabbix-client ~]# yum -y install httpd
[root@zabbix-client ~]# systemctl start httpd
[root@zabbix-client ~]# ss -anlt
State       Recv-Q Send-Q          Local Address:Port                         Peer Address:Port
LISTEN      0      128                         *:22                                      *:*
LISTEN      0      100                 127.0.0.1:25                                      *:*
LISTEN      0      128                         *:10050                                   *:*
LISTEN      0      128                        :::80                                     :::*
LISTEN      0      128                        :::22                                     :::*
LISTEN      0      100                       ::1:25                                     :::*

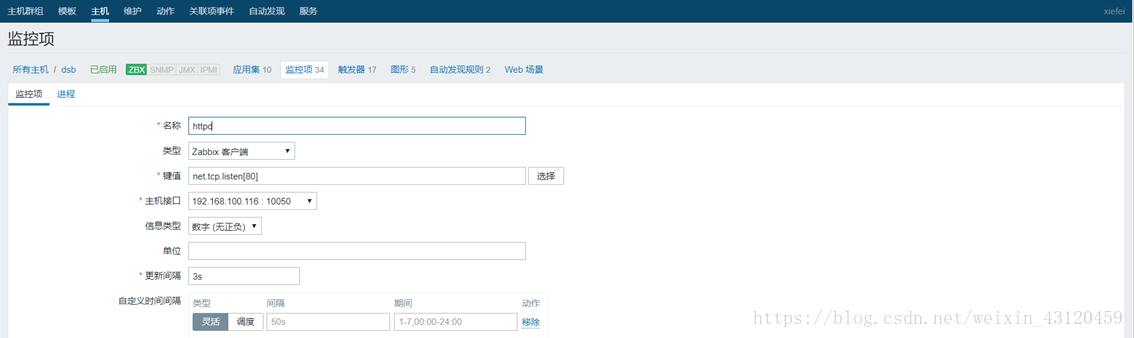

在web页面添加监控项，然后点击创建监控项


在客户端关闭apache服务

[root@zabbix-client ~]# systemctl stop httpd.service

自定义key值

监听vsftpd
客户端下载vsftpd

[root@zabbix-client ~]# yum -y install vsftpd
[root@zabbix-client yum.repos.d]# systemctl start vsftpd
[root@zabbix-client yum.repos.d]# ss -anlt
State       Recv-Q Send-Q          Local Address:Port                         Peer Address:Port
LISTEN      0      128                         *:22                                      *:*
LISTEN      0      100                 127.0.0.1:25                                      *:*
LISTEN      0      128                         *:10050                                   *:*
LISTEN      0      128                        :::80                                     :::*
LISTEN      0      32                         :::21                                     :::*
LISTEN      0      128                        :::22                                     :::*
LISTEN      0      100                       ::1:25                                     :::*

• 书写脚本

[root@zabbix-client opt]# vim ckftp.sh
[root@zabbix-client opt]# cat ckftp.sh
#!/bin/bash

name=$1

stat=$(ps -ef | grep vsftpd | egrep -v "grep|$0" | wc -l)

if [ $stat -ne 0 ];then
    echo "1"
else
    echo "0"
fi

• 在客户端配置文件定义Key值,然后重启客户端zabbix服务

[root@zabbix-client opt]# tail -n1 /usr/local/etc/zabbix_agentd.conf
UserParameter=ckftp,/bin/bash /opt/ckftp.sh vsftpd
[root@zabbix-client opt]# pkill zabbix
[root@zabbix-client opt]# zabbix_agentd

• 在服务端检测

[root@zabbix-server ~]# zabbix_get -s 192.168.100.116 -p 10050 -k "ckftp"
1

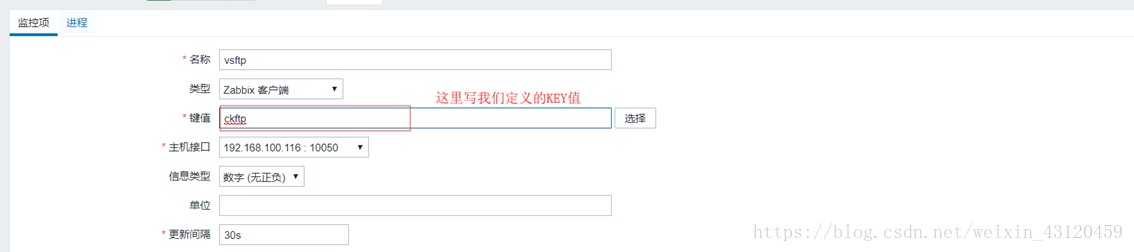

然后在web页面添加监控项

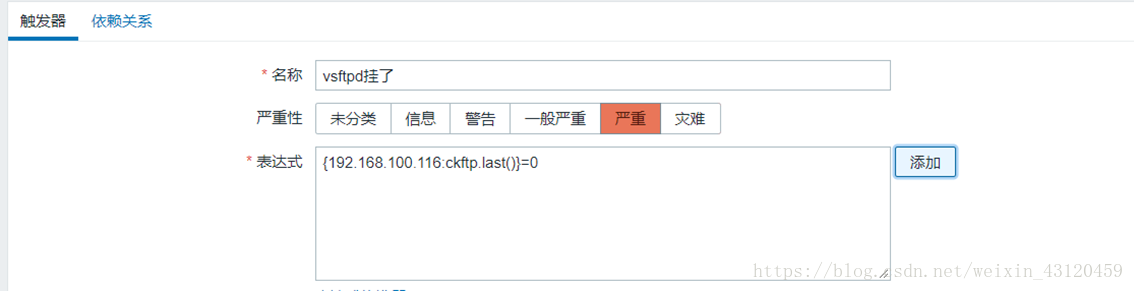

然后添加触发器

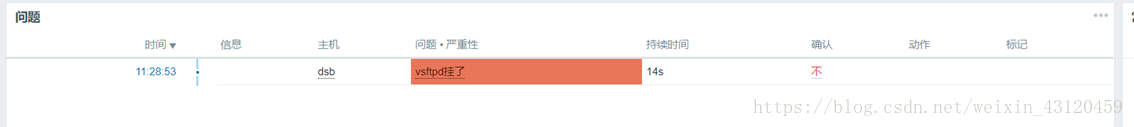

//在客户端关掉vsftpd服务检测

[root@zabbix-client opt]# systemctl stop vsftpd

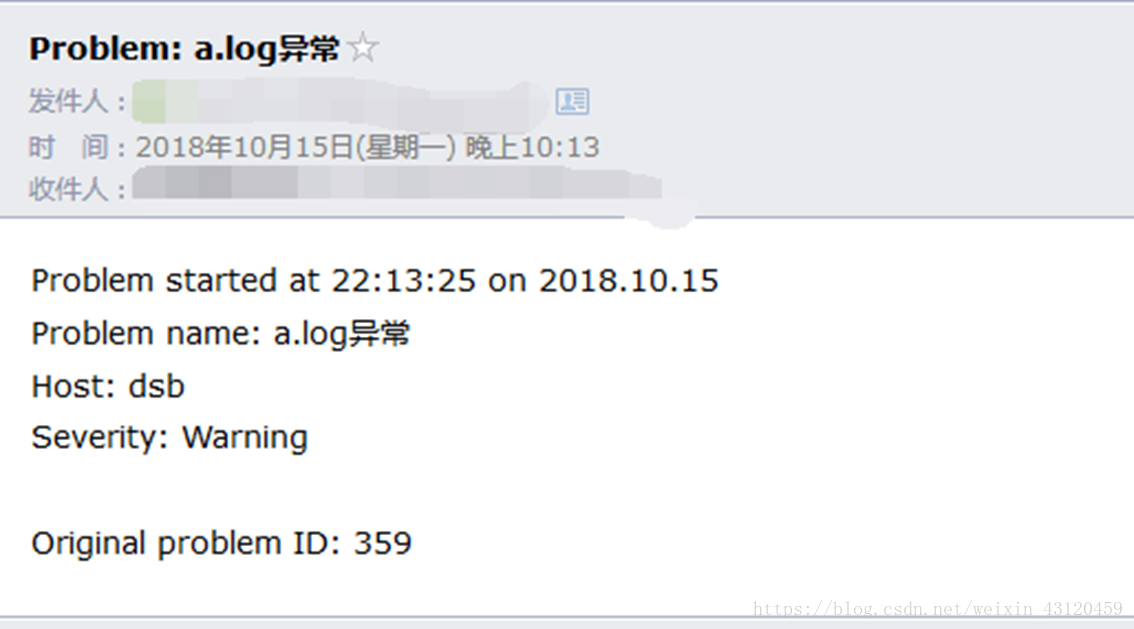

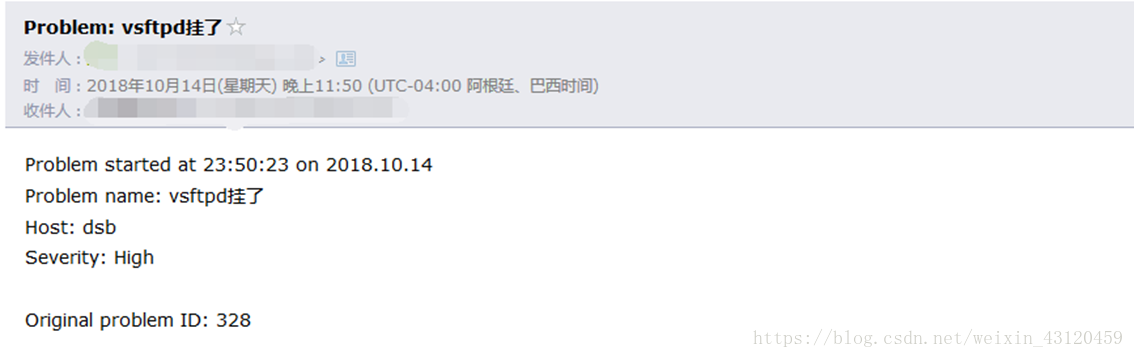

报警邮件发送

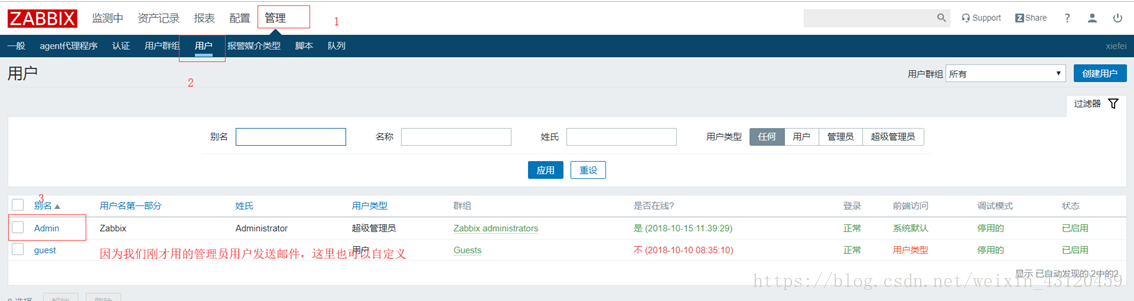

直接在web页面上配置

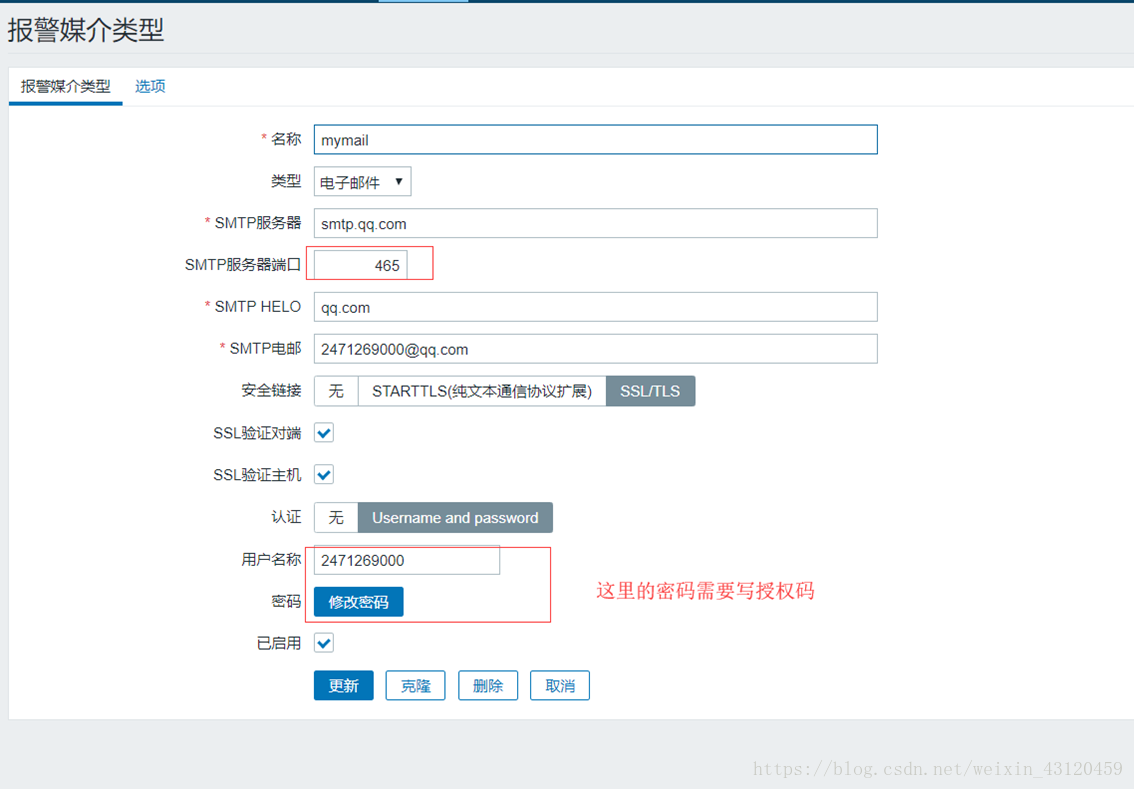

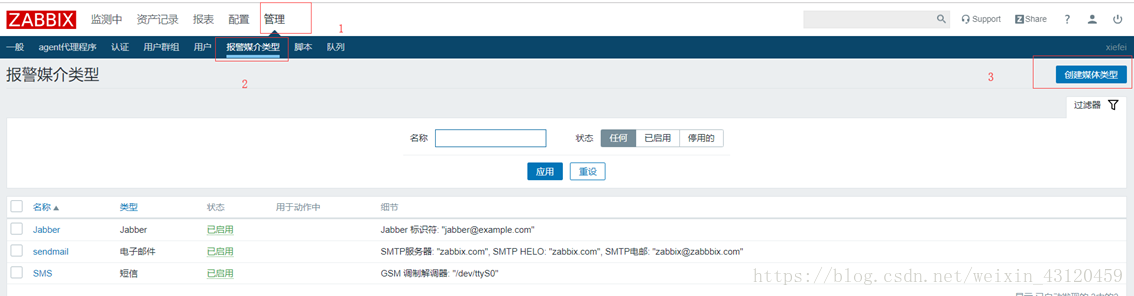

/添加报警媒介

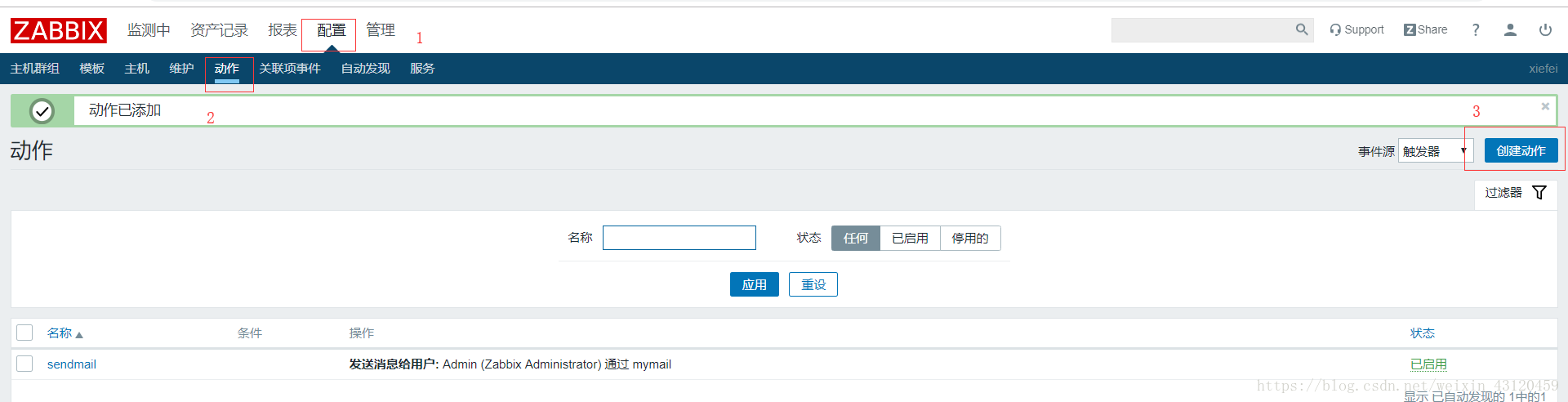

/创建动作

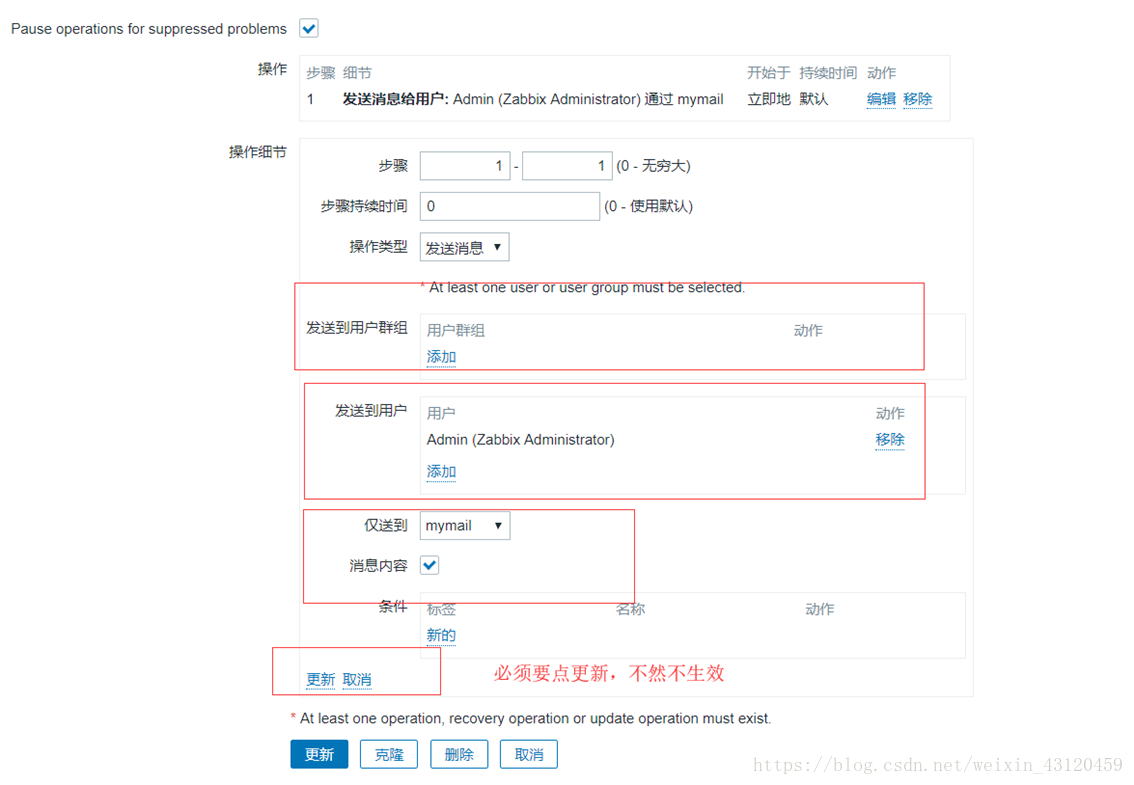

//然后点击操作

监控日志

• 书写脚本

[root@xiefei ~]# cat /opt/log.py
#!/bin/bash
#!/usr/bin/env python3
import sys
import re

def prePos(seekfile):
    global curpos
    try:
        cf = open(seekfile)
    except IOError:
        curpos = 0
        return curpos
    except FileNotFoundError:
        curpos = 0
        return curpos
    else:
        try:
            curpos = int(cf.readline().strip())
        except ValueError:
            curpos = 0
            cf.close()
            return curpos
        cf.close()
    return curpos

def lastPos(filename):
    with open(filename) as lfile:
        if lfile.readline():
            lfile.seek(0,2)
        else:
            return 0
        lastPos = lfile.tell()
    return lastPos

def getSeekFile():
    try:
        seekfile = sys.argv[2]
    except IndexError:
        seekfile = '/tmp/logseek'
    return seekfile

def getKey():
    try:
        tagKey = str(sys.argv[3])
    except IndexError:
        tagKey = 'Error'
    return tagKey

def getResult(filename,seekfile,tagkey):
    destPos = prePos(seekfile)
    curPos = lastPos(filename)

    if curPos < destPos:
        curpos = 0

    try:
        f = open(filename)
    except IOError:
        print('Could not open file: %s' % filename)
    except FileNotFoundError:
        print('Could not open file: %s' % filename)
    else:
        f.seek(destPos)

        while curPos != 0 and f.tell() < curPos:
            rresult = f.readline().strip()
            global result
            if re.search(tagkey, rresult):
                result = 1
                break
            else:
                result = 0

        with open(seekfile,'w') as sf:
            sf.write(str(curPos))
    finally:
        f.close()
    return result

if __name__ == "__main__":
    result = 0
    curpos = 0
    tagkey = getKey()
    seekfile = getSeekFile()
    result = getResult(sys.argv[1],seekfile,tagkey)
    print(result)

//需要传三个参数
$1:日志文件
$2:阅读记录文件,若不设置，默认路径为/tmp/logseek
$3：搜索关键字：如error

• 脚本检测

[root@xiefei ~]# cat /tmp/a.log
dadsdda
dingxiaoke
dingxiaoke
dingxiaole
error
dasdsd
[root@xiefei ~]# python /opt/log.py /tmp/a.log /tmp/logseek error
1

• 添加客户端配置文件

[root@xiefei ~]# tail -1 /usr/local/etc/zabbix_agentd.conf
UserParameter=cklog,/usr/bin/python /opt/log.py /tmp/a.log /tmp/logseek error

• 服务端检测

[root@xiefei ~]# zabbix_get -s 192.168.100.116 -p 10050 -k 'cklog'
1

• 设置web页面警告

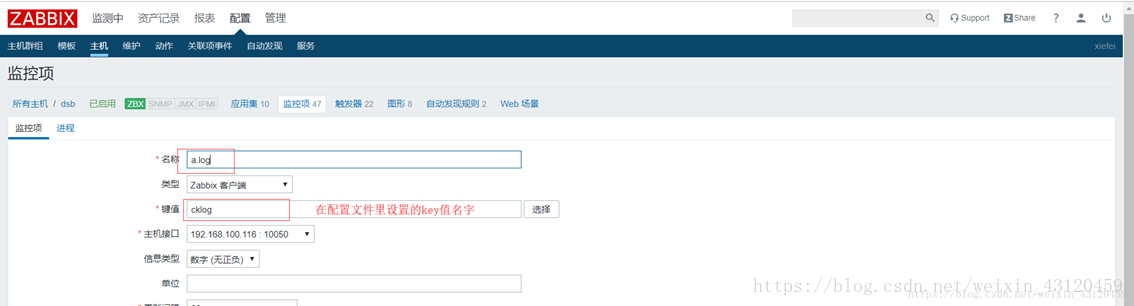

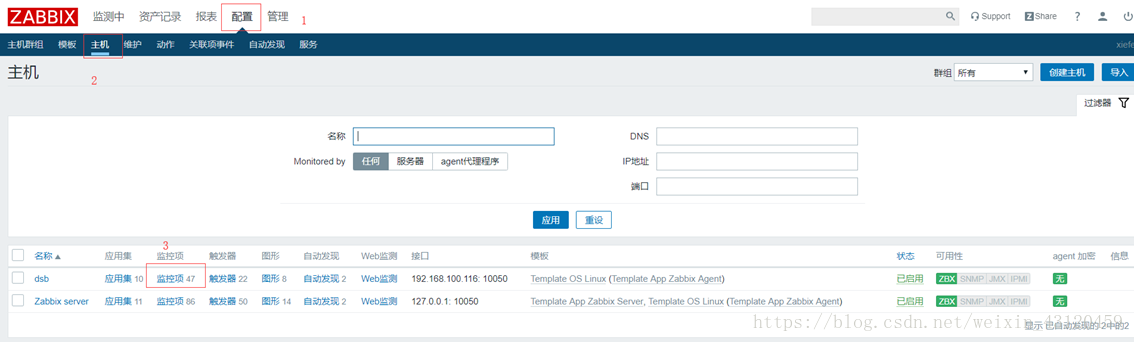

  //添加监控项
  .
  //然后创建监控项

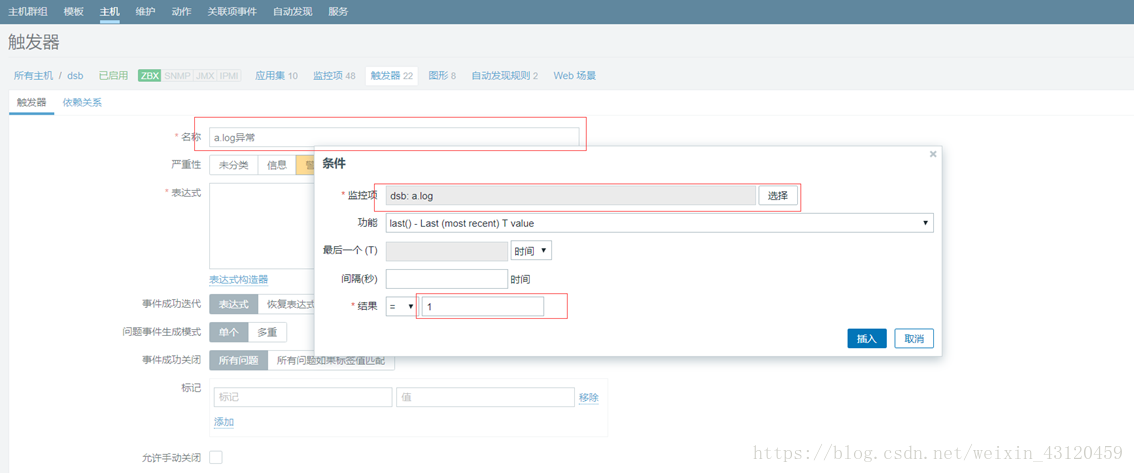

  //添加触发器

  //然后创建监控项

• 测试

[root@xiefei ~]# >/tmp/logseek

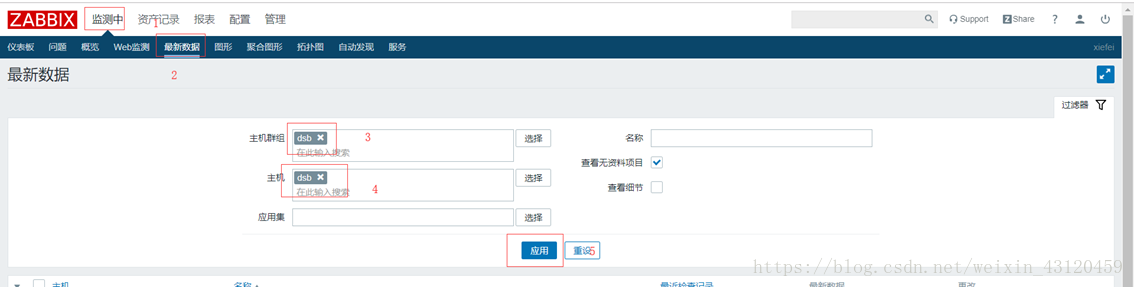

//可以查看最新数据
