System

System commands

newproject - Script command

FDTD MODE DGTD CHARGE HEAT FEEM

Creates a new simulation project file. If there is an existing project file in the GUI, the old project file will not be saved.

Syntax	Description
newproject;	Creates a new layout environment. This function does not return any data.

Examples

Creates a new project with the newproject command.

newproject;

However, for FDTD and MODE, users can have more choices:

For MODE, it can have numerical variables:

Syntax	Description
newproject(option);	The options are use default file and material database as template use current file and material database as template open a file browser to select and existing file as a template The default option is 1.

Examples

Creates a new project with the newproject command.

newproject;
newproject(2); # open a template using current file and material database

For FDTD, the variables can be either numerical, or string:

Syntax

Description

newproject(option);

The options can be number or string: 1 or 'default': use default file and material database as template 2 or 'RF': use default RF template 3 or 'current': use current file and material database as template 4 or 'existing': open a file browser to select and existing file as a template The default option is 1. Since most material data in the Material Database is for optical frequencies, open a RF project will not modify the original material data in the material database.

Examples

Creates a new project with the newproject command.

newproject; # open a template for optical frequency simulation
newproject('RF');# open a template for RF simulation
newproject(2); # open a template for RF simulation

new - Script command

MODE INTERCONNECT

Same as newproject. It creates a new simulation project file. If there is an existing project file in the GUI, the old project file will not be saved.

Syntax	Description
new;	Creates a new project file.

Examples

Creates a new project with the newcommand.

new;



save - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Saves a simulation project file. If the simulation has been run, the file will also contain the simulation results, such as sweep and optimization data.

Syntax	Description
save;	Open a file browser to save the file. This function does not return any data.
save(filename);	Save with the specified name to the current working directory. A path can be specified.

Examples

Saves the current profile file

save("project_name"); # saves the file in the current working directory
save("C:\Downloads\project_name.fsp") # saves the file in a path specified

load - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Loads a simulation project file. If the simulation has been run, the file will also contain the simulation results.

Syntax	Description
load(filename);	Loads the simulation file. This function does not return any data.

Examples

Loads a simulation project file.

filename="simulation.fsp";
load(filename); # load the file in the current working directory
load("C:\Downloads\project_name.fsp") # load the file in a path specified



del - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Deletes a file. A path can be specified.

Syntax	Description
del("filename"); rm("filename");	Deletes the file "filename". This function does not return any data.

Examples

Deletes a file.

del("project_name.fsp") # deletes the file in the current working directory
del("C:\Downloads\project_name.fsp") # deletes the file in a path specified

rm - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Deletes a file. A path can be specified.

Syntax	Description
del("filename"); rm("filename");	Deletes the file "filename". This function does not return any data.

Examples

Deletes a file.

del("project_name.fsp") # deletes the file in the current working directory
del("C:\Downloads\project_name.fsp") # deletes the file in a path specified



ls - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Lists files in a directory. Files other than Lumerical project files are also listed.

Syntax	Description
out = dir; out = ls;	The output is a string. Use ?dir; to write the value to the screen.
out = dir("directory"); out = ls("directory");	Lists the files in the specified directory. For example, ?ls("C:\Downloads");

Example

Uses the splitstring command to get the contents of a directory in a cell (ie. string) array. Then loop through the array looking for all FDTD project files (.fsp).

files = splitstring(dir,endl);    # directory contents in a cell(string) array
for(i=1:length(files)) {          # loop over all files
 if (findstring(files{i},"fsp") != -1) {  # look for 'fsp' files
  if (fileexists(files{i})) {       # check if the file exists
   ?files{i};               # output file name
   load(files{i});            # load file
  }
 }
}

dir - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Lists files in a directory. Files other than Lumerical project files are also listed.

Syntax	Description
out = dir; out = ls;	The output is a string. Use ?dir; to write the value to the screen.
out = dir("directory"); out = ls("directory");	Lists the files in the specified directory. For example, ?ls("C:\Downloads");

Example

Uses the splitstring command to get the contents of a directory in a cell (ie. string) array. Then loop through the array looking for all FDTD project files (.fsp).

files = splitstring(dir,endl);    # directory contents in a cell(string) array
for(i=1:length(files)) {          # loop over all files
 if (findstring(files{i},"fsp") != -1) {  # look for 'fsp' files
  if (fileexists(files{i})) {     # check if the file exists
   ?files{i};               # output file name
   load(files{i});            # load file
  }
 }
}



cd - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Changes the directory. The directory is where the file is saved by default.

Syntax	Description
cd;	Opens a window to browse to a directory. This function does not return any data.
cd("directory");	Changes the working directory to "directory". Whenever you open an fsp file or run a script file, it will set the working directory to the directory of the file opened.

Examples

Moves to the subdirectory "data".

?pwd;
C:\demo
path=pwd;
cd(path+"\data");
?pwd;
C:\demo\data

pwd - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Returns the current working directory.

Syntax	Description
out = pwd;	Returns the current working directory as a string.

Examples

Prints the current working directory to the screen.

?path=pwd;
C:\demo



cp - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Copies a file. The copy can be created in a specified path.

Syntax	Description
cp("file1","file2");	Makes a copy of file1 called file2. This function does not return any data.
cp("path1\file1","path2\file2");	Copies file1 in path1 to file2 in path2.

Examples

Makes a copy of "myscript.lsf" in c:\working called "temp.lsf".

cp("c:\myscript.lsf","c:\working\temp.lsf");

mv - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Moves a file to a new location. Path can be specified.

Syntax	Description
mv("file1","file2");	Moves file1 to file2. This function does not return any data.
mv("path1\file1","path2\file2");	Moves file1 in path1 to file2 in path2.

Examples

Moves "myscript.lsf" to c:\working and renames it "temp.lsf".

mv("c:\myscript.lsf","c:\working\temp.lsf");



exit - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Exits the application.

Syntax	Description
exit;	Exits the application. Same as exit(1); This function does not return any data.
exit(option);	Exits the application. The option can be 1: Prompt user if a file needs saving before exiting. 2: Force the application to exit without prompting the user. The default option is 1.

Examples

Exits the application, and prompt user to save data.

exit(1);

system - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

The system command allows you to have the operating system (OS) execute a command, rather than the Lumerical Script Prompt.

Syntax	Description
system("command");	Run "command" at the OS command prompt. The system command does not return any data.

Examples

Opens the text editor Notepad in windows.

 system("notepad");

The following example demonstrates how the system command can be used to get the computer's date and time settings (wall-clock time), for example, to time stamp your files. It is necessary to run a system command because the Lumerical script language does not currently have a getDateAndTime scriptcommand. This example shows how to get the time on a Windows machine, but it could easily be modified for other OS. The system command is used to save the current time from the system clock into a file. The read command is then used to read the time from the file.

fname="cur_time.txt";    # file name to store current time

cmd="echo %time% >>" + fname; # system command to get current time and write to fname

rm(fname);          # delete time file

system(cmd);         # run command to get time and save to file

cur_time=read(fname);     # read time from file

?cur_time;             # current time: Hr, Min, Sec

This example shows how to start a new instance of the Lumerical GUI from a script file on a Windows computer. For example, if you have multiple Lumerical products, you may find it useful to have one product (eg. CHARGE) be able to start a second product (eg. FDTD). The following example will start a new instance of FDTD that runs the script file runAnalysis.lsf.

Two variations of the command are provided. In the first, a new instance of FDTD Solution is started and will run the script file runAnalysis.lsf. When this is executed, the initial instance of the GUI (the one running the system command) will be frozen while the new instance is running. The first instance will continue running once the second instance is closed. Tip: you should add an 'exit' command to the end of the runAnalysis.lsf script so the new instance automatically closes when it reaches the end of the script.

The second variation allows the first instance of the GUI to continue running while the second instance is open.

system('""C:\Program files\Lumerical\v232\bin\fdtd-solutions.exe" -run "C:\temp\runAnalysis.lsf""');

system('start "name" /B "C:\Program files\Lumerical\v232\bin\fdtd-solutions.exe" -run "C:\temp\runAnalysis.lsf"');

The following code can be used on Windows OS to launch an FDTD simulation from the terminal and then immediately close the graphical interface.

# specify command to run from the terminal

save;

MPICMD = '"C:\Program Files\Lumerical\MPICH2\mpiexec.exe" -n 2';

engineCMD = '"C:\Program files\Lumerical\v232\bin\fdtd-engine.exe"';

simulationCMD = '"' + currentfilename + '"';

?fullCMD = MPICMD + " " + engineCMD + " " + simulationCMD;

# run from terminal

system('start "name" /B ' + fullCMD);

# exit CAD

exit;



fileexists - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Checks if a file exists. The file extension (ie, .fsp, .lms, etc) must be specified. By default, the entire path will be searched.

Syntax	Description
out = fileexists("filename");	Returns 1 if the file exists Returns 0 if the file does not exist.
out = fileexists("c:\temp\file.txt");	Search for a file not in the path

Examples

Checks if a file exists before opening it.

filename="simulation.fsp";
if (fileexists(filename)) {
 load(filename);
}

Load a simulation project file, if it exists. First check current directory, then check up one directory.

filename="simulation.fsp";
if (fileexists(file)) {
 load(filename);
} else {
 file = "../"+file;
 if (fileexists(file)) {
  load(filename);
 } else {
  ?"File not found.";
 }
}

currentfilename - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Returns the current project filename and directory.

Syntax	Description
out = currentfilename;	Returns the current filename as a string. If the current filename is not defined, this function returns an empty string "".

Examples

Gets the current filename.

?out=currentfilename;
C:/Users/myname/Documents/FDTD/myfile.fsp



currentscriptname - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Returns the current script filename and directory.

Syntax	Description
out = currentscriptname;	Returns the current script filename as a string. If entered in the script prompt, this function returns the string "prompt".

Examples

Gets the current script filename.

?out=currentscriptname;
C:/Users/myname/Documents/FDTD/myfile.lsf

filebasename - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Gets the file basename from a string.

Syntax	Description
out = filebasename( "location/filename.ext" );	Returns the file basename as a string.

Examples

Isolates the file basename from the full filename.

?filebasename("C:\Users\myname\Documents\FDTD Files\test.fsp");
test



filedirectory - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Gets the file directory from a string.

Syntax	Description
out = filedirectory( "location/filename.ext" );	Returns the file directory as a string.

Examples

Isolates the file directory from the full filename.

?filedirectory("C:\Users\myname\Documents\FDTD Files\test.fsp");
C:/Users/myname/Documents/FDTD Files

fileextension - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Gets the file extension from a string.

Syntax	Description
out = fileextension( "name.ext");	Returns the file extension as a string.

Examples

Isolates the file extension from the full filename.

?fileextension("C:/Users/myname/Documents/FDTD/myfile.fsp");
fsp

Uses the following code to check with product you are using. This can be helpful if you are trying to write scripts that will be shared between multiple products.

save("myfile");
if(fileextension(currentfilename)=="fsp") { ?"Using FDTD"; }
if(fileextension(currentfilename)=="lms") { ?"Using MODE"; }
if(fileextension(currentfilename)=="ldev") { ?"Using Finite Element IDE"; }
if(fileextension(currentfilename)=="icp") { ?"Using INTERCONNECT"; }



copytoclipboard - Script command

FDTD MODE DGTD CHARGE HEAT FEEM

Copies the selected objects into the system clipboard. Equivalent to 'Ctrl-C'.

Syntax	Description
copytoclipboard;	Copies selected objects to the system clipboard

Examples

This example shows how to use the copy/paste to clipboard functions to copy an object from a different simulation file into the current simulation file.

# specify file and object names
current_file = currentfilename;
template_file = "C:\temp\myObjects.fsp";
object_name = "my_grating";
save; #save current file; # save current file
load(template_file);    # load template file
select(object_name);    # select object
copytoclipboard;      # copy object to clipboard
load(current_file);     # load original file
pastefromclipboard;     # paste object into file

pastefromclipboard - Script command

FDTD MODE DGTD CHARGE HEAT FEEM

Pastes the contents of the system clipboard into the layout environment. Equivalent to 'Ctrl-V'.

Syntax	Description
pastefromclipboard;	Paste contents of system clipboard

Examples

See example in copytoclipboard function.



hide - Script command

INTERCONNECT

Hides the graphical user interface, can be used with the  show  command.

Syntax	Description
hide;	hides the GUI.

show - Script command

INTERCONNECT

Shows the graphical user interface, can be used with the  hide  command.

Syntax	Description
show;	shows the GUI.



cls/clc (Ctrl+L) - Script command

FDTD MODE DGTD CHARGE HEAT FEEM

The clc and cls script commands clear the Script Prompt and optionally clear the Script Prompt history.

If focus is on the Script Prompt, a similar function can be performed with Ctrl+L (clears the Script Prompt but not the Script Prompt history) and Ctrl+Shift+L (clears the Script Prompt as well as the Script Prompt history).

Syntax	Description
clc; cls; Ctrl+L	Clears the Script Prompt, but does not clear the Script Prompt history. This function does not return any data.
clc(true); cls(true); Ctrl+Shift+L	Clears the Script Prompt, and also clears the Script Prompt history. This function does not return any data.

Example

The following script commands will create a variable "x", clear the Script Prompt, and display the Script Prompt history.

x=1;
clc; # Script Prompt will clear
?history; # display Script Prompt history
result:
x=1;
clc;
?history;

The following script commands will create a variable "x", clear the Script Prompt and Script Prompt history, and display the Script Prompt history.

x=1;
clc(true); # Script Prompt will clear and Script Prompt history will be deleted
?history; # display Script Prompt history
result:
?history;

clearlogwindow - Script command

INTERCONNECT

Clears the log output log window.

Syntax	Description
clearlogwindow;	clears output log window.



version - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Returns the current version of the application.

Syntax	Description
out = version;	Returns the version of the application.

versionfile - Script command

INTERCONNECT

Returns the current version of the file loaded by the application.

Syntax	Description
out = versionfile;	Returns the version of the file loaded by the application.



fileexpand - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Expands a file name by replacing any environmental variables.

Syntax	Description
fileexpand(filename);	Expands a file name by replacing any environmental variables (defined by setsetting).

Example

Expand a filename containing the variable LOCAL

?getsetting;
LOCAL=C:\Users
?fileexpand("$LOCAL\data.txt");

autosaveon - Script command

INTERCONNECT

This command turns on the feature to automatically save the current project before running a simulation.

Note that this only applies to simulations, not sweeps.  Running a sweep will always save the project file before the sweep is run, regardless of the autosave setting.

Syntax	Description
autosaveon;	Automatically saves current project before running a simulation.



autosaveoff - Script command

INTERCONNECT

This command turns off the feature to automatically save the current project before running a simulation.

Syntax	Description
autosaveoff;	The project will not be saved automatically before running a simulation (default).

read - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Reads data from a text file as a string. The supported file format is ASCII.

Syntax	Description
read(filename, size);	Read a text file as a string for the user defined size 'size'. The default value for size is 1e+6, if not specified. Note: This function will check for the file in the current working directory. If the file to read from is in a different directory, either specify the full path or change the current working directory.

Examples

If you have a text file called testfile.txt with the following strings:

String saved in text file

M=read("testfile.txt");

?M;
String saved in text file



exist - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Returns a number based on type of the string used in the command.

Syntax	Description
exist("x")	Returns 0 if there is no variable, operator, built-in function or script file (x.lsf) in the current script path 1 if x is a variable, example: x=5; ?exist(“x”); 2 if x is an operator or built in keyword, example: ?exist(“*”) or ?exist(“for”); 3 if x is a script file in the current script path, called “x.lsf”

Examples

The following simple examples show the usage of the exist command

a = 1:10;
?exist("a");
result:
1
?exist("farfield3d");
result:
2

exporthtml - Script command

INTERCONNECT

Generates an html file describing an element.

Syntax	Description
exporthtml (element_name)	Generates an html file describing a custom element. The file lists the element type, symbol, and the list of properties. This command works only for elements in the Custom folder or its sub-folders.

Example

addelement("CW Laser");
# add element to the Custom folder
addtolibrary;
# add element to the sub folder "test_folder" of Custom folder
addtolibrary("test_folder");
# export html page the CW Laser element in Custom
exporthtml("CWL_1");
# export html page of the CW Laser element in "test_folder"
exporthtml("test_folder::CWL_1");
# export html pages of all elements in the "test folder"
exporthtml("test_folder");



help - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Opens the Lumerical Knowledge Base using the default web browser.

Syntax	Description
help(argument=””);	Opens the Lumerical knowledge base using the default web browser. If no arguments are provided the web browser will open the page with the alphabetical list of all script commands, otherwise it will run a search using the ‘argument’ parameter and open the page with the search results for the ‘argument’ parameter.

Example

>help;
>help("setsparameter");

logmessage - Script command

INTERCONNECT

This function sends messages from scripted elements to the INTERCONNECT output window.

Syntax	Description
logmessage;	This function sends messages from scripted elements to the INTERCONNECT output window. It is specially useful to debug scripted elements.



operatingsystem - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Returns the current operating system.

Syntax	Description
operatingsystem;	Returns the current operating system. Valid return values are “windows”, “apple” or “linux”.

Example

>?operatingsystem;
windows

setconnectionrouting - Script command

INTERCONNECT

This command sets the connection routing for a given connection.

Syntax	Description
setconnectionrouting (element, port, type); setconnectionrouting (element, type);	This command sets the connection routing for a given connection. If only the element and the type are provided, all connections to the element port will have the same type. If element name, port and type are provided, only the specific element port connection will be affected. type = "direct" or "manhattan".



findproperty - Script command

INTERCONNECT

This command returns a cell containing all elements in the circuit that have a certain property.

Syntax	Description
findproperty (property, recursive);	Returns a cell containing all elements in the circuit that have property ‘property’. If recursive is true, it will return a flat list (hierarchical) with all the elements in the current scope. The default value for recursive is false.

findpropertyvalue - Script command

INTERCONNECT

This command returns a cell containing all elements in the circuit that have a certain property with a certain value.

Syntax	Description
findpropertyvalue (property, value, recursive);	Returns a cell containing all elements in the circuit that have property ‘property’ with value ‘value’, if recursive is true, it will return a flat list (hierarchical) with all the elements in the current scope. The default value for recursive is false.



refresh - Script command

INTERCONNECT

This command reloads the current project.

Syntax	Description
refresh;	Reloads the current project. This is particularly useful when changing the ‘library’ property of a reference element. Reference elements must be manually ‘refreshed’ or reloaded if the ‘library’ property is modified – otherwise the use will have to save and reload the current project.

Example

>setnamed("WG_1","library","::design kits::pdaflow");
>refresh;

runinitialize - Script command

INTERCONNECT

This script command initializes a step by step simulation.

Syntax	Description
runinitialize;	Initialize a step by step simulation, different from ‘run’ the simulation is only initialized. This command should be used in combination with runstep and runfinalize, and it is typically used for co-simulations.



runstep - Script command

INTERCONNECT

This script command runs a single simulation step.

Syntax	Description
runstep;	Runs a single simulation step. This command should be used in combination with runinitialize and runfinalize, and it is typically used for co-simulations.

runfinalize - Script command

INTERCONNECT

This script command finalizes a step by step simulation.

Syntax	Description
runfinalize;	Finalizes a step by step simulation. This command should be used in combination with runinitialize and runstep, and it is typically used for co-simulations.



waituntildone - Script command

INTERCONNECT

This function only returns after the current simulation is done.

Syntax	Description
waituntildone;	This function only returns after the current simulation is done. It allows to wait for the simulation before performing any other tasks that depends on simulation completion.

runstartupscripts - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Runs the start-up scripts.

Syntax	Description
runstartupscripts;	Runs the start-up scripts in the order of: global shared startup script global $(PRODUCT) startup script local shared start-up script local $(PRODUCT) start-up script

Examples

The following examples runs the "runstartupscripts" in INTERCONNECT with the scripts in "Shared Startup.lsf" and "INTERCONNECT Startup.lsf" as below, respectively:

# Shared Startup.lsf
clear;
?a = 1;
# INTERCONNECT Startup.lsf
clear;
?b = 2;

The output result:

runstartupscripts;
Shared Startup;
result:
1
Running script: /Users/$(Username)/.config/Lumerical/INTERCONNECT Startup.lsf
INTERCONNECT Startup;
result:
2

 Encrypt script commands

encryptscript - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Save a copy of the specified script file in an encrypted format. The new file will have a .lsfx file extension. Encrypting a script allows a script to be shared with others, without allowing them to see the contents of the script.

Syntax	Description
encryptscript("filename.lsf");	Recommended: Encrypt a copy of the script, not compatible with earlier versions. The new file will be named "filename.lsfx".
encryptscript("filename.lsf", 1);	Legacy: Encrypt a copy of the script, compatible with earlier versions.
encryptscript("filename.lsf", "new_filename");	Specify an alternate file name, not compatible with earlier versions. The new file will be named "filename.lsfx".
encryptscript("filename.lsf", "new_filename", 1);	Specify an alternate file name, compatible with earlier versions. The new file will be named "filename.lsfx".

Scripts encrypted with 2020B will not be compatible with 2020A and earlier, unless the additional argument (1) is passed to encryptscript specifying legacy compatibility. Scripts encrypted with 2020A and earlier will continue to be compatible with later versions.

Example

If the script file is already encrypted, user can run the script file by entering the name of the file in the Script Prompt. However, user will not be able to see the content of the file.

filename # it will run the encrypted script file filename.lsfx

 List of script commands

getcommands - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Returns the list of available script commands in the current script workspace.

Syntax	Description
?getcommands;	Returns a list of available script commands

Examples

Returns the list of available script commands in the current script workspace.

?getcommands;
+
-
*
/
^
==
!=
=

 Starting and stopping scripts

scriptautorun - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Disable or enable running script files automatically by typing the script name.

Syntax	Description
scriptautorun(option);	The options are 0: disables automatic running of script files 1: enables automatic running of script files

Examples

The following examples assume you have created a script file called hello_world.lsf that prints the message "hello". You will get the error message "Error: prompt line 3: hello_world is not a valid function or variable name" when running the following commands because scriptautorun is disabled.

clear;
scriptautorun(0); #disable autorun
hello_world;

When you enable scriptautorun the script file is executed and the message "hello" will appear in the script prompt.

clear;
scriptautorun(1); #enable autorun
hello_world;

If scriptautorun is disabled you can still run script files using the function feval.

clear;
scriptautorun(0); #disable autorun
feval("hello_world");



getpath - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Gets the current path. By default, the current working directory and the script sub-directory of the installation directory are in the path. Typically the path is important for setting the location of your script files.

Syntax	Description
out = getpath;	Returns the current path as a string. Use ?getpath; to print it to the screen.

Examples

Gets the current path.

?getpath;
./
C:/Program Files/Lumerical/2020a/scripts

addpath - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Adds a directory to the path.

This can be helpful when your script and simulation files are located in different directories.  Your current working directory will typically be set to the location of your simulation files. addpath can be used to add the location of your script files to the path, which makes it possible to call those scripts without providing the full path each time.

Syntax	Description
addpath("directory");	Adds a directory to the path. This function does not return any data.

Examples

Adds a second directory to the path.

?getpath;
./
C:/Program Files/Lumerical/2020a/scripts
addpath("C:/demo");
?getpath;
./
C:/Program Files/Lumerical/2020a/scripts
C:/demo

Clears the path.

clearpath;
?getpath;
./



clearpath - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Removes all directories from the script path, except "./".

Syntax	Description
clearpath("directory");	Remove"directory" from the script path if it is there.

Examples

See addpath.

which - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Returns the full file pathname for the specified file.

This function can be helpful when you have added several directories to the Lumerical path variable and you want to check which files are being accessed.

Syntax	Description
out = which("filename");	Returns the pathname of the file "filename" as a string. Use ?which("filename"); to display the result to the screen.

Examples

Gets the full path and filename of the file results.txt.

file = "results.txt";    # set file name
write(file,"my data file"); # create file
?fullPath = which(file);   # get full name and path
 C:/Program Files/Lumerical/FDTD/scripts/results.txt



pause - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Pauses program for a time.

Syntax	Description
pause(time);	Pauses script for time, measured in seconds. Hit the space bar to force the script to continue. Hit the ESCAPE key to break the script at this point. This function does not return any data.

Examples

Pauses for 5 seconds.

pause(5);

Pauses until user clicks space bar.

?"Part 1 complete. Hit space bar to proceed with part 2.";
pause(10000);

break - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Stops a script from executing.

Syntax	Description
break;	Will stop a script file from executing at that line. A warning will be generated. This function does not return any data.

Examples

The script will stop at this line.

for (i=1:100) {
 pause(1);
 break;
}
Warning: prompt line 3: break command



Escape key to interrupt running Lumerical script

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Interrupts a script or long block of commands.

Syntax	Description
ESCAPE key	To interrupt a script file from running or a long block of commands from executing. A warning will be generated. Sometimes you may need to press escape several times or hold it down to interrupt the script.

Checking status

issweep - Script command

INTERCONNECT

The script command checks if the simulation is in sweep mode.

Syntax	Description
out = issweep;	Returns true (1 or 0) if the simulation is currently in sweep mode.



isstruct - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

The script command checks whether input is a structure.

Syntax	Description
value= isstruct(input);	Determine whether ‘input’ is a structure. It returns logical 1 (true) if ‘input’ is a structure and logical 0 (false) otherwise.

Example

>x=struct;
>?isstruct(x);
result:
1

iscell - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

The script command checks whether input is a cell.

Syntax	Description
value= iscell(input);	Determine whether ‘input is a cell. It returns logical 1 (true) if ‘input’ is a cell and logical 0 (false) otherwise.

Example

>x=cell(3);
>?iscell(x);
result:
1



isfield - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

The script command checks whether input is a field.

Syntax	Description
value= isfield(input, field);	Determine whether ‘input contains filed name ‘field’. It returns logical 1 (true) if ‘input contains ‘field’, and logical 0 (false) otherwise.

Example

>x=struct;
>x.t=10;
>?isfield(x,'t');
result:
1

getfield - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

The script command returns the value of a field from structure input.

Syntax	Description
value= getfield(input, field);	Returns the value of a ‘field’ from structure ‘input’.

Example

>x=struct;
>x.t=10;
>?getfield(x,'t');
result:
10



setfield - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

The script command assigns a value to a structure input field.

Syntax	Description
output= setfield(input, field,value);	Assigns a ‘value’ to a structure ‘input’ ‘field’.

Example

>x=struct;
>x=setfield(x,'t',10);
>?x.t;
result:
10

Debugging

debug - Script command

FDTD MODE DGTD CHARGE HEAT FEEM INTERCONNECT

Opens the debug utility window. This command is useful for debugging purposes. When this command is used, script will run to the line before the debug command. Then user can start to call other commands to test commands that have been run. Once the utility window is closed, the script lines will continue to run. Multiple debug commands are allowed.

Syntax	Description
debug;	Opens the debug utility window. This command can also be used in the analysis script.

Examples

This example shows how to use the debug command. This below example shows an error on line 3.

x=linspace(1,10,10);
y=linspace(1,10,5);
?x*y;
Error: prompt line 3: matrix arguments of * are not the same size

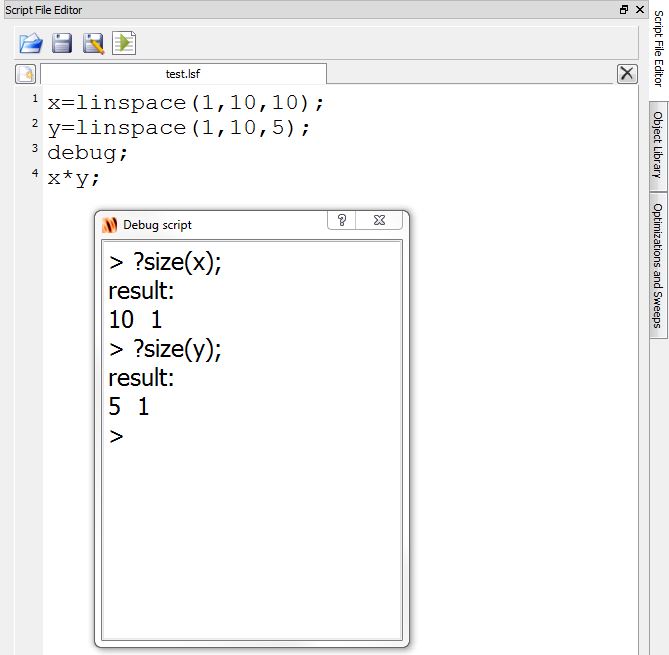

x=linspace(1,10,10);
y=linspace(1,10,5);
debug; # opens the debug utility window.
?x*y;
