【源码】圆管或矩形管空心钢筋混凝土柱的相互作用图

以钢筋混凝土柱与矩形管和圆管的相互作用图为示例，采用的函数为Interaction_Diagrams。

Two example are attached for interaction diagrams of RC columns with rectangular and circular tubes using the function Interaction_Diagrams.

function Interaction_Diagrams(x,y,x_s,y_s,a_s,fc,fy,E)

Input:

x: x coordiantes of section vertix vector (mm)

y: y coordinates of section vertix vector (mm)

a_s: area of steel bars vector (mm^2)

x_s: x coordinates of steel bars vector (mm)

y_s: y coordinates of steel bars vector (mm)

fc: compressive strength of concrete (MPa)

fy: yield stress of steel vector (MPa)

E: modulus of elasticity of steel vector (MPa)

Output:

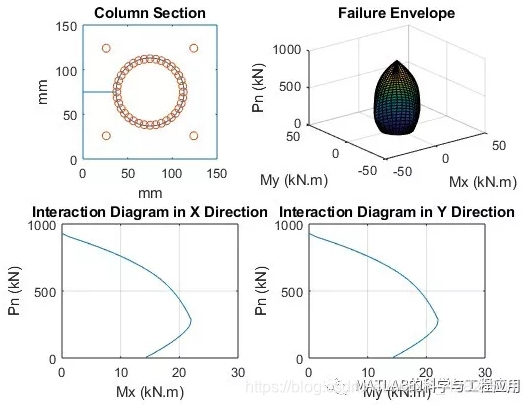

Column section, failure envelope, interaction diagrams in x and y directions are plotted in one figure.
