PK动效

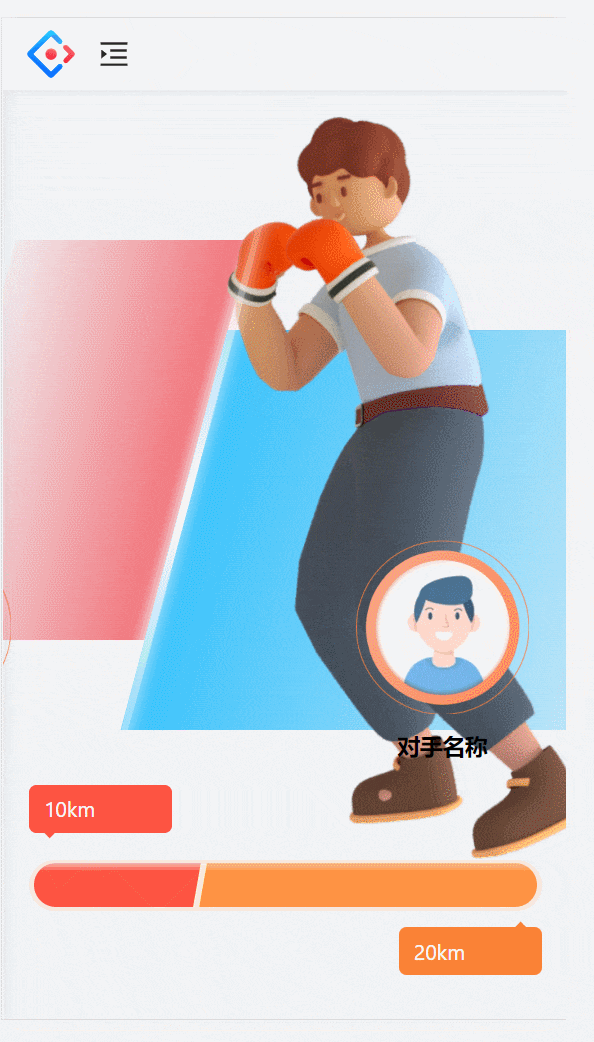

效果预览

实现原理
最初的碰触效果
一开始的人物是设置在屏幕可视范围之外的,写两个动效,最后的位置处于可视范围之内就行了,看css代码的rleftstrike,rightstrike
vs图标瞬间放大效果
看css代码的vsAnimation
头像动效
效果:最初的时候显隐,在被打败后,头像横向飞出
显隐原理:用 transition: opacity 2s 设置过渡效果,在人物碰撞动画结束之后,设置opacity 为1
横向飞出:看css代码的rightheadLose和leftheadLose
进度条以及人物推拉动效
原理都是通过宽度变化过渡去设置,我用setInterval去生成循环设置随机宽度,知道拉扯到指定次数,清除定时器。
怎样设置随机宽度呢?通过随机生成一个不大于对手分数的数,然后求自己的分数和随机生成的分数的百分比,得到的百分比去控制宽度
const temprivalScore = Math.round(Math.random()*rivalScore) //随机分数
const total = temprivalScore+myScore
setleftWidth((myScore/total)*100) //设置百分比
setrightWidth((temprivalScore/total)*100) //设置百分比
输的一方飞出的动效
看css代码的leftLose和rightLost
赢的一方放大往前顶的动效
看css代码的leftWin和rightWin
总结
总的来说呢,实现的重点就是都是通过translateX()去左右移动
另外就是用过渡属性过渡宽度的变化,通过改变宽度来达成最终效果
实现代码
import React, { FC, useEffect, useRef, useState } from "react";
import styles from "./index.less";
const text = {
105:{
title:"驾驶时间",
text:"驾驶时间较多",
bottomtext:"我的驾驶时长",
unit:"小时",
dataName:"winDriveTime"
},
106:{
title:"打卡城市",
text:"打卡城市较多",
bottomtext:"我的打卡城市数",
unit:"个",
dataName:"cityCn"
},
107:{
title:"驾驶行为",
text:"三急行为次数较低",
bottomtext:"我的三急行为次数",
unit:"次",
dataName:"badDriveCnt"
},
119:{
title:"消费额度",
text:"CPSP实付金额总数较多",
bottomtext:"我的CPSP实付金额总数",
unit:"元",
dataName:"cpspPay"
},
111:{
title:"远控使用",
text:"远控功能使用次数总数较多",
bottomtext:"我的远控功能使用次数",
unit:"次",
dataName:"remoteControlCnt"
},
110:{
title:"APP使用",
text:"APP打开总次数较多",
bottomtext:"我的APP打开总次数",
unit:"次",
dataName:"appOpenTimes"
},
118:{
title:"加油优惠",
text:"智慧加油省钱额度总数较多",
bottomtext:"我的智慧加油省钱额度总数",
unit:"元",
dataName:"gassDisAmt"
},
104:{
title:"假期里程",
text:"行驶里程数较多",
bottomtext:"我的行驶里程",
unit:"km",
dataName:"driveMiles"
},
112:{
title:"听歌天数",
// text:`打开${carType==="ccs2plus"?"酷狗":"酷我"}天数较多`,
bottomtext:"我的听歌天数",
unit:"天",
// dataName:`${carType==="ccs2plus"?"kwgUseDays":"kuwUseDays"}`
},
113:{
title:"刷剧天数",
text:"打开爱奇艺天数较多",
bottomtext:"我的刷剧天数",
unit:"天",
dataName:"aqyUseDays"
},
}
const PkingModal: FC = () => {
// const pkingModalVisible = useSelector((state: any) => state.nationalday2022.pkingModalVisible);
const pkResults = {
"pkResult": 1,
"rivalScore": 20,
"myScore": 10,
"rivalName":"对手名称",
}
const pkResultsRef = useRef<any>()
pkResultsRef.current = pkResults
const [opacity,setopacity] = useState(0)
const [leftWidth,setleftWidth] = useState(50)
const [rightWidth,setrightWidth] = useState(50)
const [vsopacity,setvsopacity] = useState(1)
const [rivalScore,setrivalScore] =useState(0)
const leftRef = useRef<any>()
const leftpeopleRef = useRef<any>()
const leftheadportraitRef = useRef<any>()
const rightpeopleRef = useRef<any>()
const rightheadportraitRef = useRef<any>()
const pkmodalType = 104
const pkmodalTypeRef = useRef<any>()
pkmodalTypeRef.current = pkmodalType
const isBegin = useRef<any>(false)
useEffect(()=>{
document.documentElement.style.fontSize=(document.documentElement.clientWidth/750)*100+'px';
if(leftRef.current){
leftRef.current.addEventListener('animationend',()=>{
// console.log("动画结束")
if( isBegin.current ) return
isBegin.current = true
setopacity(1)
// 执行宽度变化的函数
setTimeout(()=>{
const {myScore,rivalScore} = pkResultsRef.current
// 随机生成对手的分数用来改变宽度
let time = 0
let timemax= 6
if(myScore==0||rivalScore==0) timemax=2
let temprivalScore = rivalScore;
const timer = setInterval(()=>{
time+=1
// 5次的时候清除定时器 设置最终的对手分数
temprivalScore = Math.round(Math.random()*rivalScore)
if(time===timemax){
temprivalScore = rivalScore
setTimeout(()=>{
setvsopacity(0)
const leftPeople = leftpeopleRef.current
const rightPeople = rightpeopleRef.current
const leftheadportrait = leftheadportraitRef.current
const rightheadportrait = rightheadportraitRef.current
// 三急行为 小的获胜
if( pkmodalTypeRef.current ==107){
if(myScore<temprivalScore){
// 左边胜利
// 右边胜利
leftPeople.style["animation"] = `${styles.leftWin} 1s forwards`
rightPeople.style["animation"] = `${styles.rightLose} 1s forwards`
rightheadportrait.style["animation"] = `${styles.rightheadLose} 1s forwards`
}else if(myScore>temprivalScore){
// 右边胜利
rightPeople.style["animation"] = `${styles.rightWin} 1s forwards`
leftPeople.style["animation"] = `${styles.leftLose} 1s forwards`
leftheadportrait.style["animation"] = `${styles.leftheadLose} 1s forwards`
}else{
// 平局
// 不做处理
}
}else{
// 大的获胜
if(myScore>temprivalScore){
// 左边胜利
// 右边胜利
leftPeople.style["animation"] = `${styles.leftWin} 1s forwards`
rightPeople.style["animation"] = `${styles.rightLose} 1s forwards`
rightheadportrait.style["animation"] = `${styles.rightheadLose} 1s forwards`
}else if(myScore<temprivalScore){
// 右边胜利
rightPeople.style["animation"] = `${styles.rightWin} 1s forwards`
leftPeople.style["animation"] = `${styles.leftLose} 1s forwards`
leftheadportrait.style["animation"] = `${styles.leftheadLose} 1s forwards`
}else{
// 平局
// 不做处理
}
}
clearInterval(timer)
},1000)
// 打开结果弹窗
setTimeout(()=>{
// dispatch({
// type:"nationalday2022/save",
// payload:{pkresultVisible:true,pkingModalVisible:false}
// })
},2000)
clearInterval(timer)
}
const total = temprivalScore+myScore
if(total===0){
setleftWidth(50)
setrightWidth(50)
setrivalScore(temprivalScore)
clearInterval(timer)
setvsopacity(0)
setTimeout(()=>{
// dispatch({
// type:"nationalday2022/save",
// payload:{pkresultVisible:true,pkingModalVisible:false}
// })
},1000)
}else{
if( pkmodalTypeRef.current ==107){
// 互换一下占比
setrightWidth((myScore/total)*100)
setleftWidth((temprivalScore/total)*100)
setrivalScore(temprivalScore)
}else{
setleftWidth((myScore/total)*100)
setrightWidth((temprivalScore/total)*100)
setrivalScore(temprivalScore)
}
}
},500)
},500)
})
}else{
isBegin.current==false
}
},[])
return (
<>
<div className={styles.pking}>
<div
className={styles.content}
>
<div className={styles.left_div} ref={leftRef} style={{width:`${leftWidth}%`}}>
<i className={styles.girl_icon} ref={leftpeopleRef} />
<div className={styles.light}/>
</div>
<div className={styles.right_div} style={{width:`${rightWidth}%`}}>
<i className={styles.boy_icon} ref={rightpeopleRef}/>
<div className={styles.light}/>
<i className={styles.vs_icon} style={{opacity:vsopacity}}/>
</div>
<div className={styles.user_box} style={{opacity:opacity}}>
<div ref={leftheadportraitRef}>
<i className={styles.user_icon} />
<span>我</span>
</div>
<div ref={rightheadportraitRef}>
<i className={styles.user_icon} />
<span>{pkResults?.rivalName}</span>
</div>
</div>
<div className={styles.pkProgress} style={{opacity:opacity}}>
<span className={styles.left_toast}>
<i className={styles.arrow_down} />
{pkResults?.myScore}{text[pkmodalType]?.unit}
</span>
<span className={styles.right_toast}>
<i className={styles.arrow_up} />
{rivalScore}{text[pkmodalType]?.unit}
</span>
<div className={styles.inner}>
<div className={styles.yellow}/>
<div className={styles.leftProgress}
style={{width:`${leftWidth}%`}}
> </div>
<div className={styles.rightProgress}
style={{width:`${rightWidth}%`}}
> </div>
</div>
</div>
</div>
</div>
{/* <Pkresult/> */}
</>
);
};
export default PkingModal;
// 动画
@keyframes vsAnimation {
50%{
transform: scale(1) skew(15deg);
}
80%{
transform: scale(1.2) skew(15deg);
}
100% {
transform: scale(1) skew(15deg);
}
}
@keyframes leftWin {
90% {
transform: scale(1.15) skew(15deg) translateX(-20%);
}
100% {
transform: scale(1.1) skew(15deg) translateX(0%);
}
}
@keyframes rightLose {
85% {
transform: translateX(-5%) skew(15deg);
}
100% {
transform: translateX(100%) skew(15deg);
}
}
@keyframes leftLose {
85% {
transform: translateX(5%) skew(15deg);
}
100% {
transform: translateX(-100%) skew(15deg);
}
}
@keyframes leftheadLose {
85% {
transform: translateX(5%)
}
100% {
transform: translateX(-130%);
}
}
@keyframes rightheadLose {
85% {
transform: translateX(-5%)
}
100% {
transform: translateX(130%);
}
}
@keyframes rightWin {
90% {
transform: scale(1.15) skew(15deg) translateX(-20%);
}
100% {
transform: scale(1.1) skew(15deg) translateX(0%);
}
}
// 相撞的动画
@keyframes leftstrike{
100%{
left: 0.8rem;
}
}
@keyframes rightstrike{
100%{
right: 2.2rem;
}
}
.pking {
height: 100vh;
width: 100vw;
overflow: hidden;
.content {
height: 100%;
width: 130%;
position: relative;
.left_div {
width: 50%;
height: 40%;
background: linear-gradient(to right, #f26c7312, #F26C73);
position: absolute;
// left: -0.7rem;
left: -6rem;
top: 15%;
transform: skew(-15deg);
animation: leftstrike 1s forwards 0.5;
transition: width 2s;
.light{
position: absolute;
right: 0rem;
top: -1.5rem;
background: linear-gradient(rgba(255, 255, 255, 0.2), #fff, rgba(255, 255, 255, 0.2));
width: 0.1rem;
height: 9.4rem;
border-radius: 40%;
box-shadow: 0 0 0.2rem #fff;
}
.girl_icon {
width: 5.4rem;
height: 8.76rem;
display: inline-block;
background: transparent url("../../img/pkingModal/girl_icon.png")
no-repeat;
background-size: contain;
position: absolute;
right: -0.3rem;
top: -1.5rem;
transform: skew(15deg);
}
}
.right_div {
width: 50%;
height: 40%;
background: linear-gradient(to right, #38C2FC, #38c1fc38);
display: inline-block;
transform: skew(-15deg);
position: absolute;
right: -4rem;
bottom: 36%;
animation: rightstrike 1s forwards 0.5;
transition: width 2s;
.light{
position: absolute;
left: 0rem;
top: -2.4rem;
background: linear-gradient(rgba(255, 255, 255, 0.2), #fff, rgba(255, 255, 255, 0.2));
width: 0.1rem;
height: 9.4rem;
border-radius: 40%;
box-shadow: 0 0 0.2rem #fff;
}
.boy_icon {
width: 5.3rem;
height: 9rem;
display: inline-block;
background: transparent url("../../img/pkingModal/boy_icon.png")
no-repeat;
background-size: contain;
position: absolute;
left: 0.8rem;
top: -2.4rem;
transform: skew(15deg);
}
}
.vs_icon {
width: 3.3rem;
height: 4.3rem;
background: transparent url("../../img/pkingModal/vs-icon.png")
no-repeat;
background-size: cover;
display: inline-block;
position: absolute;
top: 5%;
left: -1.2rem;
animation: vsAnimation 1s;
transform: skew(15deg);
transition: opacity 1s;
}
.user_box {
width: 80%;
display: flex;
justify-content: space-around;
top: 45%;
position: absolute;
transition: opacity 2s;
opacity: 0;
> div {
display: flex;
flex-direction: column;
> span {
font-size: 0.3rem;
font-weight: 600;
color: black;
margin-top: 0.2rem;
text-align: center;
}
}
> div:first-child {
.user_icon {
background: transparent
url("../../img/pkingModal/right_user.png") no-repeat;
background-size: cover;
}
animation: leftUserAnimation 0.4s cubic-bezier(0.95, 0.65, 0.35, 0.05);
-webkit-animation: leftUserAnimation 0.4s
cubic-bezier(0.95, 0.65, 0.35, 0.05);
}
> div:last-child {
.user_icon {
background: transparent
url("../../img/pkingModal/left_user.png") no-repeat;
background-size: cover;
}
animation: righttUserAnimation 0.4s cubic-bezier(0.95, 0.65, 0.35, 0.05);
-webkit-animation: righttUserAnimation 0.4s
cubic-bezier(0.95, 0.65, 0.35, 0.05);
}
.user_icon {
width: 2.31rem;
height: 2.31rem;
display: inline-block;
}
}
.progress_bar {
bottom: 17%;
position: absolute;
width: 100vw;
.left_pg {
width: 3rem;
height: 0.6rem;
background: transparent
url("../../img/pkingModal/left_progress.png") no-repeat;
background-size: cover;
display: inline-block;
position: relative;
z-index: 1;
.left_toast {
background-color: #fe5442;
padding: 0.1rem 0.2rem;
border-radius: 0.1rem;
display: inline-block;
position: relative;
top: -1rem;
left: -0.3rem;
color: #fff;
font-size: 0.28rem;
}
.arrow_down {
width: 0.15rem;
height: 0.15rem;
display: inline-block;
background-color: #fe5442;
transform: rotate(45deg);
position: absolute;
bottom: -0.05rem;
}
}
.middle {
background-color: #fdffc6;
width: 0.5rem;
height: 0.48rem;
display: inline-block;
position: absolute;
left: 3.5rem;
top: 0.02rem;
}
.right_pg {
width: 3rem;
height: 0.6rem;
background: transparent
url("../../img/pkingModal/right_progress.png") no-repeat;
background-size: cover;
display: inline-block;
position: relative;
z-index: 1;
left: -0.15rem;
.right_toast {
background-color: #fa8236;
padding: 0.1rem 0.2rem;
border-radius: 0.1rem;
display: inline-block;
position: relative;
left: 0;
top: 0.9rem;
color: #fff;
font-size: 0.28rem;
}
.arrow_up {
width: 0.15rem;
height: 0.15rem;
display: inline-block;
background-color: #fa8236;
transform: rotate(45deg);
position: absolute;
top: -0.05rem;
right: 0.2rem;
}
}
}
> p {
position: absolute;
bottom: 3%;
width: 100vw;
color: #fff;
font-size: 0.3rem;
}
.pkProgress {
transition: opacity 2s;
opacity: 0;
position: absolute;
// top: 9.5rem;
bottom: 18%;
width: 70%;
height: 0.68rem;
background: #fee1d0aa;
// margin: auto;
margin-top: 0.8rem;
border-radius: 0.5rem;
display: flex;
padding: 0.04rem 0rem;
left:0.35rem;
.left_toast {
min-width: 1.9rem;
background-color: #fe5442;
padding: 0.1rem 0.2rem;
border-radius: 0.1rem;
display: inline-block;
position: absolute;
top: -1rem;
left: 0rem;
color: #fff;
font-size: 0.28rem;
.arrow_down {
width: 0.15rem;
height: 0.15rem;
display: inline-block;
background-color: #fe5442;
transform: rotate(45deg);
position: absolute;
bottom: -0.05rem;
}
}
.right_toast {
background-color: #fa8236;
min-width: 1.9rem;
padding: 0.1rem 0.2rem;
border-radius: 0.1rem;
display: inline-block;
position: absolute;
right: 0;
top: 0.9rem;
color: #fff;
font-size: 0.28rem;
.arrow_up {
width: 0.15rem;
height: 0.15rem;
display: inline-block;
background-color: #fa8236;
transform: rotate(45deg);
position: absolute;
top: -0.05rem;
right: 0.2rem;
}
}
.inner {
position: relative;
border-radius: 0.4rem;
height: 100%;
width: 100%;
margin: auto;
}
.yellow{
position: absolute;
background-color: #FFFFDC;
width: 95%;
height: 95%;
border-radius: 0.4rem;
left: 0.2rem;
top: 0.02rem;
}
.leftProgress {
position: absolute;
top: 0;
left: 0.06rem;
height: 98%;
width: 0;
transition: width 1s;
overflow: hidden;
border-radius: 0.4rem 0 0 0.4rem;
&::after{
content: '';
width: 100%;
height: 100%;
background: linear-gradient(#FFB6AE,#FE5442 20%);
display: block;
transform: skewX(-10deg);
position: absolute;
top: 0;
left: -0.1rem;
}
}
.rightProgress {
position: absolute;
top: 0;
right: 0.06rem;
width: 0;
height: 98%;
transition: width 1s;
overflow: hidden;
border-radius: 0 0.4rem 0.4rem 0;
&::after{
content: '';
width: 100%;
height: 100%;
background: linear-gradient(#FFBC8C,#FF9344 20%);
display: block;
transform: skewX(-10deg);
position: absolute;
top: 0;
right: -0.1rem;
}
}
}
}
}
文章详细介绍了如何使用CSS动画和过渡效果实现PK动效,包括人物碰撞、图标放大、头像显隐、进度条拉扯等效果,并通过React组件展示了具体的实现代码,主要依赖translateX()和宽度变化来创建各种动效。
1783

被折叠的 条评论
为什么被折叠?
