HTML及CSS

HTML

基本结构
#使用的是html的哪个版本, 此处是html5
<!DOCTYPE html>
#主体 例如人基本结构
<html lang="en">
#大脑
<head>
    #字符编码
    <meta charset="UTF-8">
    <title>Title</title>
</head>
#身体
<body>

</body>
</html>
文本标签

标题标签: h1-h6
段落标签: p
加粗标签: b, strong
斜体标签: i
下划线标签: u
删除标签: s
换行标签: br-----(没有成对出现的标签)
水平分隔符标签: hr-----(没有成对出现的标签)
预格式化文本标签(保留文本的原有格式): pre标签
上标和下标: sup, sub
块引用标签: blockquote
普通的文本: span — 行内标签,元素是内联元素
普通文本的标签:div------文档中的分区或节,元素是块级元素

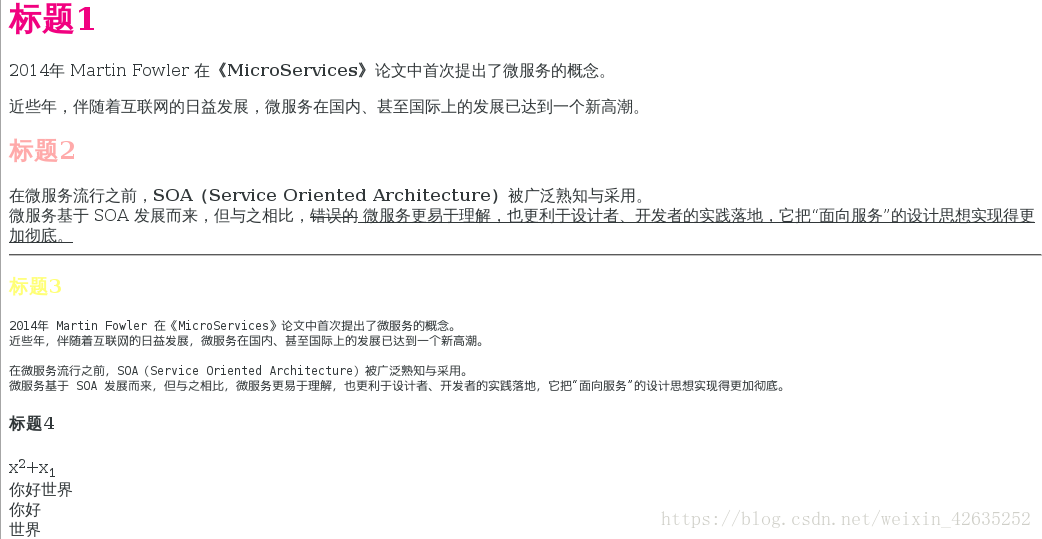

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>
<h1 style="color: #f10180">标题1</h1>
<p>2014年 Martin Fowler 在<b>《MicroServices》</b>论文中首次提出了微服务的概念。</p>
<p>近些年,伴随着互联网的日益发展,微服务在国内、甚至国际上的发展已达到一个新高潮。</p>
<h2 style="color: #ffaaaa">标题2</h2>
在微服务流行之前,<strong>SOA(Service Oriented Architecture)</strong>被广泛熟知与采用。<br>
微服务基于 SOA 发展而来,但与之相比,<s>错误的</s><u> 微服务更易于理解,也更利于设计者、开发者的实践落地,它把“面向服务”的设计思想实现得更加彻底。</u>
<hr>
<h3 style="color: #ffff77">标题3</h3>
<pre>
2014年 Martin Fowler 在《MicroServices》论文中首次提出了微服务的概念。
近些年,伴随着互联网的日益发展,微服务在国内、甚至国际上的发展已达到一个新高潮。

在微服务流行之前,SOA(Service Oriented Architecture)被广泛熟知与采用。
微服务基于 SOA 发展而来,但与之相比,微服务更易于理解,也更利于设计者、开发者的实践落地,它把“面向服务”的设计思想实现得更加彻底。
</pre>
<h4>标题4</h4>
x<sup>2</sup>+x<sub>1</sub>
<br>
<span>你好</span>世界
<div>你好</div>世界
</body>
</html>

在这里插入图片描述

超链接、图片

超链接标签 :a

<!--1. 跳转到指定的url地址-->
<a href="http://www.baidu.com"> 百度</a>
<a href="http://www.baidu.com" target="_parent"> 百度</a>
<!--新建一个浏览器窗口并打开-->
<a href="http://www.baidu.com" target="_blank"> 百度</a>
<!--2. 跳转到当前页面的指定位置(锚点)-->
<a href="#C1">第一个标题 </a>
<a href="#C2">第2个标题 </a>
<h1><a name="C1">第一个标题</a></h1>
<h1><a name="C2">第2个标题</a></h1>

图片标签 :img

<!--1. 插入图像并设置大小
    src指定图片的位置, 可以是url地址, 也可以是本地的图片;
    alt: 如果图片不能正常加载, 则显示alt里面的文字;
-->
<!--2. 设置图像的对齐方式(html中已弃用, 通过css样式实现功能)-->
AI会议即将开始: <img  align="top" src="img01.jpg" alt="img01.jpg" width="460px" height="96px">
<br/>
AI会议即将开始: <img align="middle" src="img01.jpg" alt="img01.jpg" width="460px" height="96px">
<br/>
AI会议即将开始: <img align="bottom" src="img01.jpg" alt="img01.jpg" width="460px" height="96px">
<!--3. 将图像浮动到文本的左侧和右侧-->
AI会议即将开始: <img align="left" src="img01.jpg" alt="img01.jpg" width="460px" height="96px">
AI会议即将开始: <img align="right" src="img01.jpg" alt="img01.jpg" width="460px" height="96px">
<!--4. 图像链接 a标签和img标签-->
<a href="http://www.youkuaiyun.com"> <img src="img01.jpg"></a>

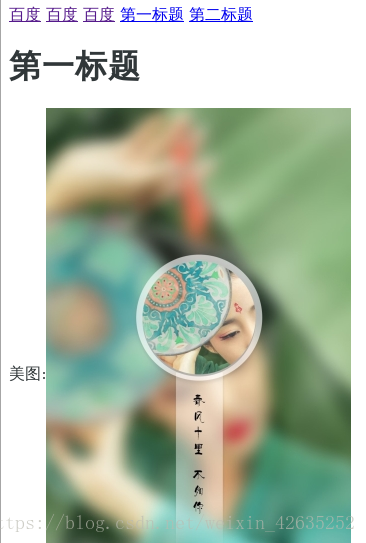

实验代码:

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>
<a href="http://www.baidu.com"> 百度</a>
<a href="http://www.baidu.com" target="_parent">百度</a>
<a href="http://www.baidu.com" target="_blank">百度</a>
<a href="#C1">第一标题</a>
<a href="#C2">第二标题</a>
<h1><a name="C1">第一标题</a> </h1>
美图:<a href="http://www.baidu.com"><img align="middle" src="http://img1.3lian.com/2016/w2/11/89.jpg" alt="图1" ></a>
<h2><a name="C2">第二标题</a></h2>
<h1></h1>
</body>
</html>

在这里插入图片描述

序列化标签

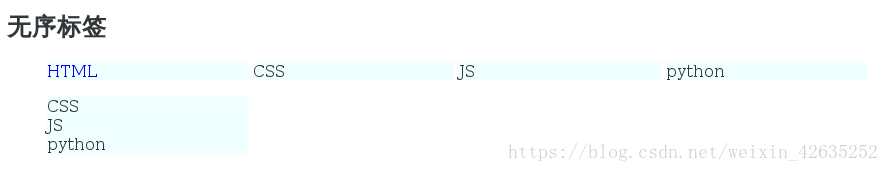

无序标签:ul 和 li

<!--1. 无序标签之ul和li-->
<h2>无序标签</h2>
<!--去掉ul里面的所有li标签里面的样式-->
<!--案例1: 实现水平导航栏
list-style-type: none  ---- 去掉圆点
display: inline-block   ---- 变为行内元素, 并且可以设置高度和宽度
width:              -----可以使用300px表示, 也可以用百分比来表示; 20%
-->
<ul style="list-style-type: none">
    <li style="display: inline-block; width: 20%; background: azure;">
        <a href="http://www.w3school.com.cn/h.asp" style="text-decoration: none">HTML</a>
    </li>
    <li style="display: inline-block; width: 20%; background: azure;">CSS</li>
    <li style="display: inline-block; width:20%; background: azure;">JS</li>
    <li style="display: inline-block; width: 20%; background: azure;">python</li>
</ul>
<!--案例2: 实现竖直导航栏-->
<ul style="list-style-type: none">
    <li style="display: block; width: 20%; background: azure;"></li>
    <li style="display: block; width: 20%; background: azure;">CSS</li>
    <li style="display: block; width:20%; background: azure;">JS</li>
    <li style="display: block; width: 20%; background: azure;">python</li>
</ul>

在这里插入图片描述
有序标签: ol 和 li

!--2. 有序标签之ol和li-->

<!--type可以指定有序列表符号的类型
text-decoration: none;  ---去掉原有标签的文本装饰
 color: black: 设置字体颜色为黑色
-->
<ol type="A">
    <li>
        <a href="http://www.baidu.com" style="text-decoration: none; color: black">
            html </a>
    </li>
    <li><a href="#"> CSS </a></li>
    <li><a href="#"> JS </a></li>
    <li><a href="#"> Python </a></li>
</ol>

在这里插入图片描述
嵌套标签:dl , dt 和 dd

<!--&lt;!&ndash;3. 嵌套标签之dl, dt和dd&ndash;&gt;-->

<dl>
    <dt>HTML</dt>
    <dd>li</dd>
    <dd>span</dd>
    <dd>div</dd>
    <dd>hr</dd>
    <dd>sub</dd>
    <dt>CSS</dt>
    <dd>text-decoration</dd>
    <dd>color</dd>

</dl>

在这里插入图片描述

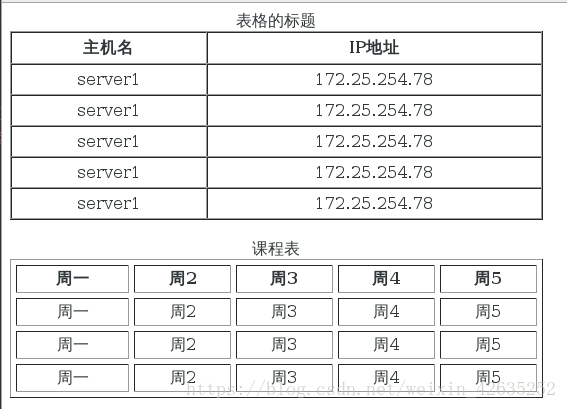

表格及相关操作

表格标签:
table代表一个表格
caption 表格的标题
td: 列
tr: 行
cellpadding=“3” -----设置表格的内边距
cellspacing=“5” ----设置表格的外边距

<table style=" text-align: center;  width: 80%;" border="1px" cellpadding="5px" cellspacing="0px" >
    <caption>表格的标题</caption>
    <tr>
        <!--第一行是表格的表头, 让自动加粗-->
        <th>主机名</th>
        <th>IP地址</th>
    </tr>
    <tr>
        <td>server1</td>
        <td>172.25.254.78</td>
    </tr>

    <tr>
        <td>server1</td>
        <td>172.25.254.78</td>
    </tr>
    <tr>
        <td>server1</td>
        <td>172.25.254.78</td>
    </tr>
    <tr>
        <td>server1</td>
        <td>172.25.254.78</td>
    </tr>
    <tr>
        <td>server1</td>
        <td>172.25.254.78</td>
    </tr>
</table>

<br>
<table style="width: 80%; text-align: center;" cellpadding="3" border="1px"

       cellspacing="5">
    <caption>课程表</caption>
    <tr>
        <!--tr:一行内容-->
        <!--td: 一列内容-->
        <th>周一</th>
        <th>周2</th>
        <th>周3</th>
        <th>周4</th>
        <th>周5</th>
    </tr>
    <tr>
        <td>周一</td>
        <td>周2</td>
        <td>周3</td>
        <td>周4</td>
        <td>周5</td>
    </tr>

    <tr>
        <td>周一</td>
        <td>周2</td>
        <td>周3</td>
        <td>周4</td>
        <td>周5</td>
    </tr>
    <tr>
        <td>周一</td>
        <td>周2</td>
        <td>周3</td>
        <td>周4</td>
        <td>周5</td>
    </tr>
</table>

在这里插入图片描述

合并单元格

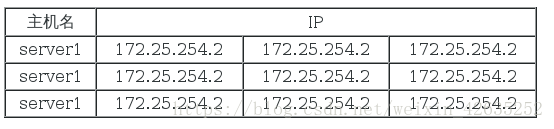

合并列单元格: colspan

<table style="text-align: center;width: 80%;" cellpadding="3" border="1px" cellspacing="0px">
    <tr>
        <td>主机名</td>
        <!--<td>IP</td>-->
        <!--<td>IP</td>-->
        <!--<td>IP</td>-->
        <td colspan="3">IP</td>
    </tr>
    <tr>
        <td>server1</td>
        <td>172.25.254.2</td>
        <td>172.25.254.2</td>
        <td>172.25.254.2</td>
    </tr>
    <tr>
        <td>server1</td>
        <td>172.25.254.2</td>
        <td>172.25.254.2</td>
        <td>172.25.254.2</td>
    </tr>
    <tr>
        <td>server1</td>
        <td>172.25.254.2</td>
        <td>172.25.254.2</td>
        <td>172.25.254.2</td>
    </tr>

</table>

在这里插入图片描述

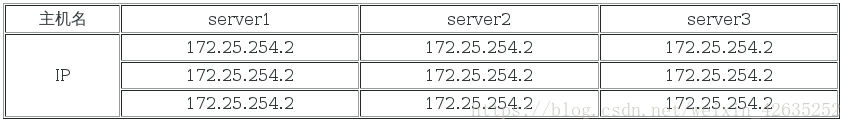

合并行单元格: rowspan

<table style="text-align: center;width: 80%;" cellpadding="3" border="1px" cellspacing="1">
    <tr>
        <td>主机名</td>
        <td>server1</td>
        <td>server2</td>
        <td>server3</td>
    </tr>


    <tr>
        <td rowspan="3">IP</td>
        <td>172.25.254.2</td>
        <td>172.25.254.2</td>
        <td>172.25.254.2</td>
    </tr>

    <tr>
        <td>172.25.254.2</td>
        <td>172.25.254.2</td>
        <td>172.25.254.2</td>
    </tr>
    <tr>
        <td>172.25.254.2</td>
        <td>172.25.254.2</td>
        <td>172.25.254.2</td>
    </tr>

</table>

在这里插入图片描述

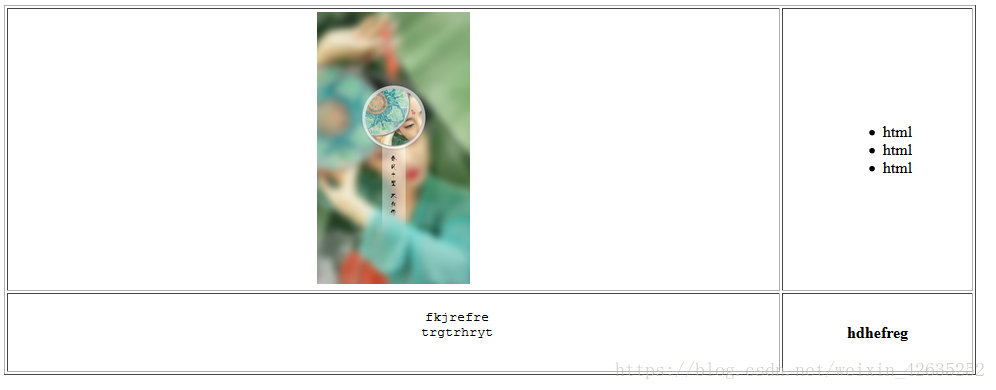

表格嵌套标签:

<table style="text-align:center; width:80%;" cellpadding="3" border="1px" >
    <tr>
        <td>
            <img style="width:20%;" src="http://img1.3lian.com/2016/w2/11/89.jpg">
        </td>
        <td>
            <ul>
                <li>html</li>
                <li>html</li>
                <li>html</li>
            </ul>
        </td>
    </tr>
        <tr>
        <td>
            <pre>
                fkjrefre
                trgtrhryt
            </pre>
        </td>
        <td>
            <strong>hdhefreg</strong>
        </td>
    </tr>
</table>
</body>

在这里插入图片描述

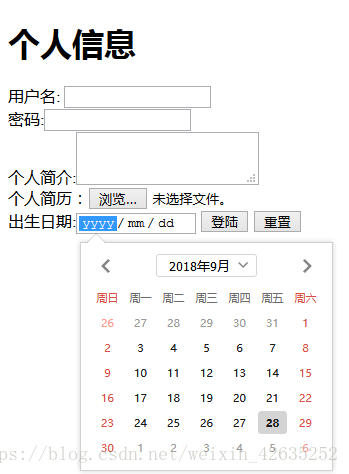

表单标签:

form:

<!--&lt;!&ndash;   1. form表单标签   &ndash;&gt;-->
<h1>个人信息</h1>
<form  method="get">
    <!--文本域-->
    <span>用户名: </span><input type="text"><br/>
    <!--密码域-->
    <span>密码:</span><input type="password">
    <br/>
    <!--文本域-->
    <span>个人简介:</span><textarea>
    </textarea><br/>
    <!--提交文件-->
    <span>个人简历:</span><input type="file"><br/>

    <!--日期-->
    <span>出生日期:</span><input type="date">

    <!--提交按钮-->
    <input type="submit" value="登陆">
    <input type="reset" value="重置">
</form>

在这里插入图片描述

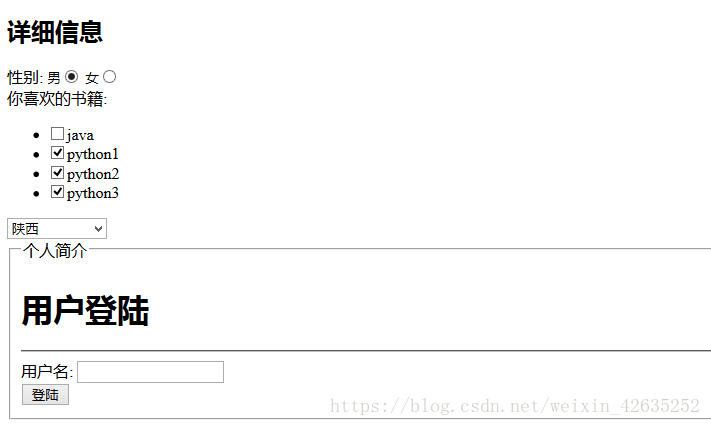

<h2>详细信息</h2>
<!--单选按钮-->
<span>性别:</span>
<!--name和value是为了将用户选择的信息传递给服务器, gender=1-->
<span style="font-size: small">男</span><input type="radio" name="gender" value="1">
<span style="font-size: small">女</span><input type="radio" name="gender" value="2">
<br/>

<!--多选按钮-->
<span>你喜欢的书籍:</span>
<ul>
    <li><input type="checkbox" name="java"><span>java</span></li>
    <li><input type="checkbox" name="python1"><span>python1</span></li>
    <li><input type="checkbox"><span>python2</span></li>
    <li><input type="checkbox"><span>python3</span></li>

</ul>
<!--下拉列表-->
<select>
    <option>--选择省份--</option>
    <option>陕西</option>
    <option>山西</option>
    <option>河南</option>
    <option>河北</option>
</select>
<!--围绕数据的标签-->
<fieldset>
    <legend>个人简介</legend>
    <h1>用户登陆</h1>
    <hr/>
    用户名: <input type="text"><br/>
    <input type="submit" value="登陆">
</fieldset>

</body>

在这里插入图片描述

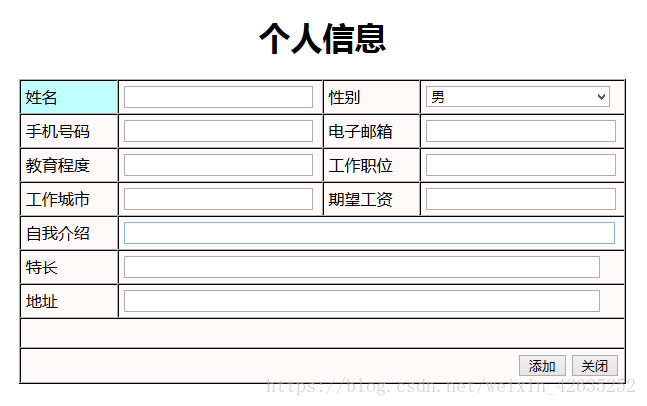

一个案例:个人信息

<h1 align="center">个人信息</h1>
<table width="50%" border="1px" cellpadding="5" cellspacing="0"
       style=" margin: 0 auto; background: snow">
    <tr>
        <td style="background: #c0ffff">姓名</td>
        <td><input style="width: 95%; " type="text"></td>
        <td>性别</td>
        <td>
            <select style="width: 95%">
                <option>男</option>
                <option>女</option>
            </select>

        </td>
    </tr>
    <tr>
        <td>手机号码</td>
        <td><input style="width: 95%; " type="tel"></td>
        <td>电子邮箱</td>
        <td><input style="width: 95%; " type="email"></td>
    </tr>
    <tr>
        <td>教育程度</td>
        <td><input style="width: 95%; " type="text"></td>
        <td>工作职位</td>
        <td><input style="width: 95%; " type="text"></td>
    </tr>
    <tr>
        <td>工作城市</td>
        <td><input style="width: 95%; " type="text"></td>
        <td>期望工资</td>
        <td><input style="width: 95%; " type="text"></td>
    </tr>
    <tr>
        <td>自我介绍</td>
        <td colspan="3"><input type="text" style="width: 98%"></td>

    </tr>
    <tr>
        <td>特长</td>
        <td colspan="3"><input style="width: 95%; " type="text"></td>

    </tr>
    <tr>
        <td>地址</td>
        <td colspan="3"><input style="width: 95%; " type="text"></td>

    </tr>
    <tr>
        <td colspan="4"><br/></td>

    </tr>
    <tr>
        <td colspan="4" align="right">
            <input type="submit" value="添加">
            <input type="reset" value="关闭">
        </td>

    </tr>
</table>

在这里插入图片描述

CSS

div 和 span:

  • div是一个html标签, 一个块级元素(单独显示一行), 单独使用没有任何意义, 必须结合CSS来使用, 主要用于页面的布局;
  • span是一个html标签, 一个内联元素(显示一行), 它单独使用没有任何意义, 必须结合css使用, 主要对括起来的内容进行样式的修饰;

CSS 概述:
CSS 指层叠样式表 (Cascading Style Sheets)
样式定义如何显示 HTML 元素
样式通常存储在样式表中
把样式添加到 HTML 4.0 中,是为了解决内容与表现分离的问题
外部样式表可以极大提高工作效率
外部样式表通常存储在 CSS 文件中
多个样式定义可层叠为一

行内标签和块级元素:

  • 学习的行内标签和 块级元素分别有哪些?
    行内标签:span, strong, a, img, input, textarea
    块级元素:div, h1-h6, p, hr, pre, ul, ol, dd, dt, th. tr, td

  • 两者的区别与特性;
    1). 块级元素独占一行空间, 行内元素只占据自身宽度的空间;
    2). 块级元素是可以包含块级元素和行内元素; 行内元素只能包含文本信息和行内元素;
    3). 块级元素可以设置宽和高, 行内元素设置的宽和高失效;

  • 如何让块级元素居中? 如何让行内元素居中?
    1); 块级元素居中: margin: 0 auto
    2> 行内元素居中: text-aligin:center
    在这里插入图片描述

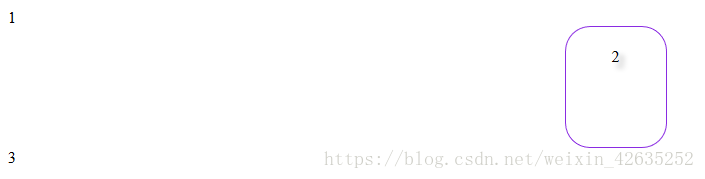

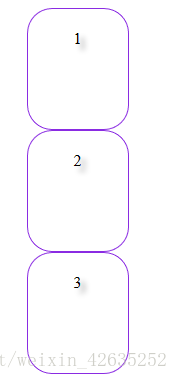

标签选择器
<head>
    <meta charset="UTF-8">
    <title>Title</title>
          <!--CSS的标签选择器-->
    <style>
        div{
            width:100px;
            height: 100px;
            border-radius:25px;
            border: 1px solid blueviolet;
            text-align: center;
            margin: 0 auto;
            padding-top: 20px;
            text-shadow: 5px 5px 5px gray;
        }
    </style>
</head>
<body>
<div>1</div>
<div>2</div>
<div>3</div>

在这里插入图片描述

类选择器
<head>
    <meta charset="UTF-8">
    <title>Title</title>
          <!--CSS的标签选择器-->
    <style>
        div{
            width:100px;
            height: 100px;
            border-radius:25px;
            border: 1px solid blueviolet;
            text-align: center;
            margin: 0 auto;
            padding-top: 20px;
            text-shadow: 5px 5px 5px gray;
        }

        /*选择div标签中类名为important的进行设置下面的样式*/
        .important {
            width: 20px;
            height: 20px;
            font-size: large;
        }
    </style>
</head>
<body>
<div class="important">1</div>
<div>2</div>
<div class="important">3</div>
<div>4</div>
<div class="important">5</div>
</body>

在这里插入图片描述

id选择器
<head>
    <meta charset="UTF-8">
    <title>Title</title>
          <!--CSS的标签选择器-->
    <style>
        #cooffee{
            width:100px;
            height: 100px;
            border-radius:25px;
            border: 1px solid blueviolet;
            text-align: center;
            margin: 0 auto;
            padding-top: 20px;
            text-shadow: 5px 5px 5px gray;
        }
    </style>
</head>
<body>
<div>1</div>
<div id="cooffee">2</div>
<div>3</div>
</body>

在这里插入图片描述

层级选择器
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <style>
       ul li a {
           color: red;
       }
       input[type='submit']{
           background: palevioletred;
            width: 200px;
       }
    </style>
</head>
<body>
<ol>
    <li><a href="#" > 新闻1</a></li>
    <li><a href="#"> 新闻2</a></li>
    <li><a href="#"> 新闻3</a></li>
</ol>
<ul>
    <li><a href="#"> 新闻1</a></li>
    <li><a href="#"> 新闻2</a></li>
    <li><a href="#"> 新闻3</a></li>
</ul>
<form>
    姓名: <input type="text"><br/>
    密码: <input type="password"><br/>
    <input type="submit" value="注册">
</form>
</body>

在这里插入图片描述

css的引入方式

1). 行内引入: <a style=“行内引入的样式”>
2). 内部引入: 写在head标签里面的style标签里面的样式;
3). 外部引入: 将css样式独立成一个文件, 通过<link rel=“stylesheet” href=“css/main.css”>与当前html文件链接在一起.
三种引入方式的优先级: 就近原则

<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <style>
        li {
            background: red;
        }
    </style>
    <link rel="stylesheet" href="css/main.css">

</head>
<body>
<div>
    <ul>
        <li style="background: blue">
            <a href="http://www.w3school.com.cn/h.asp" style="
            text-decoration: none">HTML</a>
        </li>
        <li>CSS</li>
        <li>JS</li>
        <li>python</li>
    </ul>
</div>
</body>
</html>

在这里插入图片描述

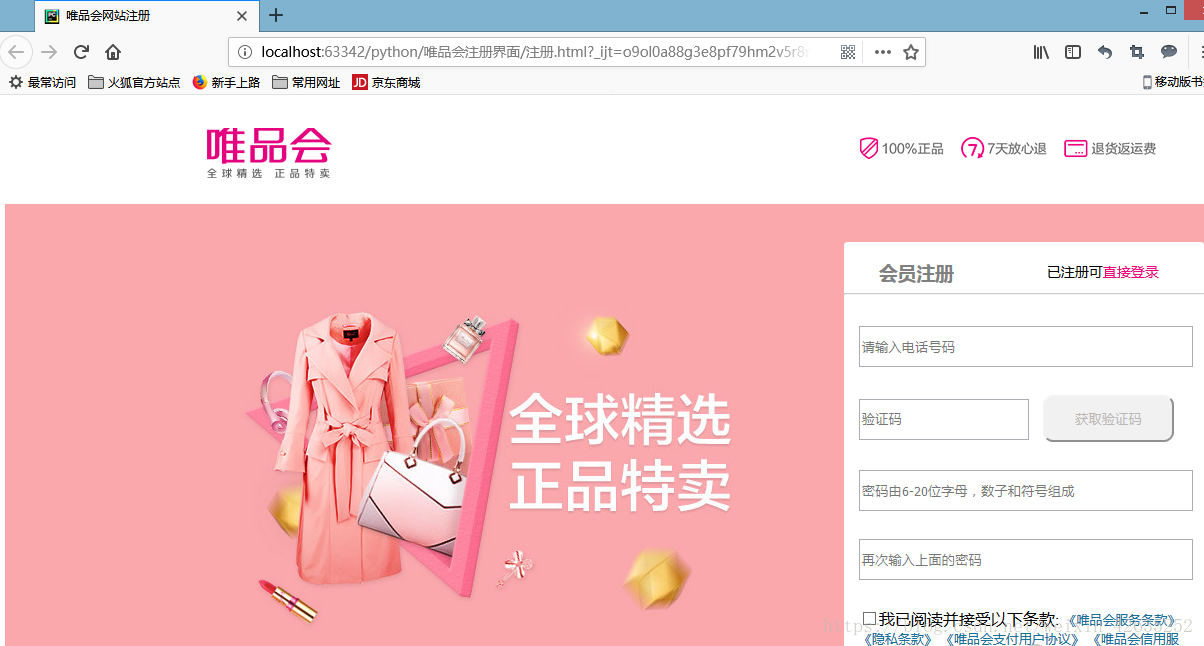

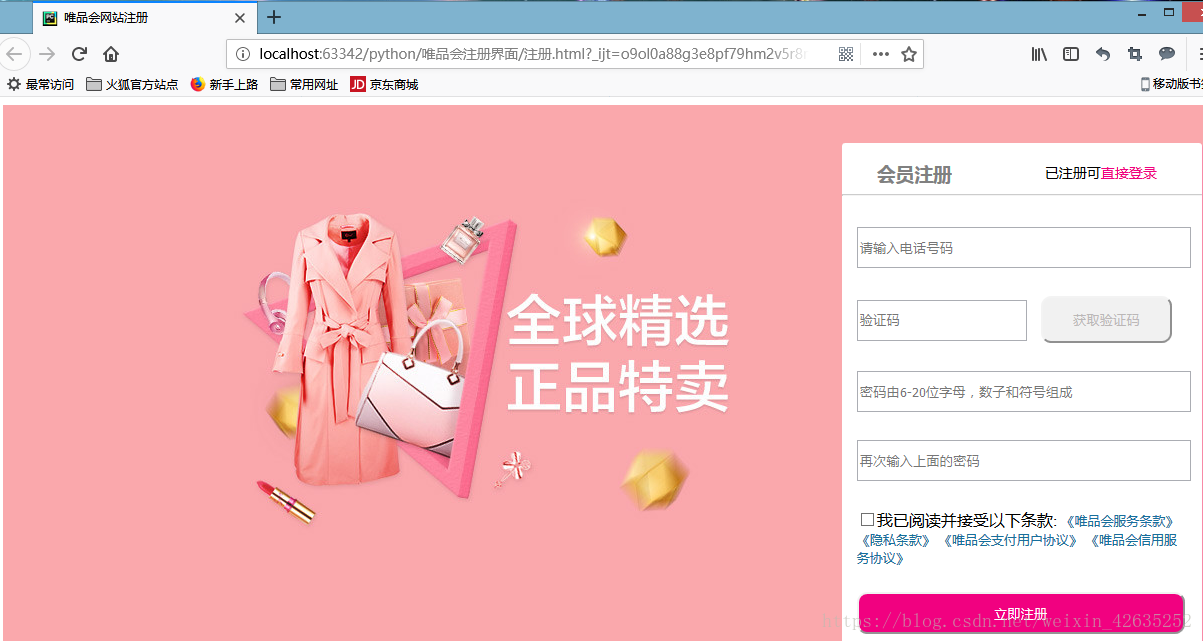

唯品会注册界面
<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>唯品会网站注册</title>
    <style>
        .complete{
            width:1353px;
            height: 883px;
        }
        .parth1{
            width:1353px ;
            height: 100px;
            /*border: 1px solid crimson;*/
            padding: 0;
            margin: 0;
        }
        .parth1-img1{
            padding-left: 14%;
            padding-top: 4px;
        }
        .parth1-img2{
           padding-left: 35%;
        }
        .parth2{
            width: 1353px;
            height: 643px;
            border: 1px solid white;
            background-image: url('8.png');
        }
        #login{
            width: 360px;
            height: 555px;
            background-color: #FFF;
            margin-left: 62%;
            margin-top: 38px;
            border-radius: 3px;
            box-shadow:  2px 2px 2px rgba(241, 1, 145, 0.19);
        }
        .parth2-1{
            width: 360px;
            height: 51px;
        }
        .parth2-1-1{
            width: 122px;
            height: 31px;
            text-align: center;
            float: right;
            font-size: 14px;
            padding-top: 20px;
            padding-right: 40px;
        }
        .tile{
            padding-top: 18px;
            padding-left: 35px;
            color: grey;
        }
        #form-class{
            width: 328px;
            height: 412px;
            border: 1px solid white;
            margin-top: 30px;
            margin-left: 14px;
        }
        .input-stye{
            width: 100%;
            height: 35px;
            margin-top: 28px;
        }
        .change{
            font-size: small;
            text-decoration: none;
            color:#176F9C;
        }
        a.change:hover{
            text-decoration: none;
            color: #1D94D1;
        }
        .last1{
            text-decoration: none;
            background-color: #f10180;
            width: 328px;
            height: 42px;
        }
        a.last1:hover{
            text-decoration: none;
            background-color: #333333;
            width: 328px;
            height: 42px;
        }
    </style>
</head>
<body class="complete">
<div class="parth1" >
    <a href="https://www.vip.com/?ff=125|2|1|14"><img class="parth1-img1" src="唯品会u.png" ></a>
    <img class="parth1-img2" src="Screenshot%20from%202018-09-29%2010-45-46.png">
</div>
<div class="parth2">
    <div id="login">
        <div class="parth2-1">
            <div class="parth2-1-1">已注册可<a href="https://passport.vip.com/login?ff=125|2|1|1" style="color: #f10180;text-decoration: none" >直接登录</a></div>
            <h3 class="tile">会员注册</h3>

        </div>
        <hr style="color: rgba(128, 128, 128, 0.28);margin: 0">
        <form id="form-class">
            <input class="input-stye" type="text" placeholder="请输入电话号码" style="margin-top: 0">
            <input class="input-stye" type="text" placeholder="验证码" style="width: 50%">
            <input type="button" value="获取验证码" style='background-color: rgba(128, 128, 128, 0.11);
            width:40%;height: 47px;border-radius: 10px;color: rgba(90, 81, 81, 0.36);margin-top: 28px;margin-left: 10px;'>
            <input class="input-stye" type="password" placeholder="密码由6-20位字母,数子和符号组成">
            <input class="input-stye" type="text" placeholder="再次输入上面的密码">
            <div class="input-stye">
            <input type="checkbox" name="read">我已阅读并接受以下条款:
            <a class="change" href="#" >《唯品会服务条款》</a>
            <a class="change" href="#" >《隐私条款》</a>
            <a class="change" href="#" >《唯品会支付用户协议》</a>
            <a class="change" href="#" >《唯品会信用服务协议》</a>
            </div>
            <div class="input-stye" style="margin-top: 48px;height: 42px"  >
              <a class="last1" href="#"><input type="button" value="立即注册" style="width: 100%;height: 100%;background-color: #f10180;color: white;border-radius: 10px;"></a>
            </div>
        </form>
    </div>

</div>
</body>
</html>

在这里插入图片描述
在这里插入图片描述

内容概要:本文档详细介绍了Analog Devices公司生产的AD8436真均方根-直流(RMS-to-DC)转换器的技术细节及其应用场景。AD8436由三个独立模块构成:轨到轨FET输入放大器、高动态范围均方根计算内核和精密轨到轨输出放大器。该器件不仅体积小巧、功耗低,而且具有广泛的输入电压范围和快速响应特性。文档涵盖了AD8436的工作原理、配置选项、外部组件选择(如电容)、增益调节、单电源供电、电流互感器配置、接地故障检测、三相电源监测等方面的内容。此外,还特别强调了PCB设计注意事项和误差源分析,旨在帮助工程师更好地理解和应用这款高性能的RMS-DC转换器。 适合人群:从事模拟电路设计的专业工程师和技术人员,尤其是那些需要精确测量交流电信号均方根值的应用开发者。 使用场景及目标:①用于工业自动化、医疗设备、电力监控等领域,实现对交流电压或电流的精准测量;②适用于手持式数字万用表及其他便携式仪器仪表,提供高效的单电源解决方案;③在电流互感器配置中,用于检测微小的电流变化,保障电气安全;④应用于三相电力系统监控,优化建立时间和转换精度。 其他说明:为了确保最佳性能,文档推荐使用高质量的电容器件,并给出了详细的PCB布局指导。同时提醒用户关注电介质吸收和泄漏电流等因素对测量准确性的影响。
评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
