H5使用canvas绘制饼状图

本文介绍如何使用HTML Canvas标签和JavaScript实现动态饼图绘制,并提供了一个具体的实例代码,包括饼图的数据加载、绘制方法及图例展示。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

1.在HTML中引入Canvas标签

<canvas class="pie-chart" width="850" height="500" ></canvas>

2.引入单独的js文件

let PieChart = function(selector, options){
    let canvas = "string" === typeof selector ? document.querySelector(selector) : null;
    if(canvas === null) return false;
    let defaultOptions = {
        radius: 200,
        legendParams:{    //图例参数
            font: '24px Arial', //图例字体属性
            x: 30,              //图例x轴坐标
            y: 30,              //图例y轴坐标
            margin: 50,         //图例间距
            width: 40,          //图例宽度
            height: 24          //图例高度
        }
    }
    this.context = canvas.getContext('2d');     //获取context环境
    this.width = canvas.getAttribute("width") || 300;
    this.height = canvas.getAttribute("height") || 300;
    this.options = Object.assign(defaultOptions,options);   //合并参数
}

PieChart.prototype.load = function(data){
    data.forEach(item => this.count? this.count += item.value : this.count = item.value);
    this.data = data;
    return this;
}

PieChart.prototype.render = function(){
    let _generateLegend = (item,index) =>{
        this.context.fillRect(  //绘制图例图标
            this.options.legendParams.x,
            this.options.legendParams.y + index*this.options.legendParams.margin,
            this.options.legendParams.width,
            this.options.legendParams.height
        )
        this.context.font = this.options.legendParams.font
        this.context.fillText(//绘制图例文字
            item.title,
            this.options.legendParams.y + this.options.legendParams.margin,
            (index + 1) * this.options.legendParams.margin
        )
    }
    let temparc = 0;
    this.data.forEach((item,index)=>{//遍历绘制饼图扇形区域
        item.color =   `#${('00000' + (Math.random()*0x1000000<<0).toString(16)).substr(-6)}`;
        this.context.beginPath();
        this.context.moveTo(this.width / 2,this.height / 2);
        let startarc = temparc,endarc = startarc + (item.value / this.count) * Math.PI * 2;
        this.context.arc(   //饼图弧形区域
            this.width / 2, //圆中心x坐标
            this.height / 2,//圆中心y坐标
            this.options.radius,//饼图半径
            startarc, //开始角度
            endarc,//结束角度
            false
        );
        this.context.closePath();
        this.context.fillStyle = item.color;
        this.context.fill();
        temparc = endarc;
        if(this.options.legend){ //是否需要绘制图例
            _generateLegend(item,index)
        }

    })
    return this;
}

3.在script标签中声明数据后使用

 const data = [
{title: "大米",value: 1024},
{title: "肉类",value: 512},
{title: "零食",value: 256},
{title: "蔬菜",value: 920},
]
    let pie = new PieChart('.pie-chart',{legend: true});
    pie.load(data).render();

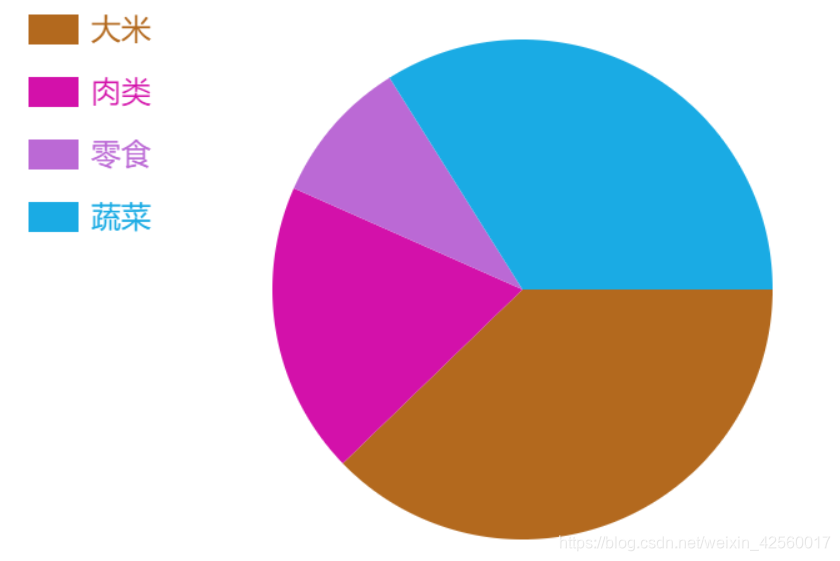

效果

效果图
