切换图片的代码用鸿蒙,鸿蒙Java开发模式10:鸿蒙图片选择器的实现及应用

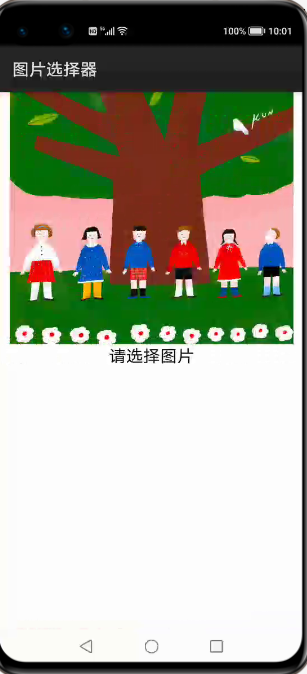

1.鸿蒙图片选择器通过页面路由和数据适配器，页面参数和回调完成，实现效果UI如图：

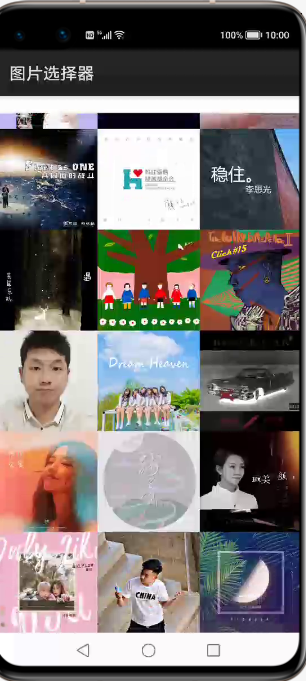

点击请选择图片，页面路由跳转，选择图片，界面UI如下:

点击选中图片，跳转页面，返回上一级，通过页面参数传递，获取选择的图片:

2.Java 代码的实现：

package com.example.javahm10.slice;

import com.example.javahm10.ResourceTable;

import ohos.aafwk.ability.AbilitySlice;

import ohos.aafwk.content.Intent;

import ohos.agp.components.Button;

import ohos.agp.components.Component;

import ohos.agp.components.Image;

public class FirstAbilitySlice extends AbilitySlice {

private Image image;

private Button button;

private int requestCode = 123;

@Override

public void onStart(Intent intent) {

super.onStart(intent);

super.setUIContent(ResourceTable.Layout_ability_first);

initLayout();

}

private void initLayout() {

image = (Image)findComponentById(ResourceTable.Id_image_view);

button = (Button)findComponentById(ResourceTable.Id_button_picture_select);

button.setClickedListener(new Component.ClickedListener() {

@Override

public void onClick(Component component) {

Intent intent_picture_select = new Intent();

presentForResult(new PictureSelectAbilitySlice(), intent_picture_select, requestCode);

}

});

}

@Override

protected void onResult(int requestCode, Intent resultIntent) {

super.onResult(requestCode, resultIntent);

if (this.requestCode == requestCode){

int res_id = resultIntent.getIntParam("picture_res_id", ResourceTable.Media_icon);

image.setImageAndDecodeBounds(res_id);

}

}

@Override

public void onActive() {

super.onActive();

}

@Override

public void onForeground(Intent intent) {

super.onForeground(intent);

}

}

跳转页面的java代码:

package com.example.javahm10.slice;

import com.example.javahm10.ResourceTable;

import com.example.javahm10.model.ListItemProvider;

import com.example.javahm10.model.PictureMo;

import ohos.aafwk.ability.AbilitySlice;

import ohos.aafwk.content.Intent;

import ohos.agp.components.ListContainer;

import java.util.ArrayList;

public class PictureSelectAbilitySlice extends AbilitySlice implements ListItemProvider.OnItemClickListener{

private ListContainer listContainer;

private ListItemProvider listItemProvider;

private ArrayList pictures = new ArrayList<>();

@Override

public void onStart(Intent intent) {

super.onStart(intent);

super.setUIContent(ResourceTable.Layout_ability_picture_select);

initLayout();

initPicture();

}

private void initLayout(){

listContainer = (ListContainer)findComponentById(ResourceTable.Id_list_view);

listItemProvider = new ListItemProvider(this, this);

listContainer.setItemProvider(listItemProvider);

}

private void initPicture() {

pictures.add(new PictureMo(ResourceTable.Media_a0, "resource/media/a0.jpg"));

pictures.add(new PictureMo(ResourceTable.Media_a1, "resource/media/a1.jpg"));

pictures.add(new PictureMo(ResourceTable.Media_a2, "resource/media/a2.jpg"));

pictures.add(new PictureMo(ResourceTable.Media_a3, "resource/media/a3.jpg"));

pictures.add(new PictureMo(ResourceTable.Media_a4, "resource/media/a4.jpg"));

pictures.add(new PictureMo(ResourceTable.Media_a5, "resource/media/a5.jpg"));

pictures.add(new PictureMo(ResourceTable.Media_a6, "resource/media/a6.jpg"));

pictures.add(new PictureMo(ResourceTable.Media_a7, "resource/media/a7.jpg"));

pictures.add(new PictureMo(ResourceTable.Media_a8, "resource/media/a8.jpg"));

pictures.add(new PictureMo(ResourceTable.Media_a9, "resource/media/a9.jpg"));

pictures.add(new PictureMo(ResourceTable.Media_a10, "resource/media/a10.jpg"));

pictures.add(new PictureMo(ResourceTable.Media_a11, "resource/media/a11.jpg"));

pictures.add(new PictureMo(ResourceTable.Media_a12, "resource/media/a12.jpg"));

pictures.add(new PictureMo(ResourceTable.Media_a13, "resource/media/a13.jpg"));

pictures.add(new PictureMo(ResourceTable.Media_a14, "resource/media/a14.jpg"));

pictures.add(new PictureMo(ResourceTable.Media_a15, "resource/media/a15.jpg"));

pictures.add(new PictureMo(ResourceTable.Media_a16, "resource/media/a16.jpg"));

pictures.add(new PictureMo(ResourceTable.Media_a17, "resource/media/a17.jpg"));

listItemProvider.setData(pictures);

}

@Override

public void onActive() {

super.onActive();

}

@Override

public void onForeground(Intent intent) {

super.onForeground(intent);

}

@Override

public void OnItemClick(PictureMo pictureMo, int position) {

Intent intent_picture_select = new Intent();

intent_picture_select.setParam("picture_res_id", pictureMo.pictureId);

setResult(intent_picture_select);

terminate();

}

}

3.页面布局代码:

xmlns:ohos="http://schemas.huawei.com/res/ohos"

ohos:height="match_parent"

ohos:width="match_parent"

ohos:orientation="vertical">

ohos:orientation="horizontal"

ohos:width="match_parent"

ohos:height="match_content"

ohos:alignment="horizontal_center">

ohos:id="$+id:image_view"

ohos:height="300vp"

ohos:width="400vp"

ohos:image_src="$media:bg1">

ohos:id="$+id:button_picture_select"

ohos:height="match_content"

ohos:width="match_content"

ohos:layout_alignment="horizontal_center"

ohos:text_size="60"

ohos:text="请选择图片"/>

xmlns:ohos="http://schemas.huawei.com/res/ohos"

ohos:height="match_parent"

ohos:width="match_parent"

ohos:orientation="vertical">

ohos:id="$+id:list_view"

ohos:height="match_parent"

ohos:width="match_parent"

ohos:top_margin="20vp"

/>

4.java数据模型和数据适配器代码

package com.example.javahm10.model;

public class PictureMo {

public int pictureId;

public String imagePath;

public PictureMo(int pictureId, String imagePath) {

this.pictureId = pictureId;

this.imagePath = imagePath;

}

}

package com.example.javahm10.model;

import java.util.ArrayList;

public class DataMo {

public ArrayList pictureMos;

public DataMo(ArrayList pictureMos){

this.pictureMos = pictureMos;

}

}

package com.example.javahm10.model;

import com.example.javahm10.ResourceTable;

import ohos.aafwk.ability.AbilitySlice;

import ohos.agp.components.*;

import java.util.ArrayList;

public class ListItemProvider extends RecycleItemProvider {

private AbilitySlice mSlice;

private OnItemClickListener listener;

private ArrayList dataMos = new ArrayList<>();

public ListItemProvider(AbilitySlice abilitySlice, OnItemClickListener listener){

this.mSlice = abilitySlice;

this.listener = listener;

}

public void setData(ArrayList pictureMos){

this.dataMos.clear();

int i = 0;

ArrayList tempList = new ArrayList<>();

for (PictureMo mo:pictureMos){

if (i == 3){

i = 0;

dataMos.add(new DataMo(tempList));

tempList = new ArrayList<>();

}

tempList.add(mo);

i++;

}

dataMos.add(new DataMo(tempList));

this.notifyDataChanged();

}

@Override

public int getCount() {

return dataMos.size();

}

@Override

public Object getItem(int i) {

return dataMos.get(i);

}

@Override

public long getItemId(int i) {

return 0;

}

@Override

public Component getComponent(int i, Component component, ComponentContainer componentContainer) {

Component component_item = LayoutScatter.getInstance(mSlice).parse(ResourceTable.Layout_list_item, null, false);

if ( !(component_item instanceof ComponentContainer)){

return null;

}

ComponentContainer rootLayout = (ComponentContainer)component_item;

DataMo dataMo = dataMos.get(i);

for (PictureMo mo:dataMo.pictureMos){

Image imageItem = (Image) LayoutScatter.getInstance(mSlice).parse(ResourceTable.Layout_item_title, null, false);

imageItem.setImageAndDecodeBounds(mo.pictureId);

rootLayout.addComponent(imageItem);

imageItem.setClickedListener(new Component.ClickedListener() {

@Override

public void onClick(Component component) {

listener.OnItemClick(mo, i);

}

});

}

return component_item;

}

public interface OnItemClickListener{

void OnItemClick(PictureMo pictureMo, int position);

}

}
