PopupWindow+RecyclerView实现下拉选择Spinner

当我们在Android开发中需要实现下拉选择功能时，可以使用自定义的Spinner控件来实现。Spinner控件是一个下拉列表框，可以显示多个选项供用户选择，并在用户选择后显示所选项的文本。

为了方便使用和扩展，我们可以对Spinner进行封装，创建一个自定义的Spinner控件。自定义Spinner可以具备以下特性：

• 点击展开和收起：通过点击Spinner，可以展开或收起下拉列表框。
• 自定义样式：可以根据项目需求，自定义Spinner的外观样式，如背景颜色、字体颜色、箭头图标等。
• 支持数据源：可以传入数据源，将数据显示在下拉列表框中供用户选择。
• 默认选择项：可以指定一个默认选择项，在下拉列表框展开时，该选项将被高亮显示。
• 选择监听：可以设置选择监听器，监听用户的选择操作，并进行相应的处理。

通过封装Spinner，我们可以将其功能与外观进行统一管理，并提供更加简洁和易用的接口供其他开发者使用。这样，其他开发者在使用时只需关注数据源和监听回调即可，无需关心Spinner的内部实现细节。

自定义Spinner的封装可以提高代码的可维护性和可复用性，减少重复代码的编写，同时也使代码结构更加清晰和易于理解。

总之，封装Spinner可以帮助我们更高效地实现下拉选择功能，并提供灵活性和可扩展性，使代码更加优雅和易于维护。

使用第三方控件：implementation 'com.github.CymChad:BaseRecyclerViewAdapterHelper:2.9.47'

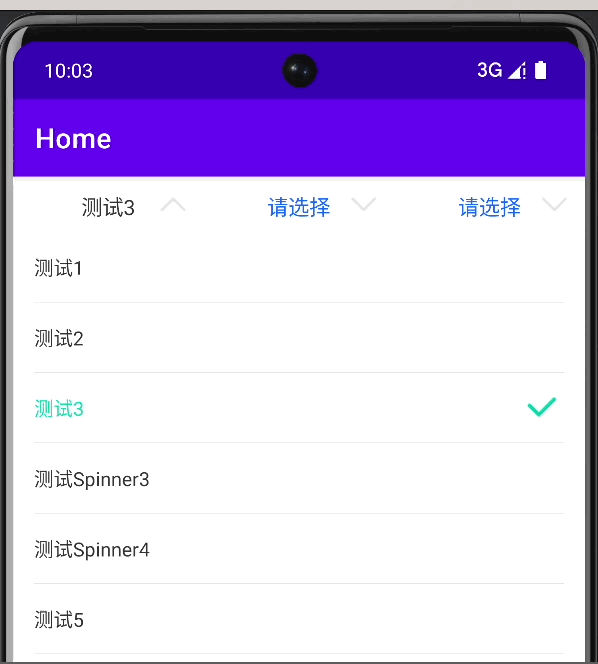

图片示例：

自定义控件封装 定义类CustomSpinner继承LinearLayout以下是示例：

点击展开查看CustomSpinner代码

登录后复制

package com.example.demo.view;
import android.content.Context;
import android.graphics.Color;
import android.graphics.drawable.ColorDrawable;
import android.util.AttributeSet;
import android.view.Gravity;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ImageView;
import android.widget.LinearLayout;
import android.widget.PopupWindow;
import android.widget.TextView;
import androidx.annotation.NonNull;
import androidx.core.content.ContextCompat;
import androidx.recyclerview.widget.LinearLayoutManager;
import androidx.recyclerview.widget.RecyclerView;
import com.chad.library.adapter.base.BaseViewHolder;
import com.example.demo.R;
import java.util.Collection;
import java.util.List;
/**



@author: xtxiaolu



@date: 2023/7/7




描述: 自定义公共 下拉选择控件
*/
public class CustomSpinner extends LinearLayout {
private TextView textView;
private ImageView imageView;
private PopupWindow popupWindow;
private List dataList;
private boolean isExpanded = false;
private OnItemSelectedListener itemSelectedListener;
public CustomSpinner(Context context) {
super(context);
init();
}
public CustomSpinner(Context context, AttributeSet attrs) {
super(context, attrs);
init();
}
public CustomSpinner(Context context, AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
init();
}
private void init() {
LayoutInflater.from(getContext()).inflate(R.layout.custom_spinner_layout, this, true);
textView = findViewById(R.id.ll_list_default_txt);
imageView = findViewById(R.id.ll_list_default_icon);
 setClickable(true);
 setOnClickListener(new OnClickListener() {
     @Override
     public void onClick(View v) {
         if (isExpanded) {
             collapse();
         } else {
             expand();
         }
     }
 });

}
public void setData(List dataList) {
this.dataList = dataList;
}
/**

刷新页面




@param data
*/
public void replaceData(@NonNull Collection<? extends T> data) {
// 不是同一个引用才清空列表
if (data != dataList) {
dataList.clear();
dataList.addAll(data);
}
}


public void setTextViewValue(String value) {
textView.setText(value);
}
public TextView getTextViewValue() {
return textView;
}
private void expand() {
if (dataList == null || dataList.isEmpty()) {
return;
}
 textView.setTextColor(ContextCompat.getColor(getContext(), R.color.text_order_black));
 imageView.setImageResource(R.drawable.expand_arrows_fold);

 View popupView = LayoutInflater.from(getContext()).inflate(R.layout.popup_selector, null);
 RecyclerView recyclerView = popupView.findViewById(R.id.recyclerView);
 recyclerView.setLayoutManager(new LinearLayoutManager(getContext()));

 CustomAdapter popAdapter = new CustomAdapter<>(R.layout.item_listview_popwin, dataList);
 popAdapter.setSelectedPosition(0);
 popAdapter.setOnItemClickListener(new CustomAdapter.OnItemClickListener() {
     @Override
     public void onItemClick(int position) {
         T selectedItem = dataList.get(position);
         if (itemSelectedListener != null) {
             itemSelectedListener.onItemSelected(position, selectedItem);
         }
         popupWindow.dismiss();
     }

     @Override
     public void convertView(BaseViewHolder holder, Object item, boolean isSelected) {
         if (itemSelectedListener != null) {
             itemSelectedListener.onItemCallBackData(holder, item);
         }
     }
 });
 recyclerView.setAdapter(popAdapter);

 int width = ViewGroup.LayoutParams.MATCH_PARENT;
 int height = ViewGroup.LayoutParams.WRAP_CONTENT;
 popupWindow = new PopupWindow(popupView, width, height);
 popupWindow.setBackgroundDrawable(new ColorDrawable(Color.WHITE));
 popupWindow.setFocusable(true);
 popupWindow.setOutsideTouchable(true);
 popupWindow.setOnDismissListener(new PopupWindow.OnDismissListener() {
     @Override
     public void onDismiss() {
         collapse();
     }
 });

 int[] location = new int[2];
 getLocationOnScreen(location);
 int x = location[0];
 int y = location[1] + getHeight();
 popupWindow.showAtLocation(this, Gravity.NO_GRAVITY, x, y);

 isExpanded = true;

}
private void collapse() {
textView.setTextColor(ContextCompat.getColor(getContext(), R.color.colorTextBlue));
imageView.setImageResource(R.drawable.expand_arrows_unfold);
 if (popupWindow != null && popupWindow.isShowing()) {
     popupWindow.dismiss();
 }

 isExpanded = false;

}
public void setOnItemSelectedListener(OnItemSelectedListener listener) {
this.itemSelectedListener = listener;
}
public interface OnItemSelectedListener {
void onItemSelected(int position, Object item);
void onItemCallBackData(BaseViewHolder holder, Object item);
}
}

 setClickable(true);
 setOnClickListener(new OnClickListener() {
     @Override
     public void onClick(View v) {
         if (isExpanded) {
             collapse();
         } else {
             expand();
         }
     }
 });

 textView.setTextColor(ContextCompat.getColor(getContext(), R.color.text_order_black));
 imageView.setImageResource(R.drawable.expand_arrows_fold);

 View popupView = LayoutInflater.from(getContext()).inflate(R.layout.popup_selector, null);
 RecyclerView recyclerView = popupView.findViewById(R.id.recyclerView);
 recyclerView.setLayoutManager(new LinearLayoutManager(getContext()));

 CustomAdapter popAdapter = new CustomAdapter<>(R.layout.item_listview_popwin, dataList);
 popAdapter.setSelectedPosition(0);
 popAdapter.setOnItemClickListener(new CustomAdapter.OnItemClickListener() {
     @Override
     public void onItemClick(int position) {
         T selectedItem = dataList.get(position);
         if (itemSelectedListener != null) {
             itemSelectedListener.onItemSelected(position, selectedItem);
         }
         popupWindow.dismiss();
     }

     @Override
     public void convertView(BaseViewHolder holder, Object item, boolean isSelected) {
         if (itemSelectedListener != null) {
             itemSelectedListener.onItemCallBackData(holder, item);
         }
     }
 });
 recyclerView.setAdapter(popAdapter);

 int width = ViewGroup.LayoutParams.MATCH_PARENT;
 int height = ViewGroup.LayoutParams.WRAP_CONTENT;
 popupWindow = new PopupWindow(popupView, width, height);
 popupWindow.setBackgroundDrawable(new ColorDrawable(Color.WHITE));
 popupWindow.setFocusable(true);
 popupWindow.setOutsideTouchable(true);
 popupWindow.setOnDismissListener(new PopupWindow.OnDismissListener() {
     @Override
     public void onDismiss() {
         collapse();
     }
 });

 int[] location = new int[2];
 getLocationOnScreen(location);
 int x = location[0];
 int y = location[1] + getHeight();
 popupWindow.showAtLocation(this, Gravity.NO_GRAVITY, x, y);

 isExpanded = true;

 if (popupWindow != null && popupWindow.isShowing()) {
     popupWindow.dismiss();
 }

 isExpanded = false;

• 1.
• 2.
• 3.
• 4.
• 5.
• 6.
• 7.
• 8.
• 9.
• 10.
• 11.
• 12.
• 13.
• 14.
• 15.
• 16.
• 17.
• 18.
• 19.
• 20.
• 21.
• 22.
• 23.
• 24.
• 25.
• 26.
• 27.
• 28.
• 29.
• 30.
• 31.
• 32.
• 33.
• 34.
• 35.
• 36.
• 37.
• 38.
• 39.
• 40.
• 41.
• 42.
• 43.
• 44.
• 45.
• 46.
• 47.
• 48.
• 49.
• 50.
• 51.
• 52.
• 53.
• 54.
• 55.
• 56.
• 57.
• 58.
• 59.
• 60.
• 61.
• 62.
• 63.
• 64.
• 65.
• 66.
• 67.
• 68.
• 69.
• 70.
• 71.
• 72.
• 73.
• 74.
• 75.
• 76.
• 77.
• 78.
• 79.
• 80.
• 81.
• 82.
• 83.
• 84.
• 85.
• 86.
• 87.
• 88.
• 89.
• 90.
• 91.
• 92.
• 93.
• 94.
• 95.
• 96.
• 97.
• 98.
• 99.
• 100.
• 101.
• 102.
• 103.
• 104.
• 105.
• 106.
• 107.
• 108.
• 109.
• 110.
• 111.
• 112.
• 113.
• 114.
• 115.
• 116.
• 117.
• 118.
• 119.
• 120.
• 121.
• 122.
• 123.
• 124.
• 125.
• 126.
• 127.
• 128.
• 129.
• 130.
• 131.
• 132.
• 133.
• 134.
• 135.
• 136.
• 137.
• 138.
• 139.
• 140.
• 141.
• 142.
• 143.
• 144.
• 145.
• 146.
• 147.
• 148.
• 149.
• 150.
• 151.
• 152.
• 153.
• 154.
• 155.
• 156.
• 157.
• 158.
• 159.
• 160.
• 161.
• 162.
• 163.
• 164.
• 165.
• 166.
• 167.
• 168.
• 169.
• 170.
• 171.
• 172.
• 173.
• 174.
• 175.
• 176.
• 177.
• 178.
• 179.
• 180.
• 181.
• 182.
• 183.
• 184.
• 185.
• 186.
• 187.
• 188.
• 189.
• 190.
• 191.
• 192.
• 193.
• 194.
• 195.
• 196.
• 197.
• 198.
• 199.
• 200.
• 201.
• 202.
• 203.
• 204.
• 205.
• 206.
• 207.
• 208.
• 209.
• 210.
• 211.
• 212.
• 213.
• 214.
• 215.
• 216.
• 217.
• 218.
• 219.
• 220.
• 221.
• 222.
• 223.
• 224.
• 225.
• 226.
• 227.
• 228.
• 229.
• 230.
• 231.
• 232.
• 233.
• 234.
• 235.
• 236.
• 237.
• 238.

登录后复制

language

• 1.

上面是控件代码 下面是适配器代码都是使用范型来传输数据这样方便通用！

展开查看CustomAdapter

登录后复制

package com.example.demo.view;
import android.view.View;
import androidx.annotation.LayoutRes;
import androidx.annotation.NonNull;
import androidx.annotation.Nullable;
import com.chad.library.adapter.base.BaseQuickAdapter;
import com.chad.library.adapter.base.BaseViewHolder;
import java.util.List;
/**


@author: xtxiaolu



@date: 2023/7/7



描述:
*/
public class CustomAdapter extends BaseQuickAdapter<T, BaseViewHolder> {
private int selectedPosition = -1;
private OnItemClickListener itemClickListener;
public CustomAdapter(@LayoutRes int layoutResId, @Nullable List data) {
super(layoutResId, data);
}
public void setSelectedPosition(int position) {
this.selectedPosition = position;
notifyDataSetChanged();
}
public void setOnItemClickListener(OnItemClickListener listener) {
this.itemClickListener = listener;
}
@Override
protected void convert(BaseViewHolder holder, T item) {
if (itemClickListener != null) {
itemClickListener.convertView(holder, item, selectedPosition == holder.getBindingAdapterPosition());
}
}
@Override
public void onBindViewHolder(@NonNull BaseViewHolder holder, int position) {
super.onBindViewHolder(holder, position);
holder.itemView.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
if (itemClickListener != null) {
itemClickListener.onItemClick(holder.getBindingAdapterPosition());
}
}
});
}
public interface OnItemClickListener {
void onItemClick(int position);
 void convertView(BaseViewHolder holder, Object item, boolean isSelected);

}
}




 void convertView(BaseViewHolder holder, Object item, boolean isSelected);

• 1.
• 2.
• 3.
• 4.
• 5.
• 6.
• 7.
• 8.
• 9.
• 10.
• 11.
• 12.
• 13.
• 14.
• 15.
• 16.
• 17.
• 18.
• 19.
• 20.
• 21.
• 22.
• 23.
• 24.
• 25.
• 26.
• 27.
• 28.
• 29.
• 30.
• 31.
• 32.
• 33.
• 34.
• 35.
• 36.
• 37.
• 38.
• 39.
• 40.
• 41.
• 42.
• 43.
• 44.
• 45.
• 46.
• 47.
• 48.
• 49.
• 50.
• 51.
• 52.
• 53.
• 54.
• 55.
• 56.
• 57.
• 58.
• 59.
• 60.
• 61.
• 62.
• 63.

如果本文对您有所帮助请点赞收藏给予支持，谢谢有您的支持我将不惜再接再厉！

下面是代码链接： 🔥点击下载代码⬇️

原创作者: xtxiaolu 转载于: https://blog.51cto.com/xtxiaolu/6797554
