cacti linux io,cacti监控linux和windows磁盘IO

一，环境cacti版本：0.8.8b

# uname -a

Linux 10-6-8-200 2.6.32-279.22.1.el6.x86_64 #1 SMP Wed Feb 6 03:10:46 UTC 2013 x86_64 x86_64 x86_64 GNU/Linux

二，操作步骤：

首先监控linux磁盘IO

1.下载snmpdiskio-0.9.6

2.解压后并拷贝命令# cp snmpdiskio /usr/local/bin/

3.编辑partition.xml文件vi /var/www/html/cacti/resource/snmp_queries/partition.xml

Get SNMP Partitions

Queries a host for a list of monitorable partitions

.1.3.6.1.4.1.2021.13.15

hdDescr:hdIndex

numeric

|chosen_order_field|

Index

walk

value

input

.1.3.6.1.4.1.2021.13.15.1.1.1

Description

walk

value

input

.1.3.6.1.4.1.2021.13.15.1.1.2

Bytes Written

walk

value

output

.1.3.6.1.4.1.2021.13.15.1.1.3

Bytes Read

walk

value

output

.1.3.6.1.4.1.2021.13.15.1.1.4

4.修改文件属性# chown apache. partition.xml

5.修改snmpd.conf配置，添加以下内容# vi /etc/snmp/snmpd.conf

extend .1.3.6.1.4.1.2021.54 hdNum /bin/sh /usr/local/bin/snmpdiskio hdNum

extend .1.3.6.1.4.1.2021.55 hdIndex /bin/sh /usr/local/bin/snmpdiskio hdIndex

extend .1.3.6.1.4.1.2021.56 hdDescr /bin/sh /usr/local/bin/snmpdiskio hdDescr

extend .1.3.6.1.4.1.2021.57 hdInBlocks /bin/sh /usr/local/bin/snmpdiskio hdInBlocks

extend .1.3.6.1.4.1.2021.58 hdOutBlocks /bin/sh /usr/local/bin/snmpdiskio hdOutBlocks

6.重启snmpd服务,并测试# service snmpd restart

# snmpwalk -v 2c -c meihua localhost .1.3.6.1.4.1.2021.58

UCD-SNMP-MIB::ucdavis.58.1.0 = INTEGER: 1

UCD-SNMP-MIB::ucdavis.58.2.1.2.11.104.100.79.117.116.66.108.111.99.107.115 = STRING: "/bin/sh"

UCD-SNMP-MIB::ucdavis.58.2.1.3.11.104.100.79.117.116.66.108.111.99.107.115 = STRING: "/usr/local/bin/snmpdiskio hdOutBlocks"

UCD-SNMP-MIB::ucdavis.58.2.1.4.11.104.100.79.117.116.66.108.111.99.107.115 = ""

UCD-SNMP-MIB::ucdavis.58.2.1.5.11.104.100.79.117.116.66.108.111.99.107.115 = INTEGER: 5

UCD-SNMP-MIB::ucdavis.58.2.1.6.11.104.100.79.117.116.66.108.111.99.107.115 = INTEGER: 1

UCD-SNMP-MIB::ucdavis.58.2.1.7.11.104.100.79.117.116.66.108.111.99.107.115 = INTEGER: 1

UCD-SNMP-MIB::ucdavis.58.2.1.20.11.104.100.79.117.116.66.108.111.99.107.115 = INTEGER: 4

UCD-SNMP-MIB::ucdavis.58.2.1.21.11.104.100.79.117.116.66.108.111.99.107.115 = INTEGER: 1

UCD-SNMP-MIB::ucdavis.58.3.1.1.11.104.100.79.117.116.66.108.111.99.107.115 = STRING: "0"

UCD-SNMP-MIB::ucdavis.58.3.1.2.11.104.100.79.117.116.66.108.111.99.107.115 = STRING: "0

7.解压后模板导入到cacti中

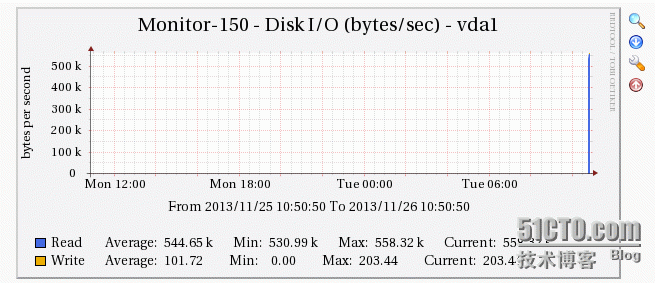

8.在主机中选择此模板，是否能获取数据

然后是监控windows磁盘IO操作步骤：

1.windows客户端安装informant-std-16.exe

2.下载模板文件

以上模板文件导入到cacti中

以上模板拷贝到/var/www/html/cacti/resource/snmp_queries/中

并更改权限。

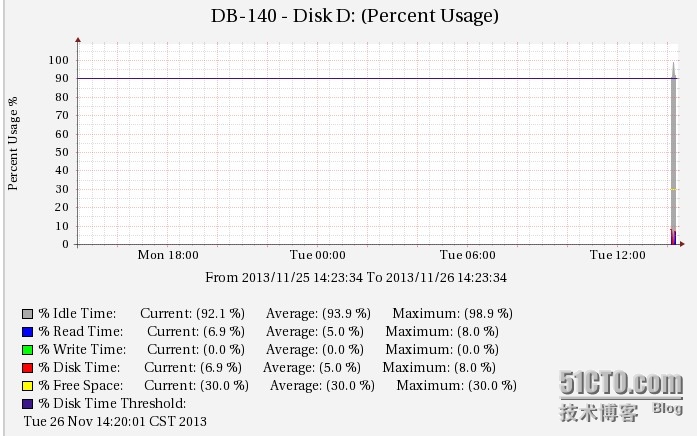

3.查看windows磁盘IO是否有数据
