Oracle 19C+13.4EMCC

部署和配置

一：Oracle EMCC13.4下载

二：Oracle 19C+13.4EMCC

部署

三：Oracle 19C+13.4EMCC

常见组件

四：Oracle 19C+13.4EMCC

常见命令

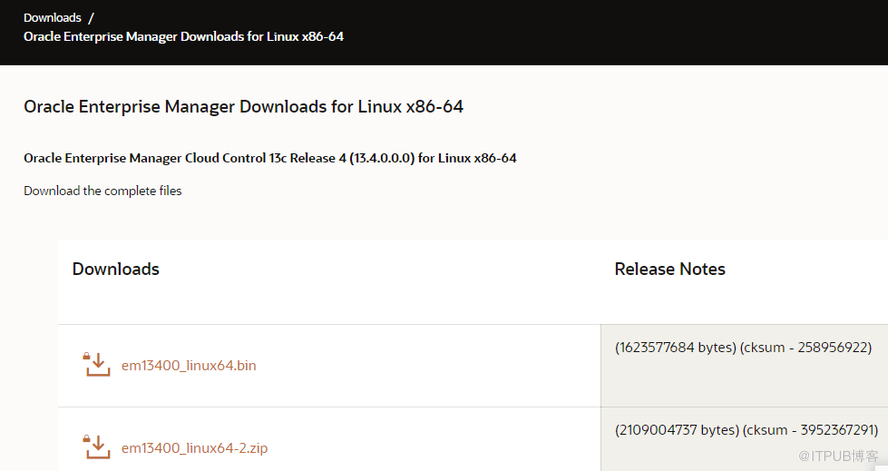

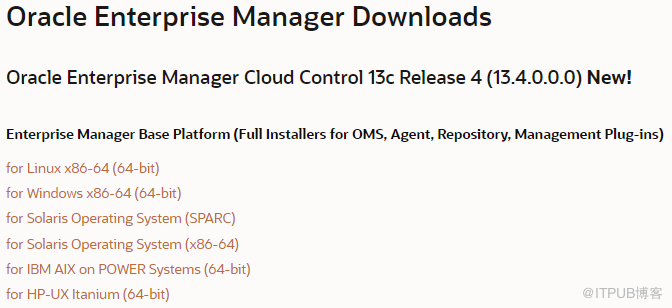

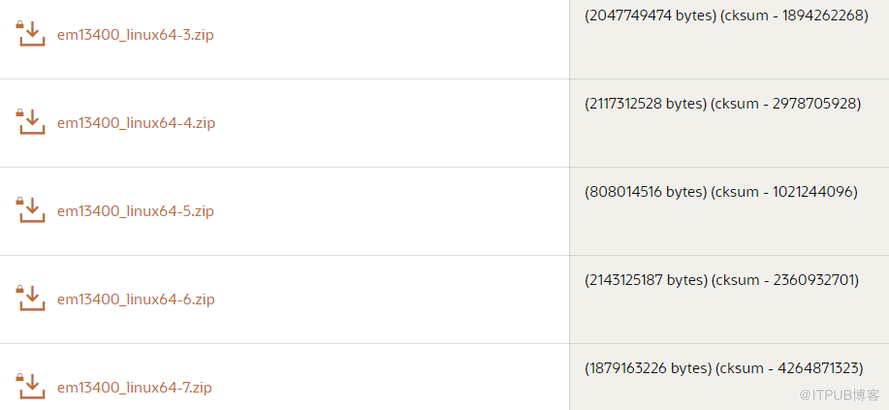

一：Oracle Enterprise Manager Cloud Control 13c Release 4下载

[root@cjcos emcc]# pwd

/package/emcc

[root@cjcos emcc]# ll -rth

total 12G

-rw-r--r-- 1 root root 1.6G Mar 28 21:17 em13400_linux64.bin

-rw-r--r-- 1 root root 1.8G Mar 28 21:19 em13400_linux64-7.zip

-rw-r--r-- 1 root root 771M Mar 28 21:25 em13400_linux64-5.zip

-rw-r--r-- 1 root root 2.0G Mar 28 21:32 em13400_linux64-6.zip

-rw-r--r-- 1 root root 2.0G Mar 28 21:39 em13400_linux64-4.zip

-rw-r--r-- 1 root root 2.0G Mar 28 21:46 em13400_linux64-3.zip

-rw-r--r-- 1 root root 2.0G Mar 28 21:49 em13400_linux64-2.zip

二：Oracle 19C+13.4EMCC部署

参考：

2.1

创建目录

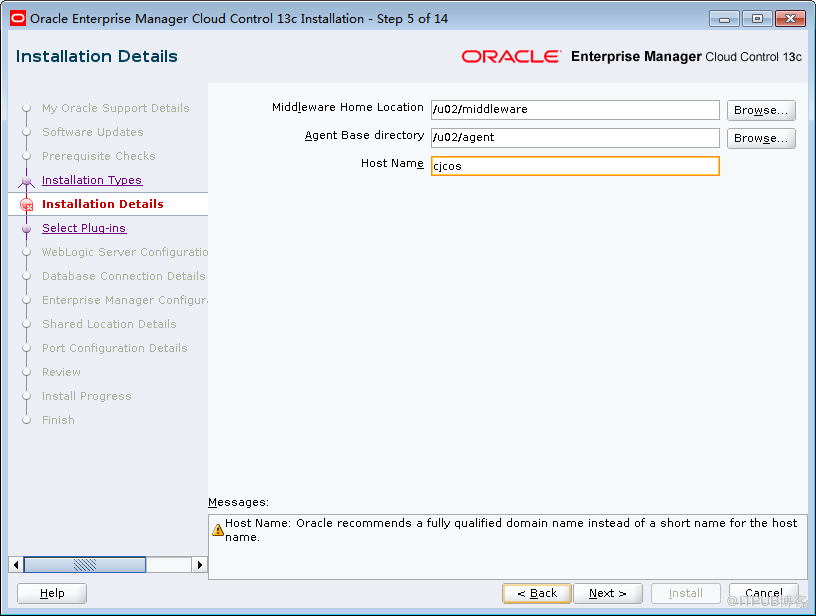

[root@cjcos ~]# mkdir /u02/{middleware,agent} -p

[root@cjcos ~]# chown oracle.oinstall /u02 -R

[root@cjcos ~]# chown -R 775 /u02

[root@cjcos ~]# ls /u02

agent  middleware

2.2

安装

[root@cjcos emcc]# chown oracle.oinstall /package/emcc -R

[root@cjcos emcc]# chmod a+x /package/emcc -R

[root@cjcos emcc]# ll -rth

total 12G

-rwxr-xr-x 1 oracle oinstall 1.6G Mar 28 21:17 em13400_linux64.bin

-rwxr-xr-x 1 oracle oinstall 1.8G Mar 28 21:19 em13400_linux64-7.zip

-rwxr-xr-x 1 oracle oinstall 771M Mar 28 21:25 em13400_linux64-5.zip

-rwxr-xr-x 1 oracle oinstall 2.0G Mar 28 21:32 em13400_linux64-6.zip

-rwxr-xr-x 1 oracle oinstall 2.0G Mar 28 21:39 em13400_linux64-4.zip

-rwxr-xr-x 1 oracle oinstall 2.0G Mar 28 21:46 em13400_linux64-3.zip

-rwxr-xr-x 1 oracle oinstall 2.0G Mar 28 21:49 em13400_linux64-2.zip

[oracle@cjcos ~]$ cd /package/emcc/

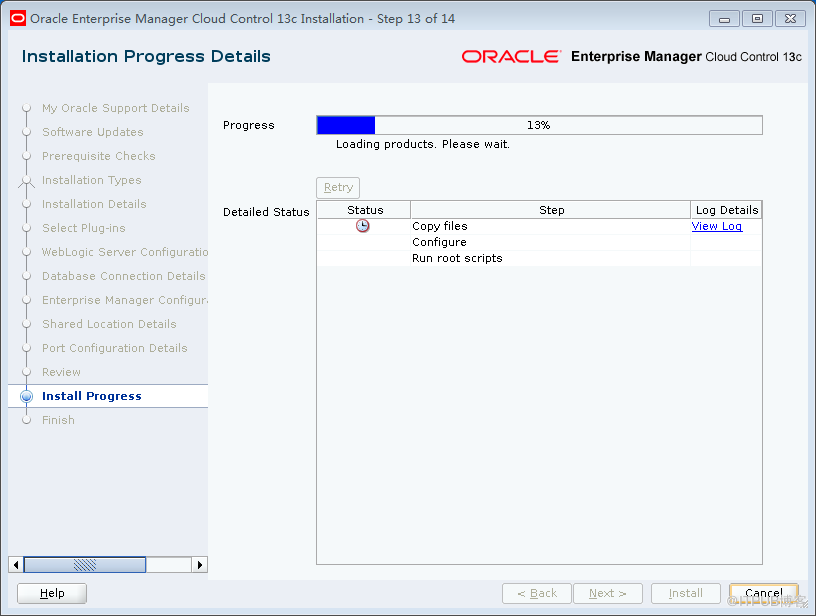

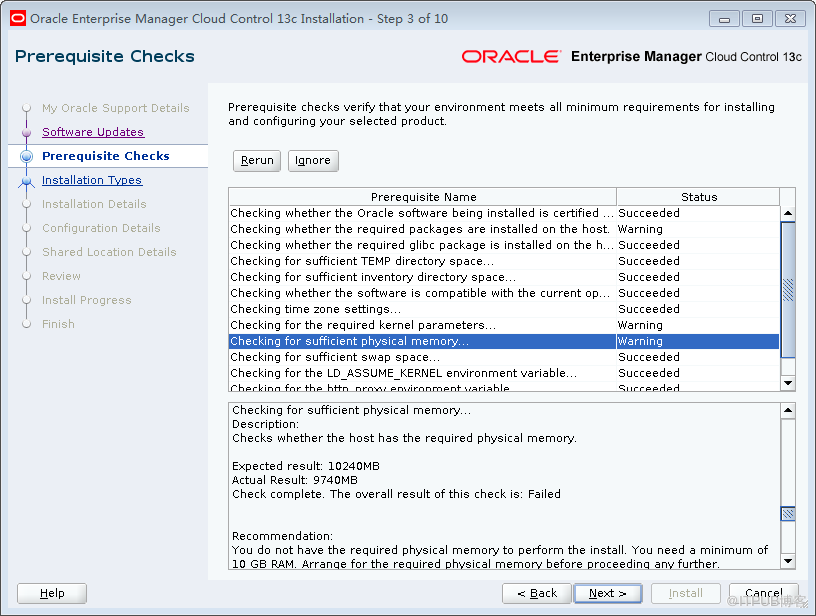

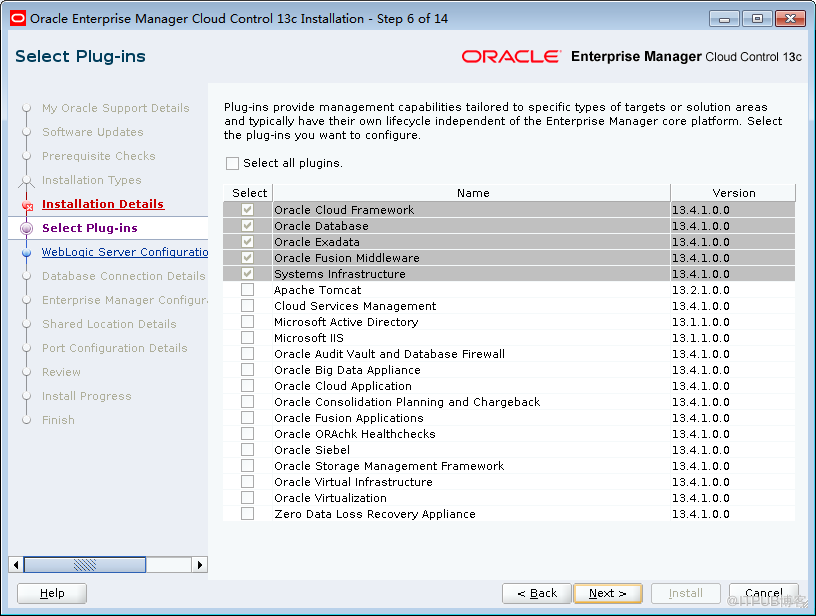

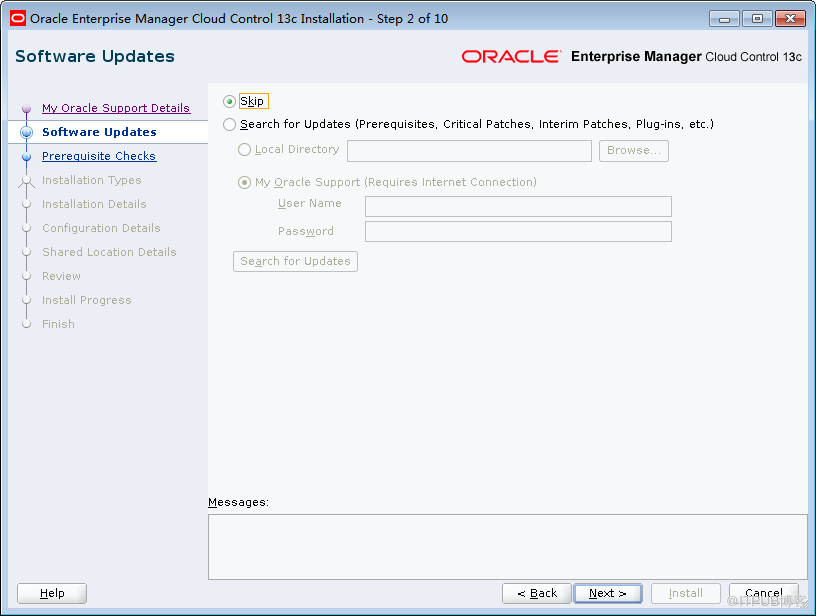

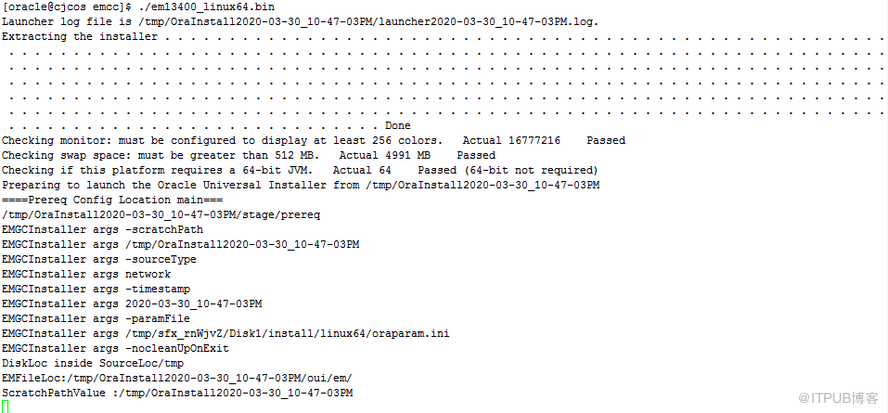

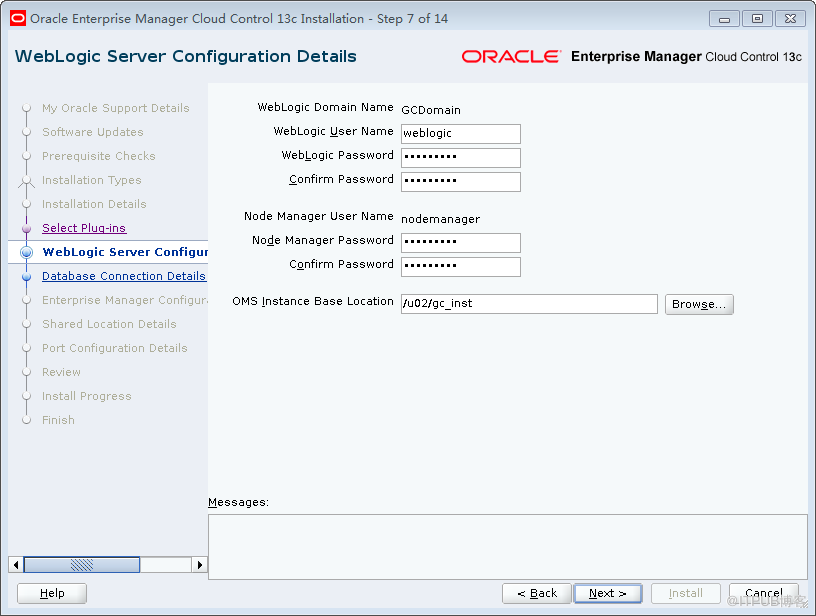

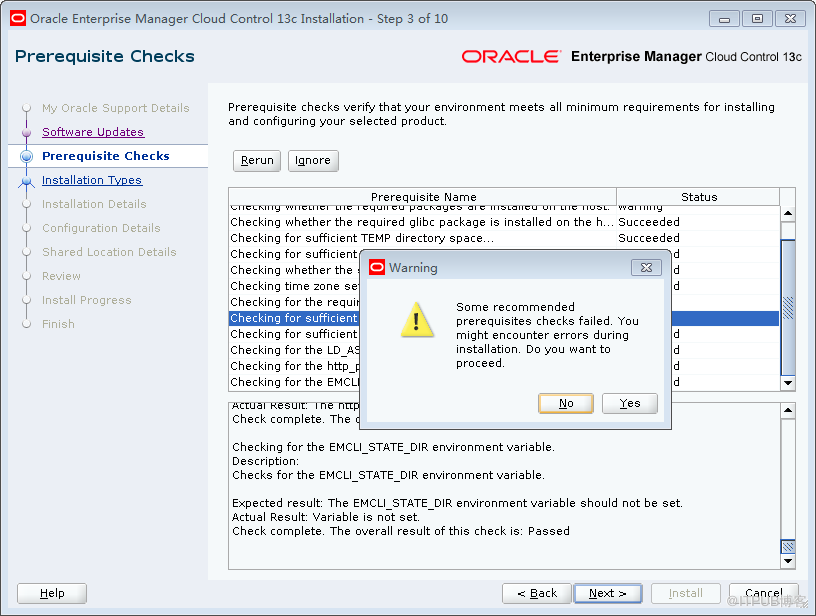

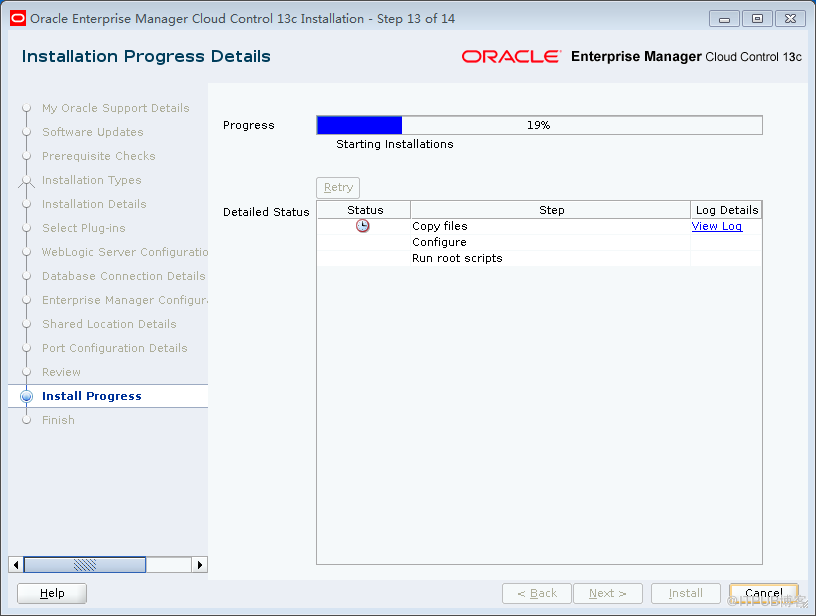

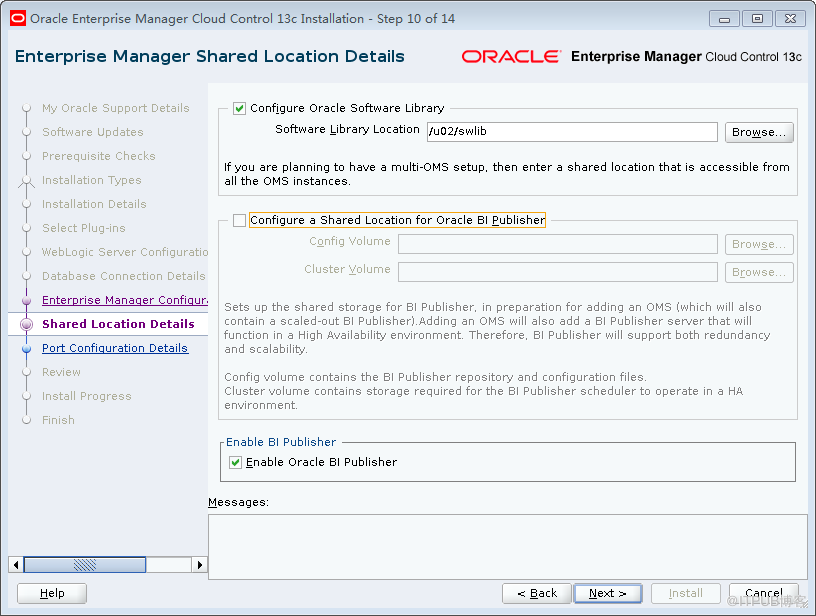

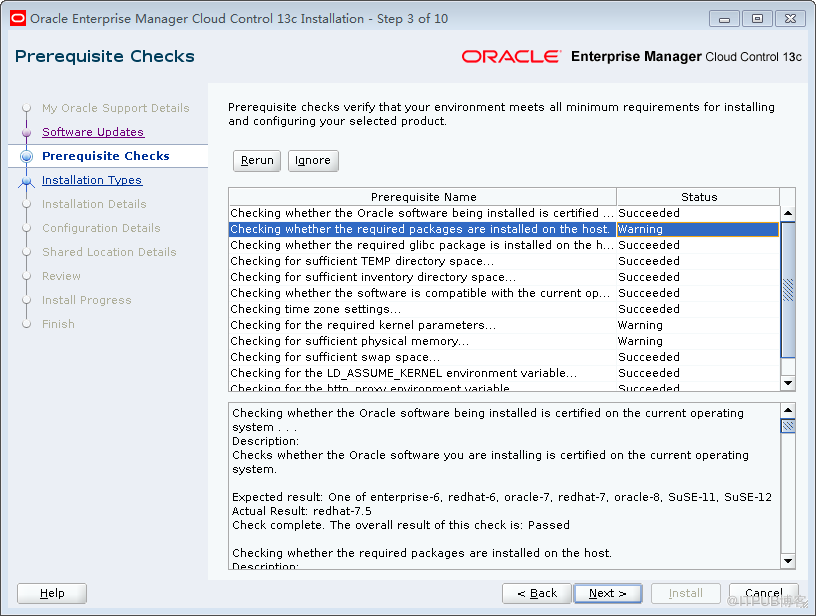

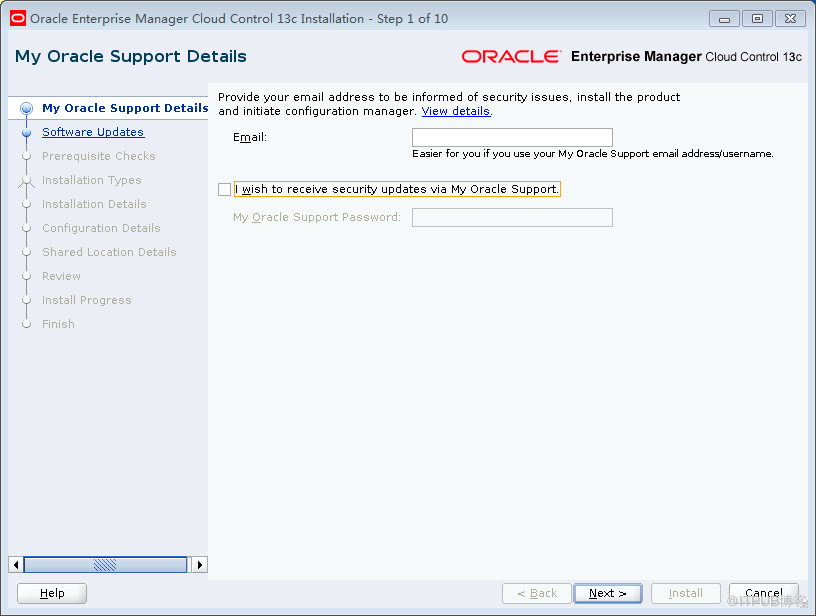

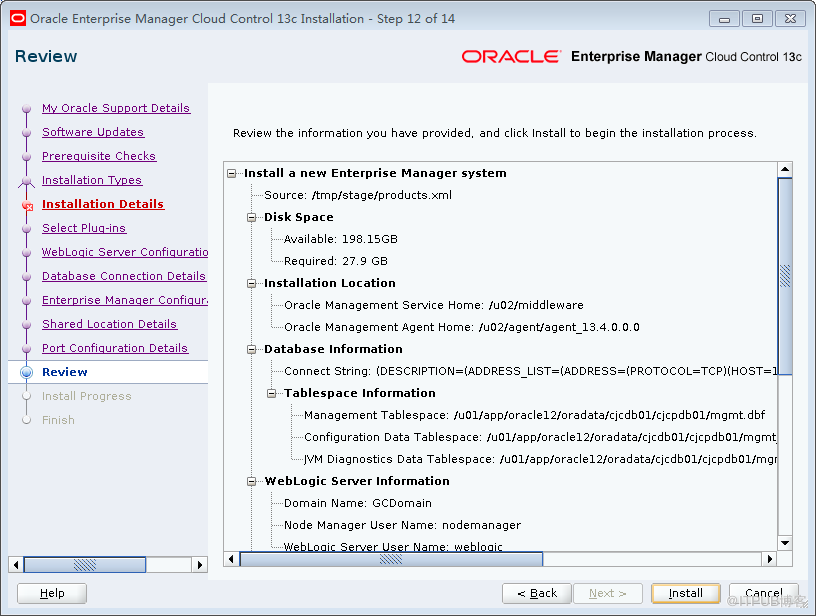

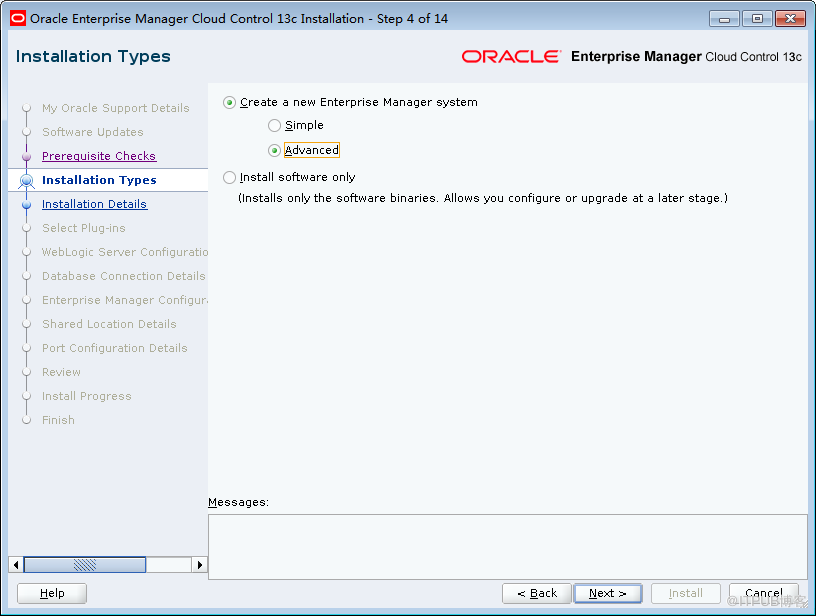

[oracle@cjcos emcc]$ ./em13400_linux64.bin

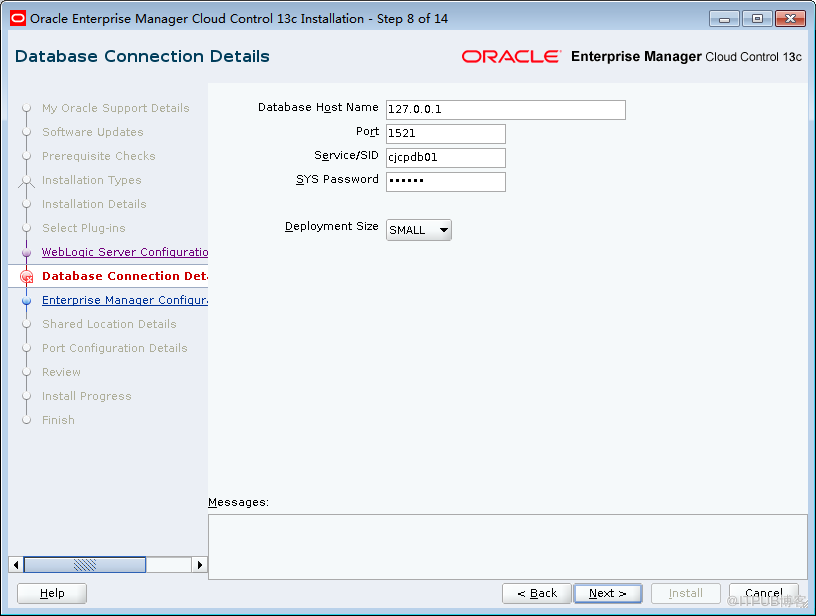

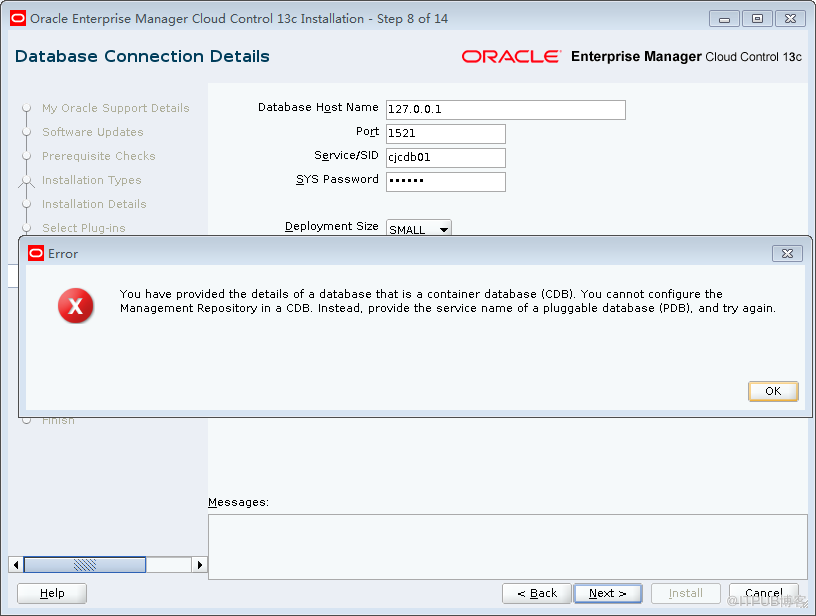

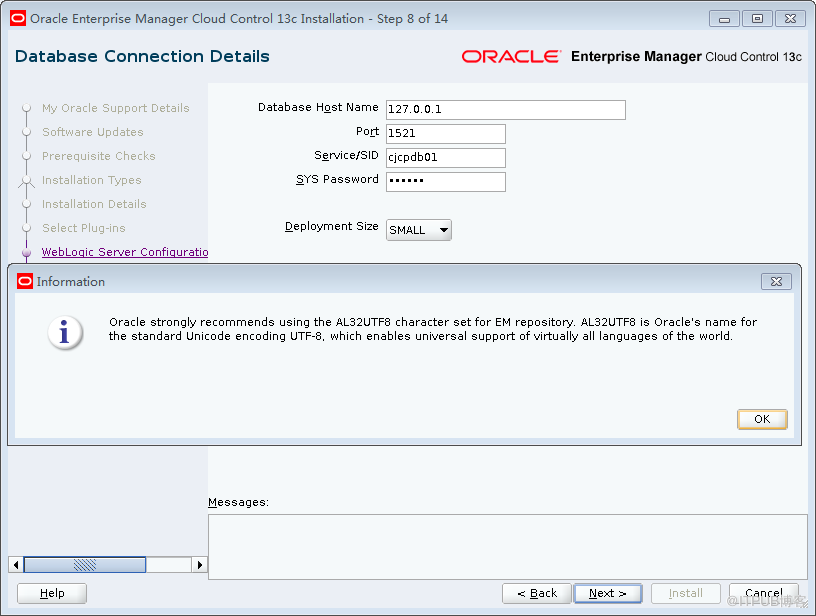

必须PDB

启动PDB

数据库

SQL> show pdbs

CON_ID CON_NAME

OPEN MODE  RESTRICTED

---------- ------------------------------ ---------- ----------

2 PDB$SEED

READ ONLY  NO

3 CJCPDB01

MOUNTED

4 CJCPDB02

MOUNTED

5 CJCPDB03

MOUNTED

6 CJCPDB04

MOUNTED

7 CJCPDB05

MOUNTED

8 CJCPDB06

MOUNTED

SQL> alter session set container=cjcpdb01;

SQL> startup

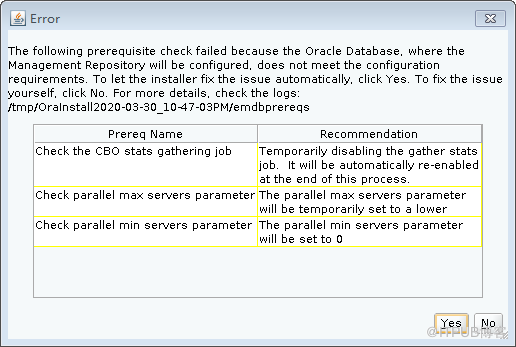

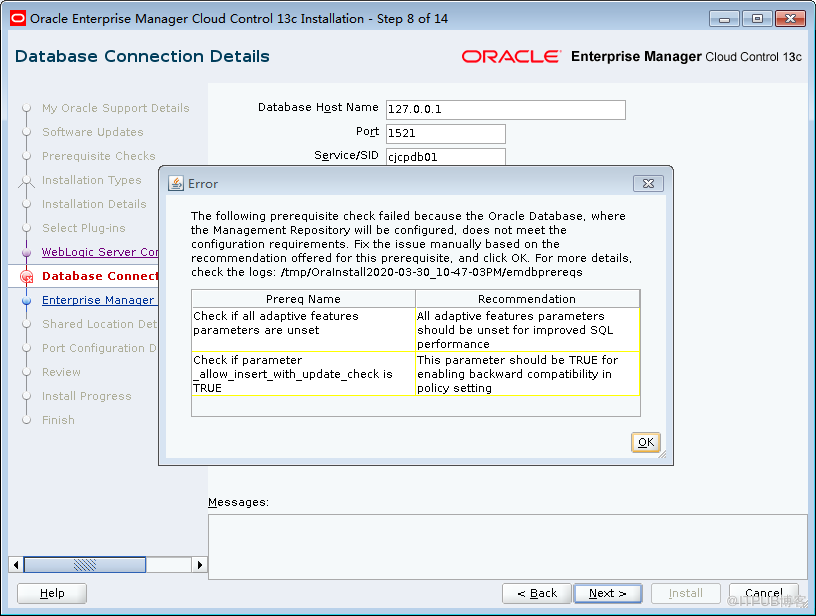

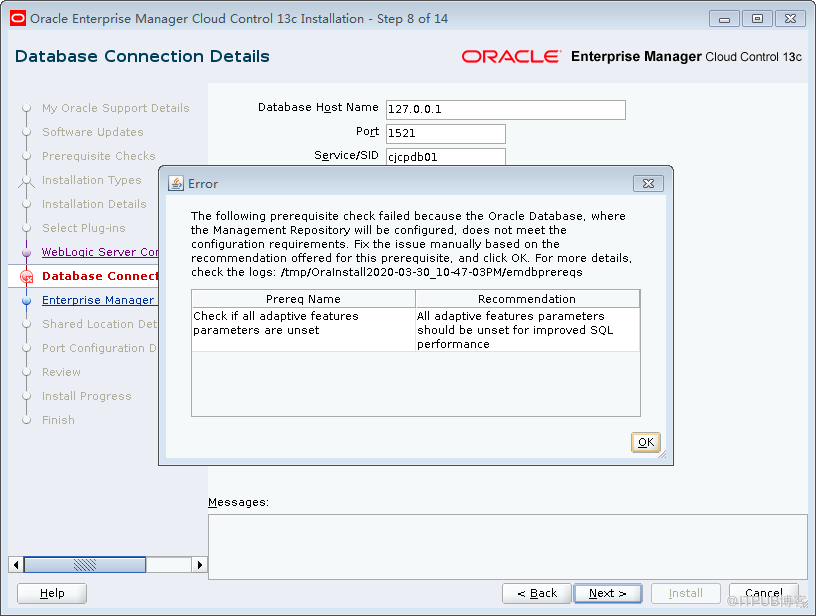

根据提示修改参数

SQL> alter system set "_allow_insert_with_update_check"=TRUE;

---

check if all adaptive features parameters are unset

alter system set "_optimizer_nlj_hj_adaptive_join"= FALSE scope=both ;

alter system set "_optimizer_strans_adaptive_pruning" = FALSE scope=both ;

alter system set "_px_adaptive_dist_method" = OFF scope=both ;

alter system set "_sql_plan_directive_mgmt_control" = 0 scope=both ;

alter system set "_optimizer_dsdir_usage_control" = 0 scope=both ;

alter system set "_optimizer_use_feedback" = FALSE scope=both ;

alter system set "_optimizer_gather_feedback" = FALSE scope=both ;

alter system set "_optimizer_performance_feedback" = OFF scope=both ;

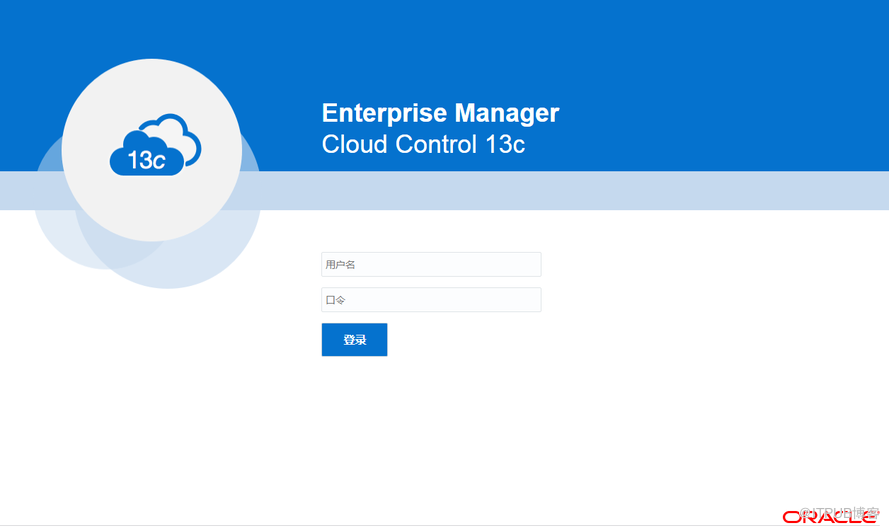

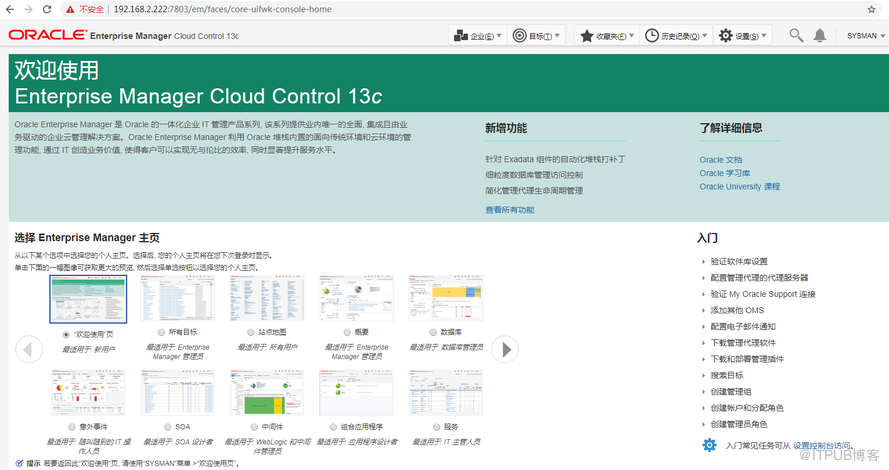

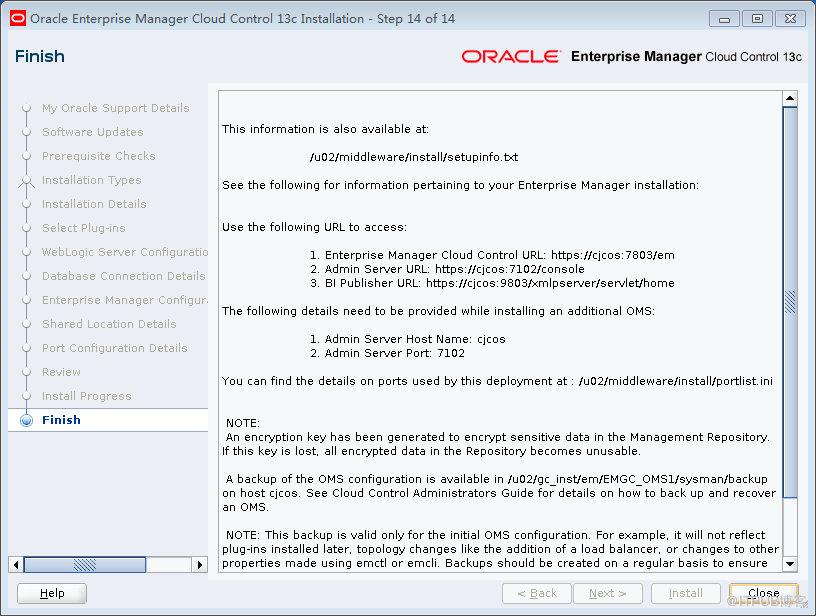

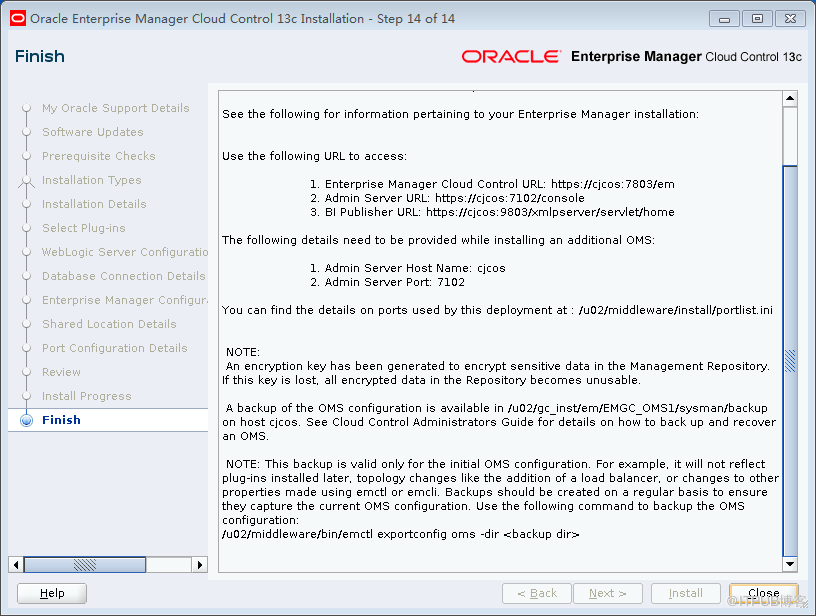

Use the following URL to access:

1. Enterprise Manager Cloud Control URL:

2. Admin Server URL:

3. BI Publisher URL:

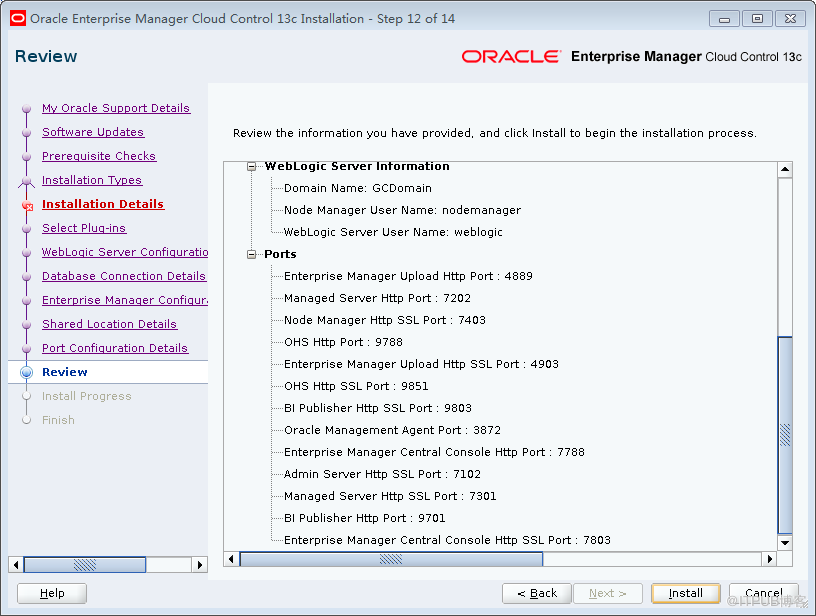

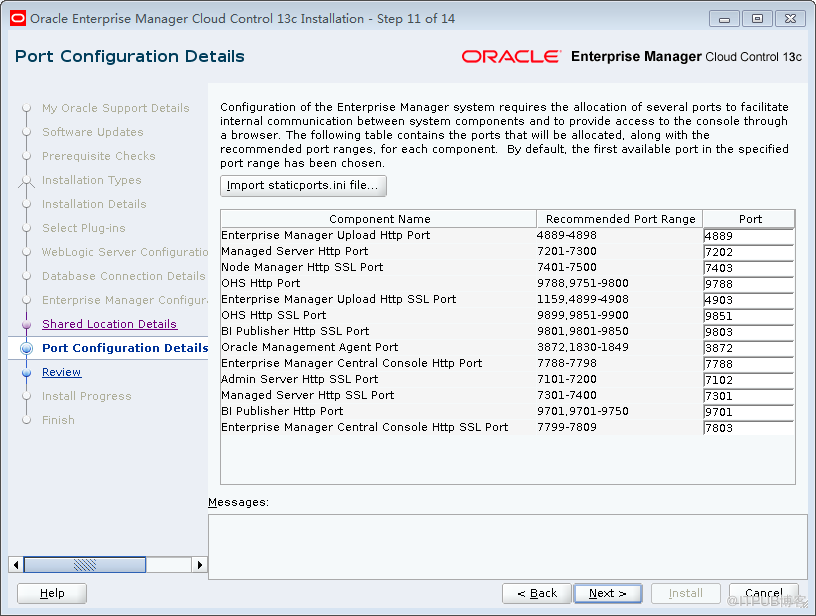

The following details need to be provided while installing an additional OMS:

1. Admin Server Host Name: cjcos

2. Admin Server Port: 7102

三：Oracle 19C+13.4EMCC常见组件

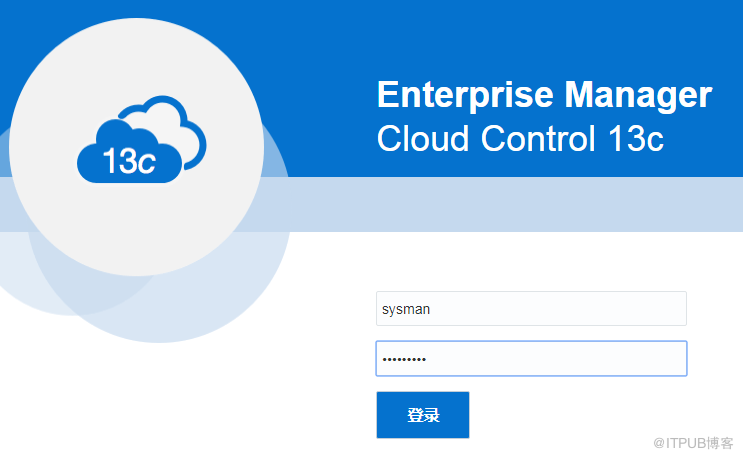

sysman/Oracle123

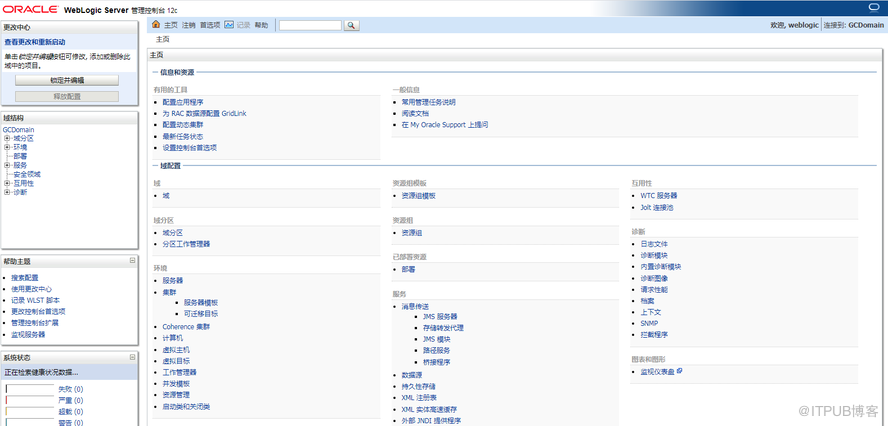

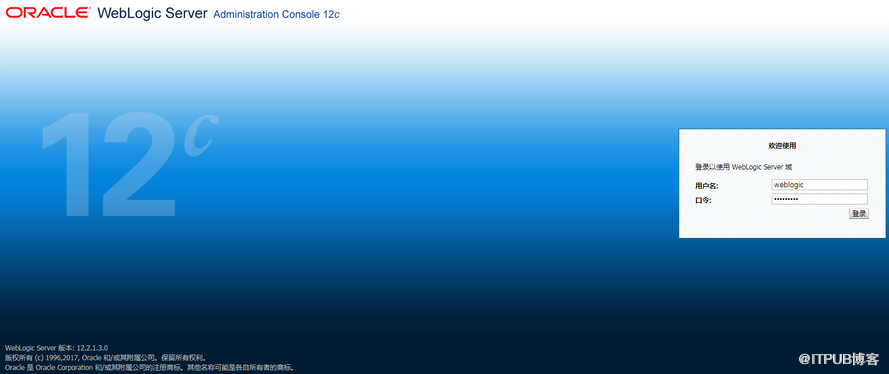

weblogic

控制台地址

:

https://192.168.2.222:7102/console

weblogic/Oracle123

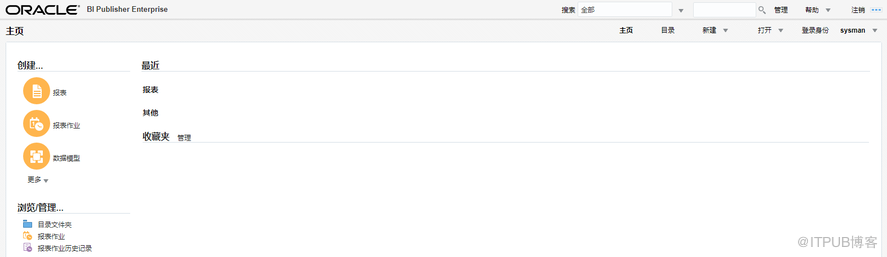

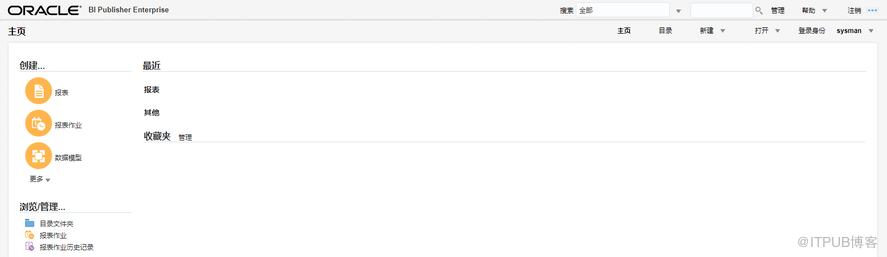

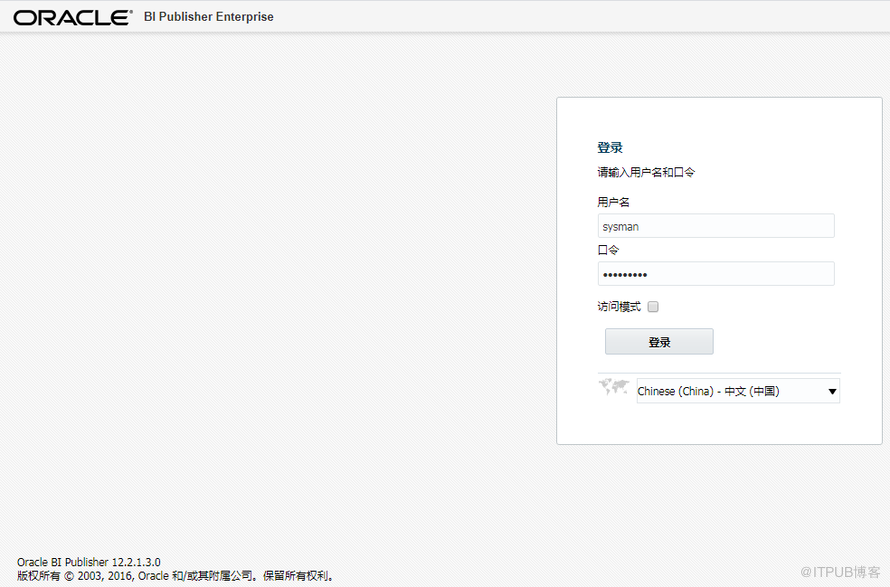

BI Publisher

地址

:

https://192.168.2.222:9803/xmlpserver/servlet/home

https://192.168.2.222:9851/xmlpserver/servlet/home

sysman/Oracle123

四：Oracle 19C+13.4EMCC常见命令

[oracle@cjcos ~]$ cd /u02/middleware/bin/

---

查看版本

[oracle@cjcos bin]$ ./emctl getversion oms

Oracle Enterprise Manager Cloud Control 13c Release 4

Copyright (c) 1996, 2020 Oracle Corporation.  All rights reserved.

Oracle Enterprise Manager Cloud Control OMS 13c Release 4

---

查看

OMS

状态

[oracle@cjcos bin]$ ./emctl status oms

Oracle Enterprise Manager Cloud Control 13c Release 4

Copyright (c) 1996, 2020 Oracle Corporation.  All rights reserved.

WebTier is Up

Oracle Management Server is Up

JVMD Engine is Up

BI Publisher Server is Up

---

查看

OMS

详细信息

[oracle@cjcos bin]$ ./emctl status oms -details

Oracle Enterprise Manager Cloud Control 13c Release 4

Copyright (c) 1996, 2020 Oracle Corporation.  All rights reserved.

Enter Enterprise Manager Root (SYSMAN) Password :

Console Server Host        : cjcos

HTTP Console Port          : 7788

HTTPS Console Port         : 7803

HTTP Upload Port           : 4889

HTTPS Upload Port          : 4903

EM Instance Home           : /u02/gc_inst/em/EMGC_OMS1

OMS Log Directory Location : /u02/gc_inst/em/EMGC_OMS1/sysman/log

OMS is not configured with SLB or virtual hostname

Agent Upload is locked.

OMS Console is locked.

Active CA ID: 1

Console URL:

Upload URL:

WLS Domain Information

Domain Name            : GCDomain

Admin Server Host      : cjcos

Admin Server HTTPS Port: 7102

Admin Server is RUNNING

Oracle Management Server Information

Managed Server Instance Name: EMGC_OMS1

Oracle Management Server Instance Host: cjcos

WebTier is Up

Oracle Management Server is Up

JVMD Engine is Up

BI Publisher Server Information

BI Publisher Managed Server Name: BIP

BI Publisher Server is Up

BI Publisher HTTP Managed Server Port   : 9701

BI Publisher HTTPS Managed Server Port  : 9803

BI Publisher HTTP OHS Port              : 9788

BI Publisher HTTPS OHS Port             : 9851

BI Publisher is locked.

BI Publisher Server named 'BIP' running at URL:

BI Publisher Server Logs: /u02/gc_inst/user_projects/domains/GCDomain/servers/BIP/logs/

BI Publisher Log        : /u02/gc_inst/user_projects/domains/GCDomain/servers/BIP/logs/bipublisher/bipublisher.log

---

查看属性

[oracle@cjcos bin]$ ./emctl list properties

Oracle Enterprise Manager Cloud Control 13c Release 4

Copyright (c) 1996, 2020 Oracle Corporation.  All rights reserved.

SYSMAN password:

Property Details

Management Server : cjcos:4889_Management_Service

Module = EMOMS

JAVA_EM_ARGS=

JAVA_EM_MEM_ARGS=

JBO_LAZY_LOAD=true

......

---OMS

停启

./emctl stop oms

./emctl start oms

---

配置文件：

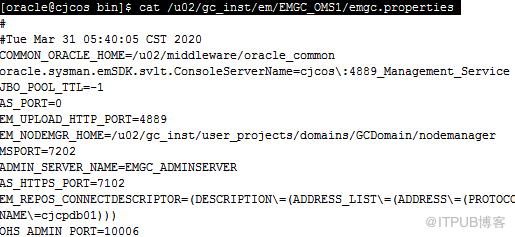

[oracle@cjcos bin]$ cat /u02/gc_inst/em/EMGC_OMS1/emgc.properties

……

---

查看agent

版本

[oracle@cjcos bin]$ cd /u02/agent/agent_13.4.0.0.0/bin/

[oracle@cjcos bin]$ ./emctl getversion agent

Oracle Enterprise Manager Cloud Control 13c Release 4

Copyright (c) 1996, 2020 Oracle Corporation.  All rights reserved.

Oracle Enterprise Manager Cloud Control Agent 13c Release 4

---

查看agent

状态

[oracle@cjcos bin]$ ./emctl status agent

Oracle Enterprise Manager Cloud Control 13c Release 4

Copyright (c) 1996, 2020 Oracle Corporation.  All rights reserved.

---------------------------------------------------------------

Agent Version          : 13.4.0.0.0

OMS Version            : 13.4.0.0.0

Protocol Version       : 12.1.0.1.0

Agent Home             : /u02/agent/agent_inst

Agent Log Directory    : /u02/agent/agent_inst/sysman/log

Agent Binaries         : /u02/agent/agent_13.4.0.0.0

Core JAR Location      : /u02/agent/agent_13.4.0.0.0/jlib

Agent Process ID       : 30994

Parent Process ID      : 30919

Agent URL              :

Local Agent URL in NAT :

Repository URL         :

Started at             : 2020-03-31 05:51:48

Started by user        : oracle

Operating System       : Linux version 4.1.12-112.16.4.el7uek.x86_64 (amd64)

Number of Targets      : 53

Last Reload            : (none)

Last successful upload                       : 2020-03-31 08:34:22

Last attempted upload                        : 2020-03-31 08:34:22

Total Megabytes of XML files uploaded so far : 2.48

Number of XML files pending upload           : 0

Size of XML files pending upload(MB)         : 0

Available disk space on upload filesystem    : 60.51%

Collection Status                            : Collections enabled

Heartbeat Status                             : Ok

Last attempted heartbeat to OMS              : 2020-03-31 08:35:11

Last successful heartbeat to OMS             : 2020-03-31 08:35:11

Next scheduled heartbeat to OMS              : 2020-03-31 08:36:11

---------------------------------------------------------------

Agent is Running and Ready

---

停启

agent

./emctl stop agent

./emctl start agent

---

测试agent

和

OMS

连通性

[oracle@cjcos bin]$ ./emctl pingOMS

Oracle Enterprise Manager Cloud Control 13c Release 4

Copyright (c) 1996, 2020 Oracle Corporation.  All rights reserved.

---------------------------------------------------------------

EMD pingOMS completed successfully

---

上传agent

到服务端

[oracle@cjcos bin]$ ./emctl upload agent

Oracle Enterprise Manager Cloud Control 13c Release 4

Copyright (c) 1996, 2020 Oracle Corporation.  All rights reserved.

---------------------------------------------------------------

EMD upload completed successfully

---

停止云控制及其所有组件

执行路径：cd /u02/middleware/bin/

./emctl stop oms -all
