Platform_driver 这个结构体包含 Probe()、 Remove()等函数来完成驱动的填充。

b)设备的注册：

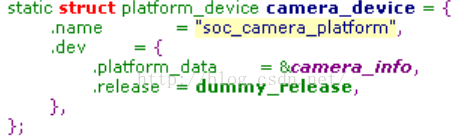

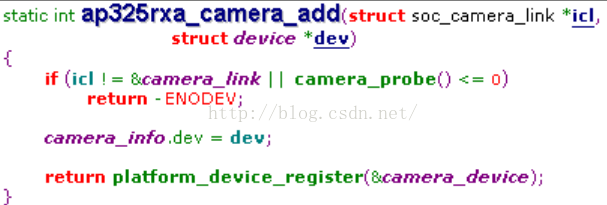

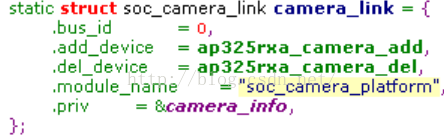

对 platform_device 的定义通常在 BSP 的板级文件( kernel\arch\sh\boards\mach-ap325rxa\Setup.c)中实现，在板级文件中，将 platform_device归纳为一个数组，最终通过 platform_add_device()函数统一注册：

c)总线的匹配：

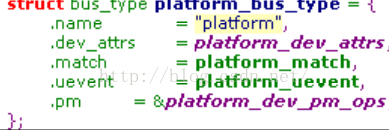

既然是驱动 Platform_device 那对应的设备必然是挂载 Platform 总线上的Platform_device， Platform 总线是 Linux 系统提供的一种机制，不同于 I2C、 I2S 等总线，它是一种虚拟的总线。Linux 系统为 Platform 总线定义了一个 bus_type 的实例 Platform_bus_type：( Kernel\drivers\base\platform.c)

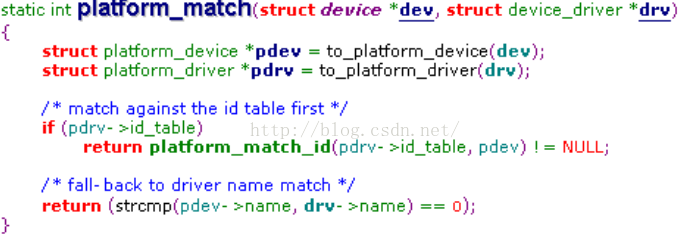

Platform 总线通过 platform_match 这个成员函数来确定 platform_device 与 platform_driver 如

何进行匹配：

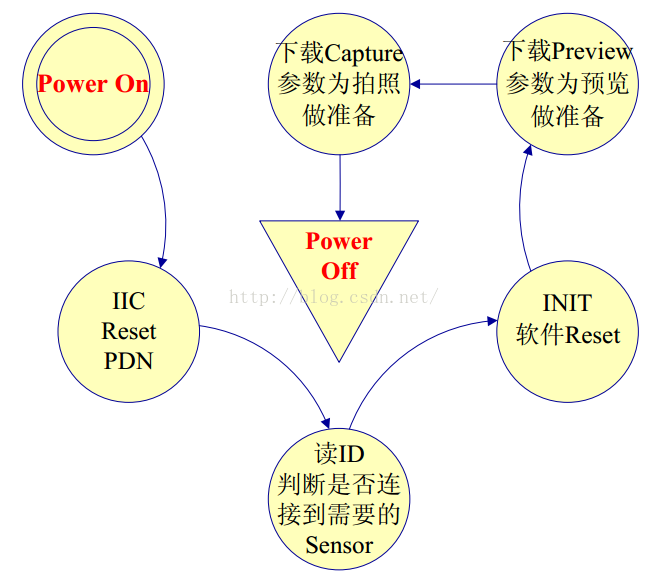

Camera驱动工作流程：

从上图可以清晰的了解到 Camera 的一个工作流程主要分为这么七步：

1. 打开 Camera Power LDO，让 Camera 有能量保证。

2. 打开 IIC，设置 PDN 引脚，使 Camera 退出出 Standby 模式，按照要求让 Reset 脚做一个复位动作。

3. 读一下 sensor 的版本 ID，这样可以让你确认是否连接上你想要的 sensor。

4. 对 Sensor 进行初始化下载最基本的参数让 Sensor 工作起来，可能包括软复位。

5. 下载 preview 的参数，为预览动作准备。

6. 下载 Capture 的参数，为拍照动作准备。

7. 设置 PDN 引脚,使 Sensor 进入 Standby 模式，或者关掉 LDO 等动作，退出 Camera。

我们都知道， Linux 内核是通过模块的机制来加载设备驱动的，那么接下来我们就从设备模块加载的角度来看下 Camera 工作流程的驱动代码是如何工作的。在-alps\mediatek\custom\common\kernel\imgsensor\src\kd_sensorlist.c 中可以看到：

module_init(CAMERA_HW_i2C_init);

module_exit(CAMERA_HW_i2C_exit);

在这里 Linux 内核加载和卸载 Camera 模块

static struct platform_driver g_stCAMERA_HW_Driver = {

.probe = CAMERA_HW_probe,

.remove = CAMERA_HW_remove,

.suspend = CAMERA_HW_suspend,

.resume = CAMERA_HW_resume,

.driver = {

.name = "image_sensor",

.owner = THIS_MODULE,

}

};Camera 模块初始化开始向总线注册驱动，在 Platform_driver 的成员函数.probe()中，通过 i2c_add_driver(&CAMERA_HW_i2c_driver)向 I2C 申请，而 CAMERA_HW_i2c_driver 这个结构体里填充的是将 Camera 作为一个字符设备在 I2C 上进行注册：

struct i2c_driver CAMERA_HW_i2c_driver = {

.probe = CAMERA_HW_i2c_probe,

.remove = CAMERA_HW_i2c_remove,

.driver.name = CAMERA_HW_DRVNAME1,

.id_table = CAMERA_HW_i2c_id,

};

/*******************************************************************************

* i2c relative start

********************************************************************************/

/*******************************************************************************

* CAMERA_HW_i2c_probe

********************************************************************************/

static int CAMERA_HW_i2c_probe(struct i2c_client *client, const struct i2c_device_id *id)

{

int i4RetValue = 0;

PK_DBG("[CAMERA_HW] Attach I2C \n");

//get sensor i2c client

spin_lock(&kdsensor_drv_lock);

g_pstI2Cclient = client;

//set I2C clock rate

g_pstI2Cclient->timing = 300;//200k

spin_unlock(&kdsensor_drv_lock);

//Register char driver

i4RetValue = RegisterCAMERA_HWCharDrv();

if(i4RetValue){

PK_ERR("[CAMERA_HW] register char device failed!\n");

return i4RetValue;

}

//spin_lock_init(&g_CamHWLock);

PK_DBG("[CAMERA_HW] Attached!! \n");

return 0;

}

在 RegisterCAMERA_HWCharDrv() 中

cdev_init(g_pCAMERA_HW_CharDrv, &g_stCAMERA_HW_fops);对设备进行初始化，并将g_stCAMERA_HW_fops 这个文件操作函数作为上层对 Camera 设备操作的接口留给上层进行调用：

static const struct file_operations g_stCAMERA_HW_fops =

{

.owner = THIS_MODULE,

.open = CAMERA_HW_Open,

.release = CAMERA_HW_Release,

.unlocked_ioctl = CAMERA_HW_Ioctl

};

其中成员函数 open()只是初始化一个原子变量留给系统调用。 ioctl()才是整个 Camera驱动的入口：CAMERA_HW_Ioctl()是上层文件操作系统操作底层硬件的方法，它先对 Camera 需要的Buffer 做一个初始化，然后建立对 Cameraopen、 getinfo 等操作的接口：

/*******************************************************************************

* CAMERA_HW_Ioctl

********************************************************************************/

static long CAMERA_HW_Ioctl(

struct file * a_pstFile,

unsigned int a_u4Command,

unsigned long a_u4Param

)

{

int i4RetValue = 0;

void * pBuff = NULL;

u32 *pIdx = NULL;

mutex_lock(&kdCam_Mutex);

if(_IOC_NONE == _IOC_DIR(a_u4Command)) {

}

else {

pBuff = kmalloc(_IOC_SIZE(a_u4Command),GFP_KERNEL);

if(NULL == pBuff) {

PK_DBG("[CAMERA SENSOR] ioctl allocate mem failed\n");

i4RetValue = -ENOMEM;

goto CAMERA_HW_Ioctl_EXIT;

}

if(_IOC_WRITE & _IOC_DIR(a_u4Command)){

if(copy_from_user(pBuff , (void *) a_u4Param, _IOC_SIZE(a_u4Command))) {

kfree(pBuff);

PK_DBG("[CAMERA SENSOR] ioctl copy from user failed\n");

i4RetValue = -EFAULT;

goto CAMERA_HW_Ioctl_EXIT;

}

pIdx = (u32*)pBuff;

switch(a_u4Command) {

#if 0

case KDIMGSENSORIOC_X_POWER_ON:

i4RetValue = kdModulePowerOn((CAMERA_DUAL_CAMERA_SENSOR_ENUM) *pIdx, true, CAMERA_HW_DRVNAME);

break;

case KDIMGSENSORIOC_X_POWER_OFF:

i4RetValue = kdModulePowerOn((CAMERA_DUAL_CAMERA_SENSOR_ENUM) *pIdx, false, CAMERA_HW_DRVNAME);

break;

#endif

case KDIMGSENSORIOC_X_SET_DRIVER:

i4RetValue = kdSetDriver((unsigned int*)pBuff);

break;

case KDIMGSENSORIOC_T_OPEN:

i4RetValue = adopt_CAMERA_HW_Open();

break;

case KDIMGSENSORIOC_X_GETINFO:

i4RetValue = adopt_CAMERA_HW_GetInfo(pBuff);

break;

case KDIMGSENSORIOC_X_GETRESOLUTION:

i4RetValue = adopt_CAMERA_HW_GetResolution(pBuff);

break;

case KDIMGSENSORIOC_X_FEATURECONCTROL:

i4RetValue = adopt_CAMERA_HW_FeatureControl(pBuff);

break;

case KDIMGSENSORIOC_X_CONTROL:

i4RetValue = adopt_CAMERA_HW_Control(pBuff);

break;

case KDIMGSENSORIOC_T_CLOSE:

i4RetValue = adopt_CAMERA_HW_Close();

break;

case KDIMGSENSORIOC_T_CHECK_IS_ALIVE:

i4RetValue = adopt_CAMERA_HW_CheckIsAlive();

break;

case KDIMGSENSORIOC_X_GET_SOCKET_POS:

i4RetValue = kdGetSocketPostion((unsigned int*)pBuff);

break;

case KDIMGSENSORIOC_X_SET_I2CBUS:

//i4RetValue = kdSetI2CBusNum(*pIdx);

break;

case KDIMGSENSORIOC_X_RELEASE_I2C_TRIGGER_LOCK:

//i4RetValue = kdReleaseI2CTriggerLock();

break;

default :

PK_DBG("No such command \n");

i4RetValue = -EPERM;

break;

}

if(_IOC_READ & _IOC_DIR(a_u4Command)) {

if(copy_to_user((void __user *) a_u4Param , pBuff , _IOC_SIZE(a_u4Command))) {

kfree(pBuff);

PK_DBG("[CAMERA SENSOR] ioctl copy to user failed\n");

i4RetValue = -EFAULT;

goto CAMERA_HW_Ioctl_EXIT;

}

kfree(pBuff);

CAMERA_HW_Ioctl_EXIT:

mutex_unlock(&kdCam_Mutex);

return i4RetValue;

}

通过判断 Sensor 状态的逻辑值来进行具体的操作，对于这个值的定义在：

Mediatek\custom\common\kernel\imgsensor\inc\Kd_imgsensor.h 中

//sensorOpen

//This command will TBD

#define KDIMGSENSORIOC_T_OPEN _IO(IMGSENSORMAGIC,0)

//sensorGetInfo

//This command will TBD

#define KDIMGSENSORIOC_X_GETINFO _IOWR(IMGSENSORMAGIC,5,ACDK_SENSOR_GETINFO_STRUCT)

//sensorGetResolution

//This command will TBD

#define KDIMGSENSORIOC_X_GETRESOLUTION _IOWR(IMGSENSORMAGIC,10,ACDK_SENSOR_RESOLUTION_INFO_STRUCT)

//sensorFeatureControl

//This command will TBD

#define KDIMGSENSORIOC_X_FEATURECONCTROL _IOWR(IMGSENSORMAGIC,15,ACDK_SENSOR_FEATURECONTROL_STRUCT)

//sensorControl

//This command will TBD

#define KDIMGSENSORIOC_X_CONTROL _IOWR(IMGSENSORMAGIC,20,ACDK_SENSOR_CONTROL_STRUCT)

//sensorClose

//This command will TBD

#define KDIMGSENSORIOC_T_CLOSE _IO(IMGSENSORMAGIC,25)

//sensorSearch

#define KDIMGSENSORIOC_T_CHECK_IS_ALIVE _IO(IMGSENSORMAGIC, 30)

//set sensor driver

#define KDIMGSENSORIOC_X_SET_DRIVER _IOWR(IMGSENSORMAGIC,35,SENSOR_DRIVER_INDEX_STRUCT)

//get socket postion

#define KDIMGSENSORIOC_X_GET_SOCKET_POS _IOWR(IMGSENSORMAGIC,40,u32)

//set I2C bus

#define KDIMGSENSORIOC_X_SET_I2CBUS _IOWR(IMGSENSORMAGIC,45,u32)

//set I2C bus

#define KDIMGSENSORIOC_X_RELEASE_I2C_TRIGGER_LOCK _IO(IMGSENSORMAGIC,50)

//Set Shutter Gain Wait Done

#define KDIMGSENSORIOC_X_SET_SHUTTER_GAIN_WAIT_DONE _IOWR(IMGSENSORMAGIC,55,u32)//HDR

//set mclk

#define KDIMGSENSORIOC_X_SET_MCLK_PLL _IOWR(IMGSENSORMAGIC,60,ACDK_SENSOR_MCLK_STRUCT)

在 KdSetDriver()中通过判断 name 和 ID 匹配具体型号的 sensor 的驱动，判断它是主摄还

是次摄，并对它进行初始化：

/*******************************************************************************

* kdSetDriver

********************************************************************************/

int kdSetDriver(unsigned int* pDrvIndex)

{

ACDK_KD_SENSOR_INIT_FUNCTION_STRUCT *pSensorList = NULL;

u32 drvIdx[KDIMGSENSOR_MAX_INVOKE_DRIVERS] = {0,0};

u32 i;

PK_XLOG_INFO("pDrvIndex:0x%08x/0x%08x \n",pDrvIndex[KDIMGSENSOR_INVOKE_DRIVER_0],pDrvIndex[KDIMGSENSOR_INVOKE_DRIVER_1]);

//set driver for MAIN or SUB sensor

if (0 != kdGetSensorInitFuncList(&pSensorList))

{

PK_ERR("ERROR:kdGetSensorInitFuncList()\n");

return -EIO;

}

for ( i = KDIMGSENSOR_INVOKE_DRIVER_0; i < KDIMGSENSOR_MAX_INVOKE_DRIVERS ; i++ ) {

spin_lock(&kdsensor_drv_lock);

g_bEnableDriver[i] = FALSE;

g_invokeSocketIdx[i] = (CAMERA_DUAL_CAMERA_SENSOR_ENUM)((pDrvIndex[i] & KDIMGSENSOR_DUAL_MASK_MSB)>>KDIMGSENSOR_DUAL_SHIFT);

spin_unlock(&kdsensor_drv_lock);

drvIdx[i] = (pDrvIndex[i] & KDIMGSENSOR_DUAL_MASK_LSB);

if ( DUAL_CAMERA_NONE_SENSOR == g_invokeSocketIdx[i] ) { continue; }

/*if( DUAL_CAMERA_MAIN_2_SENSOR == g_invokeSocketIdx[i] ) {

spin_lock(&kdsensor_drv_lock);

gI2CBusNum = SUPPORT_I2C_BUS_NUM2;

spin_unlock(&kdsensor_drv_lock);

PK_XLOG_INFO("kdSetDriver: switch I2C BUS2\n");

}

else {

spin_lock(&kdsensor_drv_lock);

gI2CBusNum = SUPPORT_I2C_BUS_NUM1;

spin_unlock(&kdsensor_drv_lock);

PK_XLOG_INFO("kdSetDriver: switch I2C BUS1\n");

}*/

//ToDo: remove print information

PK_XLOG_INFO("[kdSetDriver] i,g_invokeSocketIdx[%d] = %d :\n",i,i,drvIdx[i]);

PK_XLOG_INFO("[kdSetDriver] i,drvIdx[%d] = %d :\n",i,i,drvIdx[i]);

if ( MAX_NUM_OF_SUPPORT_SENSOR > drvIdx[i] ) {

if (NULL == pSensorList[drvIdx[i]].SensorInit) {

PK_ERR("ERROR:kdSetDriver()\n");

return -EIO;

}

pSensorList[drvIdx[i]].SensorInit(&g_pInvokeSensorFunc[i]);

if (NULL == g_pInvokeSensorFunc[i]) {

PK_ERR("ERROR:NULL g_pSensorFunc[%d]\n",i);

return -EIO;

}

spin_lock(&kdsensor_drv_lock);

g_bEnableDriver[i] = TRUE;

g_CurrentInvokeCam = g_invokeSocketIdx[i];

spin_unlock(&kdsensor_drv_lock);

//get sensor name

memcpy((char*)g_invokeSensorNameStr[i],(char*)pSensorList[drvIdx[i]].drvname,sizeof(pSensorList[drvIdx[i]].drvname));

//return sensor ID

//pDrvIndex[0] = (unsigned int)pSensorList[drvIdx].SensorId;

PK_XLOG_INFO("[kdSetDriver] :[%d][%d][%d][%s][%d]\n",i,g_bEnableDriver[i],g_invokeSocketIdx[i],g_invokeSensorNameStr[i],sizeof(pSensorList[drvIdx[i]].drvname));

}

return 0;

}

typedef struct

{

MUINT32 SensorId;

MUINT8 drvname[32];

MUINT32 (* SensorInit)(PSENSOR_FUNCTION_STRUCT *pfFunc);

} ACDK_KD_SENSOR_INIT_FUNCTION_STRUCT, *PACDK_KD_SENSOR_INIT_FUNCTION_STRUCT;

通过 NAME 和 ID 匹配完成后会将 PSENSOR_FUNCTION_STRUCT *pfFunc 这个结构体匹配到具体型号的驱动代码中：

SENSOR_FUNCTION_STRUCTSensorFuncGC0329YUV=

{
