springboot 整合 mqtt 实现消息订阅

消息发布参考：https://blog.youkuaiyun.com/weixin_42360600/article/details/123227626

1、准备环境

本地启动 Mqtt服务器

新建Springboot项目作为消费端

2、pom引入mqtt依赖

<!-- mqtt -->
<dependency>
    <groupId>org.springframework.integration</groupId>
    <artifactId>spring-integration-stream</artifactId>
</dependency>
<dependency>
    <groupId>org.springframework.integration</groupId>
    <artifactId>spring-integration-mqtt</artifactId>
</dependency>

3、application.properties配置mqtt参数

server.port=8082
#MQTT配置信息
#MQTT-用户名
spring.mqtt.username=admin
#MQTT-密码
spring.mqtt.password=password
#MQTT-服务器连接地址，如果有多个，用逗号隔开，如：tcp://127.0.0.1:61613，tcp://47.123.33.66:61613
spring.mqtt.url=tcp://127.0.0.1:61613
#MQTT-连接服务器默认客户端ID
spring.mqtt.client.id=maqttReceive
#MQTT-默认的消息推送主题，实际可在调用接口时指定
spring.mqtt.default.topic=test
#timeout 链接超时时间
mqtt.connection.timeout=20
#keep alive
mqtt.keep.alive.interval=20

4、MqttClient 启动项目链接mqtt服务器，定义callback回调函数

@Component
@Slf4j
public class MqttClientUtil {
    @Value("${spring.mqtt.username}")
    private String username;
    @Value("${spring.mqtt.password}")
    private String password;
    @Value("${spring.mqtt.url}")
    private String host;
    @Value("${spring.mqtt.client.id}")
    private String clientId;
    @Value("${spring.mqtt.default.topic}")
    private String topic;
    @Value("${mqtt.connection.timeout}")
    private int timeOut;
    @Value("${mqtt.keep.alive.interval}")
    private int interval;

    @Autowired
    private MqttMessageCallback mqttMessageCallback;

    private MqttClient mqttClient;
    private MqttConnectOptions mqttConnectOptions;

    @PostConstruct
    private void init(){
        connect(host, clientId,topic);
    }

    /**
     * 链接mqtt
     * @param host
     * @param clientId
     */
    private void connect(String host,String clientId,String topic){
        try{
            mqttClient = new MqttClient(host,clientId,new MemoryPersistence());
            mqttConnectOptions = getMqttConnectOptions();
            //设置回调函数
            mqttClient.setCallback(mqttMessageCallback);
            //链接mqtt
            mqttClient.connect(mqttConnectOptions);
            //订阅消息
            mqttClient.subscribe(topic,2);
        }catch (Exception e){
            log.error("mqtt服务链接异常!");
            e.printStackTrace();
        }
    }

    /**
     * 设置链接对象信息
     * setCleanSession  true 断开链接即清楚会话  false 保留链接信息 离线还会继续发消息
     * @return
     */
    private MqttConnectOptions getMqttConnectOptions(){
        MqttConnectOptions mqttConnectOptions = new MqttConnectOptions();
        mqttConnectOptions.setUserName(username);
        mqttConnectOptions.setPassword(password.toCharArray());
        mqttConnectOptions.setServerURIs(new String[]{host});
        mqttConnectOptions.setKeepAliveInterval(interval);
        mqttConnectOptions.setConnectionTimeout(timeOut);
        mqttConnectOptions.setCleanSession(true);
        return mqttConnectOptions;
    }

    /**
     *mqtt链接状态
     * @return
     */
    private boolean isConnect(){
        if(Objects.isNull(this.mqttClient)){
            return false;
        }
        return mqttClient.isConnected();
    }

    /**
     * 设置重连
     * @throws Exception
     */
    private void reConnect() throws Exception{
        if(Objects.nonNull(this.mqttClient)){
            log.info("mqtt 服务已重新链接...");
            this.mqttClient.connect(this.mqttConnectOptions);
        }
    }

    /**
     * 断开链接
     * @throws Exception
     */
    private void closeConnect() throws Exception{
        if(Objects.nonNull(this.mqttClient)){
            log.info("mqtt 服务已断开链接...");
            this.mqttClient.disconnect();
        }
    }

    /**
     * 发布消息
     * @param topic
     * @param message
     * @param qos
     * @throws Exception
     */
    public void sendMessage(String topic,String message,int qos) throws Exception {
        if(Objects.nonNull(this.mqttClient) && this.mqttClient.isConnected()){
            MqttMessage mqttMessage = new MqttMessage();
            mqttMessage.setPayload(message.getBytes());
            mqttMessage.setQos(qos);

            MqttTopic mqttTopic = mqttClient.getTopic(topic);

            if(Objects.nonNull(mqttTopic)){
                try{
                    MqttDeliveryToken publish = mqttTopic.publish(mqttMessage);
                    if(publish.isComplete()){
                        log.info("消息发送成功---->{}",message);
                    }
                }catch(Exception e){
                    log.error("消息发送异常",e);
                }
            }
        }else{
            reConnect();
        }
    }


}

@Component
@Slf4j
public class MqttMessageCallback implements MqttCallback {
    /**
     * 链接丢失时处理
     * @param throwable
     */
    @Override
    public void connectionLost(Throwable throwable) {
        //可以做重连 或者 其他业务处理
    }

    @Override
    public void messageArrived(String topic, MqttMessage mqttMessage) throws Exception {
        log.info("接收到消息topic---->{}",topic);
        log.info("接收到消息质量qos---->{}",mqttMessage.getQos());
        log.info("接收到消息具体信息---->{}",new String(mqttMessage.getPayload()));
        //结合业务 编写具体信息即可
    }

    @Override
    public void deliveryComplete(IMqttDeliveryToken iMqttDeliveryToken) {

    }
}

5、测试

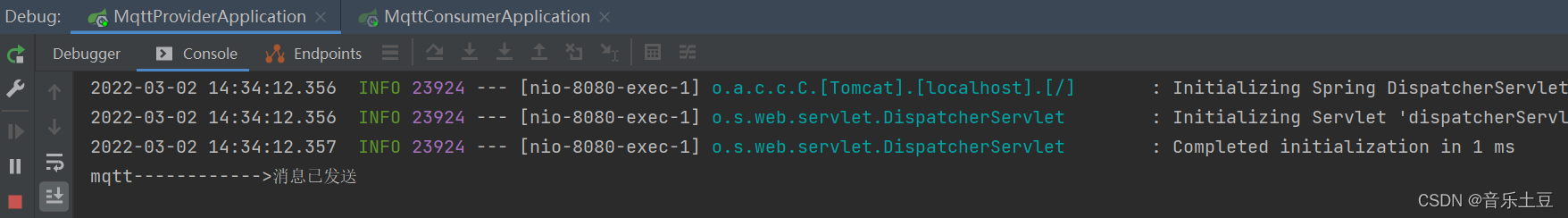

启动消息生产者服务，发布消息

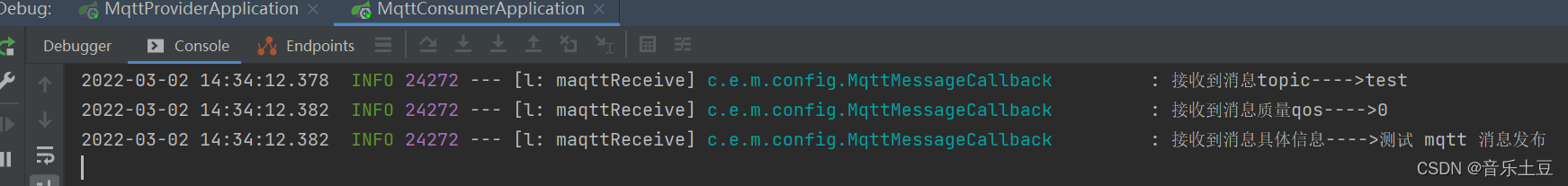

启动消息接收者服务，接收消息

注意：clientId 不要相同，topic要保持一致
