springMVC框架学习(2)-springmvc和mybatis整合

一，目的

为了更好的学习springmvc和mybatis，需要将springmvc和mybatis整合。控制层采用springmvc，持久层用mybatis实现。这里用做一个小案例，实现商品查询列表，在mysql数据库中取数据

二，整合思路

持久层：

1. sqlMapConfig.xml ，可以为空，可以不存在
2. applicationContext-dao.xml
   a).数据源
   b).sqlSessionFactory
   c).别名
   d).mapper扫描器

业务层：

1. applicationContext-service.xml
   a).事务
   b).包扫描 @Service

表现层：

1. springmvc.xml
   a).包扫描 @Controller
   b).注解驱动 < mvc:annotation-driven/>
   c).视图解析器

web.xml

1. 前端控制器：初始化springmvc容器
2. 监听器：初始化spring容器

三，项目搭建

1. 创建一个web工程，创建数据库
   用mysql创建一个数据库，里面有一个商品表

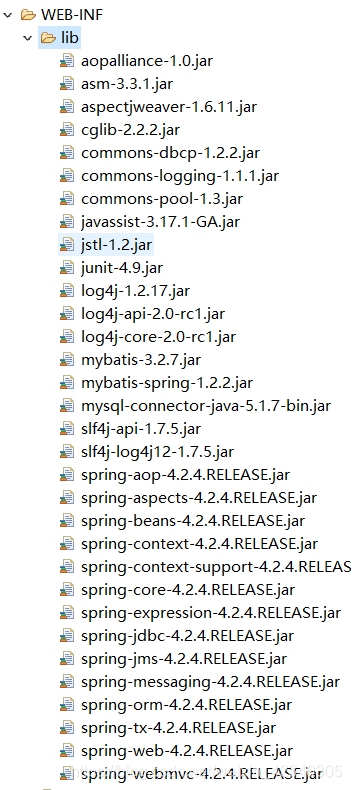

2. 添加jar：mybatis，mybatis拓展包，spring，mybatis和spring整合包、junit、springmvc

3. 配置文件

applicationContext-dao.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
	http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
	http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd
	http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-4.0.xsd">

	<!-- 加载配置文件 -->
	<context:property-placeholder location="classpath:jdbc.properties" />
	<!-- 数据库连接池 -->
	<bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource"
		destroy-method="close">
		<property name="driverClassName" value="${jdbc.driver}" />
		<property name="url" value="${jdbc.url}" />
		<property name="username" value="${jdbc.username}" />
		<property name="password" value="${jdbc.password}" />
		<property name="maxActive" value="10" />
		<property name="maxIdle" value="5" />
	</bean>
	<!-- mapper配置 -->
	<!-- 让spring管理sqlsessionfactory 使用mybatis和spring整合包中的 -->
	<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
		<!-- 数据库连接池 -->
		<property name="dataSource" ref="dataSource" />
		<!-- 配置别名 -->
		<property name="typeAliasesPackage" value="com.djc.ssm.pojo"></property>
	</bean>

	<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
		<property name="basePackage" value="com.djc.ssm.mapper"></property>
	</bean>

</beans>

jdbc.properties

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/springmvc?characterEncoding=utf-8
jdbc.username=root
jdbc.password=root

applicationContext-service.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
	http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
	http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd
	http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-4.0.xsd">
	<!--包扫描-->
	<context:component-scan base-package="com.djc.ssm.service"/>

    <!-- 事务管理器 -->
	<bean id="transactionManager"
		class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
		<!-- 数据源 -->
		<property name="dataSource" ref="dataSource" />
	</bean>
	<!-- 通知 -->
	<tx:advice id="txAdvice" transaction-manager="transactionManager">
		<tx:attributes>
			<!-- 传播行为 -->
			<tx:method name="save*" propagation="REQUIRED" />
			<tx:method name="insert*" propagation="REQUIRED" />
			<tx:method name="delete*" propagation="REQUIRED" />
			<tx:method name="update*" propagation="REQUIRED" />
			<tx:method name="find*" propagation="SUPPORTS" read-only="true" />
			<tx:method name="get*" propagation="SUPPORTS" read-only="true" />
		</tx:attributes>
	</tx:advice>
	<!-- 切面 -->
	<aop:config>
		<aop:advisor advice-ref="txAdvice"
			pointcut="execution(* com.djc.ssm.service.impl.*.*(..))" />
	</aop:config>
</beans>

springmvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.2.xsd
        http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.2.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.2.xsd">

       <context:component-scan base-package="com.djc.ssm.controller"></context:component-scan>

		<!--  注解驱动 目的：加载新版本的处理器映射器、处理器适配器-->
		 <mvc:annotation-driven/>

		 <!--  配置视图解析器的前缀和后缀 -->
		<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		 <property name="prefix" value="/WEB-INF/jsp/"></property>
		 <property name="suffix" value=".jsp"></property>
		</bean>
</beans>

web.xml

 <!-- 前端控制器 -->
  <servlet>
  	<servlet-name>springmvc</servlet-name>
  	<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
  	<init-param>
  		<param-name>contextConfigLocation</param-name>
  		<param-value>classpath:springmvc.xml</param-value>
  	</init-param>
  </servlet>
  <servlet-mapping>
  	<servlet-name>springmvc</servlet-name>
  	<url-pattern>*.action</url-pattern>
  </servlet-mapping>

  <!-- 监听器 -->
  <listener>
  	<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>
  <context-param>
  	<param-name>contextConfigLocation</param-name>
  	<param-value>classpath:applicationContext-*.xml</param-value>
  </context-param>

4. 持久层开发
   创建一个pojo类

public class Items {
    private Integer id;
    private String name;
    private Float price;
    private String pic;
    @DateTimeFormat(pattern="yyyy-MM-dd HH:mm:ss")
    private Date createtime;
    private String detail;
    //set/get方法...

ItemsMapper.java

package com.djc.ssm.mapper;
import java.util.List;
import com.djc.ssm.pojo.Items;

public interface ItemsMapper {
	public List<Items> findAll();
}

ItemsMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.djc.ssm.mapper.ItemsMapper">
	<select id="findAll" resultType="items" >
	 	SELECT * FROM items
	</select>
</mapper>

5. 业务层开发
   ItemsService接口

public interface ItemsService {
	public List<Items> findAll();
}

ItemsServiceImpl实现类

@Service
public class ItemsServiceImpl implements ItemsService {
	@Autowired
	private ItemsMapper itemsMapper;
	@Override
	public List<Items> findAll() {
		// TODO Auto-generated method stub
		return itemsMapper.findAll();
	}
}

6. 表现层开发
   添加jsp页面,下面是部分代码

<tr>
	<td>商品名称</td>
	<td>商品价格</td>
	<td>生产日期</td>
	<td>商品描述</td>
	<td>操作</td>
</tr>
<c:forEach items="${itemList }" var="item">
<tr>
	<td>${item.name }</td>
	<td>${item.price }</td>
	<td><fmt:formatDate value="${item.createtime}" pattern="yyyy-MM-dd HH:mm:ss"/></td>
	<td>${item.detail }</td>

	<td><a href="${pageContext.request.contextPath }/itemEdit.action?id=${item.id}">修改</a></td>

</tr>
</c:forEach>

ItemsController.java

@Controller
public class ItemsController {
	@Autowired
	private ItemsService itemsService;
	@RequestMapping("/list")
	public ModelAndView showList() {
		List<Items> list = itemsService.findAll();
		ModelAndView modelAndView = new ModelAndView();
		modelAndView.addObject("itemList", list);
		modelAndView.setViewName("itemList");
		return modelAndView;
	}
}

7. 测试
   浏览器访问项目地址：http://localhost:8080/springmvc02-mybatis/list.action

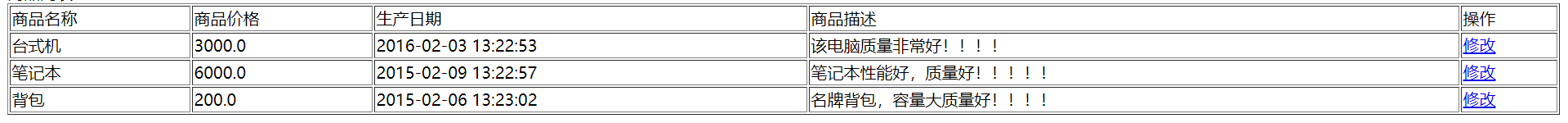

   测试结果
