使用Minikube部署单节点k8s集群

他是运行kubernetes集群最简单、最快捷的途径 ，对于测试kubernets和本地开发应用非常有用。

官网：https://minikube.sigs.k8s.io/docs/

centos：CentOS Linux release 8.5.2111

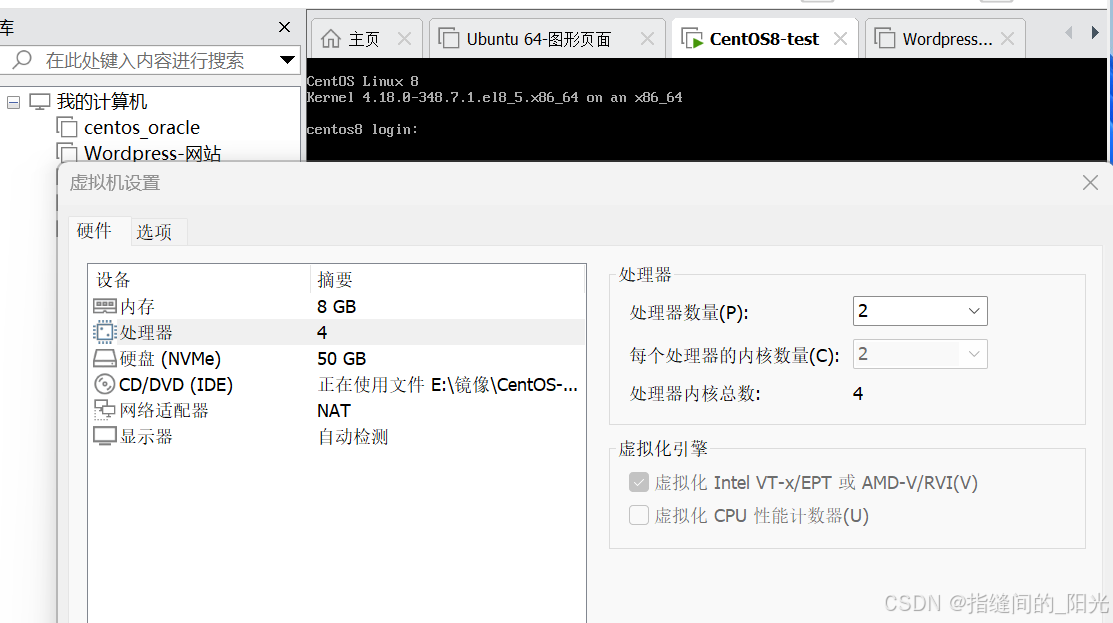

必须要开启虚拟化

1、安装minikube

# 关闭防火墙
systemctl stop firewalld && systemctl disable firewalld
setenforce 0

curl -LO https://storage.googleapis.com/minikube/releases/latest/minikube-linux-amd64
sudo install minikube-linux-amd64 /usr/local/bin/minikube

2、下载安装 kubectl

# 安装最新版：
sudo curl -LO https://storage.googleapis.com/kubernetes-release/release/$(curl -s https://storage.googleapis.com/kubernetes-release/release/stable.txt)/bin/linux/amd64/kubectl
sudo chmod +x kubectl
sudo mv kubectl /usr/local/bin/

# 浏览器获取最新版本：
https://storage.googleapis.com/kubernetes-release/release/stable.txt
https://storage.googleapis.com/kubernetes-release/release/v1.31.0/bin/linux/amd64/kubectl

3、安装依赖

minikube需要VirtualBox环境

下载地址：https://download.virtualbox.org/virtualbox/7.1.4/

# rpm安装方式：
wget https://download.virtualbox.org/virtualbox/7.1.4/VirtualBox-7.1-7.1.4_165100_el8-1.x86_64.rpm
sudo rpm -ivh VirtualBox-7.1-7.1.4_165100_el8-1.x86_64.rpm


# virtualbox源安装
sudo curl -o /etc/yum.repos.d/virtualbox.repo https://download.virtualbox.org/virtualbox/rpm/el/virtualbox.repo
sudo dnf clean all
sudo dnf makecache
sudo dnf install VirtualBox-7.1
VBoxManage --version

# 若缺依赖：
sudo dnf install epel-release
sudo dnf install libxcb-cursor


# 安装docker
sudo yum install -y yum-utils device-mapper-persistent-data lvm2
sudo yum-config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo
sudo yum install -y docker-ce docker-ce-cli containerd.io
sudo systemctl start docker && sudo systemctl enable docker
sudo useradd -m dockeruser && sudo passwd dockeruser
sudo usermod -aG docker dockeruser && newgrp docker
su - dockeruser

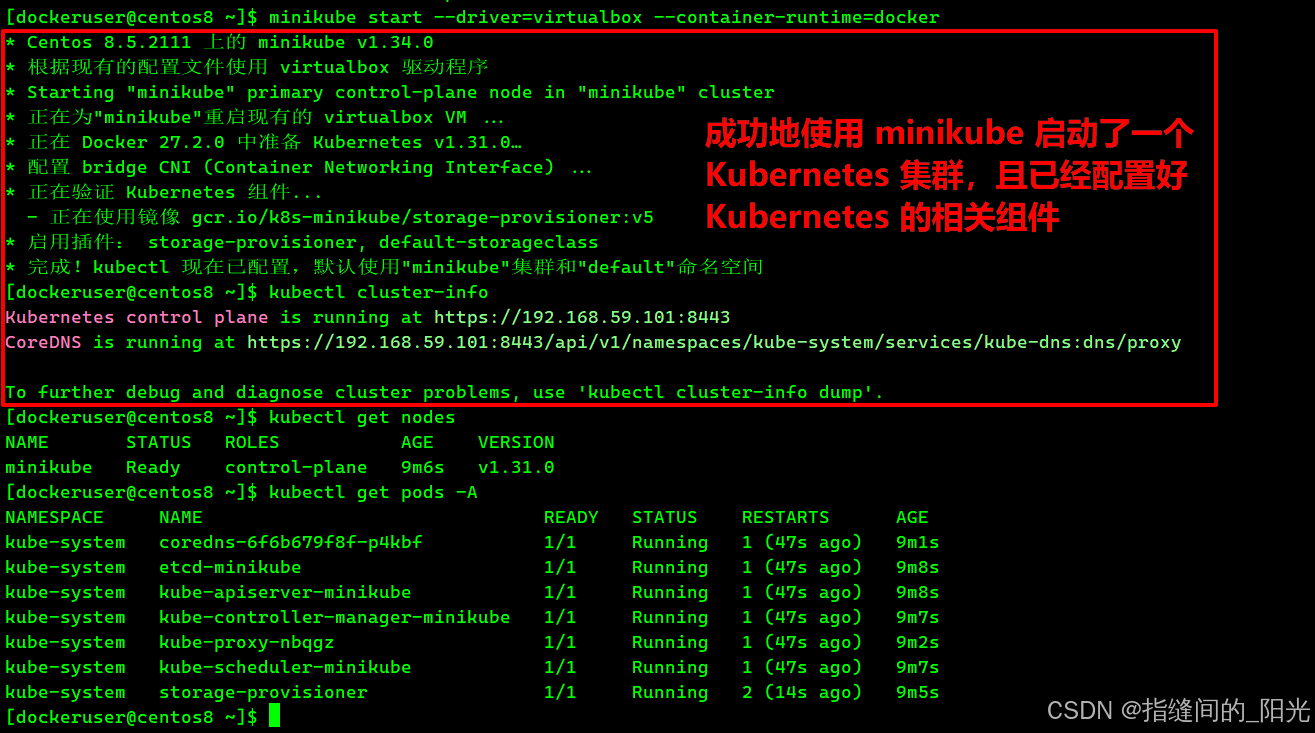

4、启动minikube

# 启动一个新的 Minikube 集群，并使用 VirtualBox 创建一个虚拟机,在虚拟机中部署 Kubernetes 环境，并设置 Docker 作为容器运行时，而不是默认的 containerd。
su - dockeruser
minikube start --driver=virtualbox --container-runtime=docker

# 查看状态
minikube status

# 遇到报错：
sudo systemctl status vboxdrv
[sudo] dockeruser 的密码：
dockeruser 不在 sudoers 文件中。此事将被报告。
# 解决：
在 CentOS 8 中，wheel组的成员可以使用sudo执行命令
usermod -aG wheel dockeruser && newgrp wheel

# 遇到报错：
VBoxManage: error: Failed to create the VirtualBox object!
VBoxManage: error: Code NS_ERROR_FAILURE (0x80004005) - Operation failed (extended info not available)
VBoxManage: error: Most likely, the VirtualBox COM server is not running or failed to start.
# 解决：
reboot

5、启动minikube dashborad

sudo yum install xdg-utils
# 启动Minikube的仪表板
su - dockeruser
minikube dashboard  # 此命令会显示一个 URL
# 启用metrics-server插件
minikube addons enable metrics-server
minikube dashboard  # 此命令会显示一个 URL

# 如果 Kubernetes 节点无法直接从 Docker Hub 拉取镜像，您可以手动拉取镜像并将其加载到 Minikube 中。
docker pull kubernetesui/metrics-scraper:v1.0.8
docker pull docker.io/kubernetesui/dashboard:v2.7.0
minikube image load kubernetesui/metrics-scraper:v1.0.8
minikube image load kubernetesui/dashboard:v2.7.0
# 重新尝试启动 dashboard
kubectl -n kubernetes-dashboard rollout restart deployment kubernetes-dashboard
# 确认镜像是否在 Minikube 环境中
minikube ssh
docker images
# 强制使用本地镜像
kubectl -n kubernetes-dashboard get deployment kubernetes-dashboard -o yaml > dashboard-deployment.yaml
kubectl -n kubernetes-dashboard get deployment dashboard-metrics-scraper -o yaml > dashboard-metrics-scraper.yaml
修改文件，内容在最后
# 保存并应用配置文件
kubectl apply -f dashboard-deployment.yaml
kubectl apply -f dashboard-metrics-scraper.yaml
kubectl get pods -n kubernetes-dashboard   # 查看状态
minikube dashboard   # 会显示一个url，因为是纯命令行方式，所有会提示：“因HOST_BROWSER错误而退出：打开浏览器失败：exit status。”

# 将Kubernetes API代理到指定端口和地址，允许任何主机访问
nohup  kubectl proxy --port=10888 --address='192.168.10.12' --accept-hosts='^.*' > ./nohup.out &

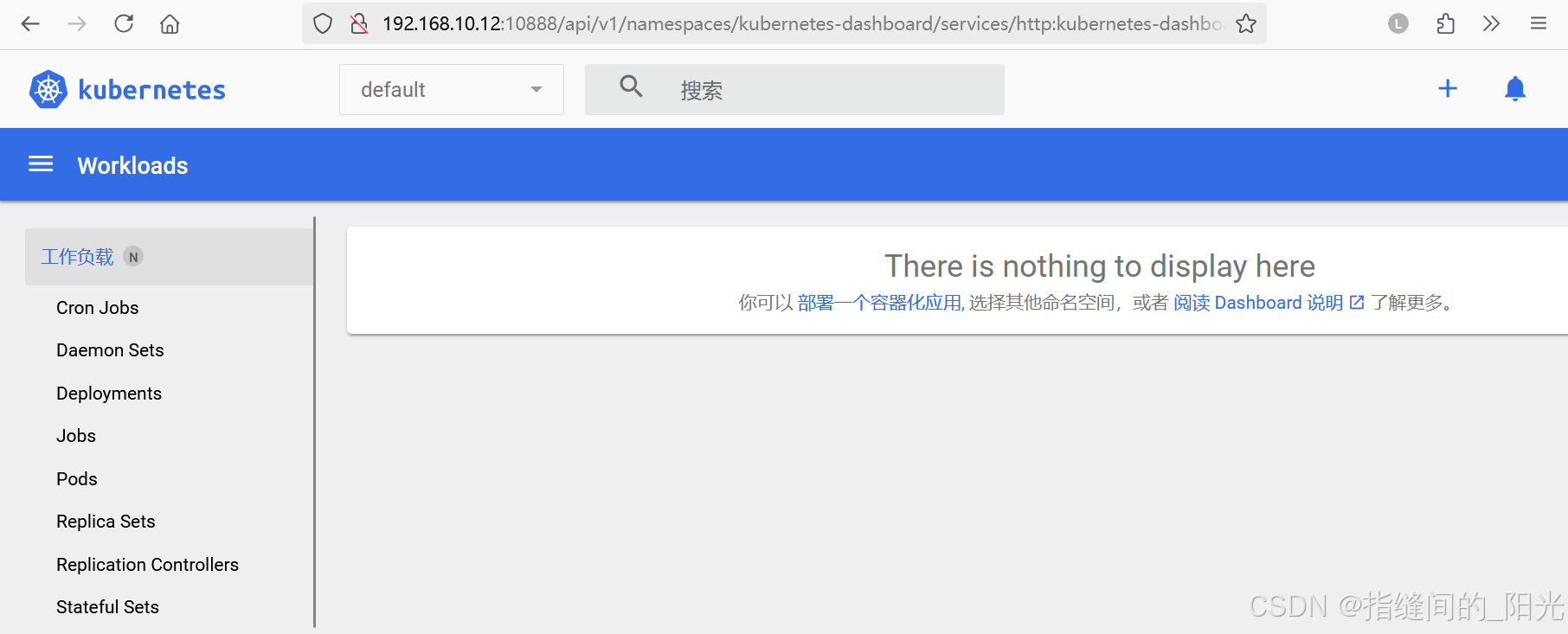

浏览器登录：http://192.168.10.12:10888/api/v1/namespaces/kubernetes-dashboard/services/http:kubernetes-dashboard:/proxy/#/workloads?namespace=default

6、测试小案例

# 部署：
kubectl create deployment hello-minikube --image=registry.aliyuncs.com/google_containers/echoserver:1.10
# 将该pod 暴露他的端口为8080
kubectl expose deployment hello-minikube --type=NodePort --port=8080

# 查看状态：kubectl get pod

# 查看url:
minikube service hello-minikube --url

# 将端口转发到本机的端口，这样供给外界访问
kubectl port-forward --address 0.0.0.0 service/hello-minikube  7080:8080

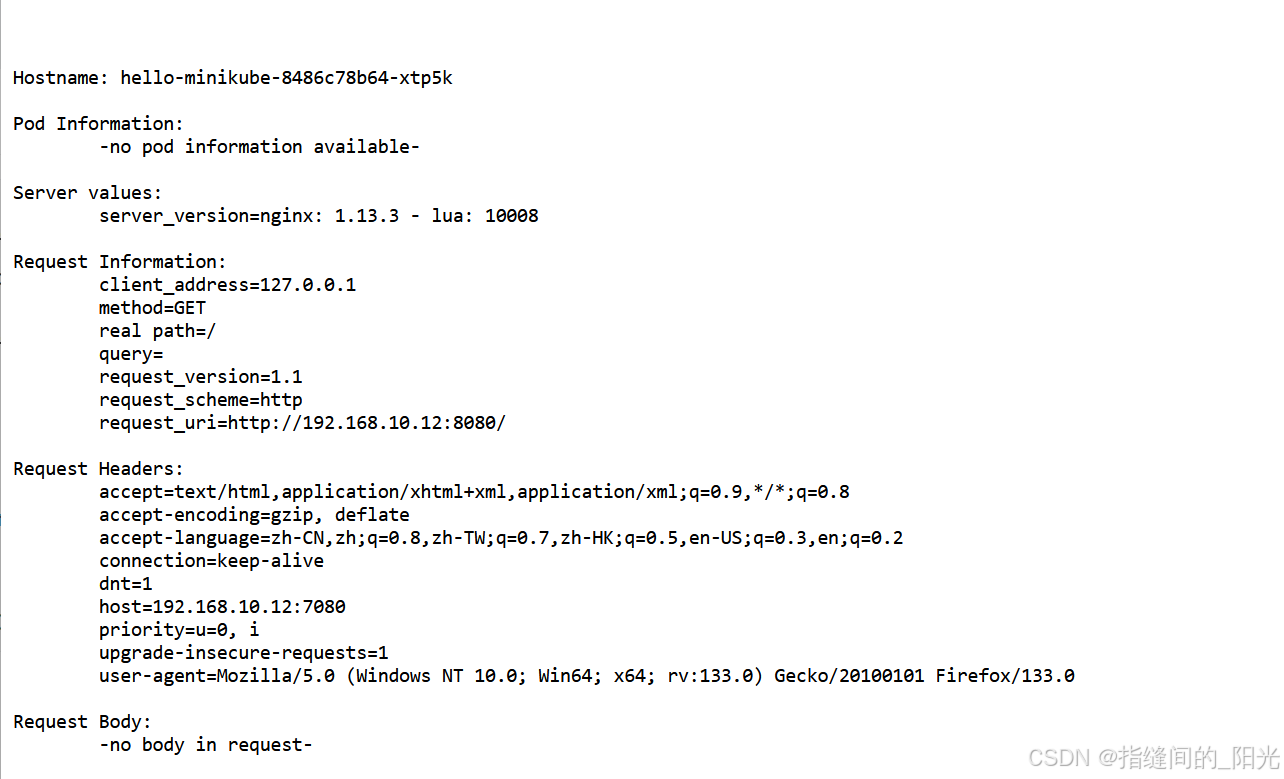

浏览器访问：192.168.10.12:7080

7、手动创建 YAML 文件

dashboard-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
  labels:
    k8s-app: kubernetes-dashboard
spec:
  replicas: 1
  selector:
    matchLabels:
      k8s-app: kubernetes-dashboard
  template:
    metadata:
      labels:
        k8s-app: kubernetes-dashboard
    spec:
      containers:
      - name: kubernetes-dashboard
        image: docker.io/kubernetesui/dashboard:v2.7.0
        ports:
        - containerPort: 9090
        args:
        - --namespace=kubernetes-dashboard
        - --enable-skip-login
        - --disable-settings-authorizer
        livenessProbe:
          httpGet:
            path: /
            port: 9090
          initialDelaySeconds: 30
          timeoutSeconds: 30
        volumeMounts:
        - mountPath: /tmp
          name: tmp-volume
      volumes:
      - name: tmp-volume
        emptyDir: {}
      serviceAccountName: kubernetes-dashboard
      nodeSelector:
        kubernetes.io/os: linux
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule

dashboard-metrics-scraper

apiVersion: apps/v1
kind: Deployment
metadata:
  name: dashboard-metrics-scraper
  namespace: kubernetes-dashboard
  labels:
    k8s-app: dashboard-metrics-scraper
spec:
  replicas: 1
  selector:
    matchLabels:
      k8s-app: dashboard-metrics-scraper
  template:
    metadata:
      labels:
        k8s-app: dashboard-metrics-scraper
    spec:
      containers:
        - name: dashboard-metrics-scraper
          image: docker.io/kubernetesui/metrics-scraper:v1.0.8
          ports:
            - containerPort: 8000
          resources:
            limits:
              cpu: 100m
              memory: 100Mi
            requests:
              cpu: 50m
              memory: 50Mi
          livenessProbe:
            httpGet:
              path: /metrics
              port: 8000
            initialDelaySeconds: 30
            timeoutSeconds: 5
          volumeMounts:
            - mountPath: /tmp
              name: tmp-volume
      volumes:
        - name: tmp-volume
          emptyDir: {}
      nodeSelector:
        kubernetes.io/os: linux
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule

===
