网上已经很多大神讲解了事件分发，我在这里做下整理以便复习。

一.Activity

/**
 * Called to process touch screen events.  You can override this to
 * intercept all touch screen events before they are dispatched to the
 * window.  Be sure to call this implementation for touch screen events
 * that should be handled normally.
 *
 * @param ev The touch screen event.
 *
 * @return boolean Return true if this event was consumed.
 */
public boolean dispatchTouchEvent(MotionEvent ev) {
    if (ev.getAction() == MotionEvent.ACTION_DOWN) {
        onUserInteraction();
    }
    if (getWindow().superDispatchTouchEvent(ev)) {
        return true;
    }
    return onTouchEvent(ev);
}

当我们去点击一个控件的时候，首先会走到dispatchTouchEvent方法内，通过谷歌的这段注释，我们可以了解到，我们可以重写该方法，进一步处理事件的分发，首先我们了解下该方法默认都做了啥，一步步看

 if (ev.getAction() == MotionEvent.ACTION_DOWN) {
        onUserInteraction();
    }

首先，所有事件都得有按下（包括返回键和home键）这个操作。所以一定走到了onUserInteraction方法内

/**
 * Called whenever a key, touch, or trackball event is dispatched to the
 * activity.  Implement this method if you wish to know that the user has
 * interacted with the device in some way while your activity is running.
 * This callback and {@link #onUserLeaveHint} are intended to help
 * activities manage status bar notifications intelligently; specifically,
 * for helping activities determine the proper time to cancel a notfication.
 *
 * <p>All calls to your activity's {@link #onUserLeaveHint} callback will
 * be accompanied by calls to {@link #onUserInteraction}.  This
 * ensures that your activity will be told of relevant user activity such
 * as pulling down the notification pane and touching an item there.
 *
 * <p>Note that this callback will be invoked for the touch down action
 * that begins a touch gesture, but may not be invoked for the touch-moved
 * and touch-up actions that follow.
 *
 * @see #onUserLeaveHint()
 */
public void onUserInteraction() {
}

默认该方法为null，啥也没做，但是根据注释我们知道，这方法目的就是通知user，可详细了解他与onUserLeaveHint的区别，加已研究

if (getWindow().superDispatchTouchEvent(ev)) {
    return true;
}

若getWindow().superDispatchTouchEvent(ev)的返回true // 则Activity.dispatchTouchEvent（）就返回true，则方法结束。即：该点击事件停止往下传递 & 事件传递过程结束 // 否则：继续往下调用Activity.onTouchEvent。

getWindow（）得到window对象，我们可以通过注释可以知道，window的只有PhoneWindow实现了。

public boolean superDispatchTouchEvent(MotionEvent event)

{ return super.dispatchTouchEvent(event);

// 调用父类的方法 = ViewGroup的dispatchTouchEvent()

// 即将事件传递到ViewGroup去处理，详细请看ViewGroup的事件分发机制

}

return onTouchEvent(ev);

如果viewGroup返回false（没有谁进行了事件消耗，那最终就到activity下得onTouchEvent）

/**
 * Called when a touch screen event was not handled by any of the views
 * under it.  This is most useful to process touch events that happen
 * outside of your window bounds, where there is no view to receive it.
 *
 * @param event The touch screen event being processed.
 *
 * @return Return true if you have consumed the event, false if you haven't.
 * The default implementation always returns false.
 */
public boolean onTouchEvent(MotionEvent event) {
    if (mWindow.shouldCloseOnTouch(this, event)) {
        finish();
        return true;
    }

    return false;
}

看到这里有没有似曾相识，我们经常重写该方法，处理点击事件。

好了，我们先来阶段性的捋一捋

当事件触发的时候：

1.首先会走到onUserInteraction

2.把事件抛到viewGroup，看是否有人处理，处理了，则返回true，如果没人处理，则返回false进行第三步

3.走到onTouchEvent

那第二步到底做了些什么事呢。继续往下看

二.viewGroup

@Override
public boolean dispatchTouchEvent(MotionEvent ev) {
    if (mInputEventConsistencyVerifier != null) {
        mInputEventConsistencyVerifier.onTouchEvent(ev, 1);
    }

    // If the event targets the accessibility focused view and this is it, start
    // normal event dispatch. Maybe a descendant is what will handle the click.
    if (ev.isTargetAccessibilityFocus() && isAccessibilityFocusedViewOrHost()) {
        ev.setTargetAccessibilityFocus(false);
    }

    boolean handled = false;
    if (onFilterTouchEventForSecurity(ev)) {
        final int action = ev.getAction();
        final int actionMasked = action & MotionEvent.ACTION_MASK;

        // Handle an initial down.
        if (actionMasked == MotionEvent.ACTION_DOWN) {
            // Throw away all previous state when starting a new touch gesture.
            // The framework may have dropped the up or cancel event for the previous gesture
            // due to an app switch, ANR, or some other state change.
            cancelAndClearTouchTargets(ev);
            resetTouchState();
        }

        // Check for interception.
        final boolean intercepted;
        if (actionMasked == MotionEvent.ACTION_DOWN
                || mFirstTouchTarget != null) {
            final boolean disallowIntercept = (mGroupFlags & FLAG_DISALLOW_INTERCEPT) != 0;
            if (!disallowIntercept) {
                intercepted = onInterceptTouchEvent(ev);
                ev.setAction(action); // restore action in case it was changed
            } else {
                intercepted = false;
            }
        } else {
            // There are no touch targets and this action is not an initial down
            // so this view group continues to intercept touches.
            intercepted = true;
        }

        // If intercepted, start normal event dispatch. Also if there is already
        // a view that is handling the gesture, do normal event dispatch.
        if (intercepted || mFirstTouchTarget != null) {
            ev.setTargetAccessibilityFocus(false);
        }

        // Check for cancelation.
        final boolean canceled = resetCancelNextUpFlag(this)
                || actionMasked == MotionEvent.ACTION_CANCEL;

        // Update list of touch targets for pointer down, if needed.
        final boolean split = (mGroupFlags & FLAG_SPLIT_MOTION_EVENTS) != 0;
        TouchTarget newTouchTarget = null;
        boolean alreadyDispatchedToNewTouchTarget = false;
        if (!canceled && !intercepted) {

            // If the event is targeting accessiiblity focus we give it to the
            // view that has accessibility focus and if it does not handle it
            // we clear the flag and dispatch the event to all children as usual.
            // We are looking up the accessibility focused host to avoid keeping
            // state since these events are very rare.
            View childWithAccessibilityFocus = ev.isTargetAccessibilityFocus()
                    ? findChildWithAccessibilityFocus() : null;

            if (actionMasked == MotionEvent.ACTION_DOWN
                    || (split && actionMasked == MotionEvent.ACTION_POINTER_DOWN)
                    || actionMasked == MotionEvent.ACTION_HOVER_MOVE) {
                final int actionIndex = ev.getActionIndex(); // always 0 for down
                final int idBitsToAssign = split ? 1 << ev.getPointerId(actionIndex)
                        : TouchTarget.ALL_POINTER_IDS;

                // Clean up earlier touch targets for this pointer id in case they
                // have become out of sync.
                removePointersFromTouchTargets(idBitsToAssign);

                final int childrenCount = mChildrenCount;
                if (newTouchTarget == null && childrenCount != 0) {
                    final float x = ev.getX(actionIndex);
                    final float y = ev.getY(actionIndex);
                    // Find a child that can receive the event.
                    // Scan children from front to back.
                    final ArrayList<View> preorderedList = buildTouchDispatchChildList();
                    final boolean customOrder = preorderedList == null
                            && isChildrenDrawingOrderEnabled();
                    final View[] children = mChildren;
                    for (int i = childrenCount - 1; i >= 0; i--) {
                        final int childIndex = getAndVerifyPreorderedIndex(
                                childrenCount, i, customOrder);
                        final View child = getAndVerifyPreorderedView(
                                preorderedList, children, childIndex);

                        // If there is a view that has accessibility focus we want it
                        // to get the event first and if not handled we will perform a
                        // normal dispatch. We may do a double iteration but this is
                        // safer given the timeframe.
                        if (childWithAccessibilityFocus != null) {
                            if (childWithAccessibilityFocus != child) {
                                continue;
                            }
                            childWithAccessibilityFocus = null;
                            i = childrenCount - 1;
                        }

                        if (!canViewReceivePointerEvents(child)
                                || !isTransformedTouchPointInView(x, y, child, null)) {
                            ev.setTargetAccessibilityFocus(false);
                            continue;
                        }

                        newTouchTarget = getTouchTarget(child);
                        if (newTouchTarget != null) {
                            // Child is already receiving touch within its bounds.
                            // Give it the new pointer in addition to the ones it is handling.
                            newTouchTarget.pointerIdBits |= idBitsToAssign;
                            break;
                        }

                        resetCancelNextUpFlag(child);
                        if (dispatchTransformedTouchEvent(ev, false, child, idBitsToAssign)) {
                            // Child wants to receive touch within its bounds.
                            mLastTouchDownTime = ev.getDownTime();
                            if (preorderedList != null) {
                                // childIndex points into presorted list, find original index
                                for (int j = 0; j < childrenCount; j++) {
                                    if (children[childIndex] == mChildren[j]) {
                                        mLastTouchDownIndex = j;
                                        break;
                                    }
                                }
                            } else {
                                mLastTouchDownIndex = childIndex;
                            }
                            mLastTouchDownX = ev.getX();
                            mLastTouchDownY = ev.getY();
                            newTouchTarget = addTouchTarget(child, idBitsToAssign);
                            alreadyDispatchedToNewTouchTarget = true;
                            break;
                        }

                        // The accessibility focus didn't handle the event, so clear
                        // the flag and do a normal dispatch to all children.
                        ev.setTargetAccessibilityFocus(false);
                    }
                    if (preorderedList != null) preorderedList.clear();
                }

                if (newTouchTarget == null && mFirstTouchTarget != null) {
                    // Did not find a child to receive the event.
                    // Assign the pointer to the least recently added target.
                    newTouchTarget = mFirstTouchTarget;
                    while (newTouchTarget.next != null) {
                        newTouchTarget = newTouchTarget.next;
                    }
                    newTouchTarget.pointerIdBits |= idBitsToAssign;
                }
            }
        }

        // Dispatch to touch targets.
        if (mFirstTouchTarget == null) {
            // No touch targets so treat this as an ordinary view.
            handled = dispatchTransformedTouchEvent(ev, canceled, null,
                    TouchTarget.ALL_POINTER_IDS);
        } else {
            // Dispatch to touch targets, excluding the new touch target if we already
            // dispatched to it.  Cancel touch targets if necessary.
            TouchTarget predecessor = null;
            TouchTarget target = mFirstTouchTarget;
            while (target != null) {
                final TouchTarget next = target.next;
                if (alreadyDispatchedToNewTouchTarget && target == newTouchTarget) {
                    handled = true;
                } else {
                    final boolean cancelChild = resetCancelNextUpFlag(target.child)
                            || intercepted;
                    if (dispatchTransformedTouchEvent(ev, cancelChild,
                            target.child, target.pointerIdBits)) {
                        handled = true;
                    }
                    if (cancelChild) {
                        if (predecessor == null) {
                            mFirstTouchTarget = next;
                        } else {
                            predecessor.next = next;
                        }
                        target.recycle();
                        target = next;
                        continue;
                    }
                }
                predecessor = target;
                target = next;
            }
        }

        // Update list of touch targets for pointer up or cancel, if needed.
        if (canceled
                || actionMasked == MotionEvent.ACTION_UP
                || actionMasked == MotionEvent.ACTION_HOVER_MOVE) {
            resetTouchState();
        } else if (split && actionMasked == MotionEvent.ACTION_POINTER_UP) {
            final int actionIndex = ev.getActionIndex();
            final int idBitsToRemove = 1 << ev.getPointerId(actionIndex);
            removePointersFromTouchTargets(idBitsToRemove);
        }
    }

    if (!handled && mInputEventConsistencyVerifier != null) {
        mInputEventConsistencyVerifier.onUnhandledEvent(ev, 1);
    }
    return handled;
}

长长的源码是不是有点头大，这里我直接贴大佬的讲解代码说一下。

/** * 源码分析：ViewGroup.dispatchTouchEvent（） */

public boolean dispatchTouchEvent(MotionEvent ev)

{ ...

// 仅贴出关键代码

// 重点分析

1：ViewGroup每次事件分发时，都需调用onInterceptTouchEvent()询问是否拦截事件

if (disallowIntercept || !onInterceptTouchEvent(ev))

{

// 判断值1：disallowIntercept = 是否禁用事件拦截的功能(默认是false)，可通过调用requestDisallowInterceptTouchEvent（）修改

// 判断值2： !onInterceptTouchEvent(ev) = 对onInterceptTouchEvent()返回值取反

// a. 若在onInterceptTouchEvent()中返回false（即不拦截事件），就会让第二个值为true，从而进入到条件判断的内部

// b. 若在onInterceptTouchEvent()中返回true（即拦截事件），就会让第二个值为false，从而跳出了这个条件判断

// c. 关于onInterceptTouchEvent() ->>分析1

ev.setAction(MotionEvent.ACTION_DOWN);

final int scrolledXInt = (int) scrolledXFloat;

final int scrolledYInt = (int) scrolledYFloat;

final View[] children = mChildren;

final int count = mChildrenCount;

// 重点分析2

// 通过for循环，遍历了当前ViewGroup下的所有子View

for (int i = count - 1; i >= 0; i--)

{ final View child = children[i];

if ((child.mViewFlags & VISIBILITY_MASK) == VISIBLE || child.getAnimation() != null)

{

child.getHitRect(frame);

// 判断当前遍历的View是不是正在点击的View，从而找到当前被点击的View

// 若是，则进入条件判断内部

if (frame.contains(scrolledXInt, scrolledYInt)) {

final float xc = scrolledXFloat - child.mLeft;

final float yc = scrolledYFloat - child.mTop;

ev.setLocation(xc, yc);

child.mPrivateFlags &= ~CANCEL_NEXT_UP_EVENT;

// 条件判断的内部调用了该View的dispatchTouchEvent()

// 即实现了点击事件从ViewGroup到子View的传递（具体请看下面的View事件分发机制）

if (child.dispatchTouchEvent(ev))

{ mMotionTarget = child;

return true;

// 调用子View的dispatchTouchEvent后是有返回值的

// 若该控件可点击，那么点击时，dispatchTouchEvent的返回值必定是true，因此会导致条件判断成立

// 于是给ViewGroup的dispatchTouchEvent（）直接返回了true，即直接跳出

// 即把ViewGroup的点击事件拦截掉 } } } } } }

boolean isUpOrCancel = (action == MotionEvent.ACTION_UP) || (action == MotionEvent.ACTION_CANCEL);

if (isUpOrCancel) { mGroupFlags &= ~FLAG_DISALLOW_INTERCEPT; }

final View target = mMotionTarget;

// 重点分析3

// 若点击的是空白处（即无任何View接收事件）

/ 拦截事件（手动复写onInterceptTouchEvent（），从而让其返回true）

if (target == null) {

ev.setLocation(xf, yf);

if ((mPrivateFlags & CANCEL_NEXT_UP_EVENT) != 0)

{ ev.setAction(MotionEvent.ACTION_CANCEL); mPrivateFlags &= ~CANCEL_NEXT_UP_EVENT; } return super.dispatchTouchEvent(ev);

// 调用ViewGroup父类的dispatchTouchEvent()，即View.dispatchTouchEvent()

// 因此会执行ViewGroup的onTouch() ->> onTouchEvent() ->> performClick（） ->> onClick()，即自己处理该事件，事件不会往下传递（具体请参考View事件的分发机制中的View.dispatchTouchEvent（））

// 此处需与上面区别：子View的dispatchTouchEvent（） }

... }

/** * 分析1：ViewGroup.onInterceptTouchEvent() * 作用：是否拦截事件 * 说明： * a. 返回true = 拦截，即事件停止往下传递（需手动设置，即复写onInterceptTouchEvent（），从而让其返回true） * b. 返回false = 不拦截（默认） */

public boolean onInterceptTouchEvent(MotionEvent ev) {

return false;

} // 回到调用原处

再总结一下：

Android事件分发总是先传递到ViewGroup、再传递到View

过程：

1.dipatchTouchEvent（）判断是否被拦截ViewGroup.onInterceptTouchEvent().

2.被拦截（返回true），或者点击的空白区域，没有子view可以处理。则会走到viewGroup的onTouch() ->> onTouchEvent() ->> performClick（） ->> onClick()自行处理

3.没被拦截（返回false），则找到点击的子view，交于其dispatcheTouchEvent处理

三.view

继续

/**

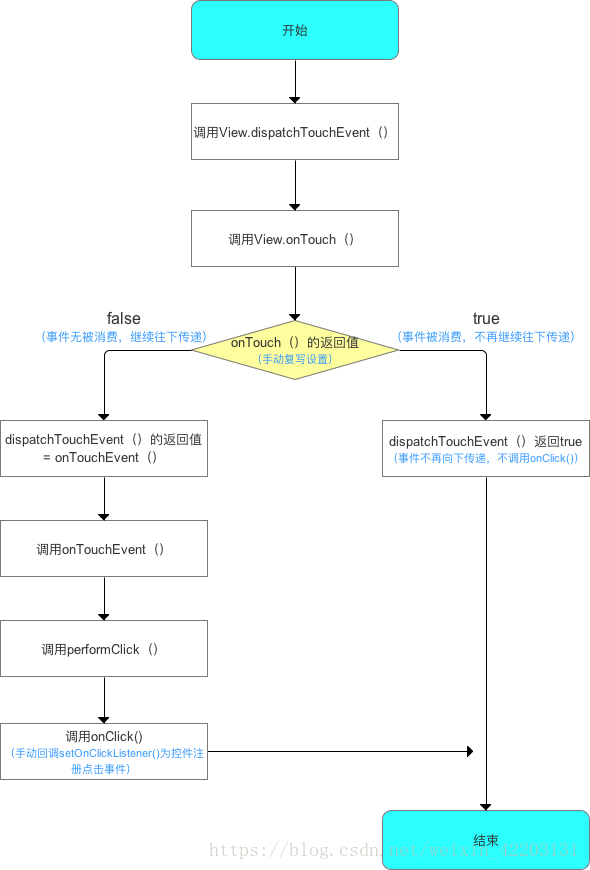

  * 源码分析：View.dispatchTouchEvent（）
  */
  public boolean dispatchTouchEvent(MotionEvent event) {

        if (mOnTouchListener != null && (mViewFlags & ENABLED_MASK) == ENABLED &&
                mOnTouchListener.onTouch(this, event)) {
            return true;
        }
        return onTouchEvent(event);
  }
  // 说明：只有以下3个条件都为真，dispatchTouchEvent()才返回true；否则执行onTouchEvent()
  //     1. mOnTouchListener != null
  //     2. (mViewFlags & ENABLED_MASK) == ENABLED
  //     3. mOnTouchListener.onTouch(this, event)
  // 下面对这3个条件逐个分析


/**
  * 条件1：mOnTouchListener != null
  * 说明：mOnTouchListener变量在View.setOnTouchListener（）方法里赋值
  */
  public void setOnTouchListener(OnTouchListener l) {

    mOnTouchListener = l;
    // 即只要我们给控件注册了Touch事件，mOnTouchListener就一定被赋值（不为空）

}

/**
  * 条件2：(mViewFlags & ENABLED_MASK) == ENABLED
  * 说明：
  *     a. 该条件是判断当前点击的控件是否enable
  *     b. 由于很多View默认enable，故该条件恒定为true
  */

/**
  * 条件3：mOnTouchListener.onTouch(this, event)
  * 说明：即 回调控件注册Touch事件时的onTouch（）；需手动复写设置，具体如下（以按钮Button为例）
  */
    button.setOnTouchListener(new OnTouchListener() {
        @Override
        public boolean onTouch(View v, MotionEvent event) {

            return false;
        }
    });
    // 若在onTouch（）返回true，就会让上述三个条件全部成立，从而使得View.dispatchTouchEvent（）直接返回true，事件分发结束
    // 若在onTouch（）返回false，就会使得上述三个条件不全部成立，从而使得View.dispatchTouchEvent（）中跳出If，执行onTouchEvent(event)

/**
  * 源码分析：View.onTouchEvent（）
  */
  public boolean onTouchEvent(MotionEvent event) {
    final int viewFlags = mViewFlags;

    if ((viewFlags & ENABLED_MASK) == DISABLED) {

        return (((viewFlags & CLICKABLE) == CLICKABLE ||
                (viewFlags & LONG_CLICKABLE) == LONG_CLICKABLE));
    }
    if (mTouchDelegate != null) {
        if (mTouchDelegate.onTouchEvent(event)) {
            return true;
        }
    }

    // 若该控件可点击，则进入switch判断中
    if (((viewFlags & CLICKABLE) == CLICKABLE ||
            (viewFlags & LONG_CLICKABLE) == LONG_CLICKABLE)) {

                switch (event.getAction()) {

                    // a. 若当前的事件 = 抬起View（主要分析）
                    case MotionEvent.ACTION_UP:
                        boolean prepressed = (mPrivateFlags & PREPRESSED) != 0;

                            ...// 经过种种判断，此处省略

                            // 执行performClick() ->>分析1
                            performClick();
                            break;

                    // b. 若当前的事件 = 按下View
                    case MotionEvent.ACTION_DOWN:
                        if (mPendingCheckForTap == null) {
                            mPendingCheckForTap = new CheckForTap();
                        }
                        mPrivateFlags |= PREPRESSED;
                        mHasPerformedLongPress = false;
                        postDelayed(mPendingCheckForTap, ViewConfiguration.getTapTimeout());
                        break;

                    // c. 若当前的事件 = 结束事件（非人为原因）
                    case MotionEvent.ACTION_CANCEL:
                        mPrivateFlags &= ~PRESSED;
                        refreshDrawableState();
                        removeTapCallback();
                        break;

                    // d. 若当前的事件 = 滑动View
                    case MotionEvent.ACTION_MOVE:
                        final int x = (int) event.getX();
                        final int y = (int) event.getY();

                        int slop = mTouchSlop;
                        if ((x < 0 - slop) || (x >= getWidth() + slop) ||
                                (y < 0 - slop) || (y >= getHeight() + slop)) {
                            // Outside button
                            removeTapCallback();
                            if ((mPrivateFlags & PRESSED) != 0) {
                                // Remove any future long press/tap checks
                                removeLongPressCallback();
                                // Need to switch from pressed to not pressed
                                mPrivateFlags &= ~PRESSED;
                                refreshDrawableState();
                            }
                        }
                        break;
                }
                // 若该控件可点击，就一定返回true
                return true;
            }
             // 若该控件不可点击，就一定返回false
            return false;
        }

/**
  * 分析1：performClick（）
  */
    public boolean performClick() {

        if (mOnClickListener != null) {
            playSoundEffect(SoundEffectConstants.CLICK);
            mOnClickListener.onClick(this);
            return true;
            // 只要我们通过setOnClickListener（）为控件View注册1个点击事件
            // 那么就会给mOnClickListener变量赋值（即不为空）
            // 则会往下回调onClick（） & performClick（）返回true
        }
        return false;
    }

作者：Carson_Ho
链接：https://www.jianshu.com/p/38015afcdb58
來源：简书
著作权归作者所有。商业转载请联系作者获得授权，非商业转载请注明出处。

所以整个流程就是：

acticity-->viewgroup-->view-->viewgroup-->activity
