使用Hue创建Spark2的Oozie工作流

1.Oozie共享库添加Spark2

1.查看当前Oozie的share-lib共享库HDFS目录

oozie admin -oozie http://lefincluster-rt1:11000/oozie -sharelibupdate

[ShareLib update status]
        sharelibDirOld = hdfs://nameservice1/user/oozie/share/lib/lib_20180605143536
        host = http://lefincluster-rt1:11000/oozie
        sharelibDirNew = hdfs://nameservice1/user/oozie/share/lib/lib_20180605143536
        status = Successful

2.在Oozie的/user/oozie/share/lib/lib_20180605143536创建spark2目录

sudo -u oozie hdfs dfs -mkdir /user/oozie/share/lib/lib_20180605143536/spark2

3.向spark2目录添加spark2的jars和oozie-sharelib-spark*.jar

[root@lefincluster-rt1 jars]# pwd
/opt/cloudera/parcels/SPARK2/lib/spark2/jars
sudo -u oozie hdfs dfs -put *.jar /user/oozie/share/lib/lib_20180605143536/spark2

[root@lefincluster-rt1 spark]# pwd
/opt/cloudera/parcels/CDH/lib/oozie/oozie-sharelib-yarn/lib/spark
sudo -u oozie hdfs dfs -put oozie-sharelib-spark*.jar /user/oozie/share/lib/lib_20180605143536/spark2

4.修改目录权限

sudo -u hdfs hdfs dfs -chmod -R 775 /user/oozie/share/lib/lib_20180605143536/spark2

5.更新Oozie的share-lib

[root@lefincluster-rt1 spark]# oozie admin -oozie http://lefincluster-rt1:11000/oozie -sharelibupdate
[ShareLib update status]
        sharelibDirOld = hdfs://nameservice1/user/oozie/share/lib/lib_20180605143536
        host = http://lefincluster-rt1:11000/oozie
        sharelibDirNew = hdfs://nameservice1/user/oozie/share/lib/lib_20180605143536
        status = Successful

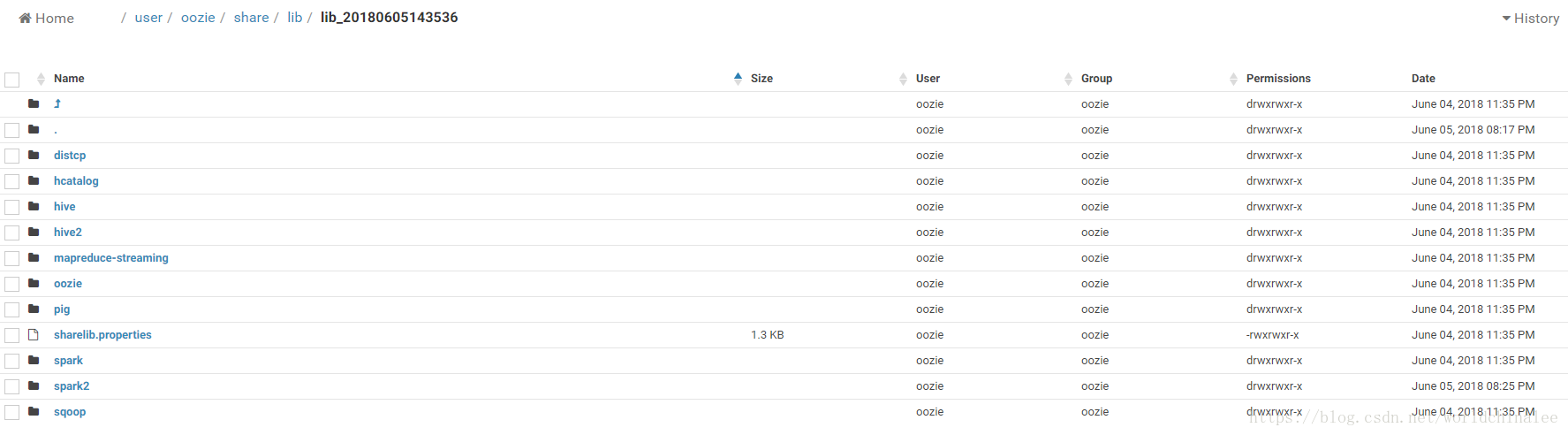

6.确认spark2已经添加到共享库

[root@lefincluster-rt1 spark]# oozie admin -oozie http://lefincluster-rt1:11000/oozie -shareliblist
[Available ShareLib]
hive
spark2
distcp
mapreduce-streaming
spark
oozie
hcatalog
hive2
sqoop
pig

2.创建Spark2的Oozie工作流

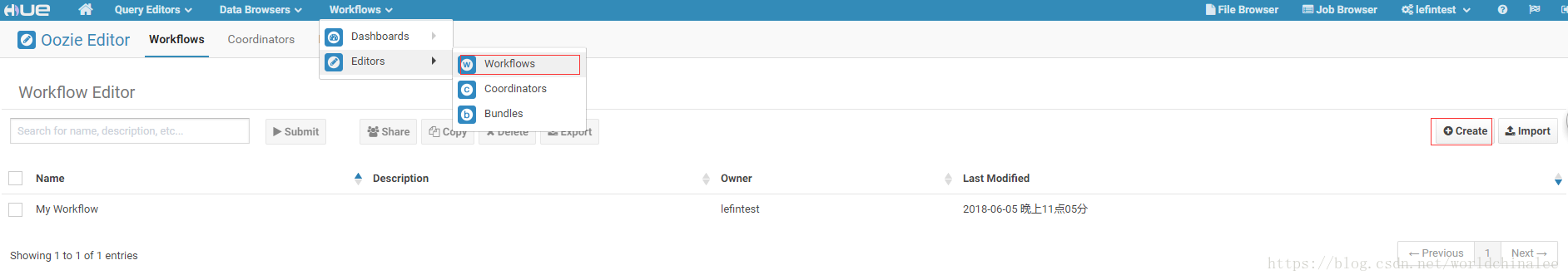

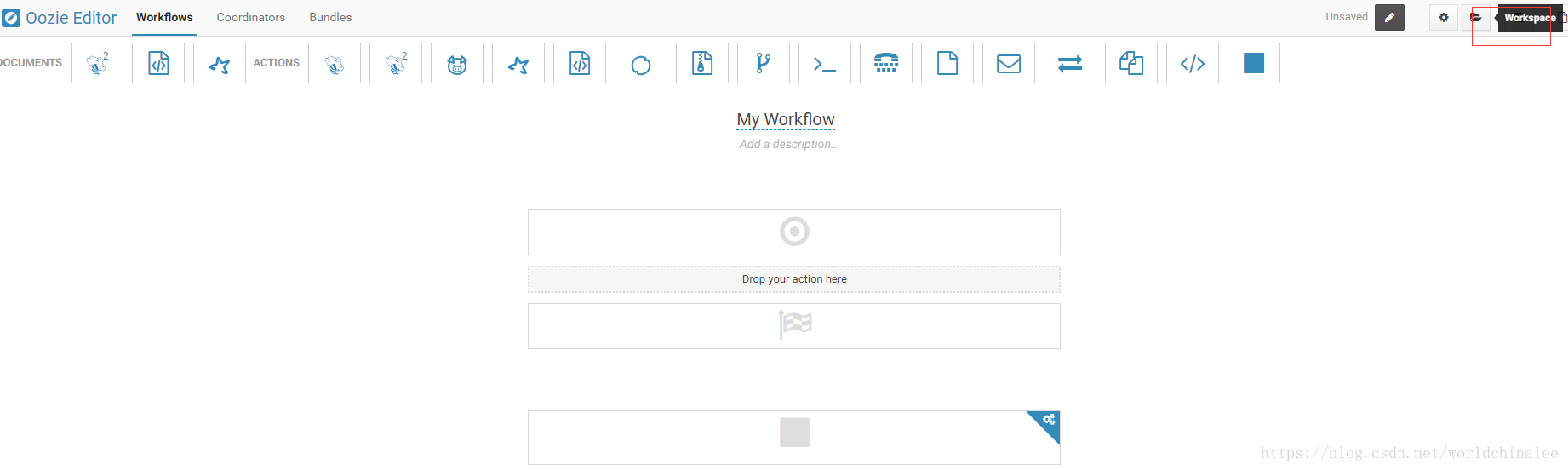

1.登录Hue，创建Oozie工作流

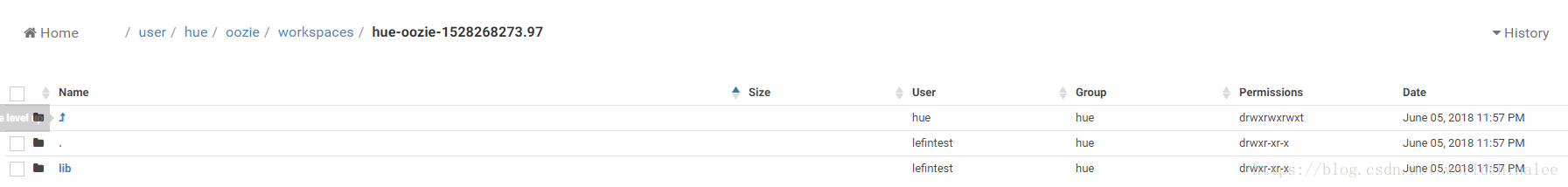

2.进入WorkSpace

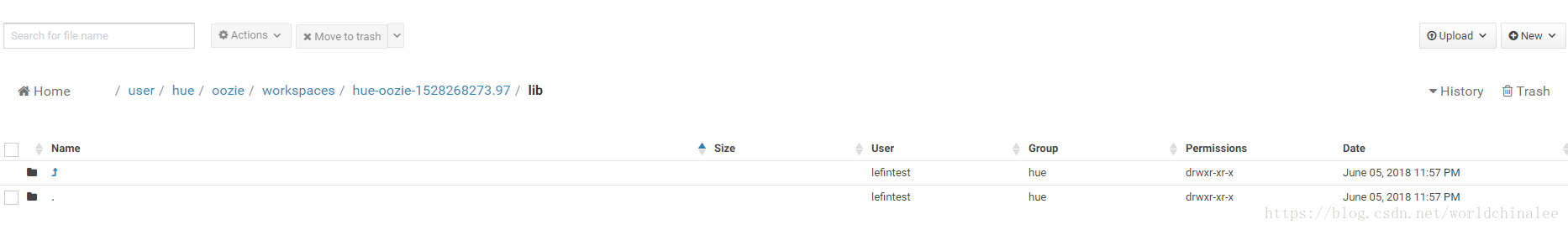

点击lib

在命令行将Spark2自带的example例子上传到/user/hue/oozie/workspaces/hue-oozie-1528256085.53/lib目录

[root@lefincluster-rt1 jars]# pwd
/opt/cloudera/parcels/SPARK2/lib/spark2/examples/jars
sudo -u hdfs hdfs dfs -put spark-examples_2.11-2.1.0.cloudera2.jar /user/hue/oozie/workspaces/hue-oozie-1528256085.53/lib

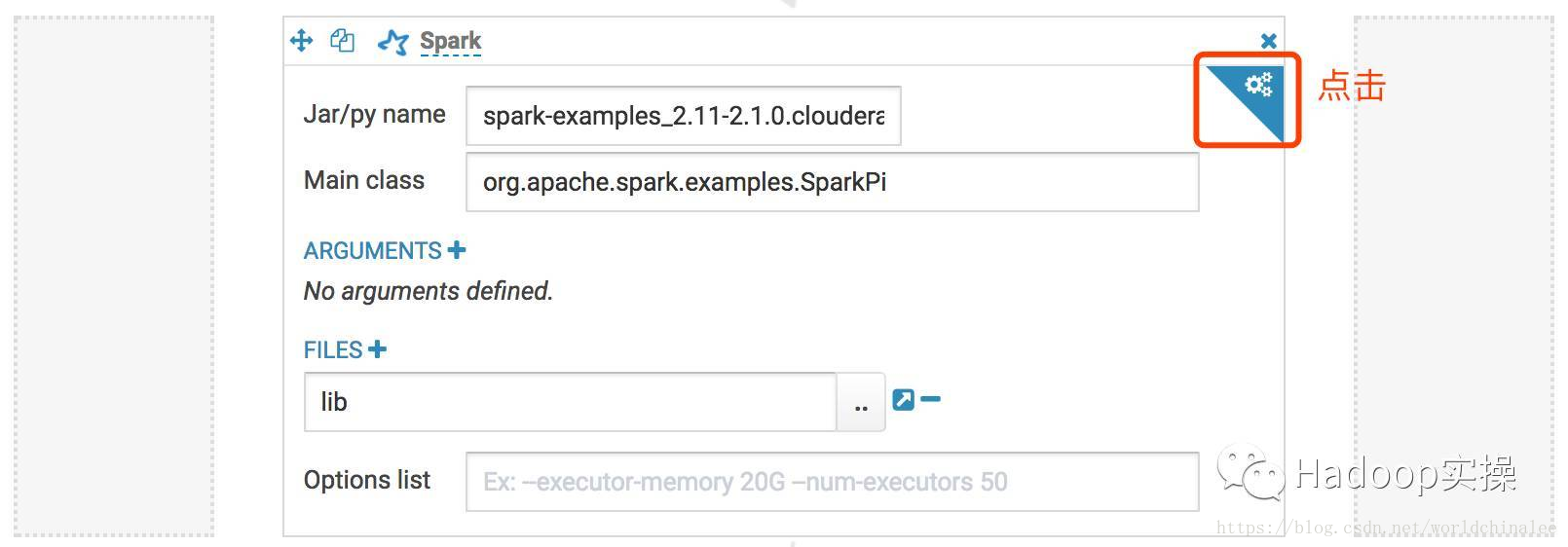

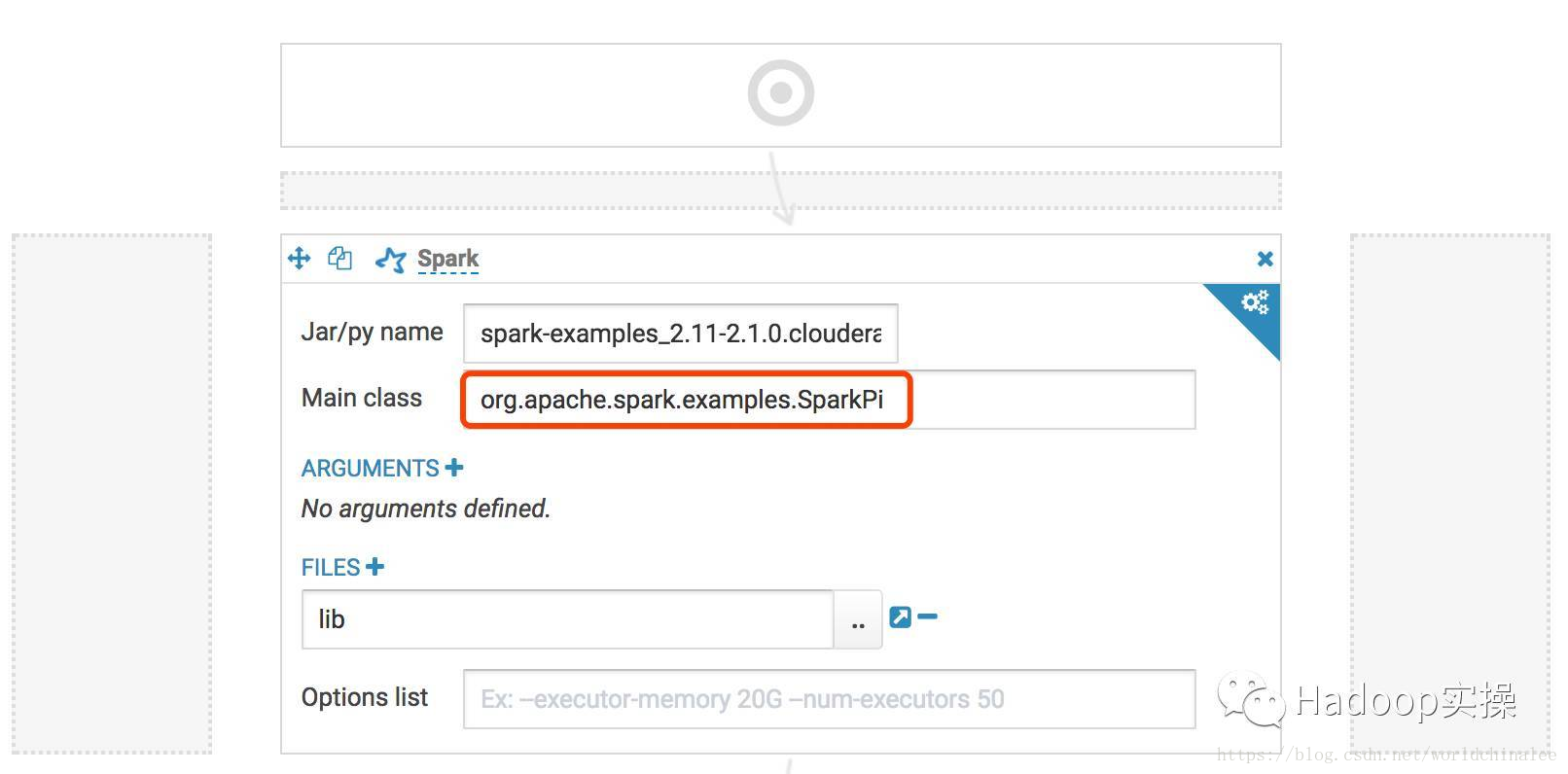

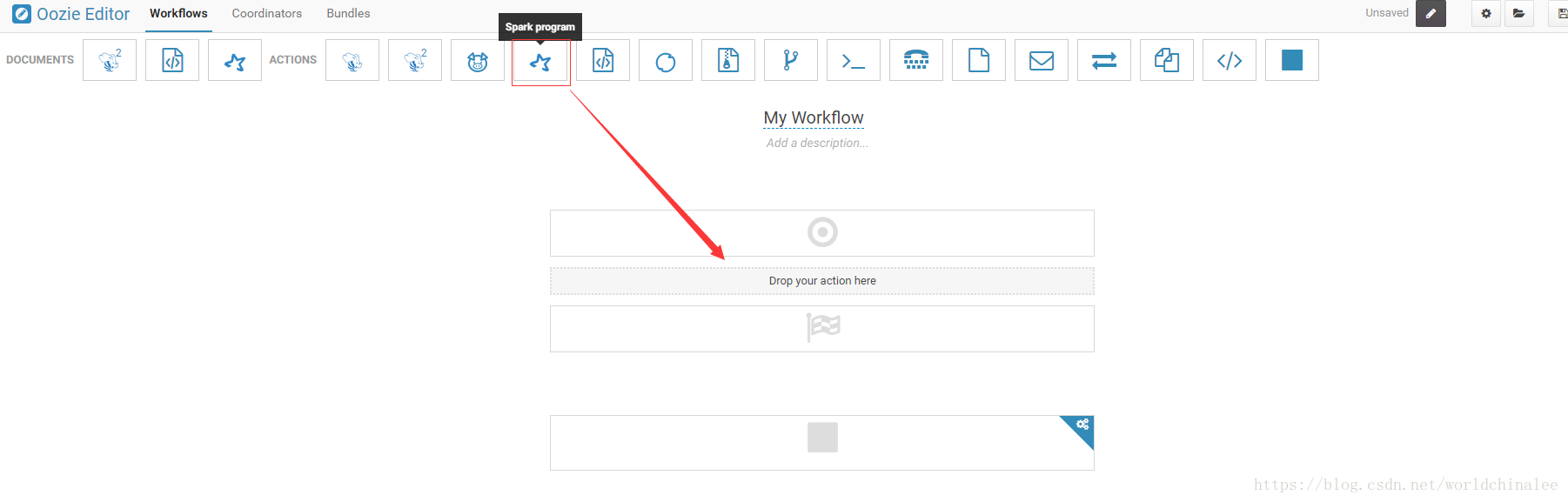

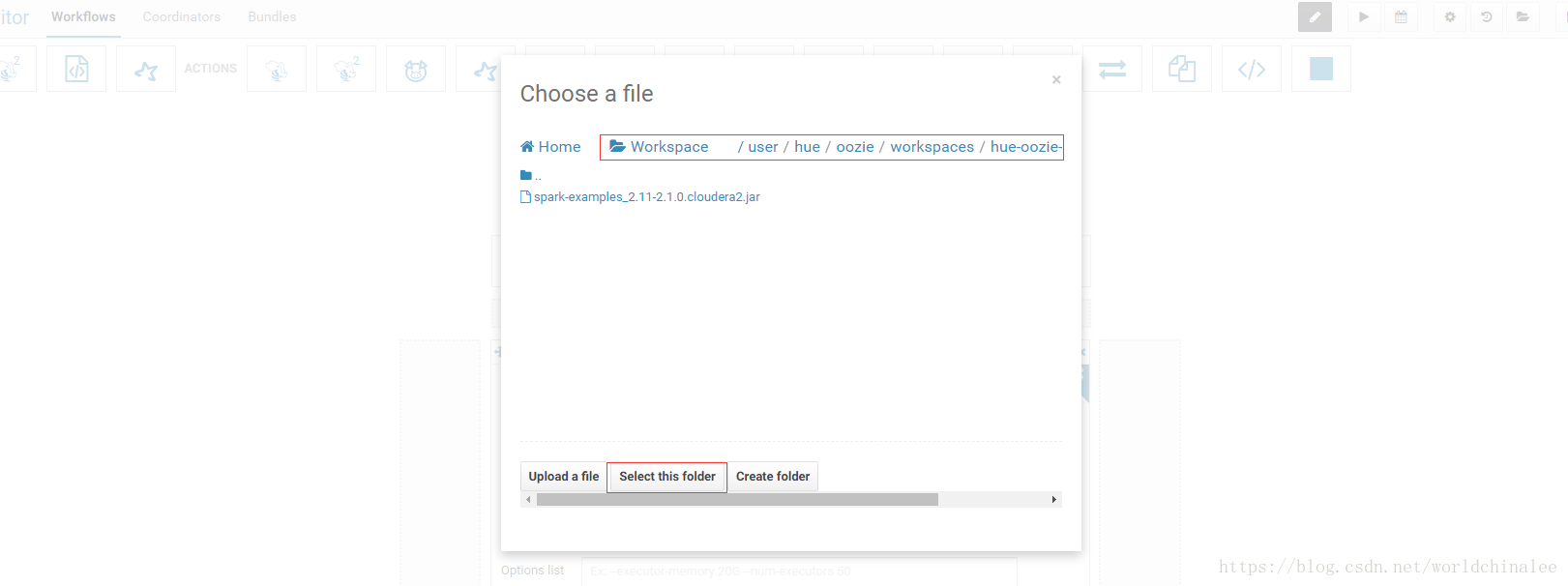

3.添加Spark2任务

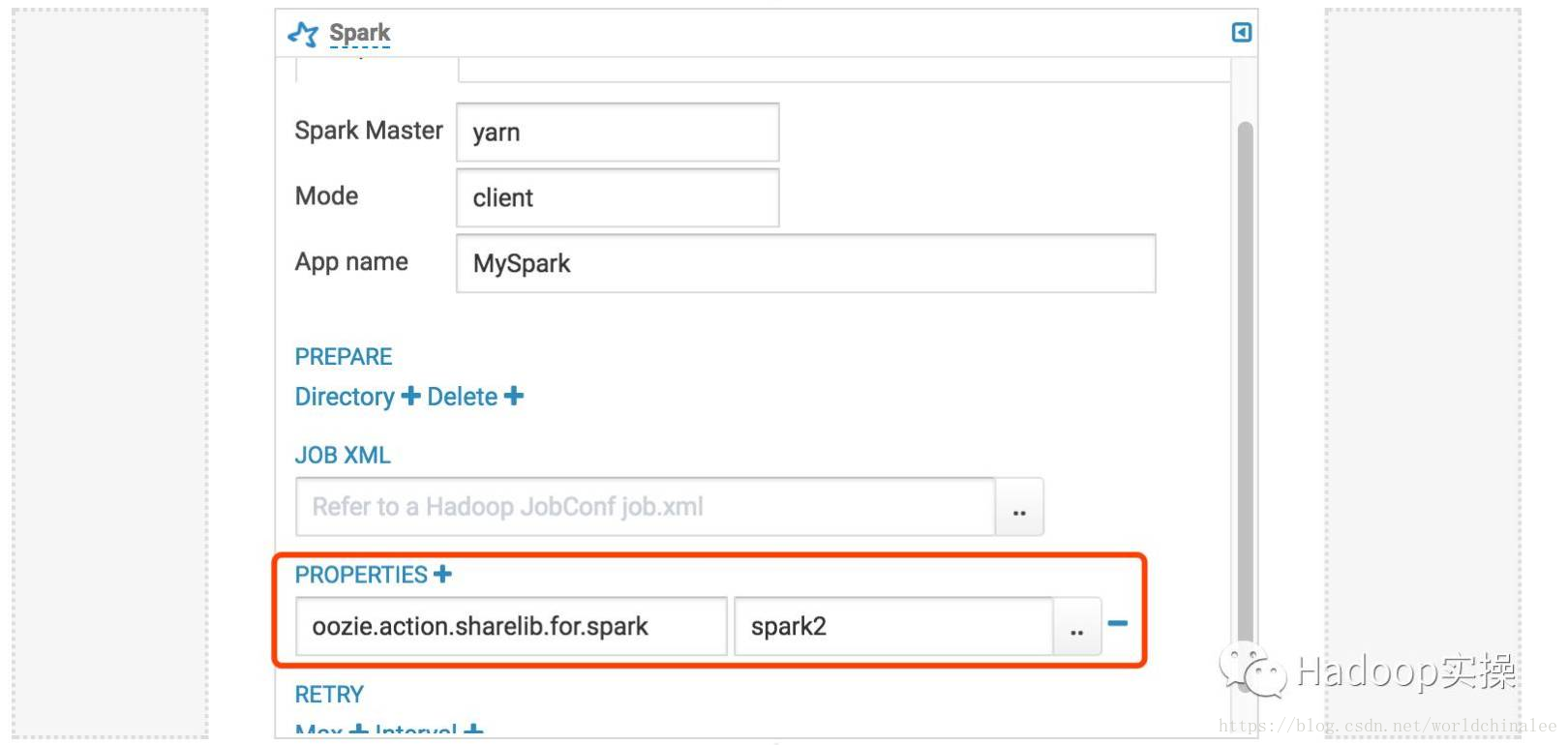

设置使用Spark2，否则默认使用的Spark1

完成配置，点击保存

4.保存完成后，点击运行测试是否正常

运行成功
