C#窗体程序 和 JSP或HTML通信

博客介绍了C#与JS相互调用的相关内容。指出C#开发串口通信方便,但将数据引入浏览器繁琐,而把JSP或HTML加载到C#窗体程序较容易,且JS和C#通信简单。还说明了新建项目、添加控件等步骤,并给出程序源码,包括C#窗体和html页面部分。

一、背景说明:

很多外设通信需要串口,通过C#开发串口通信程序非常方便,但是将C#数据引入浏览器非常繁琐,而且开发Activex只有IE能够完美兼容。B/S模式开发的系统移动性好的同时,操作外设困难。
然而,将JSP或HTML加载到C#窗体程序很方便,而且JS和C#通信很简单。

二、C#和JS之间的相互调用

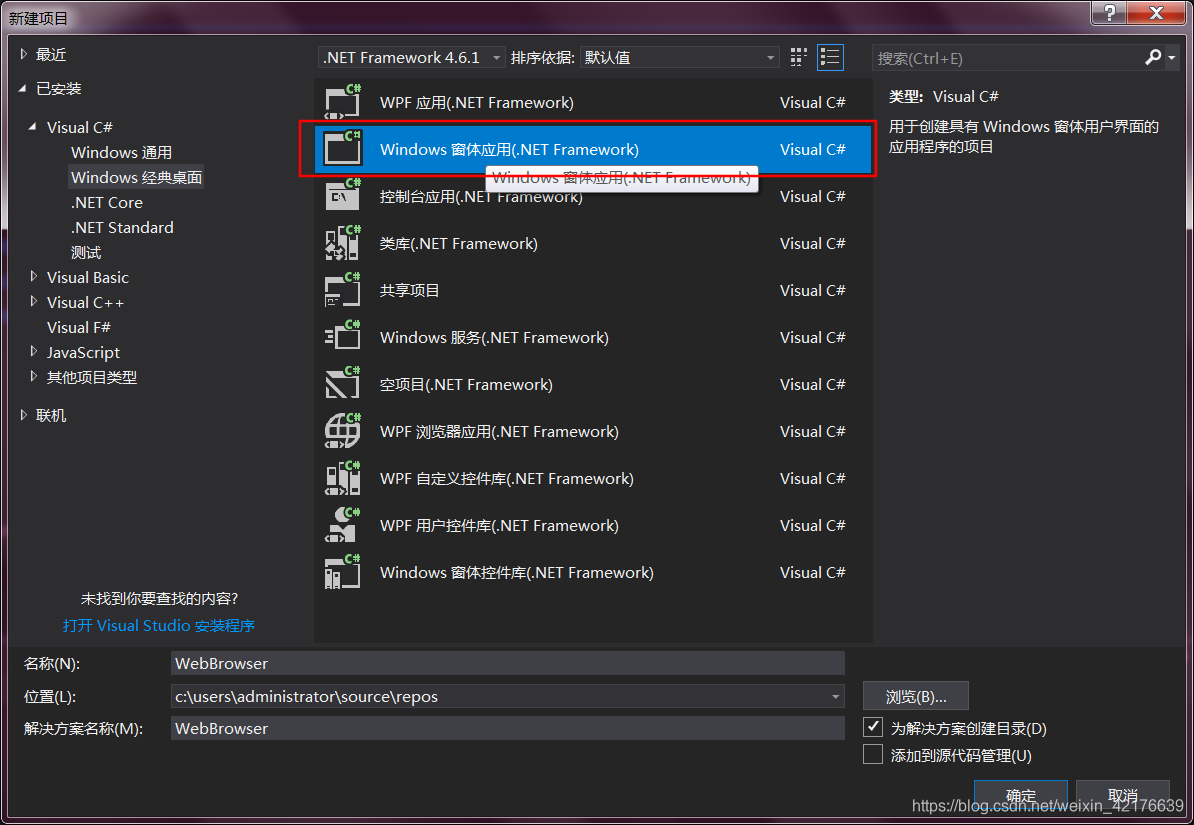

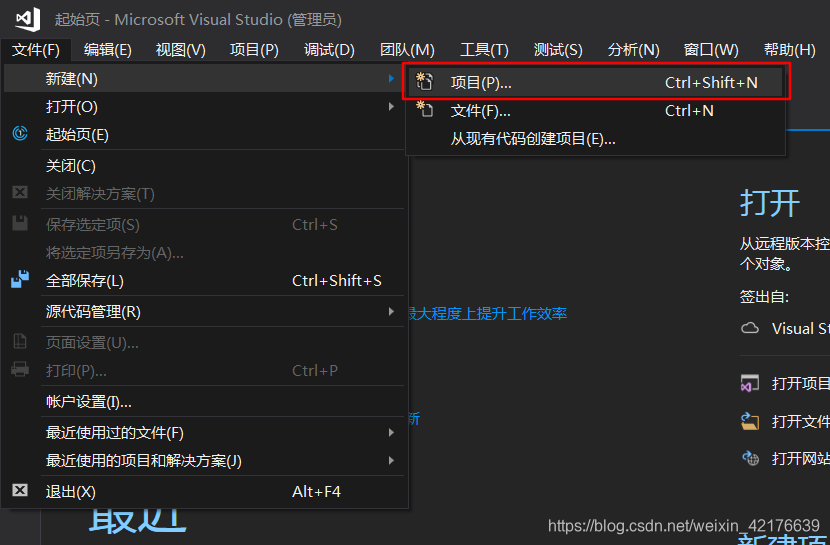

1.新建项目

在这里插入图片描述

在这里插入图片描述

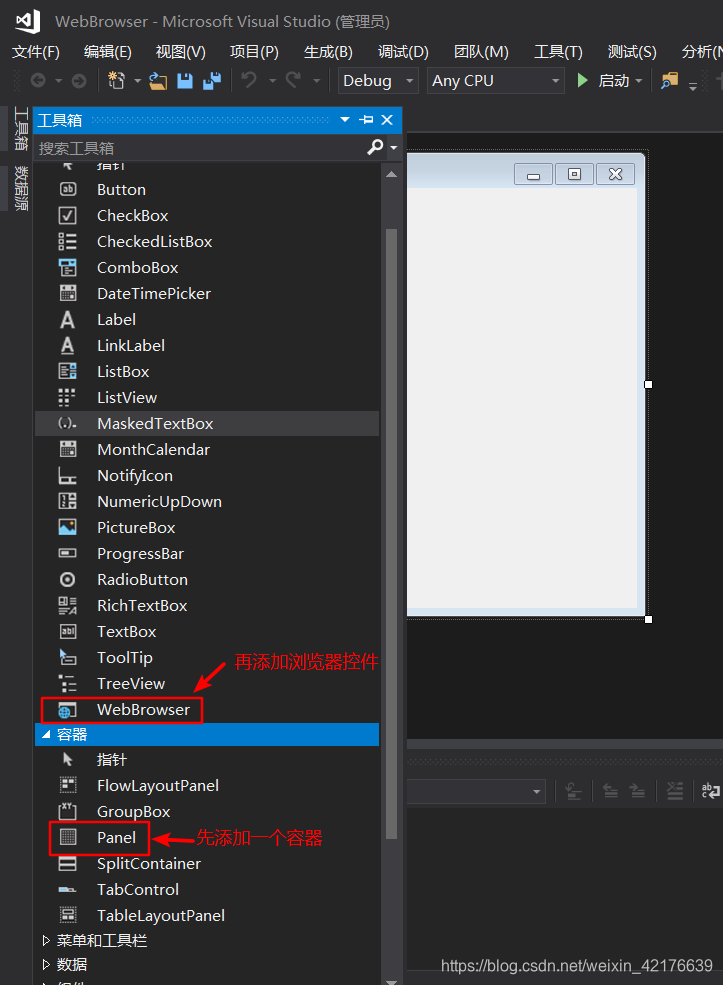

2.添加控件

在这里插入图片描述

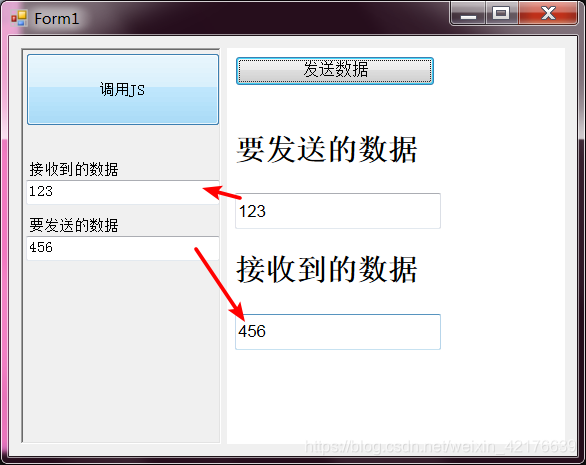

3.最终效果如图

在这里插入图片描述

三、程序源码

新建一个txt文件,将扩展名改成html,然后将下面HTML源码复制进去,用浏览器打开,将地址复制下来,写到 webBrowser1.Url = new Uri(URL)里

  • C#窗体部分
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace WebBrowser
{
    //设置Com对外可访问
    [System.Runtime.InteropServices.ComVisible(true)]
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
            // 将当前类设置为可由脚本访问
            webBrowser1.ObjectForScripting = this;
        }

        private void Form1_Load(object sender, EventArgs e)
        {
            //可以从TextBox里获取Url
            webBrowser1.Url = new Uri("file:///C:/Users/Administrator/Desktop/ConnectC.html");

        }
        private void button1_Click(object sender, EventArgs e)
        {
            SendMessage();
        }
        #region**Connect JS**
        //被外部js调用的方法
        public void MyMessageBox(string message)
        {
            textBox1.Text = message;
        }

        private void SendMessage()
        {
            // 调用JavaScript的messageBox方法,并传入参数
            object[] objects = new object[1];

            objects[0] = textBox2.Text;
            webBrowser1.Document.InvokeScript("GetMessage", objects);
        }
        #endregion
    }
}

  • html页面部分
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
  <head>
    <title>My JSP 'ConnectC#.jsp' starting page</title>
    <meta http-equiv="Content-Type" content="text/html; charset=utf-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
	<meta http-equiv="pragma" content="no-cache">
	<meta http-equiv="cache-control" content="no-cache">
	<meta http-equiv="expires" content="0">
	<meta http-equiv="keywords" content="keyword1,keyword2,keyword3">
	<meta http-equiv="description" content="This is my page">
	<!--
	<link rel="stylesheet" type="text/css" href="styles.css">
	-->
	<style type="text/css">

	</style>
	<script language="javascript" type="text/javascript">
		/* 调用C#方法 */
		function SendMessage(){
			window.external.MyMessageBox(document.getElementById("send").value);
		}

        <!-- 提供给C#程序调用的方法,接收返回值 -->
        function GetMessage(message)
        {
			//alert(message);
			document.getElementById("arrive").value = message;
		}

    </script>
  </head>

  <body>

    <input type="button" value="发送数据" onclick="SendMessage();" style="width:200px;height:30px;"/>
    <br><br>
    <h2>要发送的数据</h2><input style="width:200px;height:30px;" id="send"/>
	<h2>接收到的数据</h2><input style="width:200px;height:30px;" id="arrive"/>

  </body>
</html>
