Springboot整合swagger2进行接口管理

一. 背景

前后端分离不可避免要进行接口的记录，接口文档因人而异，格式不统一，swagger2应由而生，一款对接口进行管理的交互页面。

二.使用

1. 引入pom

	<!--Swagger文档管理-->
	<dependency>
		<groupId>io.springfox</groupId>
		<artifactId>springfox-swagger2</artifactId>
		<version>2.6.0</version>
	</dependency>
	<dependency>
		<groupId>io.springfox</groupId>
		<artifactId>springfox-swagger-ui</artifactId>
		<version>2.6.0</version>
	</dependency>

2.纯java的配置

import com.fasterxml.classmate.TypeResolver;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.context.request.async.DeferredResult;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.schema.AlternateTypeRule;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

/**
 1. @ Author     ：AZY.
 2. @ Date       ：Created in 17:59 2019/7/15
 3. @ Description：Swagger文档管理
 */
@Configuration
@EnableSwagger2
public class Swagger2Config {

	//集成swagger-ui时，在项目启动的时候，如果接口参数的属性出现嵌套，就会出现无限递归，进而导致StackOverFlowError
    //TypeResolver typeResolver = new TypeResolver();
   //AlternateTypeRule typeRule1 = new AlternateTypeRule(typeResolver.resolve(User.class),typeResolver.resolve(Object.class));
   // AlternateTypeRule typeRule2 = new AlternateTypeRule(typeResolver.resolve(Role.class),typeResolver.resolve(Object.class));


    @Bean
    public Docket createRestApi()
    {
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .genericModelSubstitutes(DeferredResult.class)
                .useDefaultResponseMessages(false)
                .forCodeGeneration(false)
                .alternateTypeRules(typeRule1,typeRule2)
                .select()
                .apis(RequestHandlerSelectors.basePackage("com.skylon.waterstation.datamanage.controller"))
//                .paths(PathSelectors.regex("/.*"))
                .paths(PathSelectors.any())
                .build();
    }


    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title("Blog系统Restful API")
                .description("Blog系统Restful API")
                .termsOfServiceUrl("http://127.0.0.1:8081/")
                .contact("aizhongyue")
                .version("1.0")
                .build();
    }
}

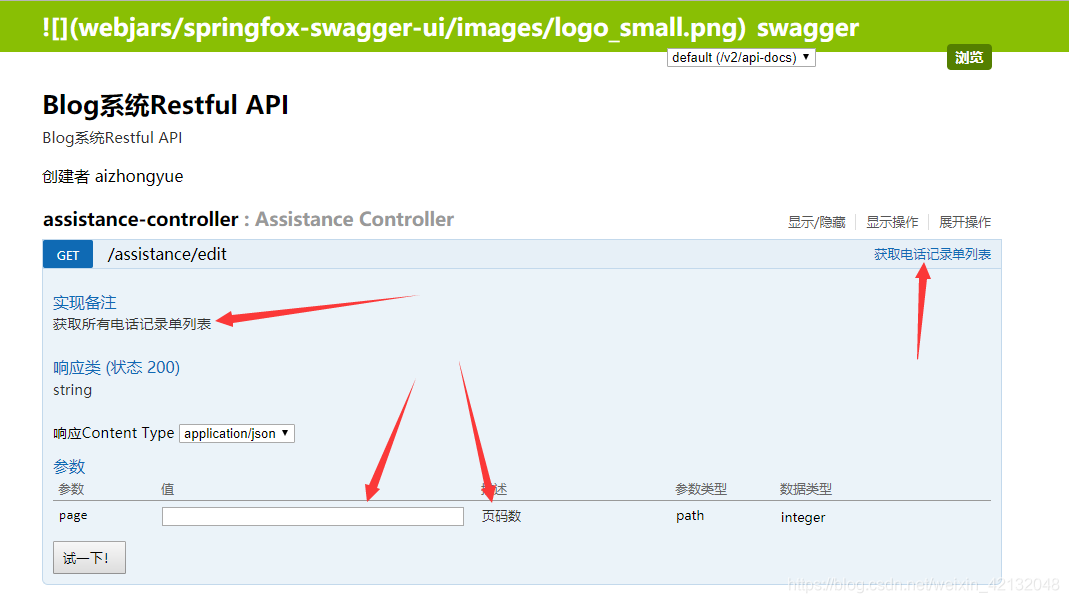

3.接口添加解释注解

@ApiOperation(value="获取电话记录单列表", notes="获取所有电话记录单列表",produces = "application/json")
@ApiImplicitParam(name = "page",value = "页码数",dataType = "int",paramType = "path")
public String editInfo(Model model, @RequestParam(value = "page", defaultValue = "1") Integer pageIndex) throws ParseException

111111111111

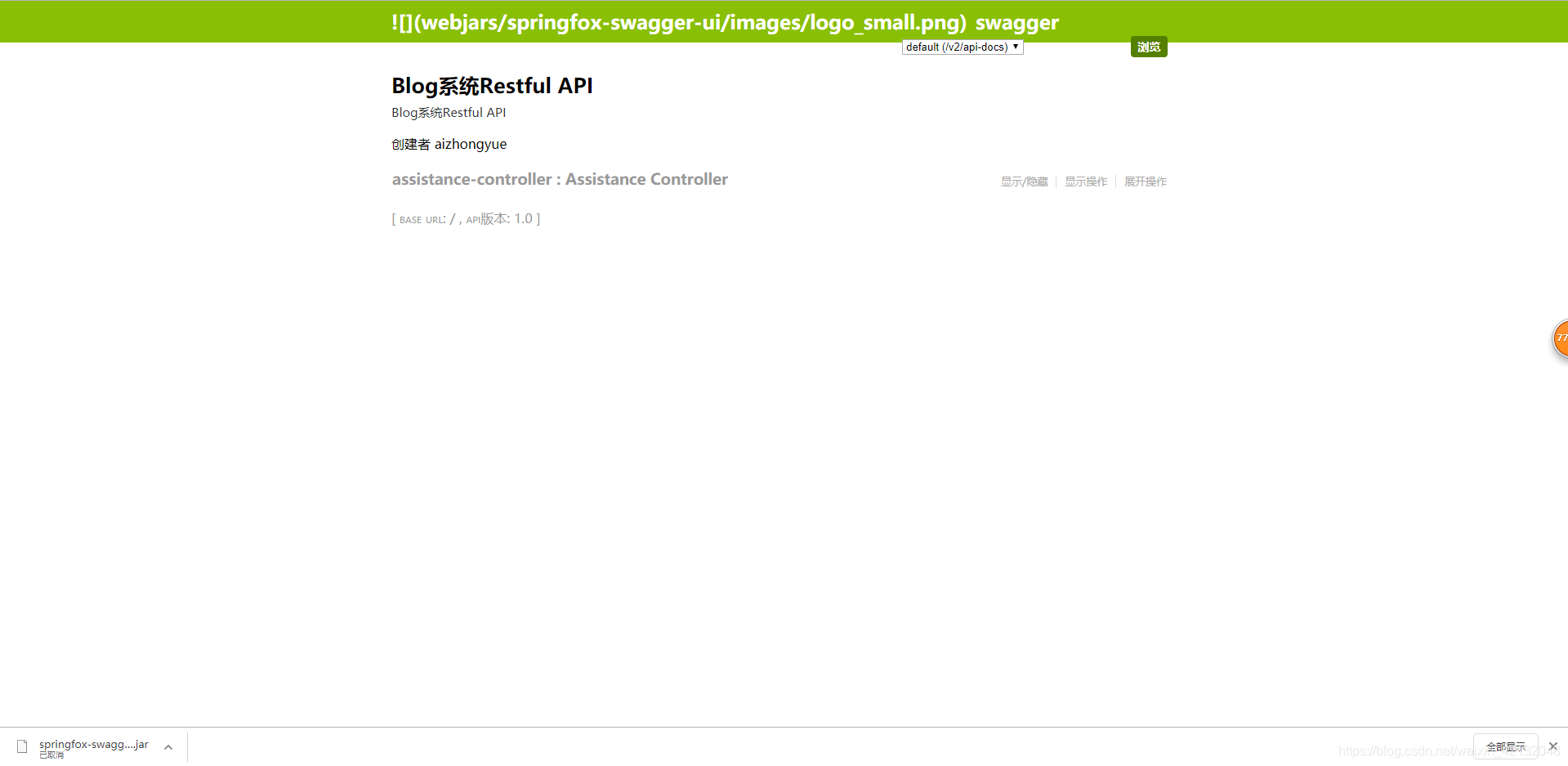

4.添加swagger2的UI页面

创建此结构添加swagger-ui.html页面

以下代码原封不动拷贝，已转为中文

<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <title>Swagger UI</title>
    <link rel="icon" type="image/png" href="webjars/springfox-swagger-ui/images/favicon-32x32.png" sizes="32x32"/>
    <link rel="icon" type="image/png" href="webjars/springfox-swagger-ui/images/favicon-16x16.png" sizes="16x16"/>
    <link href='webjars/springfox-swagger-ui/css/typography.css' media='screen' rel='stylesheet' type='text/css'/>
    <link href='webjars/springfox-swagger-ui/css/reset.css' media='screen' rel='stylesheet' type='text/css'/>
    <link href='webjars/springfox-swagger-ui/css/screen.css' media='screen' rel='stylesheet' type='text/css'/>
    <link href='webjars/springfox-swagger-ui/css/reset.css' media='print' rel='stylesheet' type='text/css'/>
    <link href='webjars/springfox-swagger-ui/css/print.css' media='print' rel='stylesheet' type='text/css'/>

    <script src='webjars/springfox-swagger-ui/lib/object-assign-pollyfill.js' type='text/javascript'></script>
    <script src='webjars/springfox-swagger-ui/lib/jquery-1.8.0.min.js' type='text/javascript'></script>
    <script src='webjars/springfox-swagger-ui/lib/jquery.slideto.min.js' type='text/javascript'></script>
    <script src='webjars/springfox-swagger-ui/lib/jquery.wiggle.min.js' type='text/javascript'></script>
    <script src='webjars/springfox-swagger-ui/lib/jquery.ba-bbq.min.js' type='text/javascript'></script>
    <script src='webjars/springfox-swagger-ui/lib/handlebars-4.0.5.js' type='text/javascript'></script>
    <script src='webjars/springfox-swagger-ui/lib/lodash.min.js' type='text/javascript'></script>
    <script src='webjars/springfox-swagger-ui/lib/backbone-min.js' type='text/javascript'></script>
    <script src='webjars/springfox-swagger-ui/swagger-ui.min.js' type='text/javascript'></script>
    <script src='webjars/springfox-swagger-ui/lib/highlight.9.1.0.pack.js' type='text/javascript'></script>
    <script src='webjars/springfox-swagger-ui/lib/highlight.9.1.0.pack_extended.js' type='text/javascript'></script>
    <script src='webjars/springfox-swagger-ui/lib/jsoneditor.min.js' type='text/javascript'></script>
    <script src='webjars/springfox-swagger-ui/lib/marked.js' type='text/javascript'></script>
    <script src='webjars/springfox-swagger-ui/lib/swagger-oauth.js' type='text/javascript'></script>
    <script src='webjars/springfox-swagger-ui/springfox.js' type='text/javascript'></script>

    <!--国际化操作：选择中文版 -->
    <script src='webjars/springfox-swagger-ui/lang/translator.js' type='text/javascript'></script>
    <script src='webjars/springfox-swagger-ui/lang/zh-cn.js' type='text/javascript'></script>

</head>

<body class="swagger-section">
<div id='header'>
    <div class="swagger-ui-wrap">
        <a id="logo" href="http://swagger.io">![](webjars/springfox-swagger-ui/images/logo_small.png)<span class="logo__title">swagger</span></a>
        <form id='api_selector'>
            <div class='input'>
                <select id="select_baseUrl" name="select_baseUrl"></select>
            </div>
            <div class='input'><input placeholder="http://example.com/api" id="input_baseUrl" name="baseUrl" type="text"/></div>
            <div id='auth_container'></div>
            <div class='input'><a id="explore" class="header__btn" href="#" data-sw-translate>Explore</a></div>
        </form>
    </div>
</div>

<div id="message-bar" class="swagger-ui-wrap" data-sw-translate> </div>
<div id="swagger-ui-container" class="swagger-ui-wrap"></div>
</body>
</html>
