pillow.Image常用操作如图片裁剪,旋转,缩放,翻转等

该博客主要介绍Python中使用Image包进行图像预处理的方法,包括图片裁剪、调整大小、查看格式、粘贴、旋转、翻转等操作,还提及高斯模糊、边缘增强、锐化、平滑处理等图像效果处理。

在Python中import Image包格式如下:

from PIL import Image
width_rate=random.randint(1,width_rate)/100
height_rate=random.randint(1,height_rate)/100
if type(figure) is np.ndarray:
   figure=Image.fromarray(figure)
figure=figure.crop((32*width_rate/2,32*height_rate/2,32-32*width_rate/2,32-
                    32*height_rate/2))
figure=figure.resize((32,32))
 return figure

图片裁剪:

figure.crop((左,上,右,下))   分别对应希望裁剪的尺寸的最左上右下边。

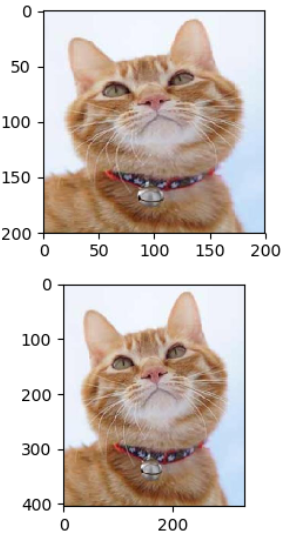

调整图像大小:

figure.resize((width,height))分别对应缩放后的长宽

figure=Image.open('save_picture\cat.jpg')
figure_resize=figure.resize((200,200))
plt.figure()
plt.subplot(211)
plt.imshow(figure_resize)
plt.subplot(212)
plt.imshow(figure)
plt.show()

结果如下所示:

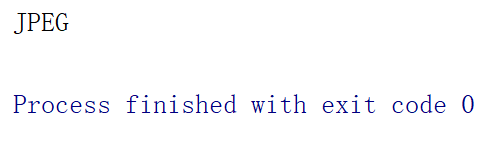

查看图片格式:

figure.format

figure=Image.open('save_picture\picture.jpg')
print(figure.format)

输出结果如下:

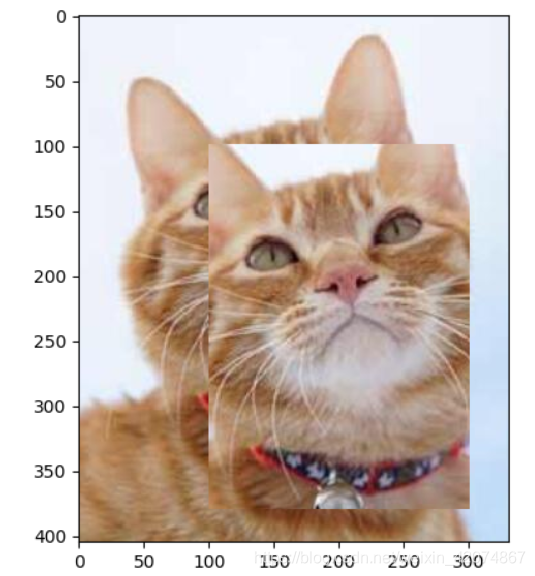

图片粘贴,代码如下:

figure.paste(粘贴的图片,(位置))

figure=Image.open('\save_picture\cat.jpg')
print(figure.size)
figure_crop=figure.crop((60,60,260,340))
figure.paste(figure_crop,(100,100))   #图片粘贴位置的左上角坐标

效果如下:

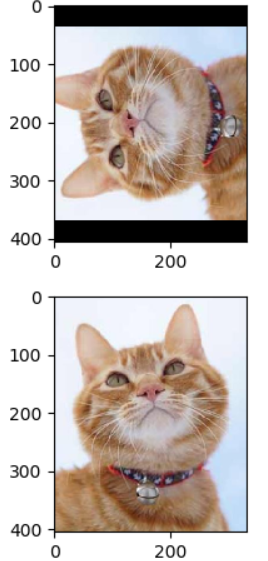

图像旋转,代码如下:

figure_rotate=figure.rotate(90)  #旋转代码
plt.figure()
plt.subplot(211)
plt.imshow(figure_rotate)
plt.subplot(212)
plt.imshow(figure)
plt.show()

效果如下:

图像水平翻转:

figure_flip=figure.transpose(Image.FLIP_LEFT_RIGHT)       #翻转代码
plt.figure()
plt.subplot(211)
plt.imshow(figure_flip)
plt.subplot(212)
plt.imshow(figure)
plt.show()

效果如下:

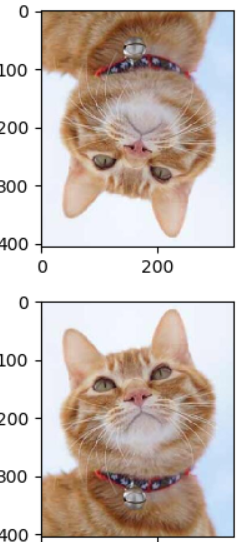

图像垂直翻转:

figure_flip=figure.transpose(Image.FLIP_TOP_BOTTOM)
plt.figure()
plt.subplot(211)
plt.imshow(figure_flip)
plt.subplot(212)
plt.imshow(figure)
plt.show()

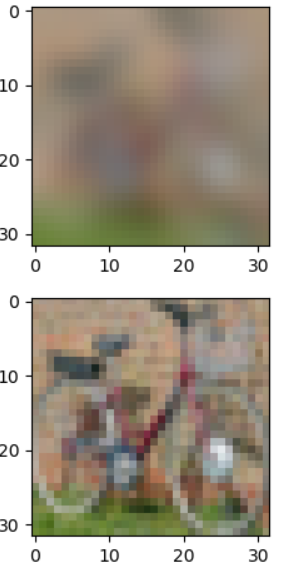

高斯模糊:

figure_gaussianblur=figure.filter(ImageFilter.GaussianBlur)
plt.figure()
plt.subplot(211)
plt.imshow(figure_gaussianblur)
plt.subplot(212)
plt.imshow(figure)
plt.show()

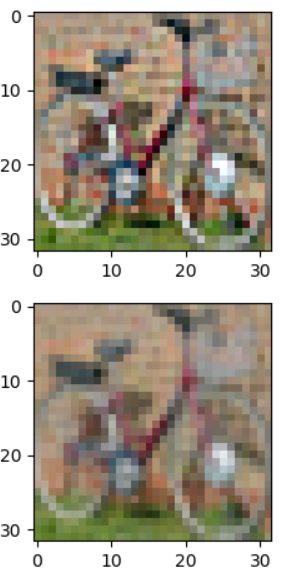

边缘增强:

from PIL import Image,ImageFilter
figure_edge_enhance=figure.filter(ImageFilter.EDGE_ENHANCE)
plt.figure()
plt.subplot(211)
plt.imshow(figure_edge_enhance)
plt.subplot(212)
plt.imshow(figure)
plt.show()

效果如下:

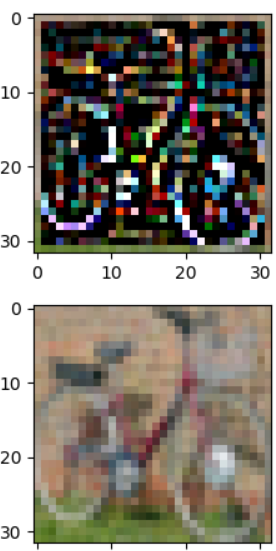

找到边缘

figure_find_edges=figure.filter(ImageFilter.FIND_EDGES)
plt.figure()
plt.subplot(211)
plt.imshow(figure_find_edges)
plt.subplot(212)
plt.imshow(figure)
plt.show()

锐化:

figure_sharpen=figure.filter(ImageFilter.SHARPEN)
plt.figure()
plt.subplot(211)
plt.imshow(figure_sharpen)
plt.subplot(212)
plt.imshow(figure)
plt.show()

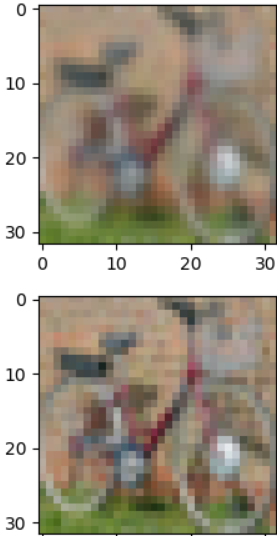

平滑处理:

figure_smooth=figure.filter(ImageFilter.SMOOTH)
plt.figure()
plt.subplot(211)
plt.imshow(figure_smooth)
plt.subplot(212)
plt.imshow(figure)
plt.show()

效果如下:

细节:

figure_detail=figure.filter(ImageFilter.DETAIL)
plt.figure()
plt.subplot(211)
plt.imshow(figure_detail)
plt.subplot(212)
plt.imshow(figure)
plt.show()
