spring-boot开发微信小程序后台(二)

本文介绍如何在SpringBoot项目中整合MyBatis,包括使用逆向工程自动生成POJO、Mapper和DAO,以及配置数据库连接和相关依赖。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

spring-boot开发微信小程序后台

spring boot与mybatis整合,mybatis逆向工程生成pojo、mapper、dao

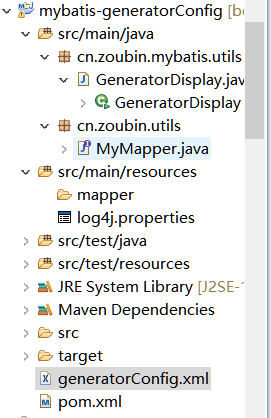

逆向工程目录结构:

pom.xml:

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
<!-- 	<parent> -->
		<groupId>cn.zoubin</groupId>
		<version>0.0.1-SNAPSHOT</version>
<!-- 	</parent> -->
	<artifactId>mybatis-generatorConfig</artifactId>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
	</properties>

	<dependencies>

		<!-- 引入log4j日志依赖 -->
		<dependency>
		    <groupId>org.springframework.boot</groupId>
		    <artifactId>spring-boot-starter-log4j</artifactId>
		    <version>1.3.8.RELEASE</version>
		</dependency>

        <!-- 阿里开源数据源 -->
		<dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.1.0</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.0</version>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.41</version>
        </dependency>

        <!--mybatis-->
		<dependency>
		    <groupId>org.mybatis.spring.boot</groupId>
		    <artifactId>mybatis-spring-boot-starter</artifactId>
		    <version>1.3.1</version>
		</dependency>
		<!--mapper-->
		<dependency>
		    <groupId>tk.mybatis</groupId>
		    <artifactId>mapper-spring-boot-starter</artifactId>
		    <version>1.2.4</version>
		</dependency>
		<!--pagehelper-->
		<dependency>
		    <groupId>com.github.pagehelper</groupId>
		    <artifactId>pagehelper-spring-boot-starter</artifactId>
		    <version>1.2.3</version>
		</dependency>

		<!-- mybatis 逆向生成工具  -->
 		<dependency>
            <groupId>org.mybatis.generator</groupId>
            <artifactId>mybatis-generator-core</artifactId>
            <version>1.3.2</version>
            <scope>compile</scope>
            <optional>true</optional>
        </dependency>
	</dependencies>

</project>

 GeneratorDisplay:启动类,加载数据库文件。

package cn.zoubin.mybatis.utils;

import java.io.File;
import java.util.ArrayList;
import java.util.List;

import org.mybatis.generator.api.MyBatisGenerator;
import org.mybatis.generator.config.Configuration;
import org.mybatis.generator.config.xml.ConfigurationParser;
import org.mybatis.generator.internal.DefaultShellCallback;


public class GeneratorDisplay {

	public void generator() throws Exception{

		List<String> warnings = new ArrayList<String>();
		boolean overwrite = true;
		//指定 逆向工程配置文件
		File configFile = new File("generatorConfig.xml");
		ConfigurationParser cp = new ConfigurationParser(warnings);
		Configuration config = cp.parseConfiguration(configFile);
		DefaultShellCallback callback = new DefaultShellCallback(overwrite);
		MyBatisGenerator myBatisGenerator = new MyBatisGenerator(config,
				callback, warnings);
		myBatisGenerator.generate(null);

	}

	public static void main(String[] args) throws Exception {
		try {
			GeneratorDisplay generatorSqlmap = new GeneratorDisplay();
			generatorSqlmap.generator();
		} catch (Exception e) {
			e.printStackTrace();
		}

	}
}

MyMapper:固定接口,生成dao类的继承父类,不能被扫描。

/*
 * The MIT License (MIT)
 *
 * Copyright (c) 2014-2016 abel533@gmail.com
 *
 * Permission is hereby granted, free of charge, to any person obtaining a copy
 * of this software and associated documentation files (the "Software"), to deal
 * in the Software without restriction, including without limitation the rights
 * to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
 * copies of the Software, and to permit persons to whom the Software is
 * furnished to do so, subject to the following conditions:
 *
 * The above copyright notice and this permission notice shall be included in
 * all copies or substantial portions of the Software.
 *
 * THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
 * IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
 * FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
 * AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
 * LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
 * OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
 * THE SOFTWARE.
 */

package cn.zoubin.utils;

import tk.mybatis.mapper.common.Mapper;
import tk.mybatis.mapper.common.MySqlMapper;

public interface MyMapper<T> extends Mapper<T>, MySqlMapper<T> {
    //TODO
    //FIXME 特别注意,该接口不能被扫描到,否则会出错
}

generatorConfiguration.xml:配置文件,有关数据库,生成内容都在里面。

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">

<generatorConfiguration>
    <context id="MysqlContext" targetRuntime="MyBatis3Simple" defaultModelType="flat">
        <property name="beginningDelimiter" value="`"/>
        <property name="endingDelimiter" value="`"/>

        <plugin type="tk.mybatis.mapper.generator.MapperPlugin">
            <property name="mappers" value="cn.zoubin.utils.MyMapper"/>
        </plugin>

        <jdbcConnection driverClass="com.mysql.jdbc.Driver"
                        connectionURL="jdbc:mysql://localhost:3306/"
                        userId=""
                        password="">
        </jdbcConnection>

        <!-- 对应生成的pojo所在包 -->
        <javaModelGenerator targetPackage="cn.jxau.panshi.pojo" targetProject="src/main/java"/>

		<!-- 对应生成的mapper所在目录 -->
        <sqlMapGenerator targetPackage="mapper" targetProject="src/main/resources"/>

		<!-- 配置mapper对应的java映射 -->
        <javaClientGenerator targetPackage="cn.jxau.panshi.mapper" targetProject="src/main/java"
        type="XMLMAPPER"/>


		<table tableName="answer"></table>
		<table tableName="blog"></table>
		<table tableName="book"></table>
		<table tableName="comment"></table>
		<table tableName="lend_book"></table>
		<table tableName="mission"></table>
		<table tableName="on_watch"></table>
		<table tableName="question"></table>
		<table tableName="report"></table>
		<table tableName="sign"></table>
		<table tableName="study_plan"></table>
		<table tableName="user"></table>
		<table tableName="works"></table>


    </context>
</generatorConfiguration>

在配置文件中配置好所有信息后,就可以启动启动类,生成的代码、类都在你指定的包内。
