SOME/IP-SD-Communication phases Server

Timings and repetitions for Server Service and Event Handlers

Communication phases Server

• Especially after starting multiple ECUs, the multicast messages of the Service Discovery come with the risk of overflowing ECUs with too many messages. Therefore, the Service Discovery can be configured with a suitable message sending behavior.
  特别是在启动多个ECU之后，Service Discovery的多播消息可能会因为消息过多而导致ECU溢出。 因此，可以使用适当的消息发送行为配置Service Discovery。

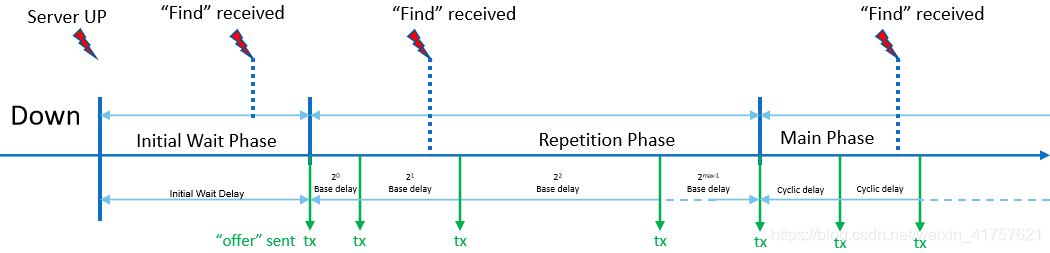

• For every Server Service Instance different phases are defined as shown in following figure :
  对于每个服务器服务实例，定义了不同的阶段，如下图所示
  • Down
  • Available
  • Initial Wait Phase
  • Repetition Phase
  • Main Phase
