LWIP学习笔记（3）LWIP数据包管理结构pbuf

pbuf结构体

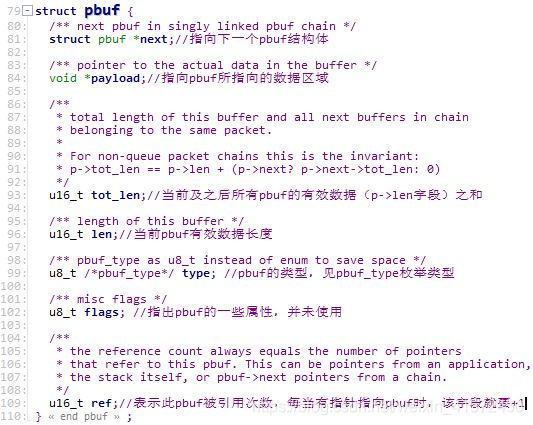

协议栈本质是对数据包进行管理，lwip中用pbuf来描述和管理数据包，相关实现在pbuf.c/h,pbuf.h中定义结构体如下

pbuf类型

pbuf.h中定义类型如下

• PBUF_RAM
  pbuf描述的数据在pbuf结构之后的连续内存堆中,就是说他们是在一块连续的内存堆中，申请方式如下：

  mem_malloc说明是在内存堆中申请，
  SIZEOF_STRUCT_PBUF是如下宏定义，表示struct pbuf的大小

  length是数据需要的空间
  offest用来存储数据包各种首部，如TCP首部、IP首部、以太网首部等，也可以是0

• PBUF_POOL
  是通过内存池方式申请来的，pbuf结构与数据在同一内存池中，申请方式如下

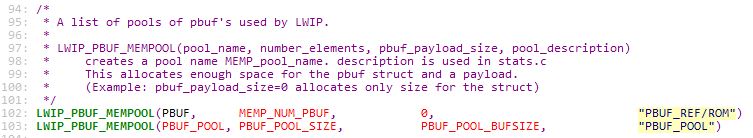

  可以看到参数是MEMP_PBUF_POOL,回忆前面讲的内存池管理，他是memp_t的枚举变量，是由memp_std.h宏定义来的，如下

  后面的描述字段也说明了这是PBUF_POOL，再宏定义到下面，可以看到这种类型每个pool大小是 struct pbuf的大小加payload大小

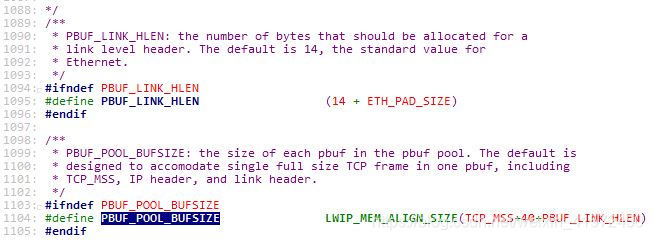

  payload大小是如下宏定义，
  TCP_MSS+TCP头(20)+IP头(20)+以太网头(20),
  ETH_PAD_SIZE默认是0，TCP_MSS默认是536,

• PBUF_ROM/PBUF_REF
  PBUF_ROM ：pbuf描述的数据在ROM中，PBUF_REF：pbuf描述的数据在RAM中，但位置与pbuf结构所在位置无关，申请方式都如下

  对于参数MEMP_PBUF和上面原理一样，再贴一遍，从描述符可能看出这种池是PBUF_REF/ROM，不同的是他的payload是0，那么这种池的大小就是struct pbuf的大小，则他就只分配struct pbuf的大小

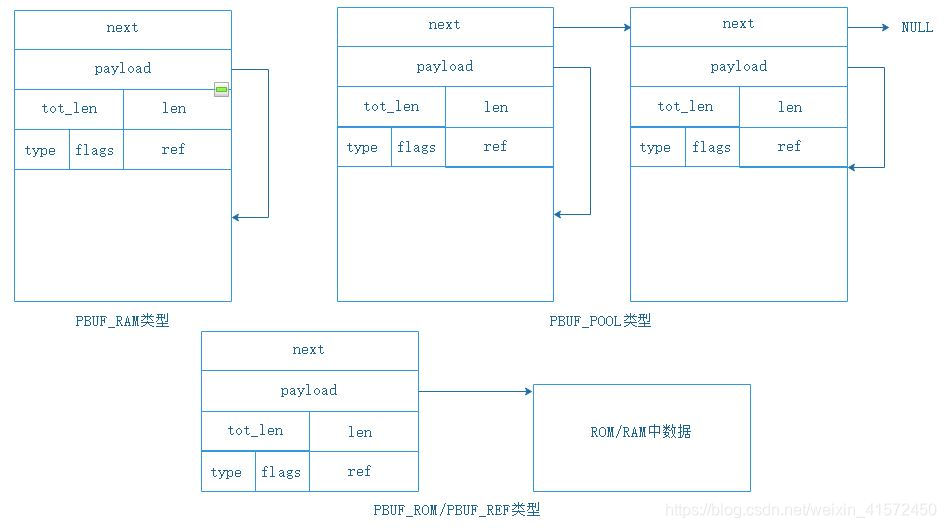

  4种类型如下图


pbuf层次

由于lwip各层禁止数据拷贝，所以存在不同层次对数据包pbuf的alloc，前面的offest就是为不同层预留的头部字段，下面枚举了4种层次，分配时除了要知道大小、类型还要传入这个层次，在pbuf.h

数据包分配函数pbuf_alloc

/**
 * Allocates a pbuf of the given type (possibly a chain for PBUF_POOL type).
 *
 * The actual memory allocated for the pbuf is determined by the
 * layer at which the pbuf is allocated and the requested size
 * (from the size parameter).
 *
 * @param layer flag to define header size
 * @param length size of the pbuf's payload
 * @param type this parameter decides how and where the pbuf
 * should be allocated as follows:
 *
 * - PBUF_RAM: buffer memory for pbuf is allocated as one large
 *             chunk. This includes protocol headers as well.
 * - PBUF_ROM: no buffer memory is allocated for the pbuf, even for
 *             protocol headers. Additional headers must be prepended
 *             by allocating another pbuf and chain in to the front of
 *             the ROM pbuf. It is assumed that the memory used is really
 *             similar to ROM in that it is immutable and will not be
 *             changed. Memory which is dynamic should generally not
 *             be attached to PBUF_ROM pbufs. Use PBUF_REF instead.
 * - PBUF_REF: no buffer memory is allocated for the pbuf, even for
 *             protocol headers. It is assumed that the pbuf is only
 *             being used in a single thread. If the pbuf gets queued,
 *             then pbuf_take should be called to copy the buffer.
 * - PBUF_POOL: the pbuf is allocated as a pbuf chain, with pbufs from
 *              the pbuf pool that is allocated during pbuf_init().
 *
 * @return the allocated pbuf. If multiple pbufs where allocated, this
 * is the first pbuf of a pbuf chain.
 */
struct pbuf *pbuf_alloc(pbuf_layer layer, u16_t length, pbuf_type type)
{
  struct pbuf *p, *q, *r;
  u16_t offset;/**///预留首部长度
  s32_t rem_len; /* remaining length */
  LWIP_DEBUGF(PBUF_DEBUG | LWIP_DBG_TRACE, ("pbuf_alloc(length=%"U16_F")\n", length));

  /* determine header offset *///根据不同层次计算预留长度offest
  switch (layer) {
  case PBUF_TRANSPORT:/**///传输层,预留以太首部+IP首部+TCP首部
    /* add room for transport (often TCP) layer header */
    offset = PBUF_LINK_HLEN + PBUF_IP_HLEN + PBUF_TRANSPORT_HLEN;
    break;
  case PBUF_IP:        /**///网络层,预留以太首部+IP首部
    /* add room for IP layer header */
    offset = PBUF_LINK_HLEN + PBUF_IP_HLEN;
    break;
  case PBUF_LINK:     /**///链路层,预留以太首部
    /* add room for link layer header */
    offset = PBUF_LINK_HLEN;
    break;
  case PBUF_RAW:      /**///原始层,不预留
    offset = 0;
    break;
  default:
    LWIP_ASSERT("pbuf_alloc: bad pbuf layer", 0);
    return NULL;
  }

  switch (type) { /**///根据类型来分配pbuf
  case PBUF_POOL: /**///PBUF_POOL类型可能需要分配几个pool串起来
    /* allocate head of pbuf chain into p */
    p = (struct pbuf *)memp_malloc(MEMP_PBUF_POOL);
    LWIP_DEBUGF(PBUF_DEBUG | LWIP_DBG_TRACE, ("pbuf_alloc: allocated pbuf %p\n", (void *)p));
    if (p == NULL) {
      PBUF_POOL_IS_EMPTY();
      return NULL;
    }
    p->type = type;
    p->next = NULL;

    /* make the payload pointer point 'offset' bytes into pbuf data memory *///p->payload指向数据
    p->payload = LWIP_MEM_ALIGN((void *)((u8_t *)p + (SIZEOF_STRUCT_PBUF + offset)));
    LWIP_ASSERT("pbuf_alloc: pbuf p->payload properly aligned",
            ((mem_ptr_t)p->payload % MEM_ALIGNMENT) == 0);
    /* the total length of the pbuf chain is the requested size *///填写总长度
    p->tot_len = length;
    /* set the length of the first pbuf in the chain *///len是pool的剩余空间和length的最小值
    p->len = LWIP_MIN(length, PBUF_POOL_BUFSIZE_ALIGNED - LWIP_MEM_ALIGN_SIZE(offset));
    LWIP_ASSERT("check p->payload + p->len does not overflow pbuf",
                ((u8_t*)p->payload + p->len <=
                 (u8_t*)p + SIZEOF_STRUCT_PBUF + PBUF_POOL_BUFSIZE_ALIGNED));
    LWIP_ASSERT("PBUF_POOL_BUFSIZE must be bigger than MEM_ALIGNMENT",
      (PBUF_POOL_BUFSIZE_ALIGNED - LWIP_MEM_ALIGN_SIZE(offset)) > 0 );
    /* set reference count (needed here in case we fail) */
    p->ref = 1;
	/**///下面判断已分配的pool能否装满length，不够则继续分配
    /* now allocate the tail of the pbuf chain */

    /* remember first pbuf for linkage in next iteration */
    r = p;
    /* remaining length to be allocated */
    rem_len = length - p->len;/**///还需要分配的长度
    /* any remaining pbufs to be allocated? */
    while (rem_len > 0) {  /**///只要不够则继续分配
      q = (struct pbuf *)memp_malloc(MEMP_PBUF_POOL);/**///再分配一个pool
      if (q == NULL) {
        PBUF_POOL_IS_EMPTY();
        /* free chain so far allocated */
        pbuf_free(p);
        /* bail out unsuccesfully */
        return NULL;
      }
      q->type = type;
      q->flags = 0;
      q->next = NULL;
      /* make previous pbuf point to this pbuf */
      r->next = q;/**///新分配的连接到之前的尾部
      /* set total length of this pbuf and next in chain */
      LWIP_ASSERT("rem_len < max_u16_t", rem_len < 0xffff);
      q->tot_len = (u16_t)rem_len;
      /* this pbuf length is pool size, unless smaller sized tail */
      q->len = LWIP_MIN((u16_t)rem_len, PBUF_POOL_BUFSIZE_ALIGNED);
      q->payload = (void *)((u8_t *)q + SIZEOF_STRUCT_PBUF);
      LWIP_ASSERT("pbuf_alloc: pbuf q->payload properly aligned",
              ((mem_ptr_t)q->payload % MEM_ALIGNMENT) == 0);
      LWIP_ASSERT("check p->payload + p->len does not overflow pbuf",
                  ((u8_t*)p->payload + p->len <=
                   (u8_t*)p + SIZEOF_STRUCT_PBUF + PBUF_POOL_BUFSIZE_ALIGNED));
      q->ref = 1;
      /* calculate remaining length to be allocated */
      rem_len -= q->len;/**///更新rem_len
      /* remember this pbuf for linkage in next iteration */
      r = q;
    }
    /* end of chain */
    /*r->next = NULL;*/

    break;
  case PBUF_RAM:
    /* If pbuf is to be allocated in RAM, allocate memory for it. */
    p = (struct pbuf*)mem_malloc(LWIP_MEM_ALIGN_SIZE(SIZEOF_STRUCT_PBUF + offset) + LWIP_MEM_ALIGN_SIZE(length));
    if (p == NULL) {
      return NULL;
    }
    /* Set up internal structure of the pbuf. */
    p->payload = LWIP_MEM_ALIGN((void *)((u8_t *)p + SIZEOF_STRUCT_PBUF + offset));
    p->len = p->tot_len = length;
    p->next = NULL;
    p->type = type;

    LWIP_ASSERT("pbuf_alloc: pbuf->payload properly aligned",
           ((mem_ptr_t)p->payload % MEM_ALIGNMENT) == 0);
    break;
  /* pbuf references existing (non-volatile static constant) ROM payload? */
  case PBUF_ROM:
  /* pbuf references existing (externally allocated) RAM payload? */
  case PBUF_REF:
    /* only allocate memory for the pbuf structure */
    p = (struct pbuf *)memp_malloc(MEMP_PBUF); //一个struct pbuf大小的pool
    if (p == NULL) {
      LWIP_DEBUGF(PBUF_DEBUG | LWIP_DBG_LEVEL_SERIOUS,
                  ("pbuf_alloc: Could not allocate MEMP_PBUF for PBUF_%s.\n",
                  (type == PBUF_ROM) ? "ROM" : "REF"));
      return NULL;
    }
    /* caller must set this field properly, afterwards */
    p->payload = NULL; //payload需要用户自己根据实际位置设置
    p->len = p->tot_len = length;
    p->next = NULL;
    p->type = type;
    break;
  default:
    LWIP_ASSERT("pbuf_alloc: erroneous type", 0);
    return NULL;
  }
  /* set reference count */
  p->ref = 1;
  /* set flags */
  p->flags = 0;
  LWIP_DEBUGF(PBUF_DEBUG | LWIP_DBG_TRACE, ("pbuf_alloc(length=%"U16_F") == %p\n", length, (void *)p));
  return p;
}

数据包释放函数pbuf_free

注意只有当pbuf的引用次数为0，即ref字段为0时才能释放pbuf，因为此时没有指针指向这个数据包了，代表他被处理完了
当pbuf链表的首节点， 被释放后还有检查他后面的节点是否能被释放，因为首节点释放会影响后续节点的ref字段
还有只能释放pbuf链表的首节点，不能释放中间节点，会导致非法指针

/**
 * Dereference a pbuf chain or queue and deallocate any no-longer-used
 * pbufs at the head of this chain or queue.
 *
 * Decrements the pbuf reference count. If it reaches zero, the pbuf is
 * deallocated.
 *
 * For a pbuf chain, this is repeated for each pbuf in the chain,
 * up to the first pbuf which has a non-zero reference count after
 * decrementing. So, when all reference counts are one, the whole
 * chain is free'd.
 *
 * @param p The pbuf (chain) to be dereferenced.
 *
 * @return the number of pbufs that were de-allocated
 * from the head of the chain.
 *
 * @note MUST NOT be called on a packet queue (Not verified to work yet).
 * @note the reference counter of a pbuf equals the number of pointers
 * that refer to the pbuf (or into the pbuf).
 *
 * @internal examples:
 *
 * Assuming existing chains a->b->c with the following reference
 * counts, calling pbuf_free(a) results in:
 *
 * 1->2->3 becomes ...1->3
 * 3->3->3 becomes 2->3->3
 * 1->1->2 becomes ......1
 * 2->1->1 becomes 1->1->1
 * 1->1->1 becomes .......
 *
 */
u8_t pbuf_free(struct pbuf *p)
{
  u16_t type;
  struct pbuf *q;
  u8_t count;

  if (p == NULL) {
    LWIP_ASSERT("p != NULL", p != NULL);
    /* if assertions are disabled, proceed with debug output */
    LWIP_DEBUGF(PBUF_DEBUG | LWIP_DBG_LEVEL_SERIOUS,
      ("pbuf_free(p == NULL) was called.\n"));
    return 0;
  }
  LWIP_DEBUGF(PBUF_DEBUG | LWIP_DBG_TRACE, ("pbuf_free(%p)\n", (void *)p));

  PERF_START;

  LWIP_ASSERT("pbuf_free: sane type",
    p->type == PBUF_RAM || p->type == PBUF_ROM ||
    p->type == PBUF_REF || p->type == PBUF_POOL);

  count = 0;
  /* de-allocate all consecutive pbufs from the head of the chain that
   * obtain a zero reference count after decrementing*/
  while (p != NULL) {
    u16_t ref;
    SYS_ARCH_DECL_PROTECT(old_level);
    /* Since decrementing ref cannot be guaranteed to be a single machine operation
     * we must protect it. We put the new ref into a local variable to prevent
     * further protection. */
    SYS_ARCH_PROTECT(old_level);
    /* all pbufs in a chain are referenced at least once */
    LWIP_ASSERT("pbuf_free: p->ref > 0", p->ref > 0);
    /* decrease reference count (number of pointers to pbuf) */
    ref = --(p->ref);       /**///ref-1
    SYS_ARCH_UNPROTECT(old_level);
    /* this pbuf is no longer referenced to? */
    if (ref == 0) { /**///ref为0才free
      /* remember next pbuf in chain for next iteration */
      q = p->next;
      LWIP_DEBUGF( PBUF_DEBUG | LWIP_DBG_TRACE, ("pbuf_free: deallocating %p\n", (void *)p));
      type = p->type;
#if LWIP_SUPPORT_CUSTOM_PBUF
      /* is this a custom pbuf? */
      if ((p->flags & PBUF_FLAG_IS_CUSTOM) != 0) {
        struct pbuf_custom *pc = (struct pbuf_custom*)p;
        LWIP_ASSERT("pc->custom_free_function != NULL", pc->custom_free_function != NULL);
        pc->custom_free_function(p);
      } else
#endif /* LWIP_SUPPORT_CUSTOM_PBUF */
      {
        /* is this a pbuf from the pool? *///根据不同的类型释放
        if (type == PBUF_POOL) {
          memp_free(MEMP_PBUF_POOL, p);
        /* is this a ROM or RAM referencing pbuf? */
        } else if (type == PBUF_ROM || type == PBUF_REF) {
          memp_free(MEMP_PBUF, p);
        /* type == PBUF_RAM */
        } else {
          mem_free(p);
        }
      }
      count++;
      /* proceed to next pbuf */
      p = q;//处理下一个pbuf
    /* p->ref > 0, this pbuf is still referenced to */
    /* (and so the remaining pbufs in chain as well) */
    } else { //ref不为0则不释放
      LWIP_DEBUGF( PBUF_DEBUG | LWIP_DBG_TRACE, ("pbuf_free: %p has ref %"U16_F", ending here.\n", (void *)p, ref));
      /* stop walking through the chain */
      p = NULL;
    }
  }
  PERF_STOP("pbuf_free");
  /* return number of de-allocated pbufs */
  return count;
}
