【强化学习】MuZero 训练CartPole-v1

【深度强化学习】tensorflow2.x复现 muzero 训练CartPole-v1

参考资料：
[1]ColinFred. 蒙特卡洛树搜索（MCTS）代码详解【python】. 2019-03-23 23:37:09.
[2]饼干Japson 深度强化学习实验室.【论文深度研读报告】MuZero算法过程详解.2021-01-19.
[3]Tangarf. Muzero算法研读报告. 2020-08-31 11:40:20 .
[4]带带弟弟好吗. AlphaGo版本三——MuZero. 2020-08-30.
[5]Google原论文：Mastering Atari, Go, Chess and Shogi by Planning with a Learned Model.
[6]参考GitHub代码1.
[7]参考GitHub代码2.

关于代码

• 这里先道个歉，因为考研的缘故之前复现的那个 muzero 没有完成，并且代码也因为换电脑不小心搞丢了(GitHub里面的代码全是报错，写的太乱也懒得改了)。。。。。。这里重新写一遍，比之前的那个代码更加简单易读。
• 蒙特卡洛树的代码 (MCTS.py) 部分这次将用于 Atari 游戏的蒙特卡洛树搜索和用于 棋类游戏(chess)的蒙特卡洛树搜索分开写，下面的代码里完成了用于 Atari 游戏的蒙特卡洛树搜索，至于如果有需求要写用于棋类游戏的 muzero 可以自行完成(可以根据 Atari 的 MCTS 更改，这次的代码非常容易读，照着 Atari 的 MCTS 去写非常简单)
• 本次的代码是完整的muzero代码(至少是对gym里面的游戏)，可以根据需求自行更改。

---

更新

• 补全了棋类的MCTS，加入了探索噪声。
• 更新了多线程训练方法（对训练函数trainer.py略有修改）

---

cartpole-v1_muzero.py

from cartpole_v1_model import linner_model
from trainer import ReplayBuffer, Trainer
from MCTS import MCTS_Atari
import matplotlib.pyplot as plt
import tensorflow as tf
import numpy as np
import copy
import gym

# 配置GPU内存
physical_devices = tf.config.experimental.list_physical_devices('GPU')
tf.config.experimental.set_memory_growth(physical_devices[0], True)

ENV_NAME = "CartPole-v1"
OBSERVATION_SIZE = 4
ACTION_SIZE = 2

DISCOUNT = 0.9
NUM_SIMULATIONS = 50
UNROLL_STEPS = 9
MEMORY_SIZE = int(1e6)
SIMPLE_SIZE = 1024
EPISODES = 1000

class muzero:
    def __init__(self, observation_size, action_size):
        self.model = linner_model(observation_size, action_size)
        self.MCTS = MCTS_Atari

    def choice_action(self, observation, T=1.0):
        MCTS = self.MCTS(self.model, observation)
        visit_count, MCTS_value = MCTS.simulations(NUM_SIMULATIONS, DISCOUNT)
        visit_counts = list(visit_count.values())
        prob = np.array(visit_counts) ** (1 / T) / np.sum(np.array(visit_counts) ** (1 / T))
        return np.random.choice(len(prob), p=prob), prob, MCTS_value

    def plot_score(self, scores):
        plt.plot(scores)
        plt.show()

if __name__ == '__main__':
    env = gym.make(ENV_NAME)
    agent = muzero(OBSERVATION_SIZE, ACTION_SIZE)

    trainer = Trainer(discount=DISCOUNT)
    replay_buffer = ReplayBuffer(MEMORY_SIZE, UNROLL_STEPS)

    scores = []
    for e in range(EPISODES):
        state = env.reset()
        action_next, policy_next, _ = agent.choice_action(state)
        rewards = 0
        while True:
            env.render()
            action, policy = action_next, policy_next
            next_state, reward, done, _ = env.step(action)
            action_next, policy_next, value_next = agent.choice_action(next_state)
			reward = -100 if done else reward
            done = 1 if done else 0

            rewards += reward
            action_onehot = np.array([1 if i == action else 0 for i in range(ACTION_SIZE)])
            replay_buffer.save_memory(state, policy, action_onehot, reward, value_next, next_state, done)
            state = copy.deepcopy(next_state)

            if done: break

		rewards += 100
        scores.append(rewards)
        policy_loss, value_loss, reward_loss = trainer.update_weight(agent.model, replay_buffer, SIMPLE_SIZE)

        print("episode: {}/{}, policy_loss: {}, value_loss: {}, reward_loss: {}, score: {}".format(
            e + 1, EPISODES, policy_loss, value_loss, reward_loss, rewards))

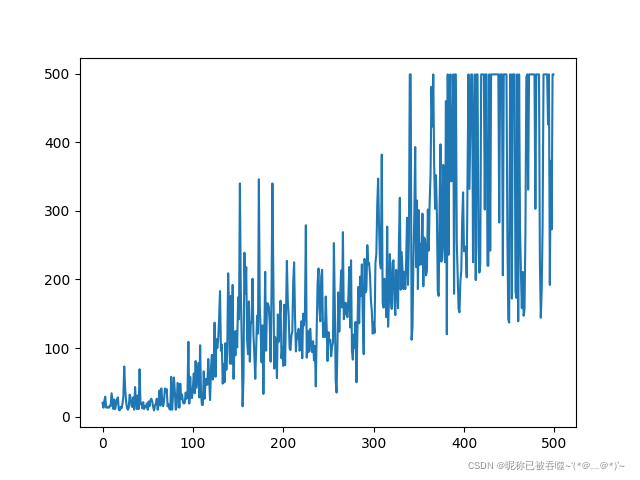

    agent.plot_score(scores)

cartpole_v1_model.py

from tensorflow.keras import layers, Input, Model
import numpy as np

class representation:
    def __init__(self, observation_size):
        observation = Input(shape=(observation_size))
        x = layers.Flatten()(observation)
        x = layers.Dense(units=128, activation='relu')(x)
        x = layers.Dense(units=128, activation='relu')(x)
        hidden_state = layers.Dense(units=observation_size)(x)
        self.model = Model(inputs=observation, outputs=hidden_state)
        # self.model.summary()
        self.trainable_variables = self.model.trainable_variables

    def predict(self, observation):
        observation = np.array([observation])
        hidden_state = np.array(self.model(observation)[0])
        return hidden_state

class dynamics:
    def __init__(self, observation_size, action_size):
        self.action_size = action_size
        hidden_state = Input(shape=(observation_size))
        action = Input(shape=(action_size))
        x = layers.concatenate([hidden_state, action])
        x = layers.Dense(units=128, activation='relu')(x)
        x = layers.Dense(units=128, activation='relu')(x)
        next_hidden_state = layers.Dense(units=observation_size)(x)
        reward = layers.Dense(units=1)(x)
        self.model = Model(inputs=[hidden_state, action], outputs=[next_hidden_state, reward])
        # self.model.summary()
        self.trainable_variables = self.model.trainable_variables

    def predict(self, hidden_state, action):
        hidden_state = np.array([hidden_state])
        action = np.array([[1 if i == action else 0 for i in range(self.action_size)]])
        next_hidden_state, reward = self.model([hidden_state, action])
        next_hidden_state = np.array(next_hidden_state[0])
        reward = np.array(reward[0][0])
        return next_hidden_state, reward

class prediction:
