本文介绍如何在Spring Boot项目中整合MyBatis，包括数据库配置、实体类定义、Mapper接口及XML映射文件的编写，最后通过Postman进行功能验证。

1、创建数据库及数据表

CREATE DATABASE /*!32312 IF NOT EXISTS*/`springbootdb` /*!40100 DEFAULT CHARACTER SET utf8 */;USE `springbootdb`;/*Table structure for table `user` */DROP TABLE IF EXISTS `user`;CREATE TABLE `user` (  `id` int(11) NOT NULL,  `username` varchar(16) DEFAULT NULL,  PRIMARY KEY (`id`)) ENGINE=InnoDB DEFAULT CHARSET=utf8;

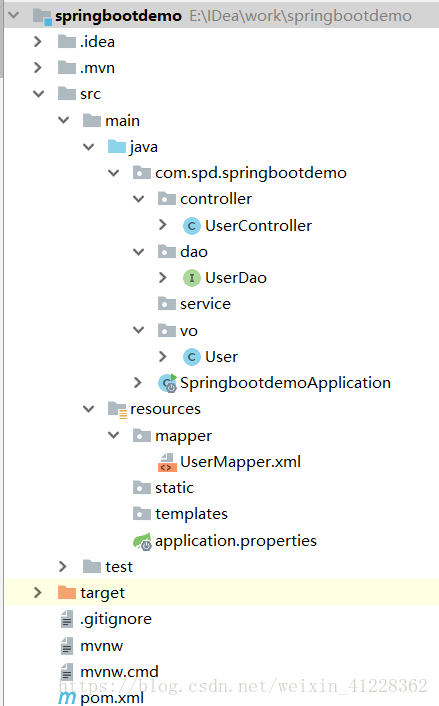

我的项目结构图

2，创建User.java

package com.spb.SpringBootDemo.vo;public class User {    private String id;    private String username;    public String getId() {        return id;    }    public void setId(String id) {        this.id = id;    }    public String getUsername() {        return username;    }    public void setUsername(String username) {        this.username = username;    }}

3、在pom.xml中加入以下依赖

<properties>    <mybatis-spring-boot>1.2.0</mybatis-spring-boot>     <mysql-connector>5.1.39</mysql-connector></properties>

<dependency>

    <groupId>org.springframework.boot</groupId>

    <artifactId>spring-boot-starter-web</artifactId>

</dependency>

<dependency>

    <groupId>org.springframework.boot</groupId>

    <artifactId>spring-boot-starter-test</artifactId>

    <scope>test</scope>

</dependency>

<!-- Spring Boot Mybatis 依赖 -->

<dependency>

    <groupId>org.mybatis.spring.boot</groupId>

    <artifactId>mybatis-spring-boot-starter</artifactId>

    <version>${mybatis-spring-boot}</version>

</dependency>

<!-- MySQL 连接驱动依赖 -->

<dependency>

    <groupId>mysql</groupId>

    <artifactId>mysql-connector-java</artifactId>

    <version>${mysql-connector}</version>

</dependency>

4, 在resource下打开application.properties文件，mysql和mybatis可以根据自己的地址配置。

spring.datasource.url=jdbc:mysql://localhost:3306/springbootdb

spring.datasource.username=root

spring.datasource.password=leishao

spring.datasource.driver-class-name=com.mysql.jdbc.Driver

mybatis.mapper-locations=classpath:mapper/*.xml

mybatis.type-aliases-package=com.spd.springbootdemo.vo

以上为mysql数据源相关配置，最后两行为mybatis需要扫描的model文件路径和mapper.xml文件路径

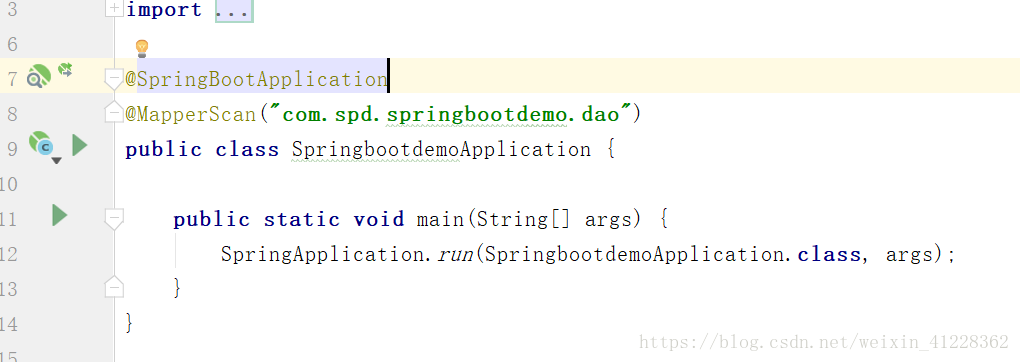

5.打开启动类加入相应mapper(dao)扫描注解

6、新增UserDao，并在resources下面创建mapper目录，在下面创建UserMapper.xml

import com.spd.springbootdemo.vo.User;

import org.apache.ibatis.annotations.Insert;

import org.apache.ibatis.annotations.Select;

import org.springframework.stereotype.Repository;

import javax.swing.text.Style;

import java.util.List;

public interface UserDao {

/**

     * 新增用户

     * @param user

*/

    @Insert("insert into user(id,username) VALUES(#{id},#{username})")

    void createUser(User user);

/**

     * 查询用户列表

     * @return

*/

    @Select("select * from user")

    List<User> findAllUser();

}

---------------------------------------------------------------------------------------

<?xml version="1.0" encoding="UTF-8" ?>

<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >

<mapper namespace="com.spd.springbootdemo.dao.UserDao">

    <resultMap id="BaseResultMap" type="com.spd.springbootdemo.vo.User">

        <result column="id" property="id" />

        <result column="username" property="username" />

    </resultMap>

    <parameterMap id="User" type="com.spd.springbootdemo.vo.User"/>

    <sql id="Base_Column_List">

        id, username

    </sql>

    <select id="findAllUser" resultMap="BaseResultMap" >

        select

        u.id,u.username

        from user u

    </select>

    <insert id="createUser" parameterMap="User" useGeneratedKeys="true" keyProperty="id">

        insert into

            user(id,username)

        values

            (#{id},#{username})

    </insert>

</mapper>

测试：
运行项目

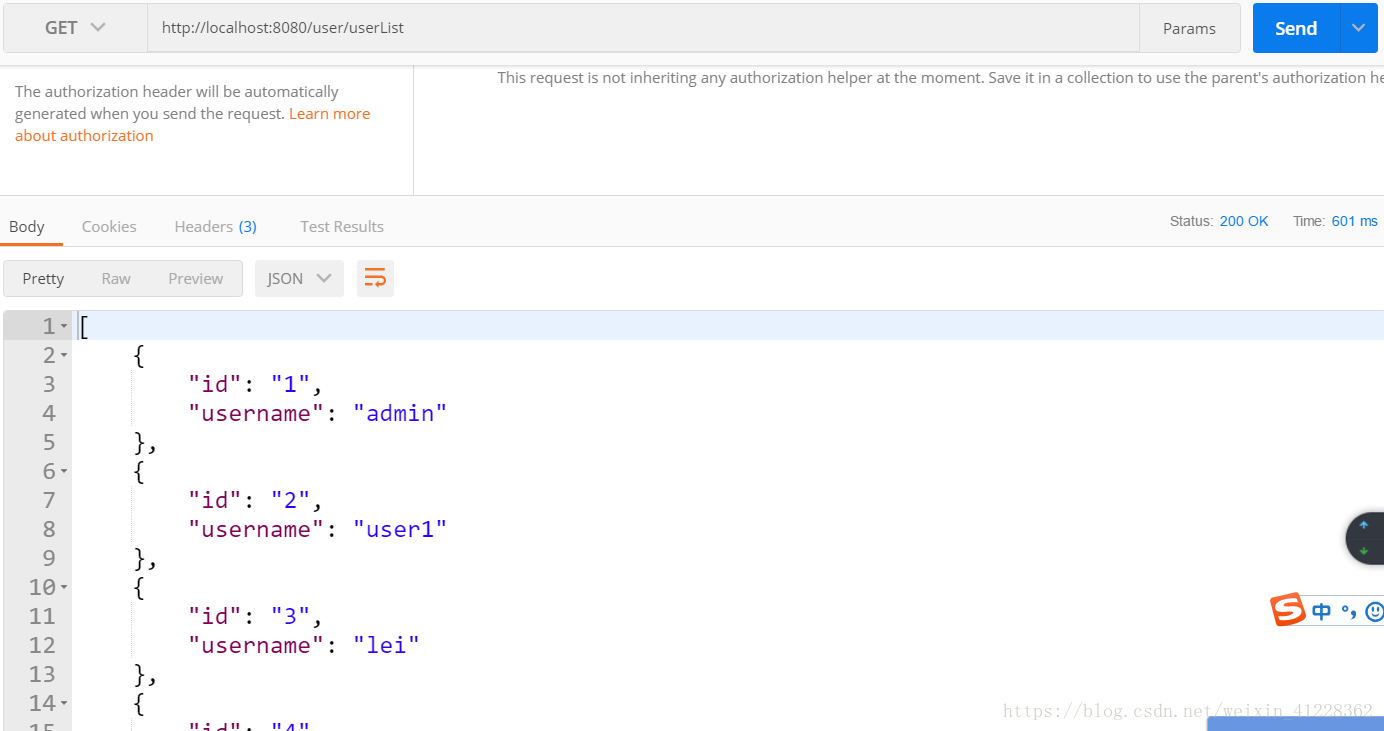

用postman测试

源码：https://download.youkuaiyun.com/download/weixin_41228362/10410222
