SLAM十四讲第二次作业-深蓝学院

1. r(A)=n:矩阵A的秩等于未知数的个数。
2. ⾼斯消元法：通过用初等行变换将增广矩阵化为行阶梯阵，然后通过回代求解线性方程组的解。原理是将方程组中每个方程含有的未知数的个数降到最低，并且最下面的方程含有的未知数的个数最少。
3. QR分解：把矩阵分解成一个列向量正交矩阵与一个上三角矩阵的积。原理是将矩阵每个列作为一个基本单元，将其化为正交的基向量与在这个基向量上的投影长度的积。
4. Cholesky 分解：将一个对称正定矩阵分解成一个下三角矩阵与其共轭转置之乘积。
5. 代码见：eigenMatrix.cpp与CMakeLists.txt
   eigenMatrix.cpp文件

/*求解 A * x = B 这个方程*/

#include <iostream>
#include <Eigen/Core>
#include <Eigen/Dense>
#include <Eigen/Cholesky>

using namespace std;
using namespace Eigen;

#define MATRIX_SIZE 100

int main( int argc,char** argv )
{
    MatrixXd A_pre = MatrixXd::Random( MATRIX_SIZE, MATRIX_SIZE );
    MatrixXd A = A_pre.transpose()*A_pre ;                  //使得A为正定对称矩阵，才能使得cholesky分解成功
    VectorXd B = VectorXd::Random( MATRIX_SIZE );
    VectorXd x = A.colPivHouseholderQr().solve(B);          //调用QR分解求解
    VectorXd y = A.llt().solve(B);                          //调用cholesky分解求解

    cout <<"A*x=B方程的解为\n"<< x << endl;
    cout <<"A*y=B方程的解为\n"<< y << endl;
}

CMaleLists.txt文件

cmake_minimum_required( VERSION 2.8 )
project( useEigen )

set( CMAKE_BUILD_TYPE "Release" )
set( CMAKE_CXX_FLAGS "-O3" )

# 添加Eigen头文件
include_directories( "/usr/include/eigen3" )

add_executable( eigen eigenMatrix.cpp )

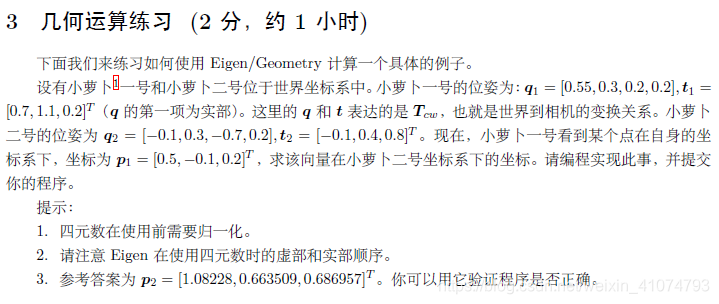

代码见：useGeometry.cpp与CMakeLists.txt

useGeometry.cpp文件

#include <iostream>
#include <cmath>
#include <Eigen/Core>
#include <Eigen/Geometry>

using namespace std;
using namespace Eigen;

int main(int arcg,char** argv)
{
    Quaterniond q1 = Quaterniond(0.55,0.3,0.2,0.2).normalized();   //定义并归一化四元数
    Quaterniond q2 = Quaterniond(-0.1,0.3,-0.7,0.2).normalized();
    Vector3d t1 ,t2,p1,p,p2;
    t1 << 0.7,1.1,0.2;
    t2 << -0.1,0.4,0.8;
    p1 << 0.5,-0.1,0.2;


    Isometry3d T_cw1 = Isometry3d::Identity();
    T_cw1.rotate ( q1 );
    T_cw1.pretranslate ( t1 );

    Isometry3d T_cw2 = Isometry3d::Identity();
    T_cw2.rotate ( q2 );
    T_cw2.pretranslate ( t2 );



    p = T_cw1.inverse() *p1;   //不能用转置，因为这里不是纯旋转，见书42页
    p2 = T_cw2 *p ;

    cout<<"p2 = "<<p2.transpose()<<endl;
}

CMakeLists.txt文件

cmake_minimum_required( VERSION 2.8 )
project( geometry )

# 添加Eigen头文件
include_directories( "/usr/include/eigen3" )

add_executable( eigenGeometry eigenGeometry.cpp )

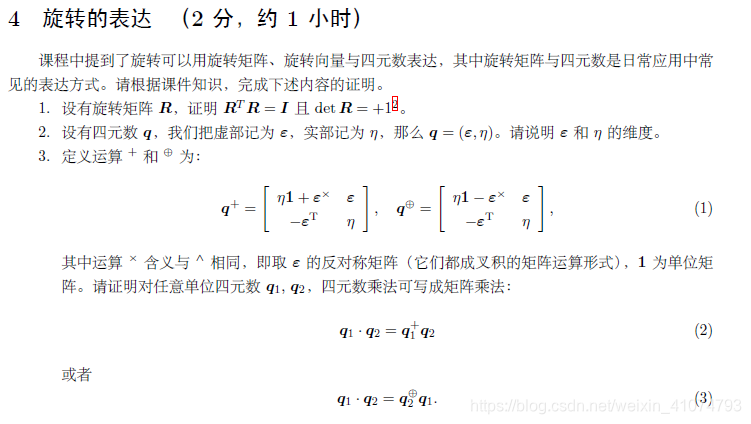

1. 证明：
   设某个单位正交基$(e_1,e_2,e_3)$经过一次旋转变成了$(f_1,f_2,f_3)$，那么旋转矩阵
   $$\begin{gathered} R=\left[\begin{array}{c}{e}_1^T\\ e_2^T\\ e_3^T\end{array}\right]\cdot \left[\begin{array}{ccc}{f}_1& f_2& f_3\end{array}\right] \\ \because \left[\begin{array}{c}{e}_1^T\\ e_2^T\\ e_3^T\end{array}\right]\cdot \left[\begin{array}{ccc}{e}_1& e_2& e_3\end{array}\right]=I \\ \begin{array}{rl}\therefore R^T\cdot R& =\left[\begin{array}{c}{f}_1^T\\ f_2^T\\ f_3^T\end{array}\right]\cdot \left[\begin{array}{ccc}{e}_1& e_2& e_3\end{array}\right]\cdot \left[\begin{array}{c}{e}_1^T\\ e_2^T\\ e_3^T\end{array}\right]\cdot \left[\begin{array}{ccc}{f}_1& f_2& f_3\end{array}\right]\\ & =\left[\begin{array}{c}{f}_1^T\\ f_2^T\\ f_3^T\end{array}\right]\cdot I\cdot \left[\begin{array}{ccc}{f}_1& f_2& f_3\end{array}\right]\\ & =I\end{array} \\ \therefore R^T\cdot R=I \end{gathered}$$
   $\begin{array}{rl}|R|& =\left|\begin{array}{c}{e}_1^T\\ e_2^T\\ e_3^T\end{array}\right|\cdot \left|\begin{array}{ccc}{f}_1& f_2& f_3\end{array}\right|\\ & =1\\ \therefore detR=\pm 1& \end{array}$
   又因为单位正交基的模为+1，
   $\therefore detR=+1$
   所以$R^{T}R=I$，且$detR=+1$
2. 证明：
   四元数由四个数组成，有一个实部和三个虚部，形如：$q=q_0+q_{1}i+q_{2}j+q_{3}k$。那么上述的$\epsilon =[q_1,q_2,q_3{]}^T\in {\mathbb{R}}^3$，$\eta =q_0\in \mathbb{R}$。
   所以$\epsilon$和$\eta$的维度分别为 3和1。
3. 证明： （一定要注意四元数实部与虚部的顺序,这里实部在最后）

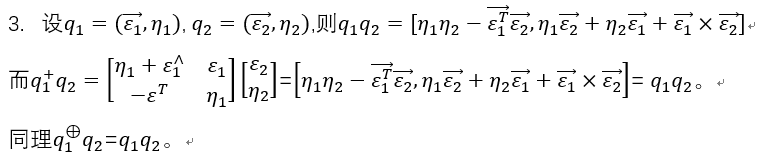

   令$q_1=[x_1,y_1,z_1,w_1],q_2=[x_2,y_2,z_2,w_2]$，其中$w_1,w_2$为实部
   $\begin{array}{rl}{q}_1\cdot q_2& =(w_1{x}_2+x_1{w}_2+y_1{z}_2-z_1{y}_2)i\\ & +(w_1{y}_2-x_1{z}_2+y_1{w}_2+z_1{x}_2)j\\ & +(w_1{z}_2+x_1{y}_2-y_1{x}_2+z_1{w}_2)k\\ & +w_1{w}_2-x_1{x}_2-y_1{y}_2-z_1{z}_2\end{array}$
   $\begin{array}{rl}{q}_1^{+}{q}_2& =\left[\begin{array}{cccc}{w}_1& -z_1& y_1& x_1\\ z_1& w_1& -x_1& y_1\\ -y_1& x_1& w_1& z_1\\ -x_1& -y_1& -z_1& w_1\end{array}\right]\left[\begin{array}{c}{x}_2\\ y_2\\ z_2\\ w_2\end{array}\right]\\ & =\left[\begin{array}{c}{w}_1{x}_2+x_1{w}_2+y_1{z}_2-z_1{y}_2\\ w_1{y}_2-x_1{z}_2+y_1{w}_2+z_1{x}_2\\ w_1{z}_2+x_1{y}_2-y_1{x}_2+z_1{w}_2\\ w_1{w}_2-x_1{x}_2-y_1{y}_2-z_1{z}_2\end{array}\right]\\ & =(w_1{x}_2+x_1{w}_2+y_1{z}_2-z_1{y}_2)i\\ & +(w_1{y}_2-x_1{z}_2+y_1{w}_2+z_1{x}_2)j\\ & +(w_1{z}_2+x_1{y}_2-y_1{x}_2+z_1{w}_2)k\\ & +w_1{w}_2-x_1{x}_2-y_1{y}_2-z_1{z}_2\\ & =q_1\cdot q_2\end{array}$
   所以：$q_1\cdot q_2=q_1^{+}{q}_2$
   同理可证：$q_1\cdot q_2=q_2^{\oplus }{q}_1$

证明方法二：


证明：

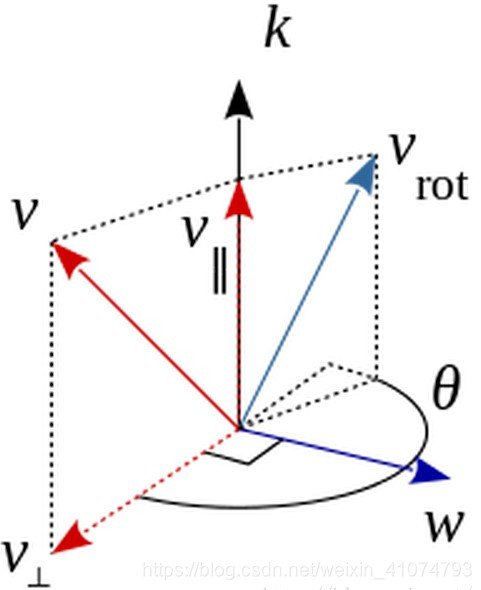

如上图，$V_{rot}$是由$V$通过旋转得到，旋转轴是K，旋转的角度为$\theta$，用旋转矩阵R表示该旋转，即为：$V_{rot}=R\cdot V$, 且$K$为单位向量，$||\vec{K}||=1$,
$V=V_{\perp }+V_{\parallel }$,
$V_{\perp }=V-V_{\parallel }=-K\times (K\times V)$，
$V_{\parallel }=(K\cdot V)\cdot K=K{K}^{T}V$,
则垂直分量和平行分量各自的旋转分量为：
$V_{\parallel rot}=V_{\parallel }$
$V_{\perp rot}=cos\theta V_{\perp }+sin\theta K\times V$
$\begin{array}{rl}\therefore V_{rot}& =V_{\parallel rot}+V_{\perp rot}\\ & =V_{\parallel }+cos\theta V_{\perp }+sin\theta K\times V\\ & =V_{\parallel }+cos\theta (V-V_{\parallel })+sin\theta K\times V\\ & =cos\theta V+(1-cos\theta )V_{\parallel }+sin\theta K\times V\\ & =cos\theta V+(1-cos\theta )K{K}^{T}V+sin\theta K^{\times }V\\ & =R\cdot V\end{array}$

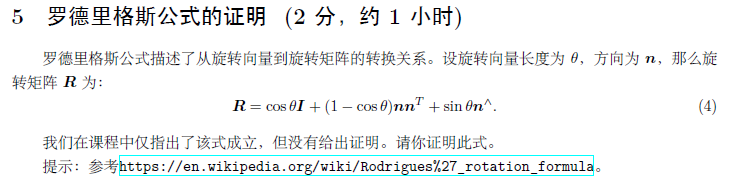

$\therefore R=cos\theta I+(1-cos\theta )K{K}^T+sin\theta K^{\times }$
$\therefore R=cos\theta I+(1-cos\theta )n{n}^T+sin\theta n^{\times }$

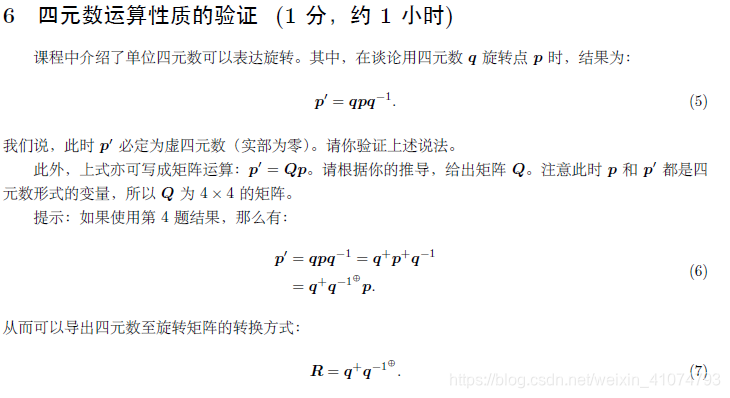

证明：

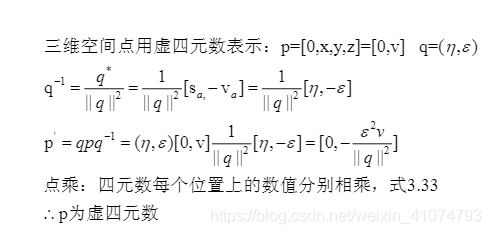

（1）$p^{{}^{\prime }}$的实部为0
假定点p的坐标为$p(x,y,z)$，则用四元数表示为：$p=[0,x,y,z]=xi+yj+zk$,
令$q=[cos\frac{\theta }{2},nsin\frac{\theta }{2}]=cos\frac{\theta }{2}+n_{x}sin\frac{\theta }{2}i+n_{y}sin\frac{\theta }{2}j+n_{z}sin\frac{\theta }{2}k$
$\because q^{\ast }=[cos\frac{\theta }{2},-\mathbf{n}sin\frac{\theta }{2}],q^{-1}=q^{\ast }/||q|{|}^2$
则 $q^{-1}=[cos\frac{\theta }{2},-nsin\frac{\theta }{2}]/||q|{|}^2=(cos\frac{\theta }{2}-n_{x}sin\frac{\theta }{2}i-n_{y}sin\frac{\theta }{2}j-n_{z}sin\frac{\theta }{2}k)/||q|{|}^2$
$\begin{array}{rl}\therefore p^{{}^{\prime }}& =qp{q}^{-1}\\ & =[cos\frac{\theta }{2},nsin\frac{\theta }{2}][0,x,y,z][cos\frac{\theta }{2},-nsin\frac{\theta }{2}]/||q|{|}^2\\ & =(cos\frac{\theta }{2}+n_{x}sin\frac{\theta }{2}i+n_{y}sin\frac{\theta }{2}j+n_{z}sin\frac{\theta }{2}k)(xi+yj+zk)((cos\frac{\theta }{2}-n_{x}sin\frac{\theta }{2}i-n_{y}sin\frac{\theta }{2}j-n_{z}sin\frac{\theta }{2}k)/||q|{|}^2)\end{array}$
将所有的实数取出,且忽略$||q|{|}^2$，则：
$$\begin{gathered} x{n}_{x}cos\frac{\theta }{2}sin\frac{\theta }{2}+y{n}_{y}cos\frac{\theta }{2}sin\frac{\theta }{2}+z{n}_{z}cos\frac{\theta }{2}sin\frac{\theta }{2} \\ +(-1)x{n}_{x}sin\frac{\theta }{2}xcos\frac{\theta }{2}+y{n}_x{n}_{z}sin\frac{\theta }{2}sin\frac{\theta }{2}+(-1)z{n}_x{n}_{y}sin\frac{\theta }{2}sin\frac{\theta }{2} \\ +(-1)y{n}_{y}sin\frac{\theta }{2}cos\frac{\theta }{2}+(-1)x{n}_y{n}_{z}sin\frac{\theta }{2}sin\frac{\theta }{2}+z{n}_x{n}_{y}sin\frac{\theta }{2}sin\frac{\theta }{2} \\ +x{n}_y{n}_{z}sin\frac{\theta }{2}sin\frac{\theta }{2}+(-1)y{n}_x{n}_{z}sin\frac{\theta }{2}sin\frac{\theta }{2}+(-1)z{n}_{z}sin\frac{\theta }{2}cos\frac{\theta }{2} \\ =0 \end{gathered}$$
所以实部为0，即$p^{{}^{\prime }}$的实部为0。

（2）$p^{{}^{\prime }}=Qp$，写出矩阵$Q$
$\begin{array}{rl}{p}^{{}^{\prime }}& =qp{q}^{-1}\\ & =q^{+}{p}^{+}{q}^{-1}\\ & =q^{+}{q}^{-1^{\oplus }}p\end{array}$
$\therefore Q=q^{+}{q}^{-1^{\oplus }}$
假定四元数$q=[x,y,z,w]$，其中$w$是实部，那么$q^{-1}=[-x,-y,-z,w]/||q|{|}^2$
$q^{+}=\left[\begin{array}{cc}\eta 1+{\epsilon }^{\times }& \epsilon \\ -{\epsilon }^T& \eta \end{array}\right]=\left[\begin{array}{cccc}w& -z& y& x\\ z& w& -x& y\\ -y& x& w& z\\ -x& -y& -z& w\end{array}\right]$,
$q^{-1^{\oplus }}=\left[\begin{array}{cc}\eta 1-(-\epsilon {)}^{\times }& -\epsilon \\ -(-\epsilon {)}^T& \eta \end{array}\right]/||q|{|}^2=\frac{1}{||q|{|}^2}\cdot \left[\begin{array}{cc}\eta 1+{\epsilon }^{\times }& -\epsilon \\ {\epsilon }^T& \eta \end{array}\right]=\frac{1}{||q|{|}^2}\cdot \left[\begin{array}{cccc}w& -z& y& -x\\ z& w& -x& -y\\ -y& x& w& -z\\ x& y& z& w\end{array}\right]$
$\begin{array}{rl}\therefore Q& =q^{+}{q}^{-1^{\oplus }}\\ & =\frac{1}{||q|{|}^2}\cdot \left[\begin{array}{cccc}w& -z& y& x\\ z& w& -x& y\\ -y& x& w& z\\ -x& -y& -z& w\end{array}\right]\left[\begin{array}{cccc}w& -z& y& -x\\ z& w& -x& -y\\ -y& x& w& -z\\ x& y& z& w\end{array}\right]\\ & =\frac{1}{||q|{|}^2}\cdot \left[\begin{array}{cccc}{w}^2+x^2-y^2+z^2& 2xy-2zw& 2wy+2xz& 0\\ 2xy+2zw& w^2-x^2+y^2-z^2& 2yz-2xw& 0\\ 2xz-2yw& 2yz+2xw& w^2-x^2-y^2+z^2& 0\\ 0& 0& 0& w^2+x^2+y^2+z^2\end{array}\right]\end{array}$

证明方法二：

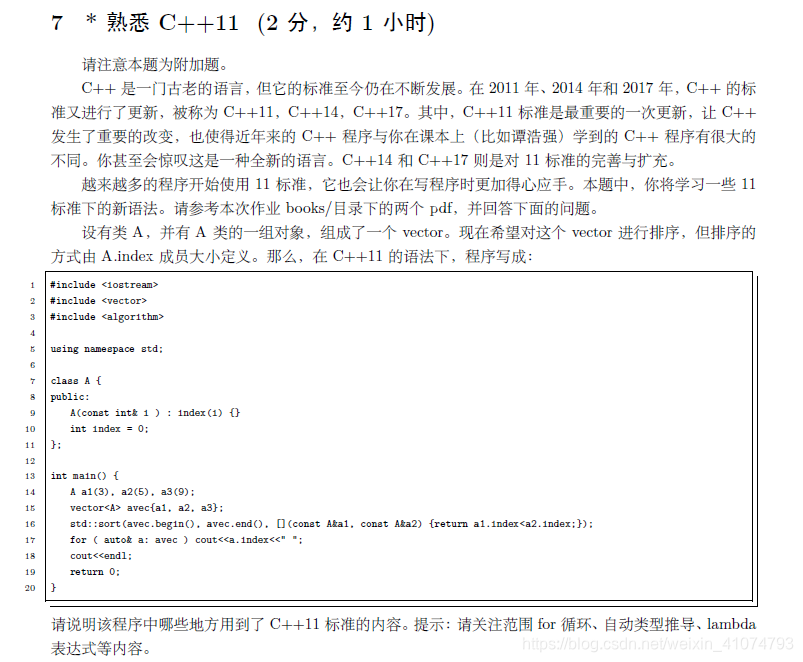

1. for(atuo& a: avec)
   范围for循环，用a遍历avec中的每个量；
2. for(atuo& a: avec)
   自动类型推导，根据a获得的值，用auto自动推断出a的类型；
3. [](const A&a1,const A&a2){return a1.index<a2.index;})
   运用了lambda表达式。
4. begin()
